Pioneer SX 737 (1974–1976)

Thirty-five honest watts, a walnut cabinet, and a tuner front end built around a dual-gate MOS FET - the mid-tier Pioneer that never had to shout.

Overview

The SX-737 was Pioneer's mid-tier receiver for 1974 through 1976. It sat in the middle of the silver-face lineup, above the SX-424, SX-535, and SX-636 and below the SX-838. Built in Japan, it carried a retail price of $399.95 in 1975 according to Stereo Review's Stereo Directory that year. Pioneer's own advertising called it a receiver that "doesn't waste watts" while still offering what the company called state-of-the-art advantages for versatility and true high-fidelity performance.

The rated power is 35 watts per channel into 8 ohms, minimum RMS, from 20 Hz to 20,000 Hz with no more than 0.5% total harmonic distortion. The original fact sheet for this model also lists 40 watts per channel into 4 ohms. The damping factor is 40 at 8 ohms, which means the amplifier holds a firm grip on speaker cones. That is why owners describe the bass as tight and controlled rather than flabby. Most sources quote a frequency response of 15 Hz to 40 kHz, though at least one retailer listing claims 10 Hz to 50 kHz. Treat the wider figure with suspicion. The amplifier is DC-coupled and runs from a dual power supply, which keeps the two channels from modulating each other under load.

The tuner is where Pioneer put the engineering money. The FM front end uses a frequency-linear 4-gang variable capacitor paired with a dual-gate MOS FET. HiFi-Stereo (July 1975, p.49) described the SX-737's engineering as "unsurpassed in its price range" and its overall performance level as "awesome," noting that it accommodated two pairs of speakers, turntable, tape decks with tape-to-tape duplication, and headphones. That is advertising-adjacent copy from a period magazine, but it lines up with the documented connection set. Up front are headphone and microphone jacks. On the back are an adjustable ferrite bar AM antenna, terminals for AM and FM antennae, RCA phono sockets for Phono and Aux, Rec/PB jacks for Tape 1 and Tape 2, a DIN socket for tape record/playback, and speaker terminals for two pairs of speakers.

Key Features

Dual-Gate MOS FET FM Front End with 4-Gang Tuning Capacitor

Most mid-priced receivers of the era used a 3-gang capacitor and a bipolar transistor front end. Pioneer went further with the SX-737: a frequency-linear 4-gang variable capacitor and a dual-gate MOS FET. The extra gang improves selectivity, which is the ability to pull one station cleanly away from its neighbors. The MOSFET front end is quieter and harder to overload than the simpler circuits used at the price point. This is the feature that most distinguishes the SX-737's tuner section from its siblings, and it's the one to check first on a used example.

DC-Coupled Amplifier with Dual Power Supply

The amplifier is DC-coupled, which means no coupling capacitors in the signal path. That gives fewer components, tighter bass response, and less phase shift. The dual power supply feeds the two channels independently, so a demanding passage in one channel doesn't drag down the other. Owners report a warm tonal character with tight, controlled bass and smooth highs, though those are descriptive claims from a single source rather than independently measured results.

Dual Tuning Meters and Full Control Set

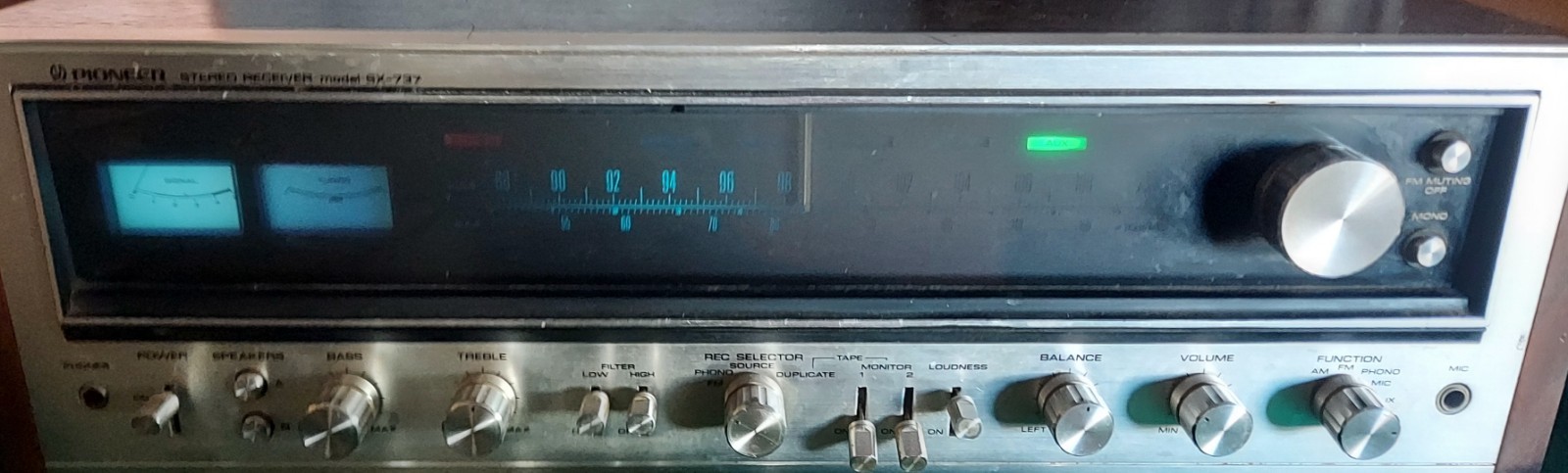

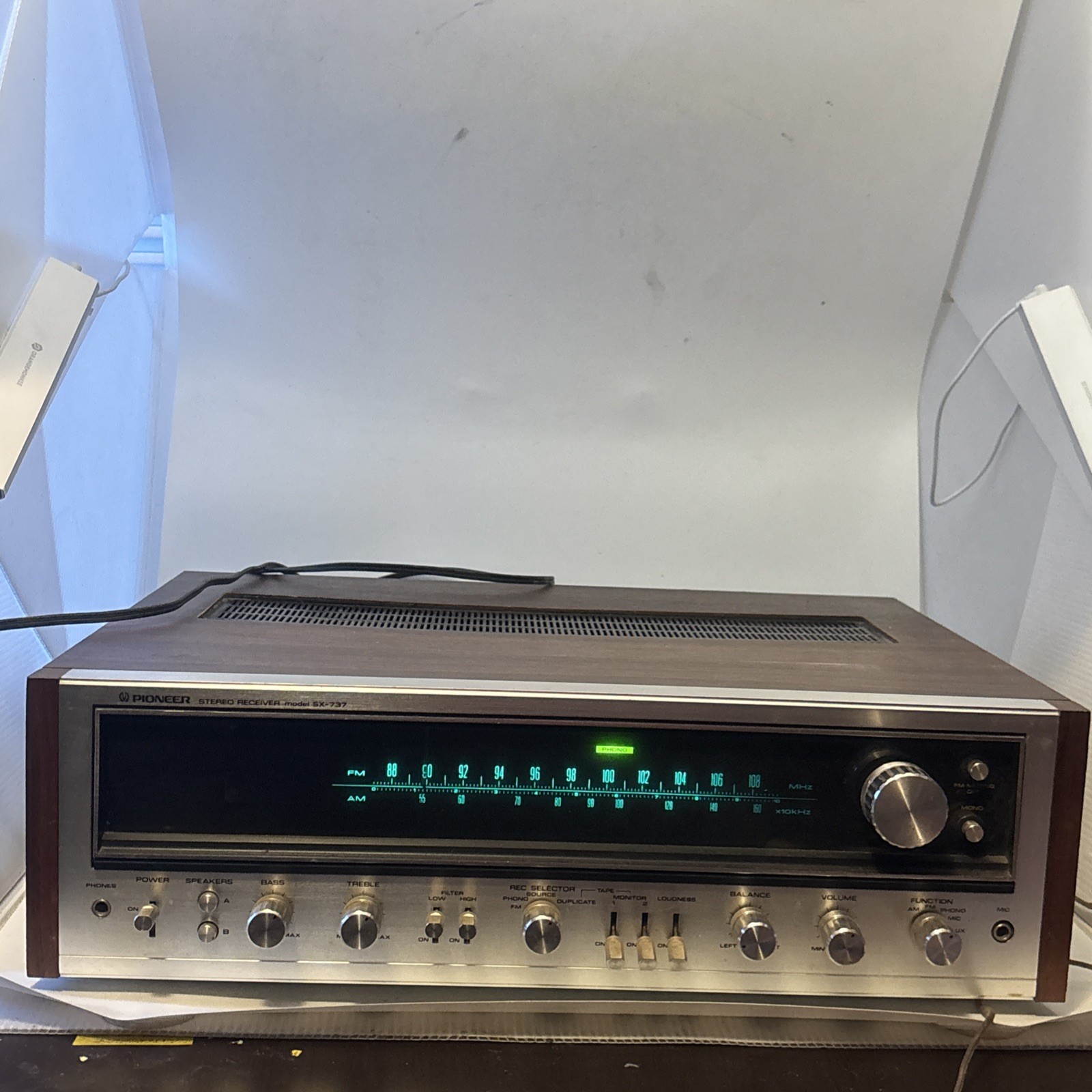

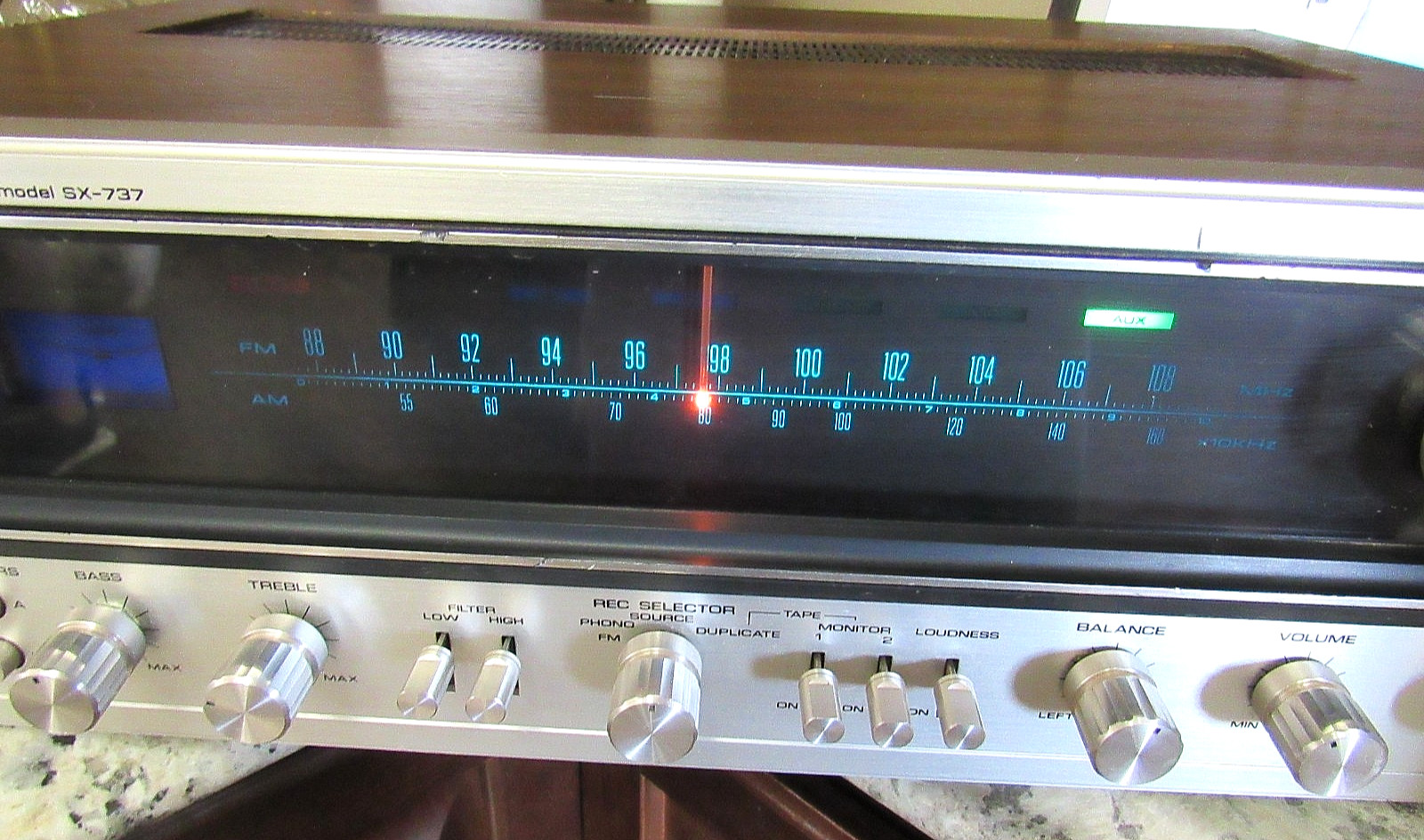

The faceplate carries dual tuning meters. The control set covers the essentials: a phono stage, a loudness control, a tape monitor, and the usual tone controls. It's a book-shelf unit in a walnut cabinet, the standard silver-face Pioneer formula. The feature list is mid-range rather than flagship.

Historical Context

The SX-737 was manufactured from 1974 to 1976, with production beginning in 1974. It appeared in Pioneer's 1974/75 Hi-Fi Stereo catalogue and was positioned as a mid to higher-end model in a lineup that ran from the SX-424 up through the SX-838. At $399.95 in 1975, it was not entry-level and not flagship. The DC-coupled amplifier, dual power supply, and FET front end were all aimed at fidelity rather than feature count, and that is the reputation the model carried into the used market.

Collectibility & Value

Market value sits in the $250-$500 range depending on condition and restoration status, with a collectibility rating around 7 out of 10. A live eBay listing has been observed at $595 for a clean example, though no date was attached to that price. Fully serviced and recapped units command the upper end of the range, and "fully revitalized" or "fully restored" examples are routinely offered by specialist sellers.

Maintenance is predictable. Potentiometers and selector switches tend to get noisy and usually respond to cleaning or replacement. Electrolytic capacitors dry out over time and should be replaced to keep the receiver reliable. Dial lamps burn out, and replacement LED kits for the SX-737 (also sold under the SX-7730 designation) are available for around $17. Don't skip the DC offset adjustment after any service. A quick calibration keeps the amplifier running cleanly and safely into the speakers. One for-sale listing notes that significant scratches on the bottom of the faceplate are common and worth checking before buying.

Build quality is the reason these still turn up working. One owner reported giving an SX-737 to a friend over thirty years ago, and the friend is still using it. Another brought one back from the curb with no electrical work at all and found it sounded great as-is. The "electrical gremlins" forum threads exist, but they're the exception rather than the rule. The restoration articles that document these receivers coming in for service suggest technicians understand the platform well.
