Pioneer SX 525 (1973-1975)

At roughly $240 and 17 pounds, this was Pioneer's argument that budget stereo didn't have to sound like a compromise. The blue backlit dial was hard to forget after dark.

Overview

The Pioneer SX-525 is an AM/FM solid state stereo receiver, one of the "x2x" series machines that collectors now treat as the definitive mid-tier silver-face Pioneer. The case is walnut-veneer, the faceplate is silver, and the dial face is black. The dial and signal meter are backlit blue, with a red dial indicator, and it looks good with the lights off. It weighs 17 pounds, 10 ounces without the packaging and measures 17-11/16 inches wide, 5-11/16 inches tall, and 14-3/16 inches deep. That is a compact shelf footprint by the standards of the era.

Inside, the manual lists 33 transistors, 29 diodes, 2 ICs, and a single FET. The amplifier section is built around a SEPP output stage, and Pioneer's service documentation makes a point of the muting circuit developed for it. A rectified negative voltage holds the muting transistor off at power-up. Then the +B rail builds gradually at the driver base through a long time constant. Per the manual's circuit description, no abrupt pulse flows through the output coupling capacitor to the speakers when you flick the switch. On power-down, the muting transistor's collector is practically grounded and the speaker output is cut instantly. No thump, no stress on drivers.

Power ratings for the SX-525 depend on which figure you read. The page-level spec table lists 20 watts per channel into 8Ω across 20Hz to 20kHz at 0.8% THD. The service manual's amplifier section gives more detail: continuous power output of 17W + 17W into 8Ω with both channels driven, 21W + 21W into 4Ω, and 20W/20W into 8Ω per channel driven. Music power output is listed at 52 watts into 8Ω and 72 watts into 4Ω. Owners report the little receiver punches well above its rating. One owner noted it drives ADS L500 speakers to loud levels on the 13-watt-per-channel figure that circulates on some listing sites. Take the 13W spec with a grain of salt. The manual's continuous rating is the more defensible number, and either way the SX-525 is a modest-power machine.

Pioneer's own advertising of the period said budget stereo could have "a lot of the power and a lot of the frills of very expensive stereo." That was the pitch. The SX-525 wasn't the most powerful thing on the shelf, but it was the most thoughtfully specified thing at its price.

Key Features

FET Front End and 4-Gang Tuning Capacitor

The tuner front end uses a field-effect transistor stage feeding a 4-gang tuning capacitor. In this era, that was the difference between a receiver that pulled in stations cleanly and one that didn't. The manual lists usable FM sensitivity at 2.2µV IHF, capture ratio at 3dB, selectivity greater than 45dB, image rejection greater than 50dB at 98MHz, and IF rejection greater than 80dB at 90MHz. Stereo separation is rated at more than 40dB at 1kHz, and the subcarrier suppression is also more than 40dB. Signal-to-noise is listed at 65dB, with distortion under 0.6% in mono and under 0.8% in stereo at 100% modulation. HiFi-Stereo (March 1973, p.55) framed the SX-525's appeal in these terms, noting that whether a listener lived in the boondocks or a congested FM market, the FET/IC circuitry let the receiver pull stations in without interference. The muting and noise filter are both switchable, and the FW export version adds a de-emphasis selector for 50µs or 75µs curves.

Dual Power Supply

The SX-525 runs separate supply rails, which is unusual at this price point. It's part of why the receiver has a reputation for stable, low-noise operation. Power consumption is listed at a maximum of 120W.

Phono Stage and Inputs

The phono input is moving-magnet compatible, with a sensitivity of 2.7mV into 50kΩ at 1kHz for rated output, and an RIAA equalization curve. Hum and noise on the phono input is rated better than 75dB IHF. The AUX input manages better than 85dB. A mic input is also provided at 6mV into 100kΩ. Two tape monitor loops are fitted, with 200mV/70kΩ input sensitivity and 200mV pin-jack recording outputs, plus a DIN tape connector at 30mV. The front-panel selector covers AM, FM mono, FM auto, Phono/Mic, and Aux, with bass, treble, and balance controls. The loudness contour adds +11.5dB at 100Hz and +6dB at 10kHz when the volume control is set at the -40dB position.

Speaker Flexibility and Damping

Speaker outputs accept 4 to 16Ω loads, and the damping factor is 40 at 8Ω and 1kHz. That is high enough to keep a tight grip on the woofer's back EMF, which is part of why these receivers are remembered as sounding controlled rather than woolly. The amplifier bandwidth is listed at 10Hz to 45kHz at 8Ω with harmonic distortion under 1%, and the frequency response is 15Hz to 30kHz, ±1dB.

AM Tuner

The AM section tunes 525kHz to 1,605kHz with a built-in ferrite loopstick antenna. Usable sensitivity is 15µV, selectivity better than 22dB, image rejection better than 45dB at 1,000kHz, IF rejection better than 35dB, and signal-to-noise better than 50dB. Antenna inputs are 300Ω balanced and 75Ω unbalanced. (The archive.org transcription of the manual renders the AM impedance figures as "3000 balanced and 750 unbalanced." That is almost certainly an OCR error for 300Ω and 75Ω, so verify against the original manual before relying on it.)

Five Regional Versions

The SX-525 was sold in five variants distinguished by a round label on the rear panel: KCW (120V, CSA approved for Canada), KUW (120V, UL approved for the USA), FVZW (5-position voltage selector, FTZ approved for West Germany), NBW (220V, approved for Sweden, Norway, and Denmark), and FW (5-position selector, general export model with the de-emphasis switch). Power requirements are 120V 60Hz, or 110V, 120V, 130V, 220V, and 240V switchable at 50-60Hz depending on version. The unit was made in Japan.

Historical Context

Pioneer introduced the SX-525 in 1972 and continued production until around 1974. The page title and several listings give 1973-1975, and one source says 1971-1973, so the exact window is muddled in the surviving documentation. It was positioned as a low-to-medium-powered receiver for buyers on a budget, and it retailed for about $240, with one source citing an MSRP of $260. With a walnut cabinet included, it sat at the accessible end of Pioneer's silver-face lineup. Collectors describe the x2x series as striking a rare balance of serious performance without the premium price tag.

Collectibility & Value

HifiEngine lists six user reviews for the SX-525, and the receiver turns up regularly on the used market. Expect $150 to $300 for a clean, working example depending on condition and cosmetics. Recent listings have ranged from $190 for a unit described as 99% external condition to $350 for a straight receiver. European examples have been listed around €290. The collectibility rating sits at 7/10.

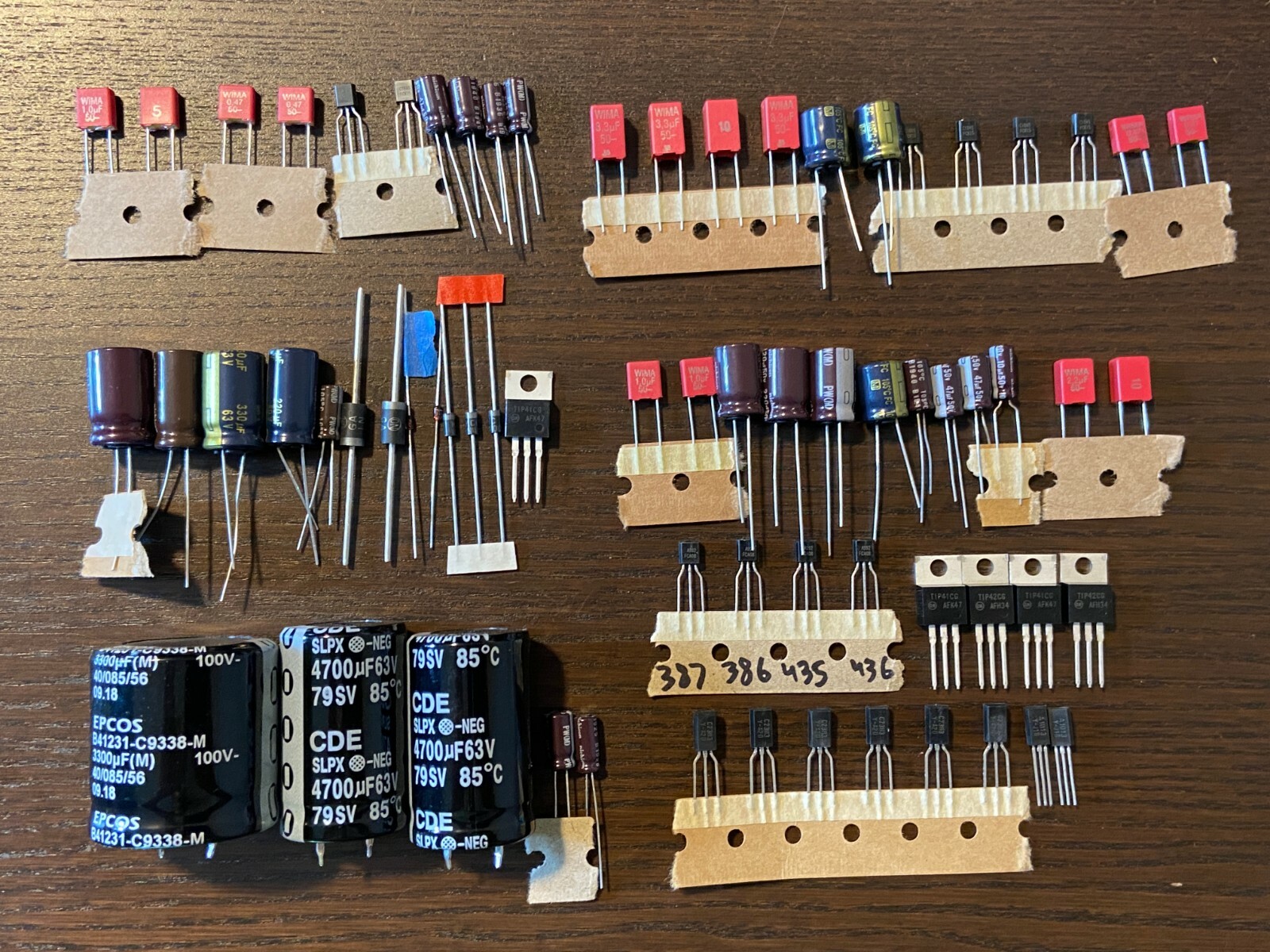

Restoration is straightforward but not optional. The controls and switches stiffen and get scratchy over five decades, and contact cleaner usually brings them back. The electrolytic capacitors are almost certainly dried out, and recapping is close to mandatory for reliable long-term operation. Dial lamps burn out, and a lamp kit covering the SX-525 is still sold. The power supply and output transistors are the two areas to watch for failure. A full recap and service turns a tired unit into a vibrant one. Parts support is decent: the bass control (Pioneer part C82-046-A) also fits the treble position and is still findable, and a tuning knob shared with the SX-626 turns up on the used market. The original service manual runs 46 pages and is available through archive.org.
