Pioneer SX 550 (1975–1978)

Twenty watts a side, a walnut-vinyl cabinet, and a receiver that never needed to prove anything.

Overview

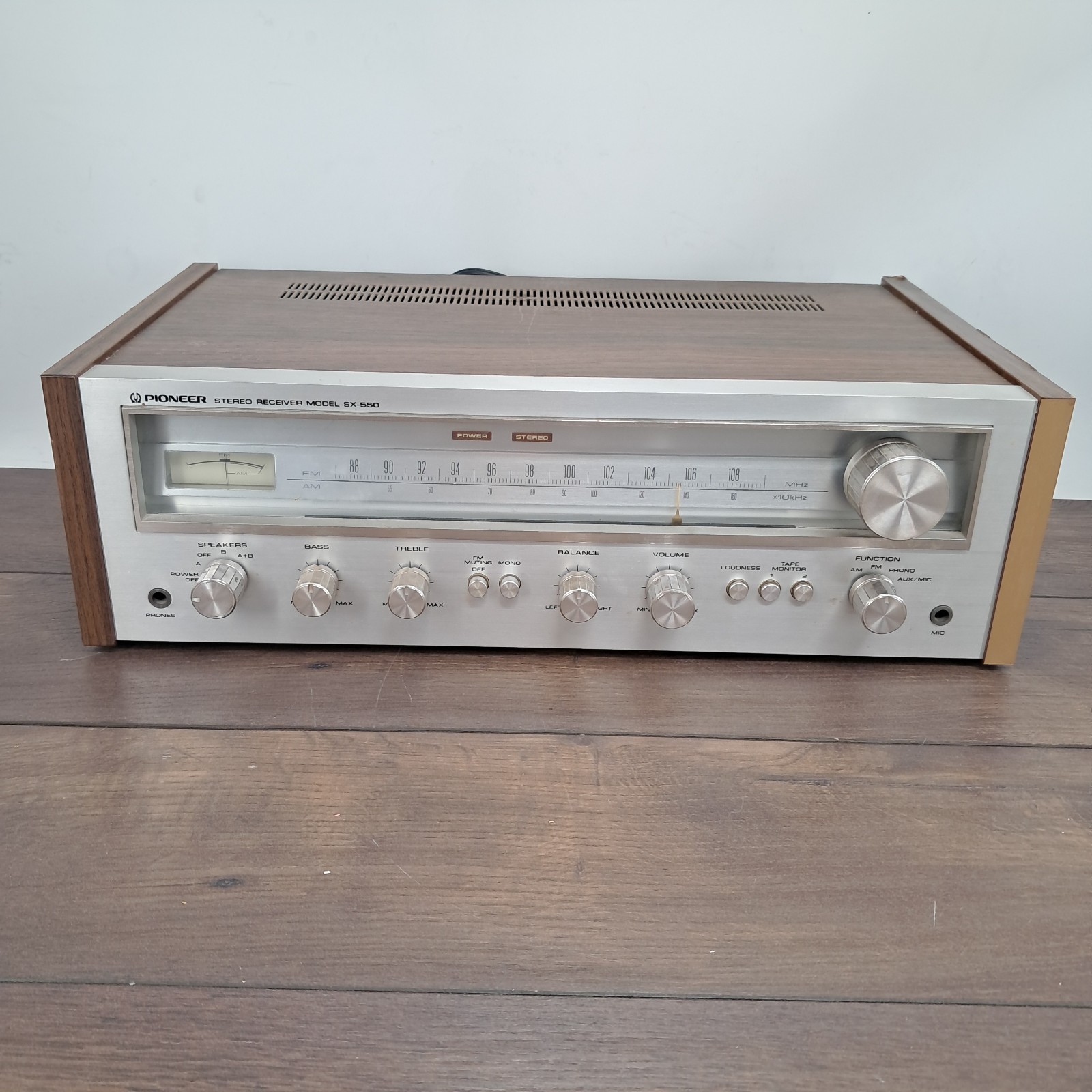

At 20 watts per channel into 8 ohms, the Pioneer SX-550 does not win arguments on paper. It wins them on the shelf. It is a compact, silver-faced receiver from Pioneer's most celebrated decade, built to do the small things well. The power section is rated continuous from 20 Hz to 20,000 Hz with both channels driven. That is a full-bandwidth rating, not a peak figure inflated for the spec sheet. Harmonic and intermodulation distortion are both held to less than 0.3 percent. The amplifier is a direct-coupled OCL design with a differential first stage, the same topology Pioneer used up and down its line, scaled here to a budget chassis.

Production years are murky. The page title here follows the 1975-1977 window, but HiFi Engine and Catawiki both list 1976-78, and one enthusiast reference claims the model was introduced in 1977. "Mid-to-late 1970s" is the safe answer. Don't lean hard on any single date. Placement is not in dispute: the SX-550 is one of the smaller receivers Pioneer produced, the successor to the SX-535, and a member of the silver-face SX family that defined the brand's 1970s identity.

For the money, buyers got a stereo AM/FM receiver with FM muting, two tape monitors, and provision for two pairs of speakers. That made it a real system hub rather than a starter box. Contemporary audio press placed the SX-550 in the sub-$300 receiver tier, noting that it sounded as good as models costing twice as much (Audio, April 1978, p.119). The tuner covers FM and MW. Input sensitivity is quoted at 2.5 mV for moving-magnet phono, 7.5 mV for mic, and 150 mV for line and DIN sources. Signal-to-noise is 70 dB on the phono stage and 90 dB on line inputs. None of those figures is spectacular alone, but together they describe a machine engineered to be quiet where it counted.

Key Features

Direct-Coupled OCL Power Amplifier with Differential First Stage

The output stage is direct-coupled and output-capacitor-less, with a differential amplifier handling the first stage. That was Pioneer's house approach across the SX line. It buys two things a listener notices: tighter control over the low end, and no output coupling capacitor between the amplifier and the speakers. Owners pairing it with efficient bookshelf speakers report it plays louder than the number suggests. Pair it with something hungry and it runs out of headroom early. That is what 20 watts means.

FM Muting, Two Tape Monitors, and Twin Speaker Pairs

FM muting silences the inter-station noise between broadcasts instead of blasting it at you while you hunt for a signal. Two tape monitor loops mean the SX-550 can sit at the center of a dubbing chain without a switching box. The provision for two pairs of speakers (A, B, or A+B) makes it useful in a room where the listening position moves. These are not glamorous features, but they decide whether a receiver gets used daily or gets replaced.

Weighted Analog Flywheel Tuning and Precision Meter

The tuning knob is flywheel-weighted. The dial carries momentum, and fine-tuning a weak FM station stops feeling like a chore. A tuning precision meter sits alongside it, and an FM stereo indicator light confirms when you have locked a stereo broadcast rather than a mono signal. The tuning section is a 3-gang design. Some documentation for this model describes a 5-gang capacitor and an FET front end, but those claims appear in only one source and are not corroborated elsewhere, so treat them with caution. The 3-gang figure is the better-attested one.

Bass, Treble, and Balance Controls

Tone controls are straightforward: bass, treble, and balance, with a loudness contour for low-volume listening. The cabinet wears a walnut vinyl finish. Restoration-minded owners have been known to replace it outright with real maple veneer, which says something about how the rest of the chassis holds up. The styling is late-1970s Pioneer SX: silver faceplate, clean control layout, no excess.

Historical Context

The SX series were Pioneer's flagship line through the 1970s, and the company's reputation in that decade rests substantially on them. These receivers are characterized by a warm sound and a high-quality finish. The SX-550 sits near the bottom of that family in size and price. It is the successor to the SX-535, and it exists because Pioneer wanted a credible entry point into the silver-face lineup without asking buyers to settle for something that felt cheap.

It did not come without a compromise, and the compromise was geographic. The lower retail price was achieved in part by outsourcing manufacture to the Republic of Korea — a decision that would have raised eyebrows among buyers who equated Japanese assembly with quality. The SX-550 is, in that sense, a document of a specific moment in the 1970s: a major Japanese brand testing how far it could push production offshore while keeping the badge's reputation intact. By most accounts it worked, though collectors today tend to prize the earlier, domestically-built SX models more highly.

Collectibility & Value

Values sit in the $150 - $300 range depending on condition and cosmetics, with a collectibility rating around 7 out of 10. That is respectable, but not the fever pitch that surrounds the big SX-1250 and SX-1980. A serviced example has been listed as high as $560, and retail listings have appeared around €270 EUR, though neither figure should be treated as a firm market benchmark. Support is unusually healthy for anyone intending to use one. A dedicated restoration kit exists for the AWE-072-0 board covering tuner, phono, and tone sections. Individual replacement parts (FM muting switches, tape monitor switches, tuning meters) surface regularly, and both the service manual and the original large fold-out schematic are in circulation.

As for what goes wrong: pots and switches get scratchy with age, and contact cleaner usually brings them back. Electrolytic capacitors are likely dried out after nearly fifty years, and a full recap is almost always worth doing. Dial lamps burn out quietly and are easy to overlook. The power supply is worth a close look on any unit that has sat idle for years, since transistor stress there is the failure mode to watch for.
