Pioneer SX 450 (1976-1978)
Fifteen honest watts, a walnut-veneer cabinet, and an entry-level receiver that never pretended to be anything else.
HiFI-Stereo (February 1978, p.116) listed the Pioneer SX-1250 at $545.00 and the SX-1050 at $454.00 in its dealer advertising pages. The SX-450 sat below both in Pioneer's silver-face lineup.
Overview

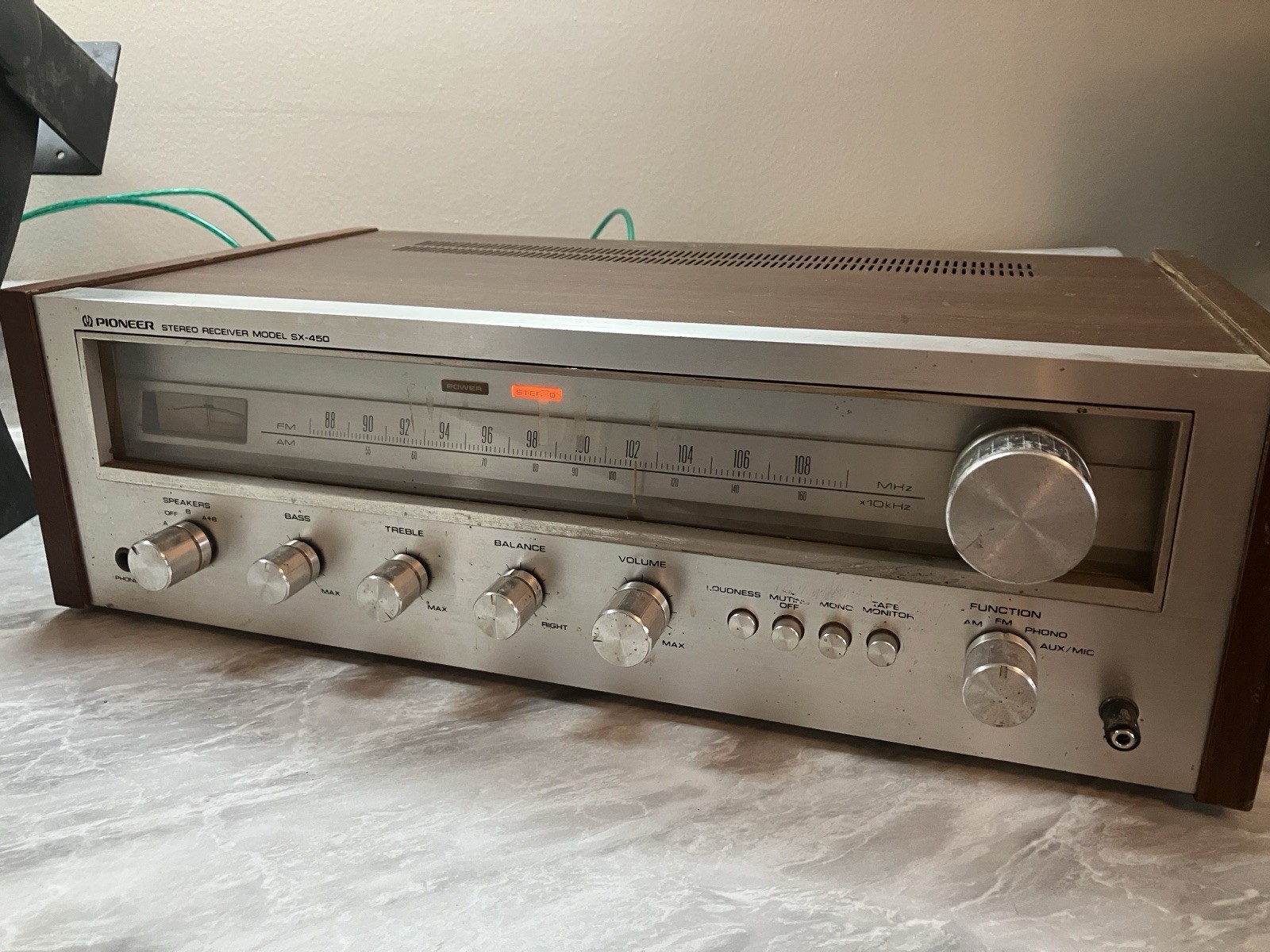

The Pioneer SX-450 is a stereo receiver built from 1976 to 1978. It belongs to the same silver-face family that defined Pioneer through the 1970s. Period documentation describes it as an entry-level receiver - the kind a first-time buyer could afford. It tunes FM and MW, has a moving-magnet phono stage, and delivers 15 watts per channel into 8 ohms across the full 20 Hz to 20 kHz band with both channels driven. That bandwidth detail matters more than the number. A full-bandwidth rating at 0.5% THD is not a peak figure cooked up for a spec sheet.
The amplifier section is a direct-coupled OCL circuit with a first-stage differential amplifier. Pioneer used the same topology up and down its line, scaled here to a budget chassis. The tuner front end uses a low-noise FET feeding a frequency-linear 3-gang variable capacitor, which is where the FM sensitivity comes from. The parts count is modest: one FET, three ICs, 28 transistors, and 15 diodes.
Owners report the sound is smooth, with slightly rolled-off highs and a gentle midrange that never turns harsh. The 15 watts won't shake walls, but they give clean, controlled output into modest setups. The MM phono stage is a highlight, with crisp vinyl playback and little coloration for this price point. It is not a powerhouse.
Key Features
Direct-Coupled OCL Power Amplifier with Differential First Stage
The output stage is direct-coupled and output-capacitor-less, with a differential amplifier handling the first stage. That means tighter control over the low end and no coupling capacitor between the amplifier and the speakers. The damping factor is rated at 25 across 20 Hz to 20,000 Hz into 8 ohms. That is not spectacular, but it is respectable for a receiver of this class, and it explains why the SX-450 sounds more composed than its wattage suggests. A dual power supply and a protection circuit round out the amplifier section, both unusual at the entry level.
Low-Noise FET Front End with 3-Gang Tuning Capacitor
FM sensitivity depends on what happens before the signal reaches the IF strip. Pioneer put a low-noise FET in the front end, feeding a frequency-linear 3-gang variable capacitor. The tuner pulls in stations cleanly without the hiss that plagues cheaper designs of the era. FM muting suppresses interstation noise while tuning. It can also suppress weak signals, so the front-panel button that defeats it is worth knowing about. The tuning range covers FM and MW.
MM Phono Stage with 2.5 mV Sensitivity
The phono input is rated at 2.5 mV sensitivity into 50 kOhms, with a maximum allowable input of 200 mV at 1 kHz before overload. That is a proper moving-magnet stage, and it is one reason the SX-450 still earns a place in a vinyl-first system. Signal-to-noise is 70 dB on the phono stage and 90 dB on line inputs. Line-level inputs are rated at 150 mV, and a mic input is provided at 7.5 mV sensitivity for a high-impedance dynamic microphone.
Twin Speaker Pairs, Tape Monitor, and Loudness Contour
The SX-450 provides for two pairs of speakers. The tape monitor switch allows playback and recording monitoring. The loudness contour compensates for the ear's reduced sensitivity to bass and treble at low listening levels. Bass and treble controls offer the usual ±adjustment, and the balance control handles left-right trim. The whole thing sits in a walnut-veneer cabinet behind a silver faceplate, which is what buyers expected from Pioneer in 1976.
Collectibility & Value
The SX-450 is not a flagship, but it is a clean example of the silver-face era. Current market value is generally cited at $100 to $250 depending on condition and cosmetic appearance, with a collectibility rating around 5 out of 10. Restored examples have been observed listed higher - one professionally serviced unit recently appeared at $325 - so treat the $100-$250 range as a floor for rough examples and expect to pay more for anything properly gone through. A Korean listing from 2021 showed a sale price of 12,345 won, though that figure looks like a placeholder and should be treated with caution.
Maintenance is straightforward and well understood. These units often arrive with gritty, scratchy controls, and cleaning the potentiometers usually restores smooth operation. Aging electrolytic capacitors are the next priority - replacing them prevents hum, distortion, or worse. Dial lamps burn out after decades, and early signs of transistor failure in the power supply are worth watching for. The parts are common enough that restoration is not an ordeal.
