Roland TB-303 (1981–1984)

Name: Roland TB-303
Brand: Roland

A failed bass-guitar simulator that became the most influential monosynth ever built, and the reason a generation of producers kept chasing that squelch.

Overview

The TB-303 weighs 1.0 kg and stands a hair over two inches tall. It has no display and no MIDI. It has a regular output jack, a stereo headphone jack, and a 13-key mini keyboard whose keys are tiny and stiff. By any conventional measure of a 1981 synthesizer, it is a toy. It also rewired electronic music.

Roland built it as a "bass player in a box" - a monophonic analog bass synthesizer married to a pattern-based step sequencer, intended to accompany solo guitarists who couldn't afford a real bassist. The pitch was that it would simulate a bass guitar. It did not. Roland had no intention of making it sound like a real bass guitar, and the idea that it was supposed to is one of the more persistent errors in synth lore. What came out was a sharp, nasal, aggressively synthetic tone, so alien that most musicians of the early '80s wanted nothing to do with it. Guitarists wanted a robot bassist that sounded like a bass, not like a dying mosquito.

The engine underneath is straightforward: analog subtractive synthesis, a single DCO, sawtooth and square/pulse waveforms, a 24dB/oct resonant low-pass filter of the diode ladder type, an ADSR envelope, and one LFO with square wave only. A 16-step monophonic sequencer handles real-time and step recording, with four user patterns and one song of up to 24 measures. The audio path is clean enough on paper - 20 Hz to 20 kHz at -3 dB, THD under 0.5% at 1 kHz, signal-to-noise around 70 dB, output level a typical 1 Vpp. Nobody bought a 303 for its noise floor.

Nobody understood in 1981 that the filter was the whole instrument. The diode ladder design gives a sharper, more aggressive resonance peak than the transistor ladder filters used elsewhere. Its behavior is nonlinear and slightly unpredictable, especially as components age. Crank the resonance and sweep the cutoff and the filter doesn't just emphasize frequencies. It oscillates, shrieks, and squelches. No software emulation has perfectly captured that chaos, which is why purists still insist on the real thing.

Key Features

16-Step Sequencer with Accent and Slide

The sequencer is where the 303 stops being a plain synth and becomes a compositional engine. Sixteen steps, monophonic, recordable in real time or entered note by note. The key detail is that accent and slide could be assigned to individual steps, not globally. Accent boosted the amplitude and widened the filter envelope, producing punchy hits that stand out against the surrounding notes. Slide, a portamento function, allowed smooth glides between notes. Stack rapid step sequences with alternating accent and slide and you get the bubbling, melting basslines that define acid. The machine was not designed for this. It simply permitted it.

24dB/oct Diode Ladder Filter

Most resonant filters in this era used transistor ladders. The 303's diode ladder gives a sharper, more aggressive resonance peak, and the circuit is nonlinear in a way that resists clean modeling. Sweep the cutoff under sequencer control with resonance high and the filter goes into self-oscillation. That produces the shrieking, liquid wail that producers in Chicago and Detroit built entire records around.

Compact, Self-Contained Design

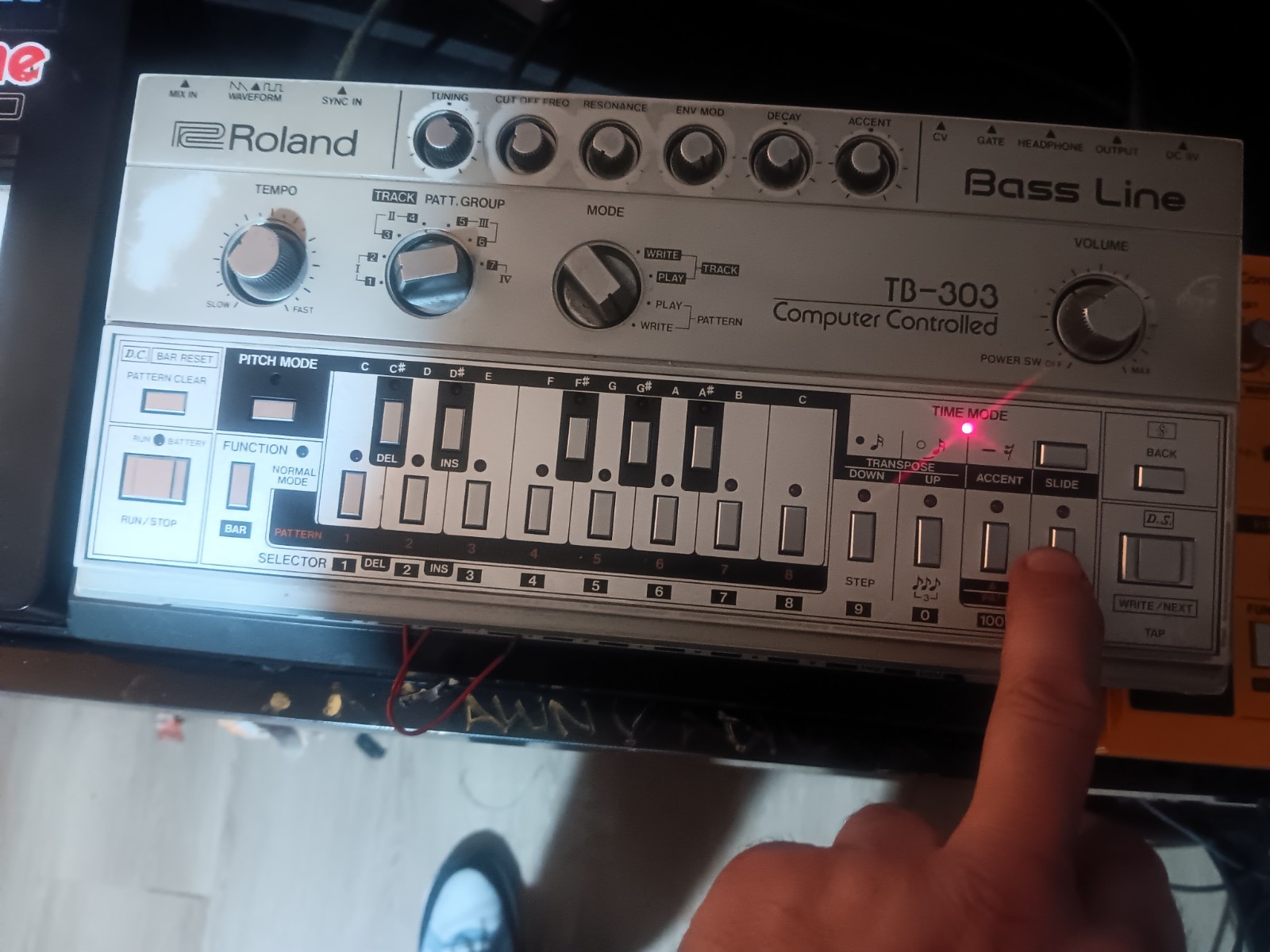

At 300 × 55 × 146 mm and 1.0 kg, the 303 was built for portability - battery or AC, with a carrying case included as standard and a headphone jack on the back. The front panel is sparse: knobs for cutoff, resonance, envelope modulation, decay, accent, waveform, and a handful of sequencer controls, plus tuning and tempo. There is no display. There is no MIDI. There is one regular unbalanced mono output jack and a stereo headphone jack. Owners report that the minimalism forces you to think in sequences rather than chords, and to commit to decisions rather than scroll past them. The 13-note mini keyboard is not a performance surface. It's an input device for the sequencer, and the keys feel like it.

Historical Context

Roland released the TB-303 in 1981 as part of an early-'80s push into affordable, programmable groove tools alongside the TR-808 drum machine and the MC-202. The 303 was meant to be the bass counterpart to the TR-606 rhythm box, forming a self-contained backing band for a solo performer. It sold poorly. Roland discontinued it in 1984 after selling fewer than 10,000 units. By then the market had moved on. Digital synths like the Yamaha DX7 were arriving with pristine FM tones and MIDI connectivity, and a monophonic analog box without MIDI looked like a dead end. The TB-303 itself could be synchronized with a TR-606, TR-808, or CR-8000 using a standard five-pin DIN cord.

The machine's second life started in the used market, where it was cheap enough that Chicago producers, including Phuture and Sleezy D, could afford one. By the mid-1990s, acquiring a TB-303 along with a TR-808 and TR-909 could cost close to £2,000 (Sound-on-Sound-UK, August 1996, p.82). Phuture's "Acid Tracks" (1987) exploited the resonant filter and the sequencer's quirks to build something nobody had heard before, and by the mid-to-late 1980s the TB-303 had become the defining instrument of acid house. The lack of MIDI forced producers to work in isolation with the machine and let it surprise them.

Collectibility & Value

A working TB-303 in good condition now commands between $3,000 and $5,000 USD, a big multiple of its original $695 asking price in 1982. With fewer than 10,000 units ever made and decades of circuit degradation, fully functional units are very rare. eBay listings for clean originals sit around $4,500. The clone and reissue market - x0xb0x, TB-03 Boutique, and others - exists because originals are out of reach for most players.

The failure points are well documented. Capacitor leakage, particularly in the power supply and filter section, can damage the PCB if left unchecked, and many surviving units have been recapped. That is often a good sign, but ask for details. The slider potentiometers for cutoff, resonance, and envelope modulation are prone to wear, and gritty or jumpy response is a red flag. Buyers should test every knob and slider, confirm the sequencer records and plays back accurately, and verify that accent and slide function on individual steps. The 303 runs on 9 V DC via a BOSS AC adaptor jack, and a correct adapter is essential. The wrong voltage can fry the board instantly. Spare parts, including original Mitsubishi 2SC1583G transistors, circulate on the secondary market for those willing to keep a unit alive.
