Korg Wavestation (1990–1994): The Synth That Broke the Loop

Name: Korg Wavestation
Brand: Korg

Other synths played back samples. The Wavestation made them move with wave sequencing, and that gave digital synths a way to build evolving, cinematic sounds.

Overview

The Korg Wavestation arrived in a crowded early-'90s market. Reportedly released in 1990 at approximately $1995, it landed when most digital synths were still stuck in the "sample and hold" approach, layering static PCM waves into lush but unchanging pads. The Wavestation broke that with wave sequencing. You could chain up to 255 different PCM waveforms in a single oscillator, each with independent timing, crossfade, and looping parameters. That is more than modulation. It is narrative synthesis, where sounds evolve like film scores, shift like tides, or stutter like broken machinery. It was the first mainstream synth that could convincingly mimic the organic unpredictability of nature or the rhythmic complexity of sequenced electronic music without external sequencers.

Michael Stearns (known for his work on Chronos) used it, and film and TV scoring adopted it for atmospheric textures. It became a secret weapon for anyone tired of the Roland D-50's polished-but-predictable "LA synthesis." The 16-voice polyphony and 8-part multitimbrality made it a capable workstation. The real-time control is what set it apart, especially the joystick-driven vector synthesis. You can morph between four sound sources in real time, or program a wave sequence that cycles through a dozen drum hits with evolving filter sweeps. It felt more like a laboratory than a keyboard.

Specifications

Synthesis Type	Sample-based subtractive with vector and wave sequencing
Polyphony	16 voices
Multitimbrality	8 parts
Oscillators	2 per voice, with wave sequencing and cross-fading
Filters	1 multi-mode digital filter per voice (low-pass, high-pass, band-pass, notch)
Envelopes	4 envelope generators per voice (DADSR)
LFO	2 LFOs per voice with multiple waveforms
Keyboard	61 keys, velocity-sensitive, no aftertouch
Display	2-line x 16-character LCD
Memory	128 preset programs, 128 user programs, 128 preset performances, 128 user performances
Storage	RAM/ROM with cartridge expansion (optional AI-1 3.5\" floppy drive)
MIDI	In, Out, Thru
Audio Outputs	2 x 1/4\" balanced (L/Mono, R)
Audio Inputs	1 x 1/4\" unbalanced (for external processing)
Foot Controllers	1 x 1/4\" for sustain, 1 x 1/4\" for expression
Dimensions	985 mm x 365 mm x 110 mm
Weight	14.5 kg
Power Supply	AC adapter (DC 12V, 1.5A)

Key Features

Wave Sequencing: The Wavestation’s crown jewel. Unlike simple sample playback, wave sequencing allowed each oscillator to play through a user-defined series of PCM waves—think of it as a musical slide show where each "slide" is a different waveform. You could set the duration of each step, add crossfades, reverse directions, or even trigger steps via MIDI. This made it possible to create rhythmic arpeggios, evolving pads, and percussive sequences entirely within a single patch. Try building a sequence that starts with a piano hit, morphs into a string swell, then disintegrates into granular noise—this was the Wavestation’s playground.

automate

Dual Oscillators with Deep Modulation: Each voice featured two oscillators, both capable of wave sequencing independently. Combined with four DADSR envelopes (yes, delay included) and two multi-waveform LFOs, the modulation architecture was deeper than most synths of its era—rivaling the Korg M1 in flexibility but surpassing it in motion.
External Audio Processing: That single 1/4" unbalanced input wasn’t an afterthought. You could route external signals—say, a guitar or drum machine—through the Wavestation’s filters, envelopes, and effects. Suddenly, your entire studio could be filtered and modulated by the Wavestation’s engine, turning it into a dynamic effects processor.

Historical Context

In 1990, digital synthesis was at a crossroads. The Roland D-50 had dominated the late '80s with its bright, clean LA synthesis, which combined sampled attacks with synthesized sustain. By 1990 that sound was everywhere, from pop ballads to elevator music. The market was saturated with static, polished tones that lacked movement. Where the D-50 was a photograph, the Wavestation was a time-lapse video. It came out of Korg's experimentation after the success of the Korg M1, but instead of iterating on workstation formulas, Korg's engineers went rogue and focused on dynamic sound design rather than preset accessibility.

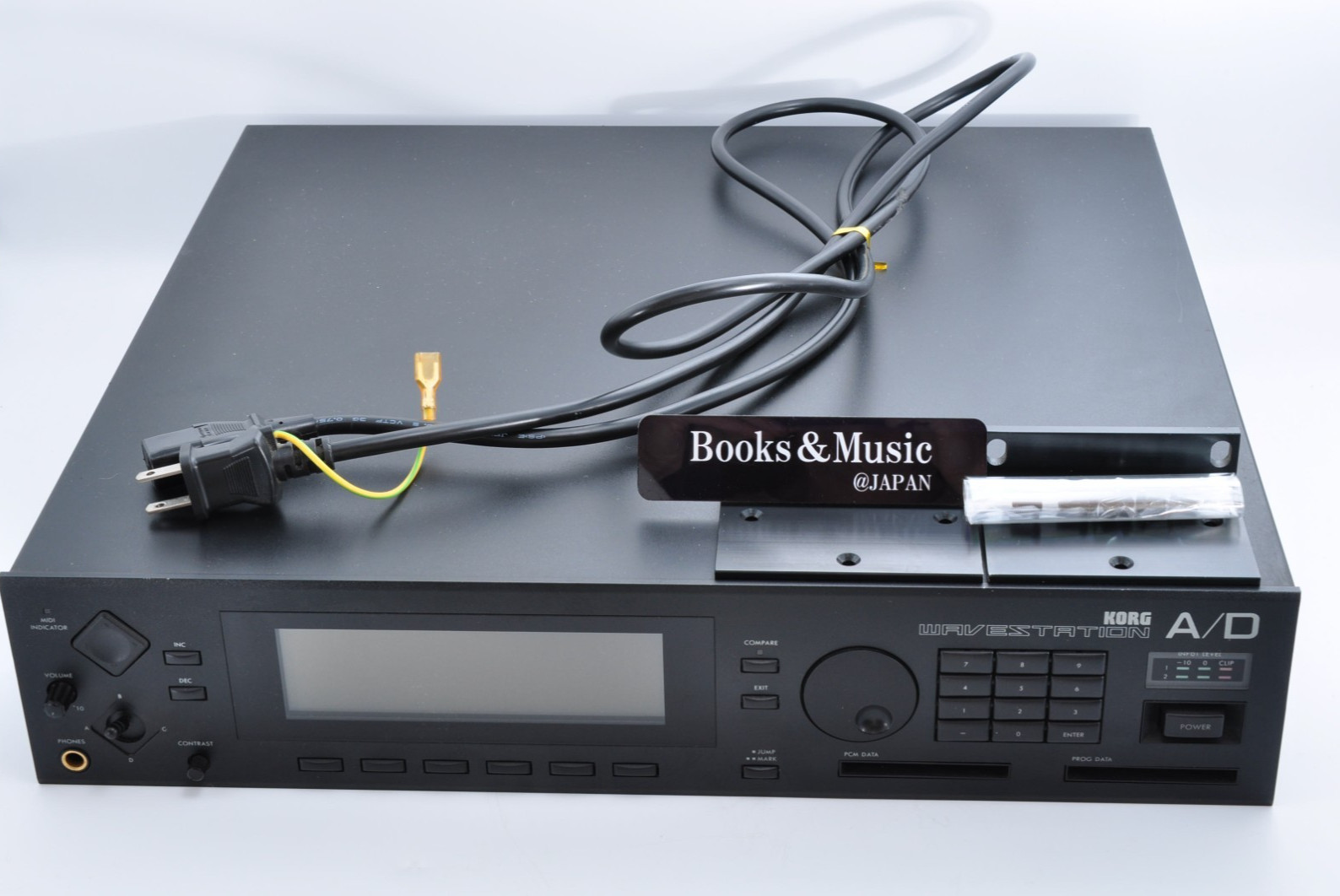

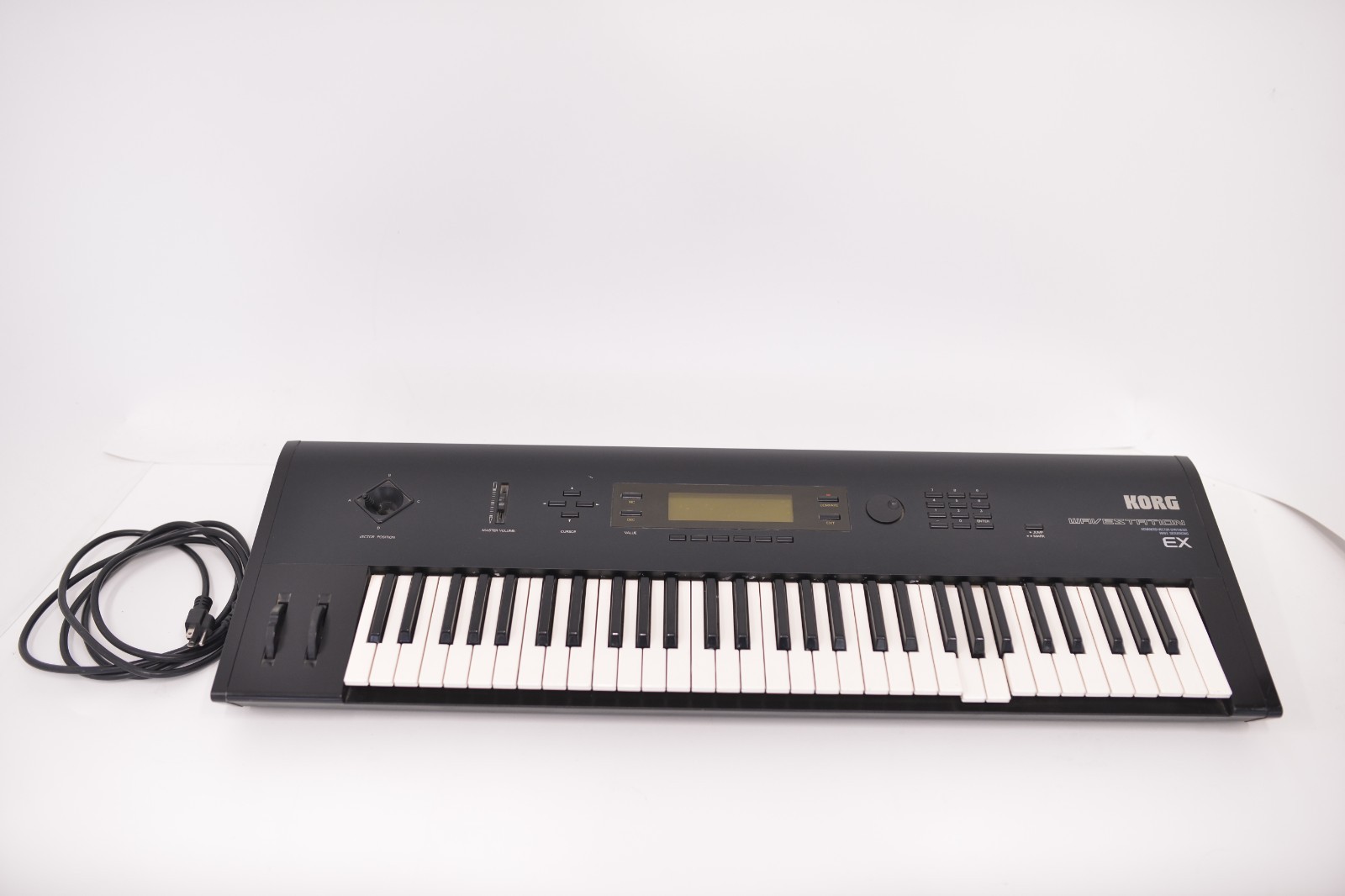

It didn't top the charts like the M1, but it became a cult favorite among film composers, ambient artists, and electronic producers who needed sounds that unfolded over time. Its wave sequencing prefigured modern granular and spectral synthesis techniques, and its automation of vector mixing hinted at the modulation matrices found in later synths like the Nord Wave or Elektron boxes. Korg reportedly released the Wavestation EX in 1991 with expanded wave sequences, and the Wavestation A/D in 1992, reportedly with sampling capabilities. The rackmount Wavestation SR (1992) reportedly found a home in studios where space mattered more than the joystick. By 1994, production reportedly ended. The Wavestation's DNA lived on in software emulations and in Korg's own Z1.

Collectibility & Value

Today, the Korg Wavestation is uncommon but not rare. An estimated number of units were produced across all variants, though exact figures are unavailable, and they've steadily appreciated in value. As of 2025, a working Wavestation may sell for $800-$1500 USD, based on recent market observations, with mint-condition EX or A/D models at the higher end. The A/D is especially prized for its sampling input and enhanced editing, while the SR is favored by modular and rack-based users. Buy with caution, because these are aging digital machines. The most common issue is capacitor leakage, particularly near the power supply board, which can damage nearby components if ignored. The original electrolytic capacitors are now over 30 years old, so recapping is often a necessary restoration step.

The LCD display is another weak point. Many units suffer from fading, ghosting, or complete failure. Replacement screens are available but need careful soldering. The joystick wears out over time, leading to crackling or erratic vector control. Some owners replace it with modern Hall-effect joysticks for smoother operation. When buying, look for responsive keys, clean audio outputs, and stable MIDI. Check the firmware (v1.12 is the final), and if possible, test the AI-1 floppy drive if present.
