Korg DW-6000 (1985)

Six voices of stored digital waveforms pushed through a real analog filter - Korg's first hybrid, and the sensible sibling to the DW-8000 everyone remembers.

Overview

Korg built the DW-6000 to show that digital tone generation didn't have to mean digital coldness, and that a musician shouldn't need a programming degree to get at it. Released in 1985, it's a six-voice polyphonic hybrid. Each voice has two DWGS (Digital Waveform Generator System) oscillators drawing on eight sampled digital waveforms. They feed an analog resonant filter with a separate VCF and VCA, each with its own ADBSSR envelope. Korg's own manual frames the DWGS engine as an attempt to deliver "a higher level of realism and richness together with the ease of operation of conventional analog processing."

Collectors routinely call it Korg's first digitally controlled analog synth hybrid, the point where the company stepped away from purely analog architecture. It shipped with 61 keys, holds 64 patches, and weighs in at 23 Lbs. That's light enough to gig, which is more than can be said for a lot of its contemporaries. Original list was reportedly $1,099.00, and the unit was built in Japan.

A contemporary review noted that the DW-6000's combination of tones genuinely works. An analog synth couldn't produce its digital voices, and a straight FM synth couldn't mimic its analog behavior, with the chorus unit doing a lot of the heavy lifting.

Key Features

DWGS Oscillators and the Waveform Count Question

The core of the DW-6000 is Korg's Digital Waveform Generator System, with two DWGS oscillators per voice reading from a bank of sampled single-cycle digital waveforms. How many waveforms is where the documentation gets slippery. Korg's own materials and several reference sources state eight digital waveforms, and that's the figure used here. But at least one source describes the DWGS system shared with the DW-8000 as having 16 single-cycle waveforms collectively, which may be counting the combined family library rather than the 6000's own set. The smaller bank is the safer working number. The richness comes from what happens after the oscillator, not from a sprawling wavetable.

Analog Resonant Filter with Separate VCF and VCA

The digital oscillators feed a genuine analog resonant filter, with the VCF and VCA on separate ADBSSR envelopes - attack, decay, break point, slope, sustain, release, six parameters each. That extra break-point-and-slope stage is what separates an ADBSSR from a plain ADSR, and it's why the DW-6000 can pull off filter shapes that a four-stage envelope simply can't. The service documentation identifies the filter and wave ROM chips as Korg-marked NJM2069 units, with MN3209/MN3102 BBD and driver and an NE570 in the signal path.

Three Key Assign Modes

Voice assignment isn't a single fixed behavior. The DW-6000 offers four key assign modes - POLY1, POLY2, UNISON, and INHIBIT - with POLY1 as the standard polyphonic setting for chords and melody lines. It lets players choose how the six voices get distributed.

Built-In Chorus

Korg fitted the DW-6000 with a chorus effect, and it's not a throwaway. The contemporary review singled it out as a big help in bridging the gap between the digital oscillators and the analog filter. It thickens and softens the single-cycle waveforms. Players who bypass it will hear a leaner, more exposed instrument.

NEC Microcontroller and Three-Board Layout

Under the hood sits NEC's UPD7810 16-bit microcontroller, a chip loaded with I/O ports and tasked with running the whole show. A disassembled DW-6000 breaks down into three main boards. The KLM-653 handles programmer and assigner duties, and the KLM-654 is the generator board where the voice ROMs live. A built-in rechargeable backup battery protects programmed memory. A decades-old rechargeable cell is exactly the kind of thing that eventually needs attention.

Historical Context

The DW-6000 arrived during Korg's polysynth era, following the success of the Polysix and Poly-800, and it was introduced alongside the DW-8000 as part of the company's push into hybrid synthesis. Korg's 1985 advertising in Musician pitched it as "the first to integrate the complex and interesting sounds of digital technology into a more accessible and logical format that can be understood and programmed by musicians," and, more bluntly, "Only the Korg DW 6000 gives you the power of digital sound with the simplicity of analog control." That's marketing copy, not a verdict.

The market verdict came fast and a little brutal: the DW-6000 was quickly succeeded by the DW-8000, which added keyboard sensitivity, a bigger synth section, and a built-in digital delay line to the 6000's spec. One retrospective assessment is refreshingly plain about it — an entry-level synthesizer from the mid 1980s with the classic sounds, but not enough of them. The 6000 was the opening argument; the 8000 was the one that won.

Collectibility & Value

Prices on the DW-6000 are all over the map. Recent listings include a Reverb example at €450, a used unit graded 8/10 out of Vilnius at 350 USD, and eBay examples at $870 for one with the original box and $500 for a unit with no power supply. One owner reported paying $160 CDN on a local classifieds site.

Owner sentiment splits. At least one original 1985 buyer has been blunt that the 6000 sounds thin next to the 8000 a friend bought a year later. On the other side, a reviewer's demo put it memorably: it looks like the cheapest of Casios but sounds more like a Roland Juno-106. It's also a gigging synth, and one player reports it getting along well live alongside a Roland JX-3P and a Waldorf Blofeld.

Servicing is a real consideration. The NJM2069 filters, wave ROM chips, and BBD/driver components are the parts that come up in repair discussions, and there's an active reverse-engineering project aimed at expanding the wave memory — a sign the platform still has believers. Replacement 7-note rubber contact strips are available for around €14, which is the kind of small mercy that keeps a 40-year-old keybed playable. A fitted 61-key carry case exists too. What the record doesn't show is any documented capacitor or battery replacement procedure, so anyone buying should budget for a technician's inspection rather than assume a plug-and-play purchase.

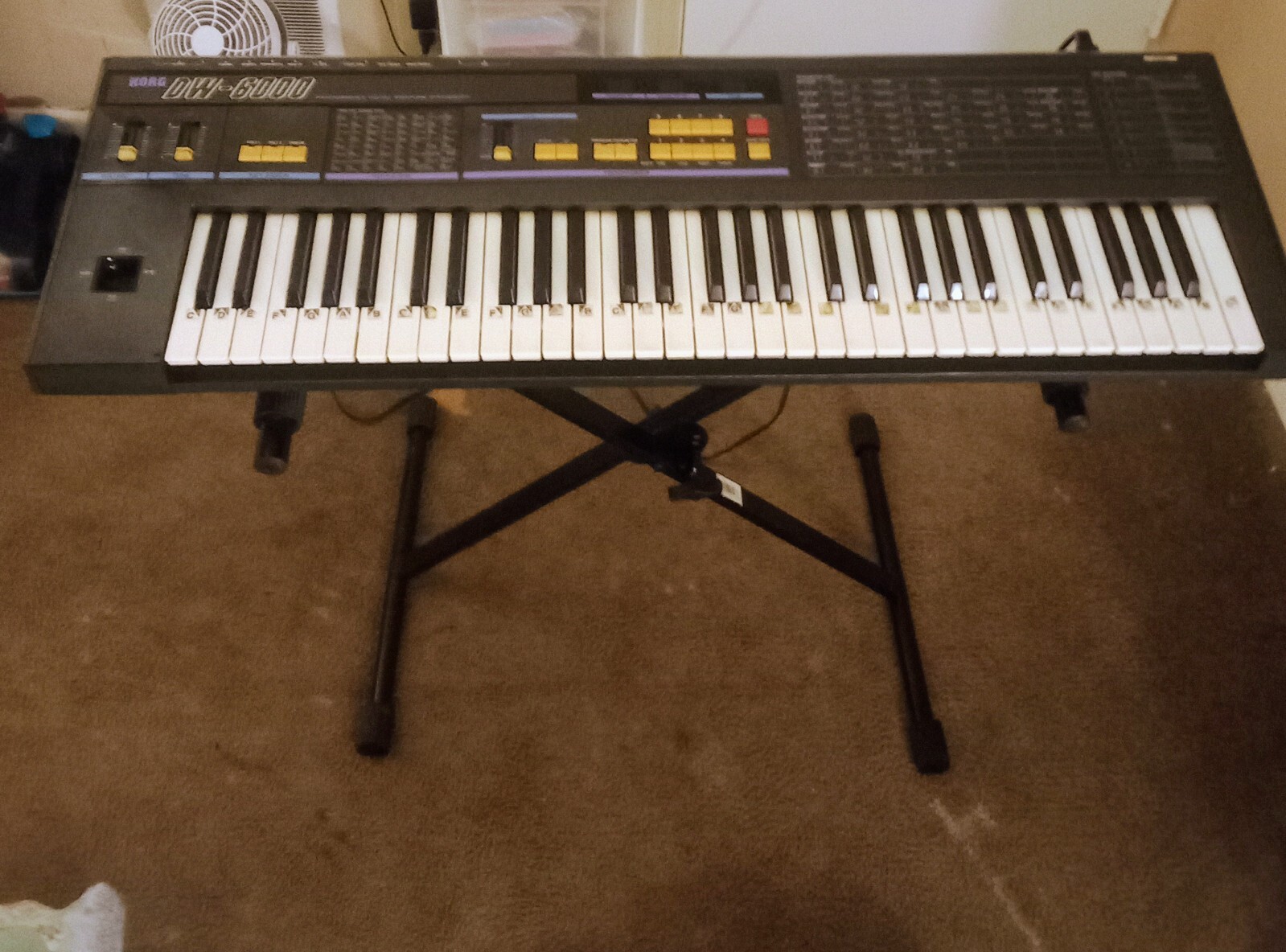

eBay Listings
