Sony TA-1166 (1969)

At 7.8kg, it has no capacitors in the signal path and all-silicon circuitry. It is a rare early step in Sony's high-fidelity line.

Overview

The Sony TA-1166 isn't just another transistor amplifier from the late 1960s—it's a statement piece of engineering ambition. Marketed at ¥49,800 around 1969, this all-silicon transistor stereo premain amplifier was positioned as a serious contender in the emerging high-end audio market. It combined both preamplifier and power amplifier functions in a single chassis, but with a design philosophy that treated each section with surgical independence. Owners report it was built during a time when Sony was still proving itself in the hi-fi world, and the TA-1166 reflects that drive to over-engineer. With 23 transistors and 7 diodes on board, it was not merely functional—it was dense, deliberate, and technically forward-thinking for its era.

The first thing to notice is that there are no coupling capacitors in the signal path. This direct-coupled design was rare at the time. It let the amplifier handle frequencies down to near-DC, which in theory improves bass control and damping. The power amplifier section uses a "2-power system Quasi complimentary service symmetric SEPPP OTL circuit" - a mouthful, but it signals Sony's intent to move beyond conventional push-pull designs. The amp delivers 30W + 30W into 8Ω with less than 0.1% harmonic distortion at full rated output, and 0.05% at just 1W. That kind of refinement in 1969 wasn't typical of mass-market gear.

The preamp section is just as ambitious. It runs on a 50V power supply, which gives it a wide dynamic range and high input tolerance. It has two phono inputs (1.2mV sensitivity, 47kΩ impedance), three auxiliary inputs, and a tape monitor loop. The tone controls are stepped, not continuous, with 2dB increments across a 10-step switch, so adjustments are precise and repeatable. A loudness switch, active at -30dB volume, applies +8dB at 50Hz and +4dB at 10kHz. There is also a low-pass filter at 100Hz and a high-pass at 5kHz, likely intended for problem material or speaker protection.

A lever on the front allows immediate toggling between Phono 1 and Tuner inputs. That saves rotating through multiple positions on the selector knob, which reduces wear and the risk of noise during switching. On the rear panel, switches let the preamp and power amp be used independently, so the unit works as a modular component system. A speaker selector switch lets users toggle between two sets of speakers, a feature not always standard even on higher-end gear.

Specifications

Manufacturer	Sony
Model	TA-1166
Type	Integrated amplifier (pre-main amplifier)
Model Rating Type	All-silicon transistor stereo premain amplifier
Rated Output	30W + 30W (8 Ω)
Music Output	120W (1% distortion rate)
Dynamic Output	70W (IHF standard)
Harmonic Distortion Factor (1 kHz)	0.1% or less (at rated output)
Harmonic Distortion Factor (1 kHz)	0.05% or less (at 1W output)
Frequency Characteristic (Power Amp)	15 Hz ~ 300 kHz, +0 -2dB at 1W output
Signal-to-Noise Ratio (Power Amp)	90 dB or more (closed circuit)
Damping Factor	70 (1 kHz, 8 Ω)
Input Sensitivity / Impedance (Phono 1, 2)	1.2mV / 47k Ω
Input Sensitivity / Impedance (Tuner, AUX1, 2, 3, Tape Rec/PB)	150mV / 100k Ω
Tone Control (Bass)	100 Hz, ±10 dB
Tone Control (Treble)	10 kHz, ±10 dB
Loudness Switch (at Volume -30dB)	50Hz: +8dB, 10kHz: +4dB
Filter (Low)	100Hz
Filter (High)	5kHz
Power Consumption	88W
External Dimensions	Width 422 × Height 148 × Depth 321 mm
Weight	7.8kg
Speaker Terminals	2 systems, load impedance 4 Ω ~ 16 Ω
Headphone Terminal	Load impedance 8 Ω or more

Key Features

Direct-Coupled Power Amplifier Section

The TA-1166's power amplifier uses direct coupling across all stages, so there are no coupling capacitors in the signal path. According to available documentation, this extends low-frequency response and keeps the damping factor from deteriorating at bass frequencies, a common issue in capacitor-coupled amplifiers. In theory, because the circuit amplifies down to DC, it can also filter out subsonic content that might otherwise damage speakers. In 1969 this approach was more commonly seen in laboratory or broadcast equipment than in consumer audio.

2-Power System Quasi Complimentary Symmetric SEPPP OTL Circuit

Sony's "Quasi complimentary service symmetric SEPPP OTL" topology suggests a hybrid output stage. It is not a true complementary symmetry circuit, which requires matched NPN and PNP transistors that were still rare then. The quasi-complementary design used available transistor types to approximate balanced push-pull operation. The "SEPPP" (Single-Ended Push-Pull Paraphase) and OTL (Output TransformerLess) elements indicate a focus on linearity and low distortion without output transformers. Combined with the dual power supply, the setup aimed for stability and dynamic headroom.

High-Voltage 50V Preamp Power Supply

The preamplifier section runs on a 50V power supply, unusually high for the time. The higher voltage rail raises the allowable signal level at each input stage, which reduces the risk of clipping and improves headroom. Sources suggest this contributed to the unit's wide dynamic range and clean transient response, especially on high-output sources like tuners and tape decks. The higher voltage also likely improved the signal-to-noise ratio across all inputs.

Quick Access Input Switch

A mechanical lever on the front panel allows instant switching between Phono 1 and Tuner inputs. This "quick access" feature bypasses the main rotary selector, which reduces switch wear and the chance of accidental noise during selection. Most competitors in that era relied solely on rotary knobs.

Independent Preamp and Power Amp Operation

Rear-panel switches allow the preamp and power amp sections to be used independently. This turns the TA-1166 into a modular component: the preamp can drive an external power amplifier, or the power amp can be fed by another preamp. This was uncommon in integrated units of the period.

Speaker Selector Switch

Owners can switch between two sets of speakers with a dedicated front-panel switch. The feature was not unique, but it was not standard on mid-tier amplifiers in 1969. It suggests the TA-1166 was intended for users with multiple listening zones or speaker types.

Collectibility & Value

One account describes the TA-1166 as a "rare Non UK Sony Amplifier," suggesting limited distribution outside Japan. No verified market prices for working units were found in the available documentation, though auction listings for original catalogs (e.g., 1969 and 1971 editions) have drawn bids, indicating collector interest in the era's literature. There is no data on common failures or serviceability, so buyers should be cautious. One source notes that "one long established Hifi Repair guy won't recap as they know these problems," though this is not explicitly tied to the TA-1166. Its collectibility remains niche, likely appealing most to Sony historians and direct-coupled amplifier enthusiasts.

Similar items on eBay

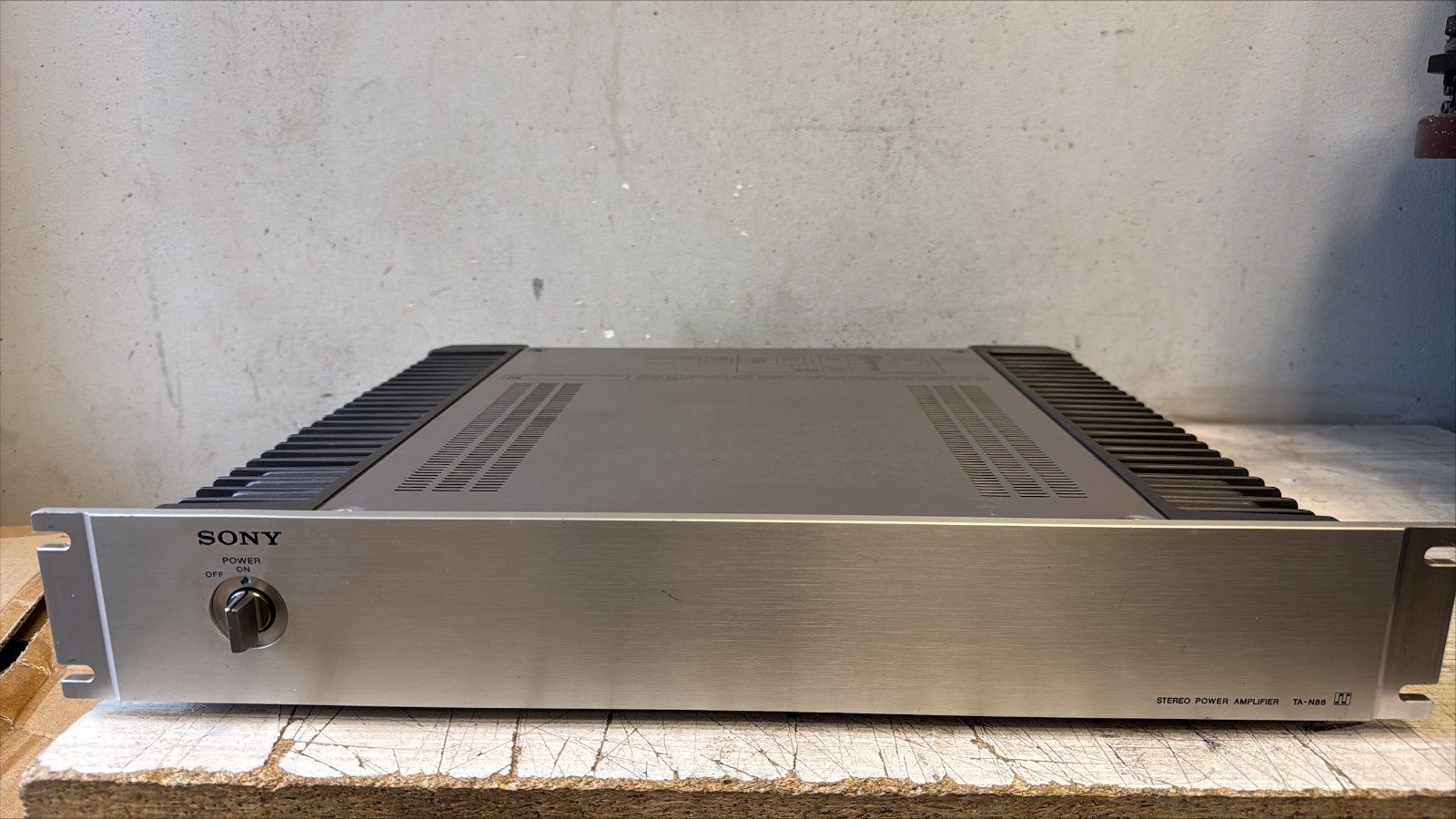

No exact Sony TA 1166 listings are live right now — these searches show current Sony and similar vintage audio gear on eBay:
