Sony TA-1120F (1972)

At 13kg, it arrives heavy and dense, and it was built to show what Sony could do in its golden era of audio.

Overview

The Sony TA-1120F isn't a subtle machine. Released in 1972, this all-silicon transistor stereo premain amplifier was built to prove Sony could compete at the highest level of hi-fi engineering. It cost ¥138,000 at release and targeted serious listeners who demanded laboratory-grade specifications without compromise. It had a fully discrete preamplifier section and a powerful, direct-coupled output stage, all in a chassis that put technical rigor ahead of cosmetic flair.

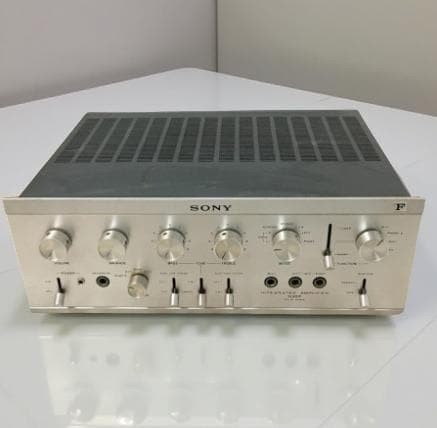

The front panel is complex, but the layout is easy to use. A quick-access lever selects three frequently used inputs with one touch. The microphone and AUX2 inputs sit on the front panel, handy for recording or broadcast environments. The tuner and AUX1 inputs have individual level controls, so mismatched source components can be balanced. That suggests the TA-1120F wasn't just for audiophiles - it served engineers, broadcasters, and studios where flexibility and reliability mattered.

Specifications

Manufacturer	Sony
Product Type	Integrated amplifier / All-silicon transistor stereo premain amplifier
Year of Production	1972
Rated Output	80W + 80W (8Ω)
Dynamic Output	180W (8 Ω, IHF)
Frequency Characteristic (Power Amp)	5 Hz ~ 200 kHz, + 0 -2dB at 1W Output
Harmonic Distortion Factor (Power Amp)	0.1% or Less (1 kHz, Rated Output)
Damping Factor	200 or More (1 kHz, 8 Ω)
Signal-to-Noise Ratio (Power Amp)	110 dB or more (closed circuit)
Input Sensitivity/Impedance (Phono1, 2)	1.2mV/50k Ω
Tone Control	Bass : 100 Hz ± 10 dB; Treble : 10 kHz ± 10 dB (2-dB step 10-stage switching)
Filter	Low Filter : 50 Hz or less, 12dB/oct.; High Filter : 9 kHz or higher, 12dB/oct.
Semiconductor Used	Transistor : 67, FET : 12, Diode : 24 units, SCR : 1
Power Consumption	200W
External Dimensions	Width 400x Height 149x Depth 327 mm
Weight	13kg

Key Features

Direct-Coupled Power Amplifier with SEPPP OTL Circuit

The power amplifier section uses direct coupling, meaning no coupling capacitors sit between stages. It is described as a "quasi complimentary service SEPPP OTL circuit." The speaker is driven directly, which eliminates phase shifts and signal degradation caused by capacitive coupling. Frequency response runs from 5 Hz up to 200 kHz at 1W output, far beyond the audible range. The damping factor is 200 or more at 1 kHz into 8Ω, so the amplifier keeps tight control over the speaker cones, especially in the bass region. This is where the TA-1120F gets its reputation for precision and authority.

FET-Based Differential Preamplifier with Dual Power Supply

The preamplifier section uses a differential amplifier circuit with FETs at the first stage of each input, powered by a dual ± power supply system. This reduces noise, improves common-mode rejection, and improves stability across all input types. The FETs give high input impedance and low noise, which matters most for the phono and microphone inputs. According to available documentation, this choice contributed to the exceptionally low harmonic distortion of 0.02% or less at rated output in the preamp section.

Quick Access Input Selector Lever

Instead of a rotary knob for cycling through inputs, the TA-1120F has a dedicated lever that selects three frequently used sources with one touch. It's a mechanical shortcut, and it helps where rapid switching is needed. Efficiency and tactile feedback won out over minimalist looks.

2 dB Step Tone Control with Variable Turnover Frequency

The tone control circuit gives 2 dB step adjustments across 10 stages. Unlike fixed turnover designs, it is described as "variable turnover," meaning the turnover frequency shifts with the amount of boost or cut applied. This preserves tonal balance even at extreme settings. A dedicated cancel switch bypasses the tone circuit entirely and restores a flat frequency response regardless of knob position.

Front-Panel Mic and AUX2 Inputs

The microphone and AUX2 inputs are on the front panel, easy to reach for temporary connections. That was practical for broadcasters, lecturers, or musicians who needed to plug in quickly without reaching around the back. The microphone input has a sensitivity of 1.4mV/100kΩ and a signal-to-noise ratio of 65 dB or more, which is clean and quiet for such a low-level signal.

Speaker Selector for Two Speaker Systems

A speaker selector switch lets the TA-1120F drive two pairs of speakers. That is useful for multi-room setups or A/B testing different speaker models.

The switch is integrated into the main circuitry, maintaining signal integrity.

Integrated Protection Circuit

The amplifier has a protection circuit meant to safeguard connected speakers during abnormal operation, such as DC offset or thermal runaway. With the high power output and direct-coupled design, it was a necessary safeguard. The semiconductor count reportedly includes one SCR (Silicon Controlled Rectifier), which may relate to this protection system, though the exact implementation is not detailed.

Historical Context

The TA-1120F played a pivotal role in establishing Sony's reputation for quality amplification during the 1970s, widely regarded as the company's golden era in audio. Japanese manufacturers were still proving themselves against Western hi-fi giants, and the TA-1120F showed that Sony could build products with both cutting-edge performance and strong build quality. It arrived as solid-state amplification was rapidly replacing tube designs, and its specification sheet, with low distortion, wide bandwidth, and high damping, was a direct challenge to the status quo.

Collectibility & Value

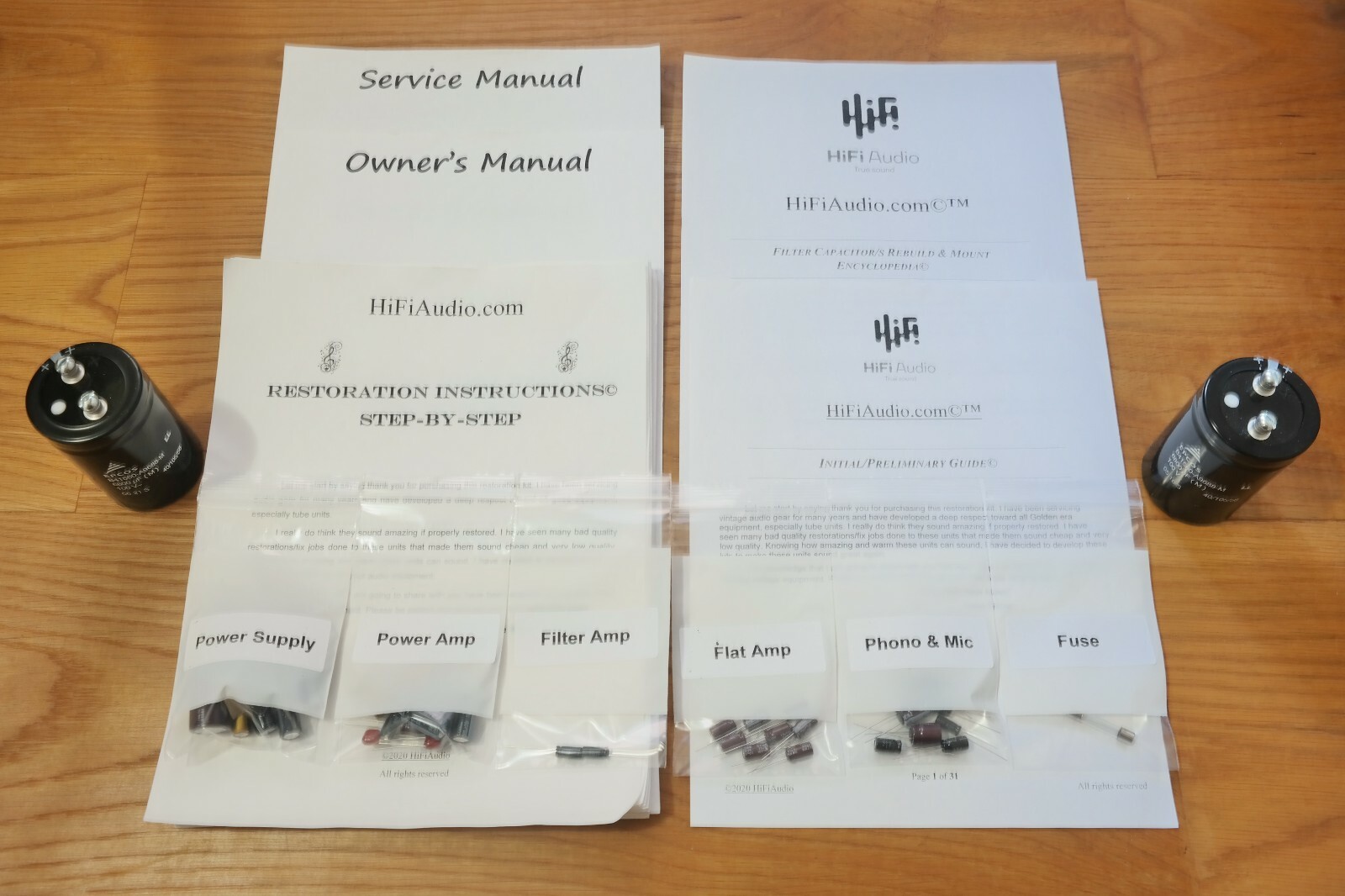

The TA-1120F was reportedly a Japan-only model, which makes it relatively rare outside the domestic market. On the secondary market, asking prices range around USD $900, with one recent eBay sale closing at $1,237.27. Restoration is common. A typical overhaul replaces 42 electrolytic capacitors, and dedicated repair kits are available for approximately $185. Given the age and component count, most units on the market today have either been recapped or need it.
