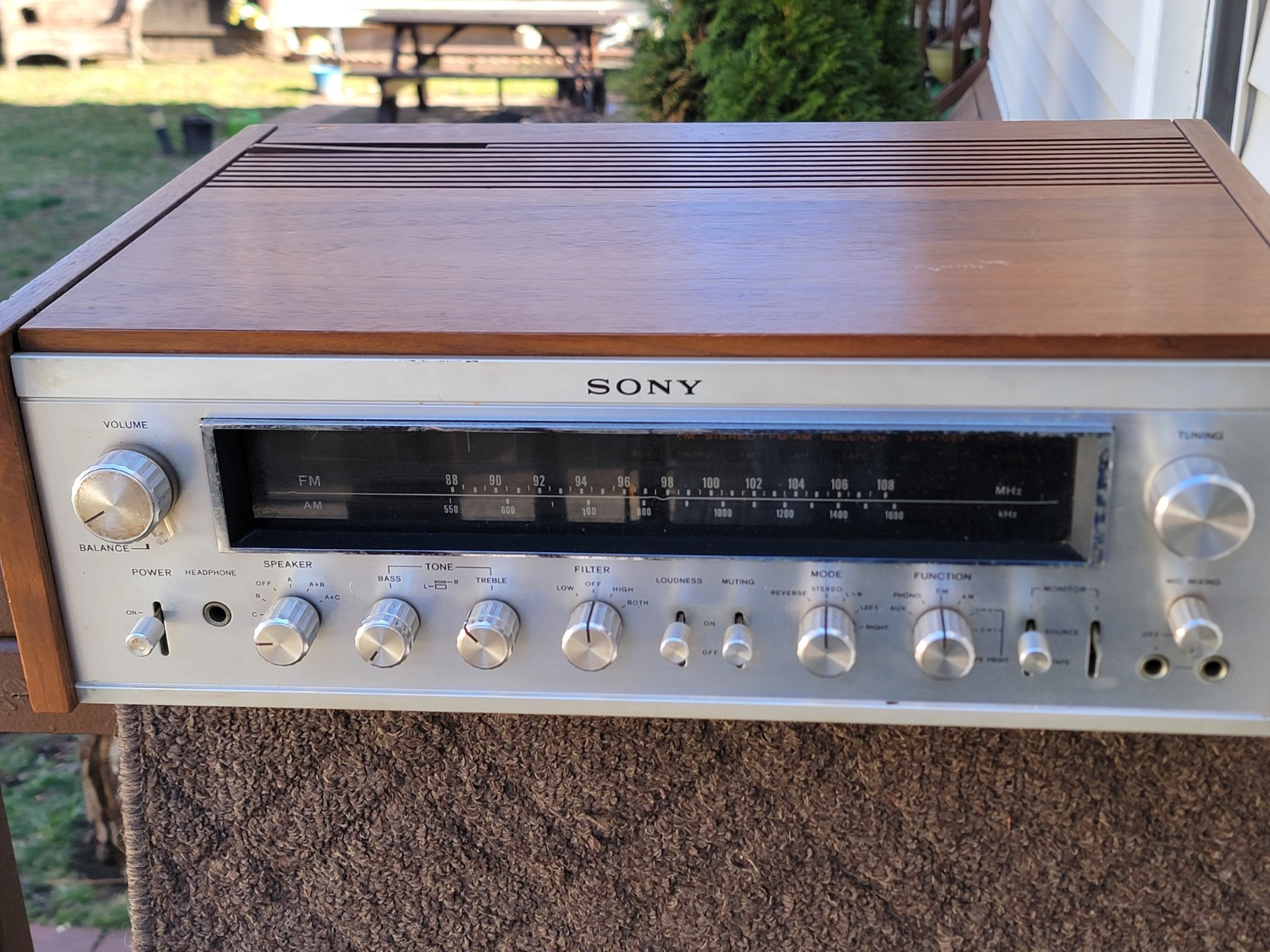

Sony STR-7065 (1972–1974)

At 15.2 kg, it lands on the rack hard. This is not a background player for the living room.

Overview

The Sony STR-7065 isn’t just another receiver from the early '70s; it was Sony’s flagship AM/FM stereo receiver when it launched in 1972, representing the peak of the company’s high-fidelity ambitions during what collectors now call its “golden era in audio.” Built as a serious contender in the high-end market, the STR-7065 was engineered with the same design philosophy as Sony’s ES (Elevated Standard) series, aiming to function not just as a receiver but as a preamp/power amp combo worthy of separation. Owners report a machine built with obsessive attention to signal integrity, circuit isolation, and thermal management—traits that helped it become a classic among vintage audio enthusiasts. It exemplified Sony’s approach to quality audio: conservative power ratings, excellent build quality, and a clean, purposeful aesthetic that prioritized function over flash.

The STR-7065 was never a mass-market appliance. It was for audiophiles who wanted FM clarity, phono precision and amplifier control in one chassis. The 60W per channel into 8Ω (measured across 20Hz-20kHz) looks modest by later standards. But it sits on a dual power supply and a direct-coupled amplifier circuit designed for low distortion and tight bass control. The sound is neutral and detailed, with excellent transient response. It is clean rather than colored, accurate rather than warm.

Specifications

Manufacturer	Sony
Year of Production	1972–1974
Product Type	AM/FM Stereo Receiver
Power Output	60W + 60W (20Hz–20kHz, both channels driven, 8Ω)
Total Harmonic Distortion	No more than 0.2%
Frequency Response (Power Amp)	20 Hz to 15 kHz, ±1 dB (at 1W output)
Signal-to-Noise Ratio	110 dB or more
Damping Factor	50 or more (1 kHz, 8 Ω)
FM Tuner Sensitivity	1.6 μV (S/N: 30 dB)
FM Frequency Response	20 Hz to 15 kHz, ±1 dB
FM Stereo Separation	38 dB or more (400 Hz)
FM Distortion (Stereo)	0.5% (400 Hz, 100% modulation)
AM Tuner Range	530 kHz to 1605 kHz
Phono Input Sensitivity	2 mV / 47 kΩ
Aux Input Sensitivity	150 mV / 50 kΩ
Speaker Impedance	4–16 Ω
Power Consumption	180 W
Dimensions (W×H×D)	471 × 157 × 375 mm
Weight	15.2 kg

Key Features

Dual Power Supplies with Direct-Coupled Amplifier Circuit

The power amplifier section uses a "2 power supply Direct coupling pure complimentary service SEPP circuit." That's a mouthful. Separate power supplies isolate the left and right channels, and there are no coupling capacitors in the signal path. Sony used this to minimize crosstalk and phase shift, which helps stereo imaging and low-frequency control. Combined with a damping factor of 50 or more, the amplifier keeps a firm grip on speakers, most noticeably with dynamic drivers that need tight cone control.

FET Front End and High-Performance FM Tuner

The FM tuner front end uses a newly developed junction FET for the high-frequency amplifier, along with a linear frequency varicon and a stable local oscillator. The result is low-noise reception and strong selectivity (70dB IHF), and weak stations come in clearly. The IF section uses a 2-element solid-state filter and IC. The MPX stereo decoder uses a custom-developed IC and a non-adjustable MPX coil unit, built for reliability and channel separation of 38 dB or more at 400 Hz.

Three-Speaker Selector with A+B+C Configurations

A speaker change-over switch handles up to three speaker pairs (A, B, C). That gives five combinations: A, B, C, A+B, and A+C. This was unusual for its time. Sony apparently meant the STR-7065 to be a central hub in complex setups, able to feed multiple rooms or listening zones without external switching.

Tape-to-Tape Copying with Dual Tape Loops

There are two full tape input/output loops (Tape 1 and Tape 2), so it supports independent monitoring and tape dubbing. Tape Monitor 1 takes priority, but you can switch between sources without rewiring. Tape 1 can be routed to Tape 2 or the other way around, which allows direct deck-to-deck copying. Audiophiles used that for archiving vinyl or making mix tapes without degradation.

Preamp/Power Amp Separation Capability

True to its "premain" design concept, the STR-7065 lets you separate the preamplifier and power amplifier sections. The Pre Out and Power Amp In jacks allow external amplification or preamps. Few receivers of the era offered that. A high-end user could upgrade one section without replacing the whole chassis.

Robust Protection and Monitoring Systems

A circuit breaker protects the power amplifier. A speaker protection circuit guards against DC faults, and FET-based muting switches prevent turn-on thumps. The lever-type power switch has a solid mechanical feel.

Historical Context

The STR-7065 was Sony's top-of-the-line receiver when it debuted in 1972. It showed Sony's commitment to in-house component development, from custom ICs to FETs and solid-state filters. A favorable review in *High Fidelity Magazine* (January 1974) helped build its reputation and highlighted its clean performance and advanced circuitry. No explicit product family placement is documented, but its ES-series design lineage suggests it was meant to anchor Sony's premium audio lineup.

Collectibility & Value

The STR-7065 is still sought after, prized for its build quality, modularity and sonic neutrality. Aging components are a real problem, though. The original Sony 2SC1124 pre-driver transistors (Q705/Q755) are prone to degraded current gain over time and often need replacement with modern equivalents. Three 1/4W carbon film resistors (R803, R805, R806) sit close to high-wattage wirewound resistors (notably R802), and the heat damages them. R803 has been observed with charred bodies in unrestored units. There are no DC offset trimmers, which complicates restoration. Service procedures call for careful adjustment to 50mV per channel using internal test points. Owners still describe well-maintained examples as "an excellent sounding, beautiful stereo receiver" with clarity and power that impress.
