SONY SS-S11 (c. 1979)

Name: Sony ss-s11
Brand: Sony

A bookshelf speaker that doesn’t apologize for its size or its bass—deep, composed, and built like it was meant to last.

Overview

Don’t let the “bookshelf” label fool you—Sony’s SS-S11 is a big, bold speaker for a living room, not a shelf. At 570mm tall and weighing in at 11kg, this isn’t some dainty satellite; it’s a full-bodied, three-way system from an era when Japanese manufacturers were chasing sonic authority with engineering rigor. Released around 1979, the SS-S11 was priced at ¥25,000 per unit—a serious investment at the time, aimed at audiophiles who wanted more than just presence, they wanted depth. And it delivers: with a frequency response plunging to 38 Hz, it’s no exaggeration to say this box can shake a room. That low end isn’t flabby either—it’s anchored by a 25 cm cone woofer designed with a metal ring bonded to the voice coil to keep movement precise and reduce deflection. Translation? The bass stays tight even when you push it.

It’s a sealed (airtight) cabinet design, which means no port noise and a more controlled low end, though it sacrifices some efficiency for that control. But with a sensitivity of 90dB/W/m, it’s not a slouch—it’ll get loud without begging for power. Rated for 50W continuous and 100W peak input, it pairs well with most mid-tier receivers of the late ’70s and early ’80s. The crossover points are set at 2 kHz and 14 kHz, handing off to a 6 cm midrange and a 2.5 cm soft dome tweeter. That tweeter is a quiet standout: its diaphragm uses a material Sony specifically sourced from Europe for the SS-G4, a higher-end model, suggesting they weren’t cutting corners even here. The result, according to the lone quote we have from the era, is “high sound without weariness”—in other words, you can listen for hours and not feel like your ears are being sandblasted. That’s no small feat, especially with soft domes that often err on the dull or overly sweet side.

It came with a 3-meter speaker cord already attached—unusual by today’s standards, but common then for convenience. And if you wanted to elevate it literally and sonically, Sony offered the WS-R3 stand, sold separately for ¥5,000 for a pair. At 130mm high with a footprint nearly matching the speaker’s base, it’s not just decorative—it’s functional, lifting the SS-S11 to ear level for better imaging. The fact that it was sold as a matched accessory tells you Sony saw this as a complete system, not just a pair of boxes.

Specifications

Manufacturer	Sony
Product type	3-Way, 3-Speaker, Airtight Type, Bookshelf Type speaker system
Effective frequency band	38 Hz to 20000 Hz
Output sound pressure level	90dB/W/m
Impedance	6 Ω
Rated maximum input	50W
Instantaneous maximum input	100W
Crossover frequency	2000 Hz, 14000 Hz
External dimensions	Width 310 x Height 570 x Depth 330 mm
Weight	11kg
Attachment	Speaker Cord (3m)
Units Used	For low band: 25 cm cone type; For Medium Range: 6 cm cone type; For High Pass: 2.5 cm Soft Dome Type

Key Features

Precision Woofer Design

The 25 cm woofer isn’t just big—it’s engineered to stay accurate. By bonding a metal ring directly to the voice coil, Sony reduced deflection of the bobbin, ensuring that the energy from the amplifier translates cleanly into cone movement. This kind of mechanical refinement was becoming more common in the late ’70s as manufacturers realized that raw size wasn’t enough—control mattered. It’s a subtle detail, but one that separates the SS-S11 from budget designs that rattle when pushed.

European-Sourced Tweeter Diaphragm

The 2.5 cm soft dome tweeter uses a diaphragm material that Sony originally commissioned for the SS-G4, a presumably higher-tier model. While we don’t know exactly what the material is—silk? treated fabric?—the fact that it was special-ordered from Europe suggests Sony was aiming for a refined, fatigue-free high end. And given the system’s reputation for long-term listenability, it seems they hit the mark. This isn’t a tweeter that screams; it sings.

Airtight Cabinet Construction

Sealed enclosures were less common than ported designs in bookshelf speakers of this size, but they offer advantages: tighter bass, better transient response, and no risk of port chuffing. The trade-off is lower efficiency, but with 90dB sensitivity, the SS-S11 doesn’t demand heroic amplification. The cabinet itself is substantial—330mm deep and built to resist resonance, though no specific damping materials are mentioned in the specs.

Collectibility & Value

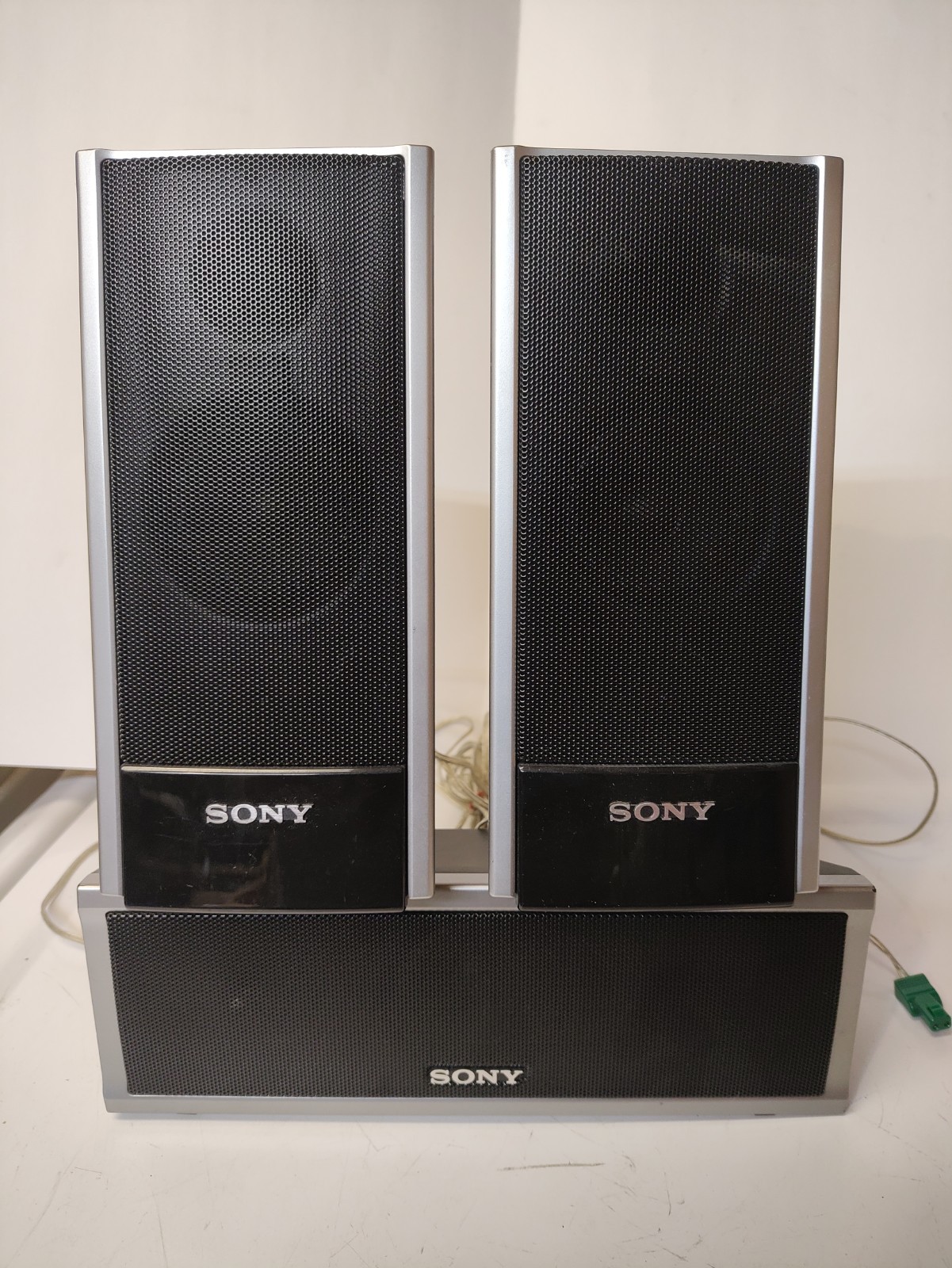

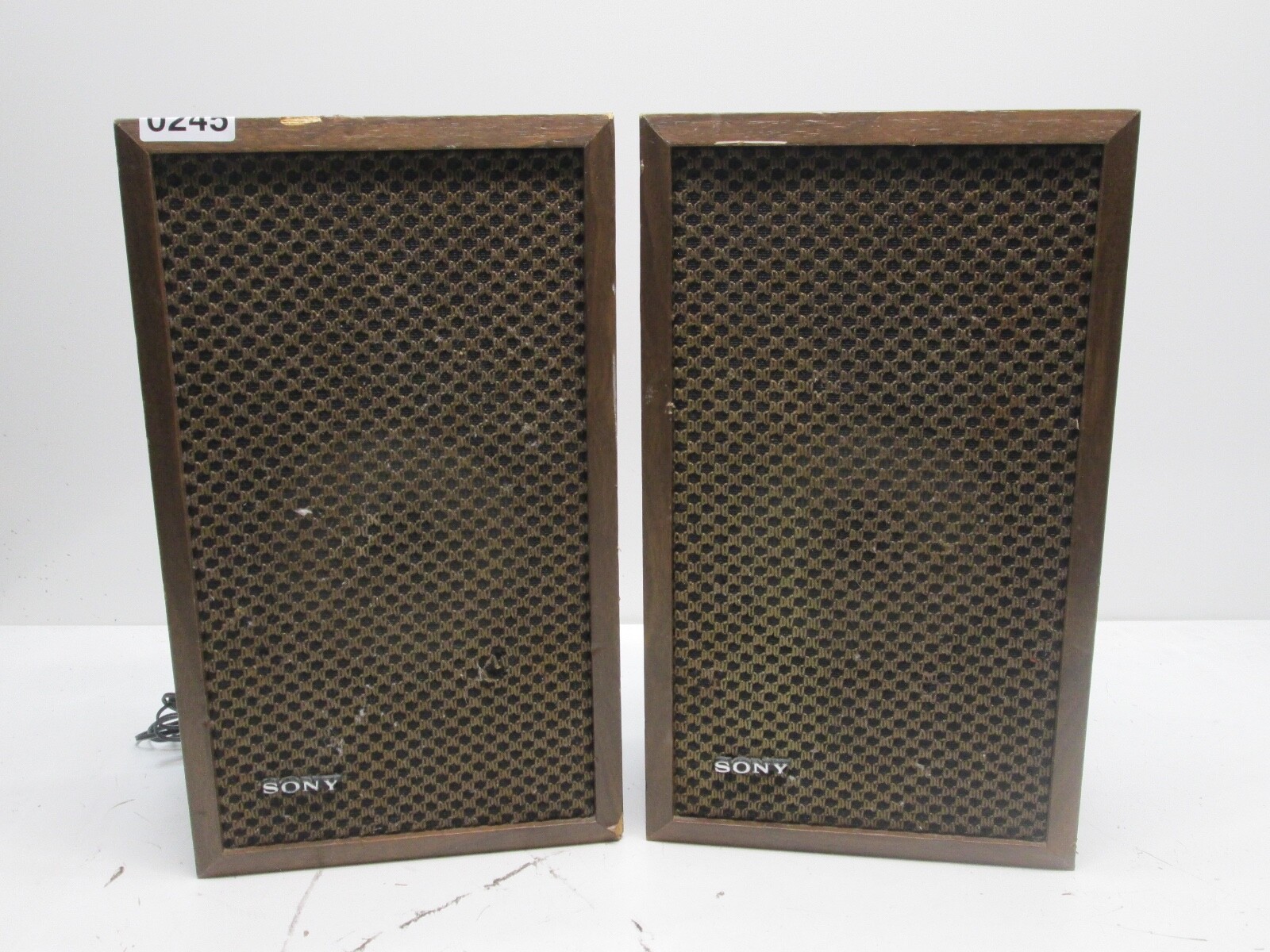

Original pricing is confirmed at ¥25,000 per speaker around 1979, with the optional WS-R3 stand available for ¥5,000 for a pair. That’s a significant outlay for the time, suggesting these were premium products, not entry-level. Today, concrete market data is scarce—no current resale prices or condition breakdowns are available in the sources. However, listings do exist: a Yahoo auction listing describes a set with stands and covers as “present condition goods,” while a Russian seller on festima.ru touts a pair from 1979 with “gorgeous bass.” These suggest ongoing collector interest, particularly in regions where vintage Japanese audio remains popular. That said, without documented failure modes or common restoration needs, it’s hard to assess long-term ownership costs. No known weak points are reported, but vintage speakers of this age often suffer from dried surrounds or degraded crossovers—issues that aren’t mentioned here but are typical for the era.
