A 3-way bookshelf speaker system using CARBOCON woofer technology, sold in Japan for ¥33,000 around 1975
Overview

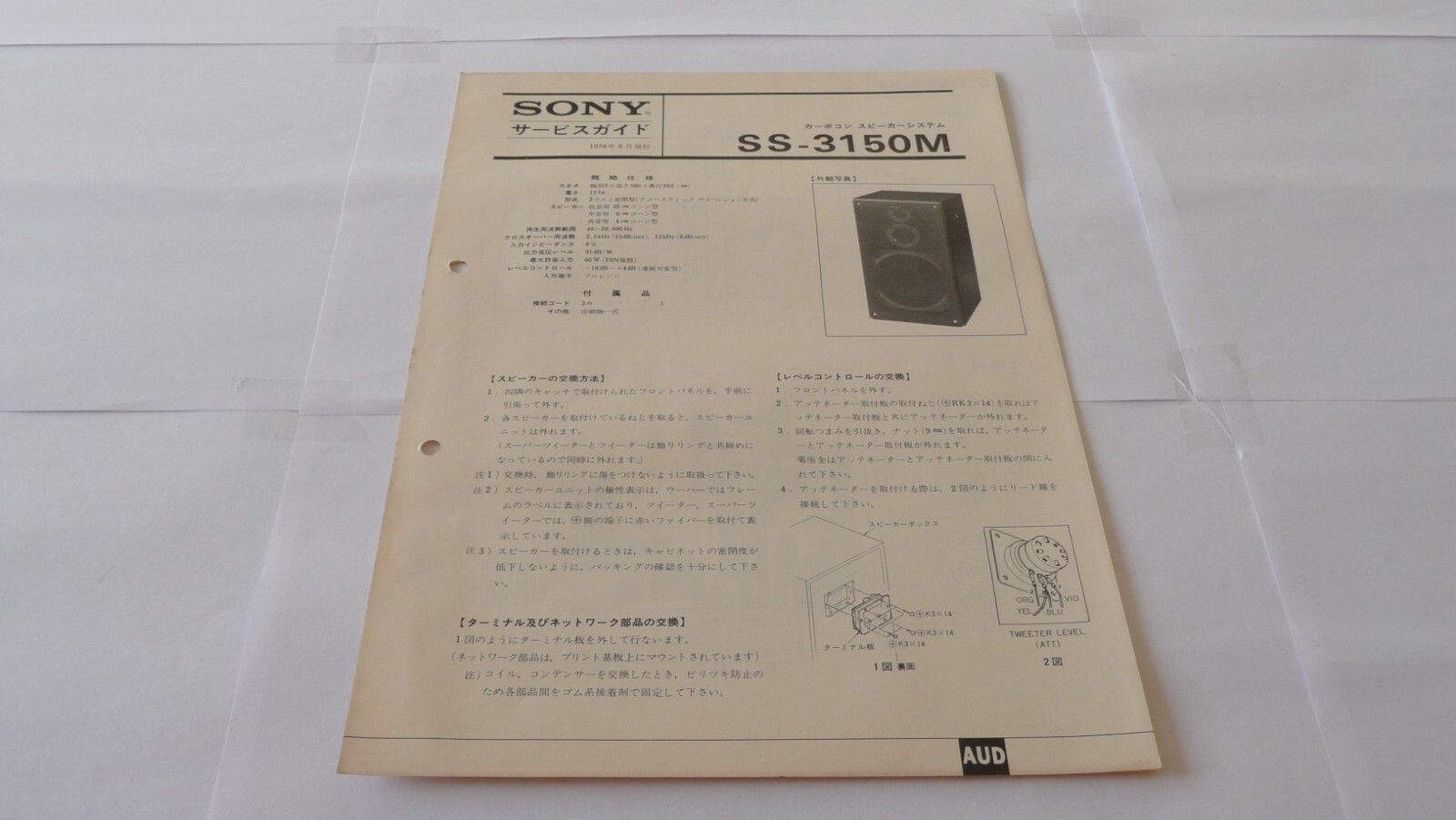

The Sony SS-3150 is a 3-way, airtight bookshelf speaker system released around the mid-1970s. It features a three-speaker configuration with dedicated drivers for low, midrange, and super high frequencies. A variant model, the SS-3150M, was offered with a different enclosure finish. Designed for high-fidelity audio reproduction, it was priced at ¥33,000 per unit at launch.
Specifications
| Product type | 3-Way, 3-Speaker, Airtight Type, Bookshelf Type speaker system |
| Woofer | 25 cm cone type |
| Midrange/Tweeter | 6 cm cone type (for high pass) |
| Super Tweeter | 4 cm cone type (for Super High Range) |
| Effective frequency band | 40 Hz to 20000 Hz |
| Output sound pressure level | 91dB/W/m |
| Impedance | 8 Ω |
| Maximum allowable input | 60W |
| Crossover frequency | 2500 Hz, 12000 Hz |
| External dimensions | Width 315 x Height 580 x Depth 293 mm |
| Weight | 15.5kg |
Design

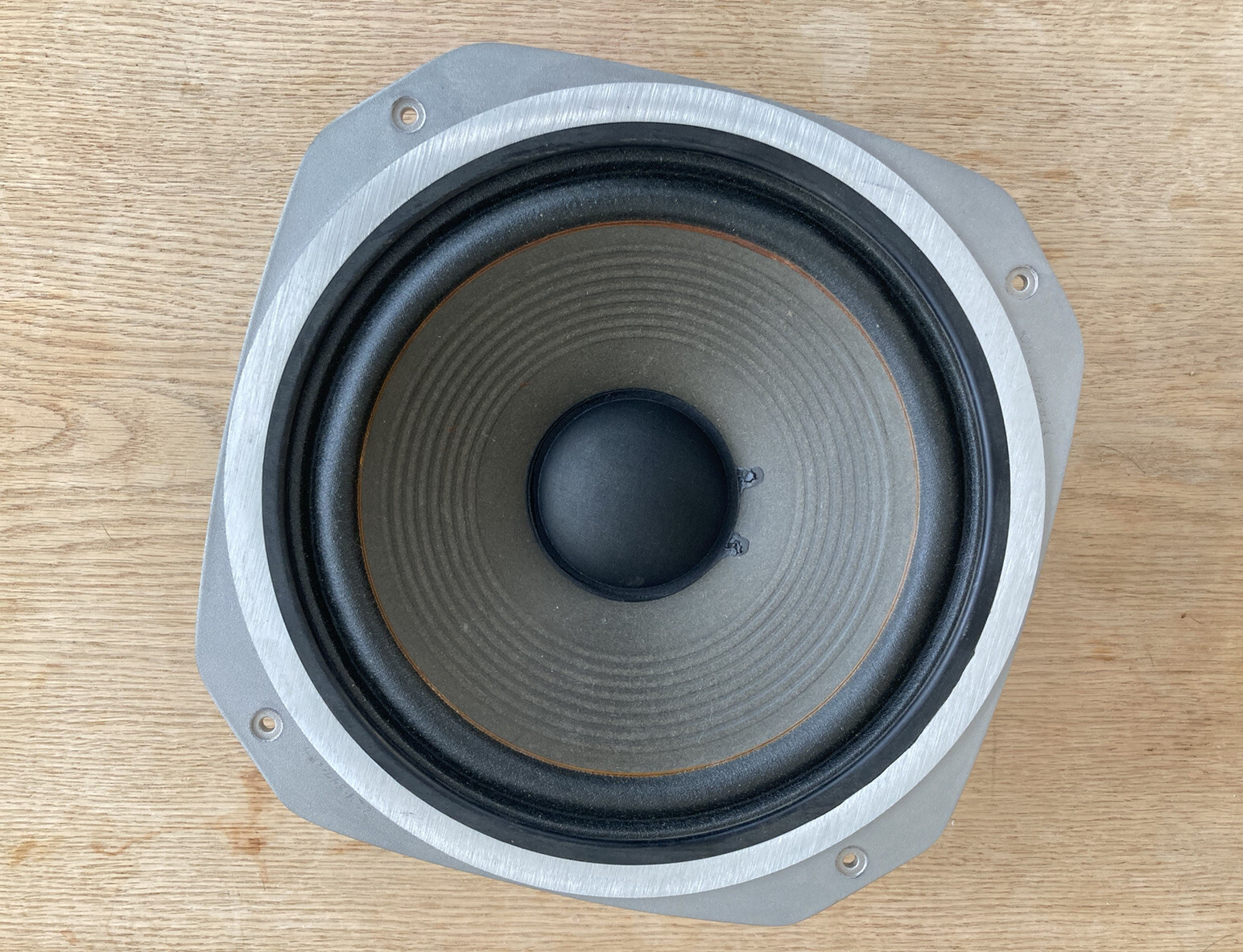

The woofer uses CARBOCON (carbon-fiber reinforced cone) material and features a light, flexible edge of special shape to suppress edge breakage. A large corrugation damper improves linearity, and the frame is made of aluminum die-cast to prevent resonance. The system includes continuously variable level control. The original fact sheet notes "Ca-O RBOCON," interpreted as a transcription error for CARBOCON.
