Sony ps-x55 (1980-1982)
A full-auto turntable with microcomputer-controlled operation and a rigid J-shaped tonearm for improved tracking.
Overview
The Sony PS-X55 is a fully automatic turntable produced from 1980 to 1982, designed for reliable and user-friendly playback. It features a built-in microcomputer that manages record size selection, automatic start, return, and repeat functions. Marketed as a "basic fully-automatic turntable for the masses," it shares specifications with the PS-LX5 but includes a heavier platter and larger motor. Its design emphasizes stability and precision, using advanced materials and construction techniques for its class.
Specifications
| System | DD / BSL motor Magnedisc / Quartz Lock |
| Wow and flutter | 0.02% wrms (rotating system) |
| Signal-to-noise ratio | 78dB(DIN-B) |
| Speed accuracy | > 0,003% |
| Load characteristics | 0% up to 100g |
| Tone arm effective length | 216.5mm |
| Tone arm total length | 300mm |
| Tonearm overhang | 16,5 mm |
| Needle pressure adjustment range | 0 ~ 3.0g |
| Usable cartridge weight limit (including shell) | 11.5g ~ 18.5g |
| Usable cartridge weight limit (including shell) with auxiliary weight | 18.0g ~ 25.0g |
| Shell dead weight | 8.0g |
| Supplied headshell | SH-151 (5,2g) |
| Effective mass | 8g (without cartridge) |
| Cartridge type | MM Type (XL-15) |
| Cartridge frequency characteristic | 10 Hz to 30 kHz |
| Cartridge output voltage | 4 mv (1 khz, 5cm/s, 45°) |
| Cartridge needle | 0.6 mil diamond needle |
| Cartridge dead weight | 5.2g |
| Start-up characteristic | Within 1/2 Rotation (at 33 1/3rpm) |
| Turntable platter | 31 cm Aluminum Die Cast |
| Turntable platter weight | 1,5 kg |
| External dimensions | Width 430 x Height 135 x Depth 375 mm |
| Weight | 8kg |
| Power consumption | 12W |
| Attachments | 45 Rotation Adapter, Auxiliary weight, Head shell, Cartridge (XL-15), Dust cover |
Design

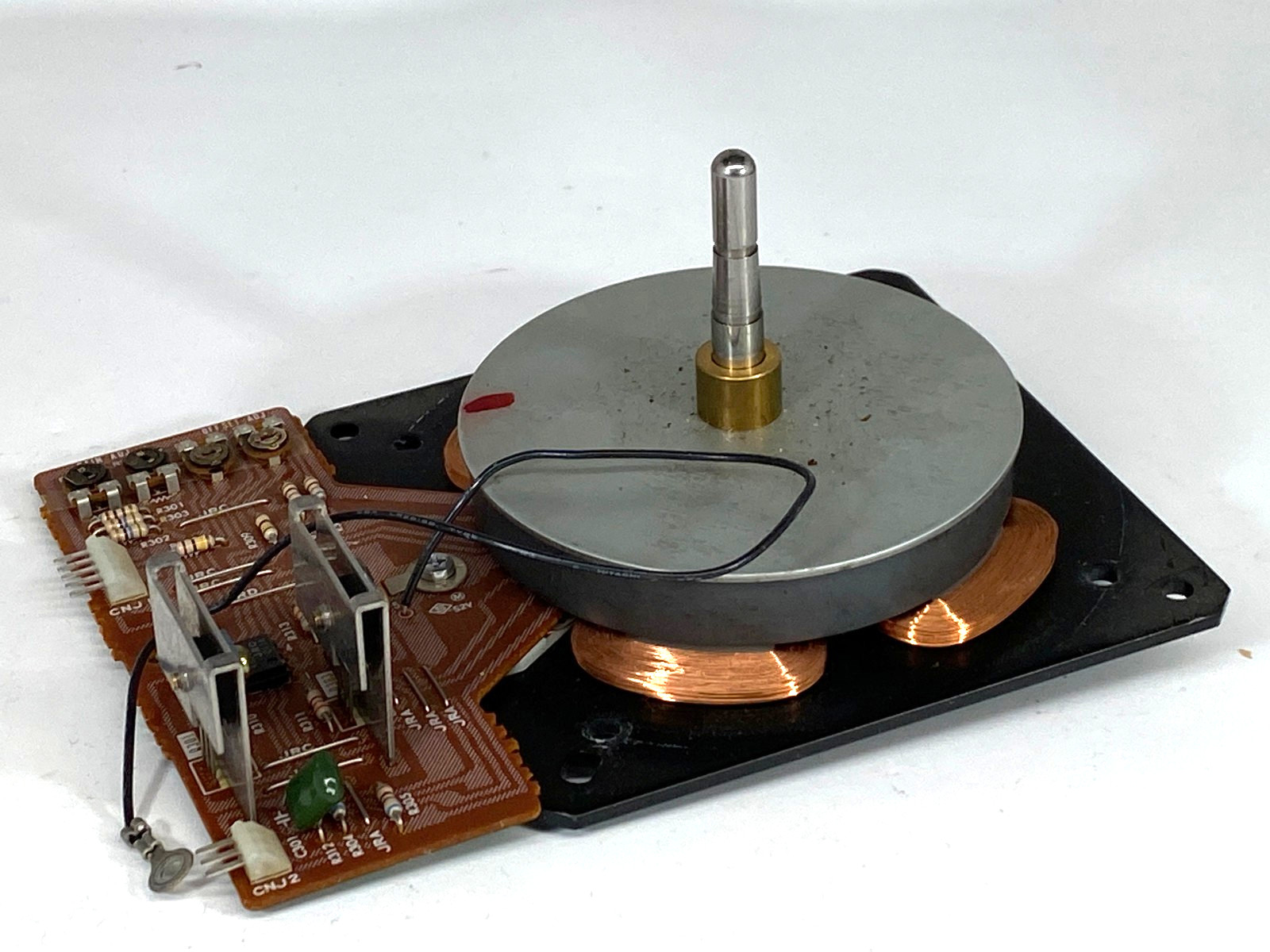

The PS-X55 uses a linear BSL motor that eliminates brushes and slots, reducing torque unevenness for quiet, smooth rotation. Speed detection employs Magnedisc with a crystal lock system for precise phase control. The tonearm features a rigid J-shaped aluminum alloy pipe with approximately eight times the stiffness of conventional designs, supported by a long-span bearing shaft for stability. End-of-record detection is contact-less, enhancing reliability. The cabinet is made from SBMC, an acoustic material resistant to resonance, and includes a thick dust cover and gel-damped insulators for improved vibration absorption. The microcomputer controls all automated functions, including read-in, return, and repeat playback.
Context
The PS-X55 shares features with the PS-X30 and matches the specifications of the PS-LX5, though it includes a heavier platter and larger motor. Positioned as an entry-level full-auto turntable, it was made just before the release of higher-end models like the PS-X600, PS-X700, and PS-X800. It is listed in Sony's brand index under "Legendary Products."
