Pioneer hpm-40 (1976-1979)

Name: Pioneer hpm-40
Brand: Pioneer

At 9.5kg, these Japanese-built bookshelf speakers carry a heft that hints at their serious engineering—and the inevitable foam decay lurking beneath.

Overview

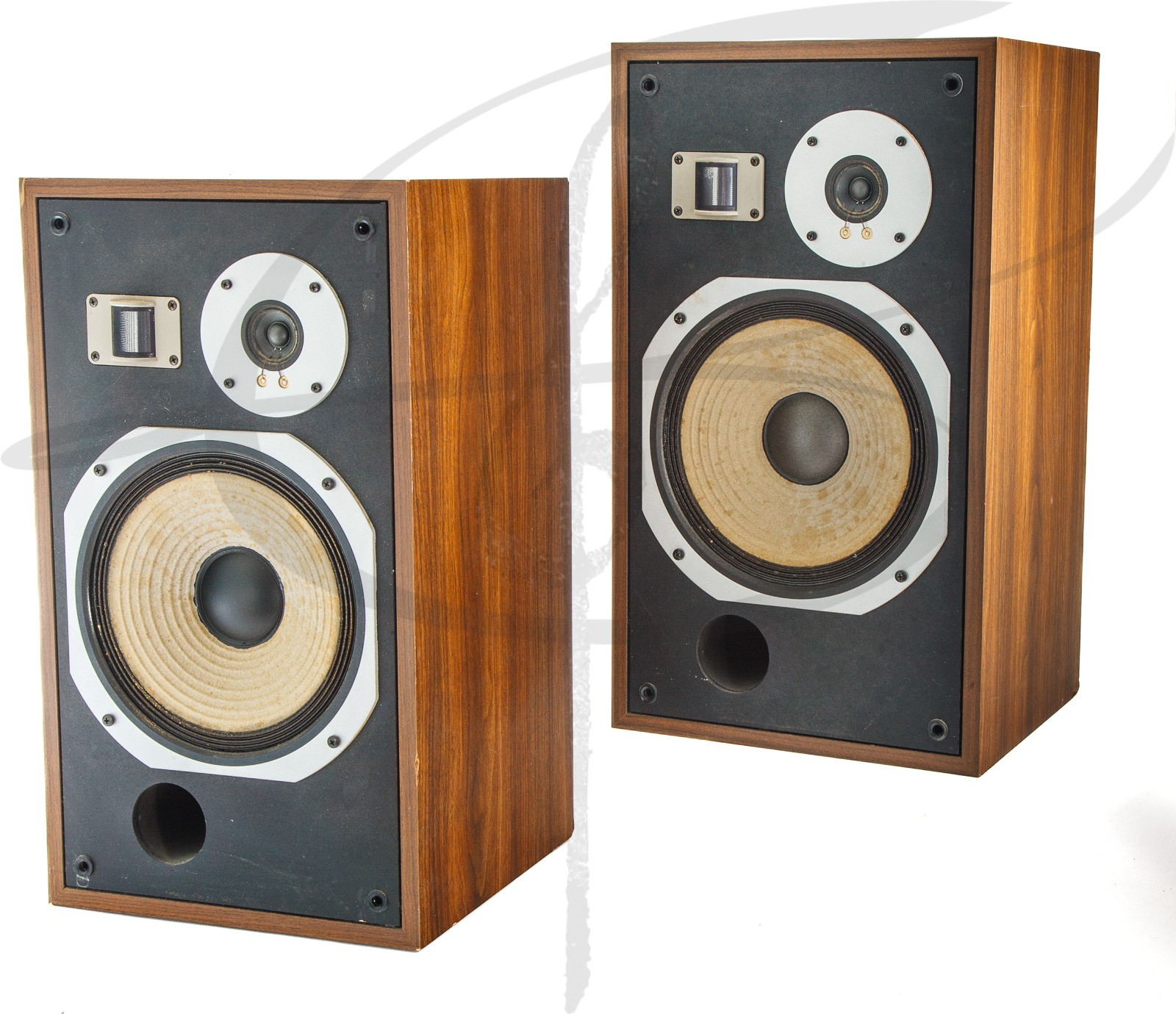

The Pioneer HPM-40 is a 2-way bass reflex loudspeaker built in Japan between 1976 and 1979, part of a broader HPM series that included the HPM-30, HPM-60, HPM-100, and HPM-150. Marketed as a compact yet full-range solution for discerning listeners, the HPM-40 packs a 20cm (10") woofer and 5cm (2") tweeter into a wood cabinet measuring 280 x 520 x 240 mm. Owners report it delivers good bass response for its size, with clear highs and a warm, pleasant sound signature that favors rock and jazz. Weighing in at 9.5kg per cabinet, the speaker feels solid in hand—a testament to its dense wood construction and internal bracing, though that weight also signals the kind of overbuilt enclosure design common in late-1970s Japanese hi-fi.

Despite its bookshelf classification, the HPM-40 was engineered for more than casual listening. With a sensitivity of 90dB/W/m, it’s highly efficient and easy to drive, making it a favorite among users with lower-powered tube or solid-state amplifiers. The 8-ohm impedance ensures broad compatibility, while the 40-watt power handling reflects conservative engineering for its era. Its frequency response spans 45Hz to 20,000Hz, a respectable range that, combined with the bass reflex cabinet, allows it to produce deep, articulate low end without port noise when properly set up. The crossover is fixed at 2.5kHz, routing signals to a woofer with a special polymer composite cone and a high polymer film dome tweeter—technology that Pioneer touted for durability and extended response.

Forum users consistently describe the HPM-40 as “a great little speaker,” praising its musicality despite acknowledging it lacks the detail retrieval of modern designs. Some note noticeable performance differences between first and later generations, though documentation on what changed is absent. The original tweeter, reportedly capable of reaching 20kHz, contributes to a sense of airiness that complements the warm midrange. However, this is not a speaker for analytical listening; it’s one for immersion, for records that benefit from a forgiving yet dynamic presentation.

Specifications

Manufacturer	Pioneer
Product type	2-way bookshelf speaker
Years of manufacture	1976 - 1979
Made in	Japan
Power handling	40 watts
Impedance	8 ohms
Frequency response	45-20,000 Hz
Sensitivity	90dB/W/m
Crossover frequency	2.5kHz
Drivers	Woofer: 20cm, Tweeter: 5cm
Woofer size	10"
Tweeter type	2" cone tweeter / super tweeter
Cabinet type	Bass reflex
Internal cabinet volume	40L
Dimensions	280 x 520 x 240 mm (W x H x D)
Weight	9.5kg
Crossover part number	SWN.108
Driver part number (for replacement)	40-802a

Key Features

20cm Special Polymer Composite Cone Woofer

The 20cm (10") woofer in the HPM-40 uses a special polymer composite cone, a material choice that balanced stiffness and damping to reduce breakup modes and deliver tight, controlled bass. This design contributed to the speaker’s reputation for good low-frequency extension in a relatively compact cabinet. However, the rubber foam surrounds used on this driver are now prone to deterioration after decades of oxidation, leading to sagging, cracking, and loss of linearity. Replacement kits are available, and refoaming is a common restoration step for surviving pairs.

5cm High Polymer Film Dome Tweeter

The 5cm (2") tweeter is described as a high polymer film dome unit, though some owners refer to it as a super tweeter or cone-type. According to available documentation, it extends up to 20kHz, providing a sense of high-frequency detail and openness. While not as refined as modern soft-dome designs, it contributes to the speaker’s overall warmth without becoming harsh. The tweeter is also a known failure point, with repairs occasionally needed due to aging components or damage from overdriving.

Bass Reflex Cabinet with 40L Internal Volume

Housed in a wood cabinet with a bass reflex design, the HPM-40 uses port tuning to enhance low-frequency output, particularly around the 45Hz lower limit of its response. The internal volume of approximately 40L (about 1.4 cu ft) is substantial for a bookshelf model, allowing for deeper bass than smaller enclosures. The cabinet is covered in cloth grille and finished in wood veneer, typical of mid-tier Japanese hi-fi of the era. Its dimensions make it suitable for shelves or stands, though its depth may require careful placement.

Fixed 2.5kHz Crossover with SWN.108 Part Number

The crossover is set at 2.5kHz and uses the part number SWN.108. While the internal topology isn’t documented, owners report that the crossover components—like the foam surrounds—can degrade over time, leading to muddied sound or imbalance. Recapping and even full crossover replacement or upgrade are common restoration activities, with some enthusiasts modifying the network for improved performance. The original design prioritizes reliability and cost-effectiveness over audiophile-grade parts.

Collectibility & Value

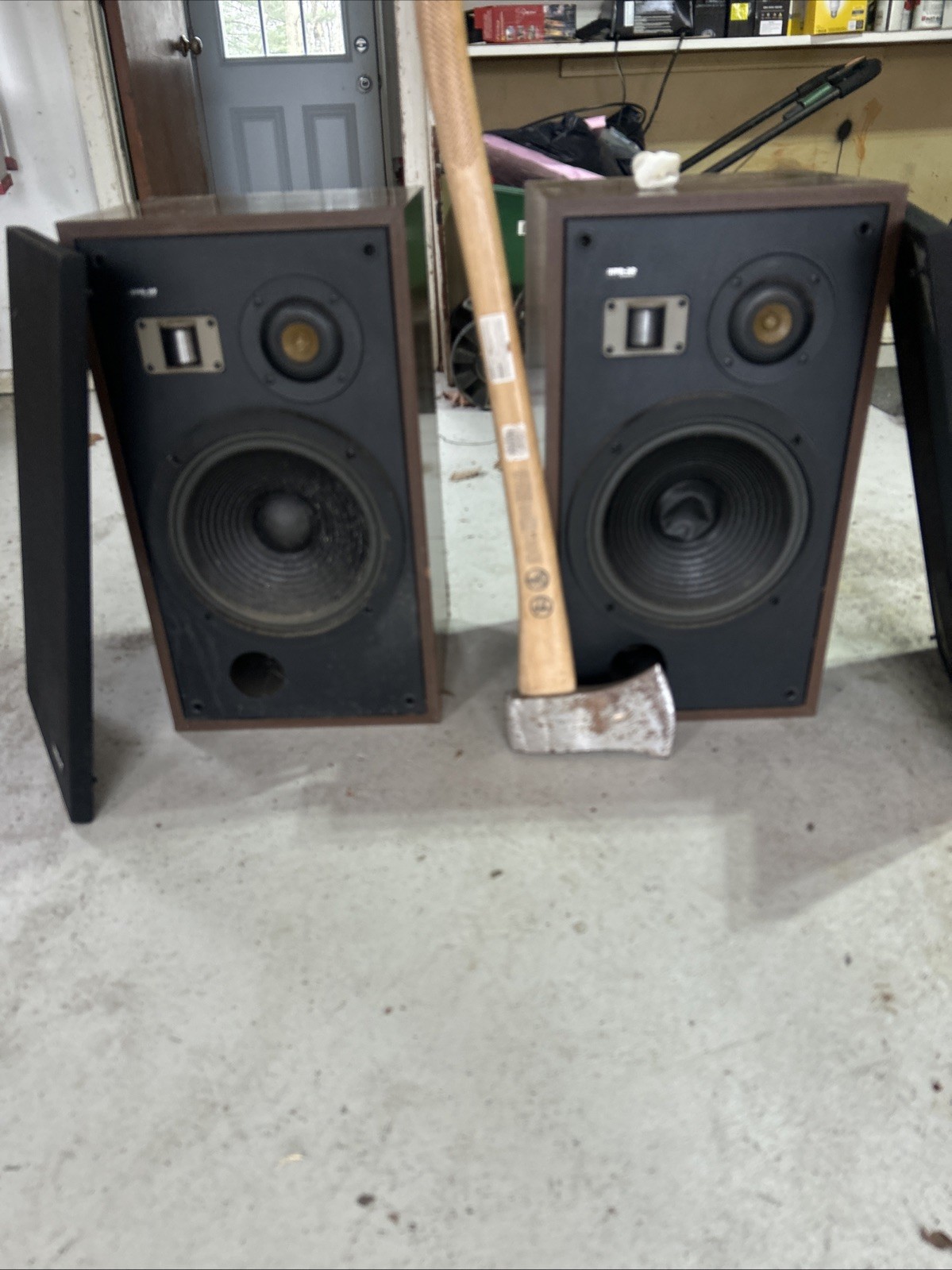

Originally priced at $289 per pair in walnut or black finishes, the HPM-40 now trades in the used market at widely varying prices: listings have appeared for as low as $150 and as high as $500 for a used pair, with one example on tmraudio.com priced at $399. Condition varies significantly, with many pairs showing wear and tear, scratches, and scuffs. The most critical factor in value is the condition of the woofer surrounds and tweeter. Refoamed and recapped units command higher prices, especially if original grilles and hardware are intact. Spare parts, including NOS 10" woofers, are available—such as a pair listed for $80—but full restoration requires time and technical care. As a result, the HPM-40 is not a plug-and-play vintage speaker but a project for enthusiasts who appreciate its sound and are willing to invest in its upkeep.
