McIntosh C35

Eighteen pounds of solid-state control center with a 2.5-volt rated output and a distortion figure so low it barely registers on the spec sheet.

Overview

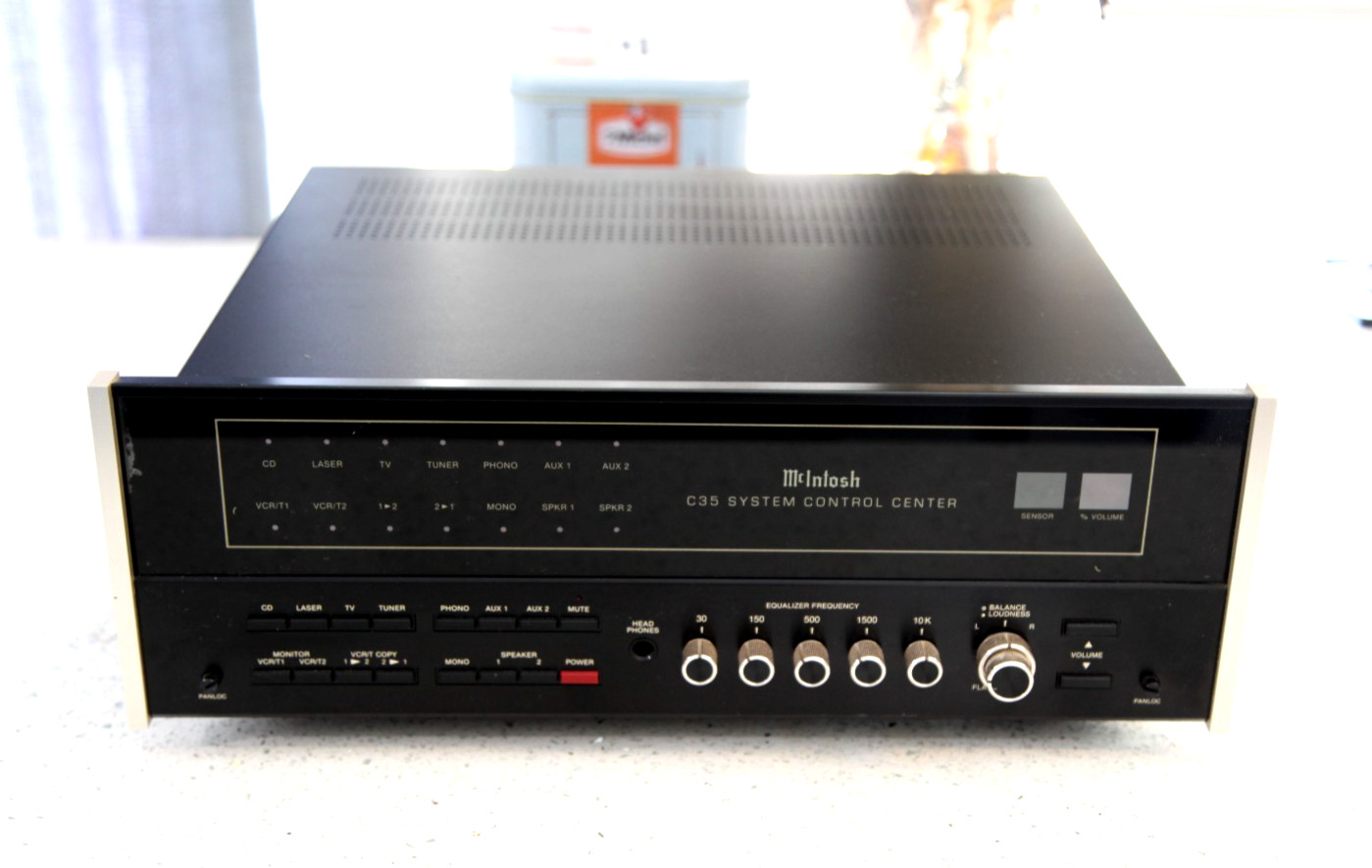

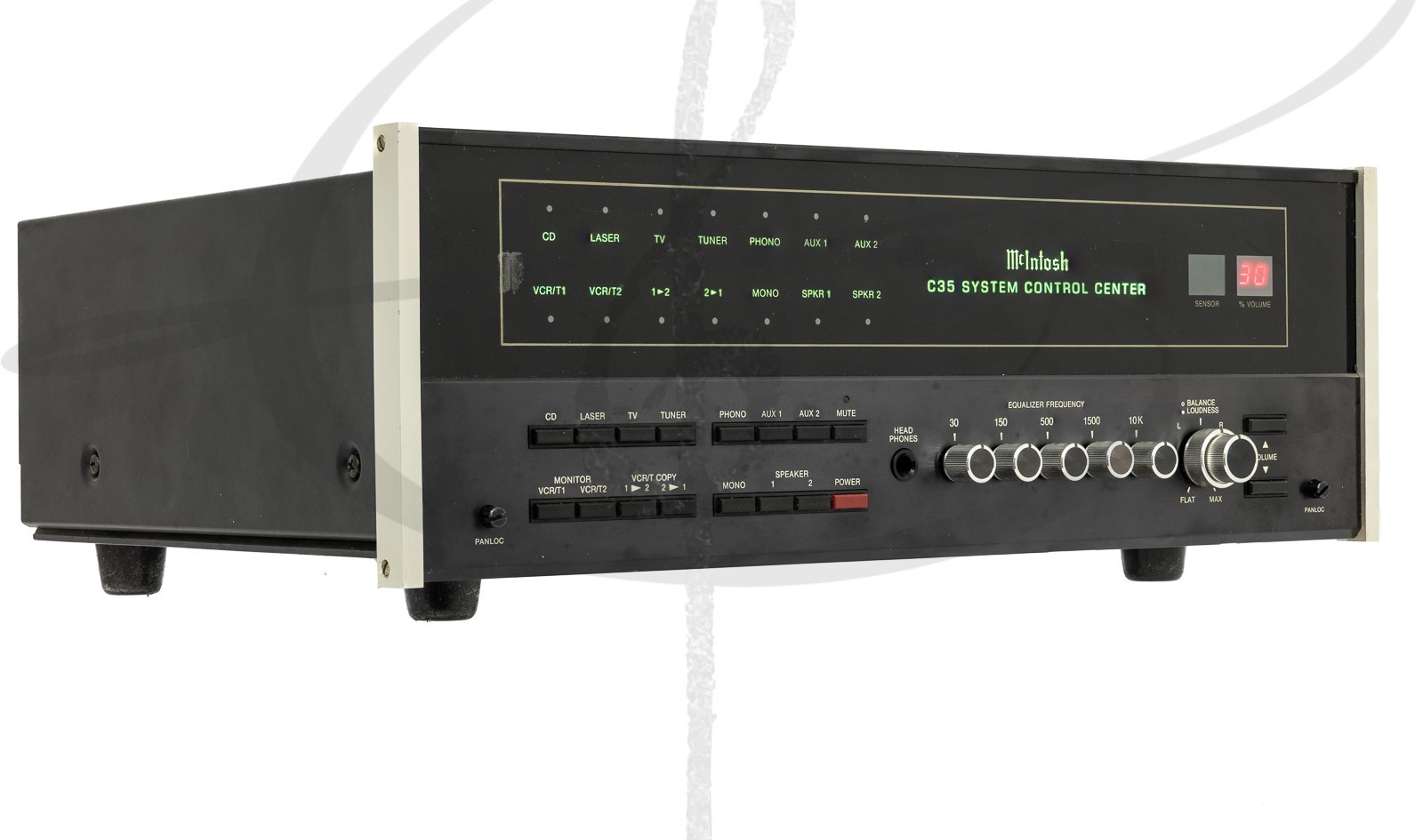

Pick up a C35 and the weight is the first thing you notice. It's 18 pounds net, 30 pounds in the shipping carton, which is a lot of mass for a line-level preamp. Inside the 16-1/8-inch-wide chassis are 49 bipolar transistors, 73 field-effect transistors, 35 integrated circuits, and 112 diodes, all arranged around a signal path that McIntosh rated at 0.002% maximum total harmonic distortion from 20 to 20,000 Hz at rated output. For a solid-state preamp of this era, that was vanishingly low. It explains why the C35 has held its reputation among collectors who care more about what a preamp doesn't add than what it does.

The C35 is a stereo preamplifier, but McIntosh's own manual calls it a "System Control Center," and that's the more accurate name. It's the switching hub for a full system - phono, tuner, CD, tape, auxiliary - with an equalizer section that offers ±12 dB of boost or cut at center frequencies of 30, 150, 500, 1500, and 10,000 Hz. That's five bands, not the eight that some secondhand listings claim. It's targeted room correction at the frequencies where speakers and rooms actually misbehave, not a graphic EQ.

The phono stage is the spec that separates the C35 from lesser preamps of its generation. Sensitivity is 2.5 mV for 2.5 V rated output, with 47K ohms input impedance and 65 pF capacitance, close to the textbook load for a moving-magnet cartridge. Signal-to-noise on the phono input is 90 dB below a 10 mV input, A-weighted. The high-level inputs are no slouch either: 250 mV sensitivity for rated output, 22K ohms input impedance, and a 105 dB signal-to-noise figure below rated output. Maximum input signal on the high-level jacks is 10 V, so hot sources won't clip the front end.

McIntosh's own advertising in the period leaned on the C35's combination of versatility and operating simplicity, and Audio (February 1991, p.71) ran the company's copy describing it as a "superb quality, high performance audio/video control center" with handheld infrared remote control covering nine sources, two speakers, two tape recorders, VCR audio, system mute, and volume. The same listing noted that remote control could be extended to two additional listening areas with McIntosh remote sensors.

Output impedance is 600 ohms balanced and 600 ohms unbalanced, with a maximum voltage output of 8 V from 20 to 20,000 Hz on the main and tape outputs. Frequency response is quoted as +0, −0.5 dB from 20 Hz to 20,000 Hz. Voltage gain runs 40 dB phono-to-tape, 60 dB phono-to-main, 0 dB high-level-to-tape, and 20 dB high-level-to-main.

Power comes from a standard 120 V, 50/60 Hz feed drawing 25 watts. The rear panel carries four switched black AC outlets plus one unswitched red outlet with 1,500 watts of total capacity. That's enough for a tuner, a CD player, a turntable, and a tape deck without a separate power strip. The chassis measures 5-7/16 inches high by 13 inches deep including connectors, and McIntosh specifies 1-3/8 inches of knob clearance in front of the mounting panel. Check that one before you build the cabinet.

The C35 is not a tube preamp. Some listings and forum chatter have muddled it with McIntosh's hybrid designs, but the manual is unambiguous: the semiconductor complement is all solid-state. Whatever warmth it has comes from circuit topology and parts selection, not from glass. That means no biasing, no tube rolling, and no microphonics to chase.

The C35 is a 1990s preamp that still looks and feels like a 1980s McIntosh, with gold-plated input connectors and the classic glass front panel. The switching section is built around low-noise NE5534 op-amps and 2N4392 JFETs in the signal path. The service documentation lists the signal-switching boards by left and right channel, with the left channel PCB carrying 31 diodes and a low-noise NE5534AN, and the right channel mirroring it with 29 diodes.

Maintenance on a C35 is mostly age-related consumables. The backup power supply uses a 1/16 A fuse and an MC78L05ACP regulator, so if the memory functions start acting up, look there first. The preamp and power supply board runs ±15 V regulators (MC78M15CT and MC79M15CT) feeding NE5534N op-amps, a straightforward topology that any competent tech can service. There's no exotic silicon here, which is why C35s are still repairable in 2026.

Market Value

┌──────────────────────────────────────────────────────────────────────────┐
│ MCINTOSH C35                                                    Nov 2026 │
├──────────────────────────────────────────────────────────────────────────┤
│ High      $1,177                                  Latest          $1,013 │
│ Median    $1,044                                  Trend                — │
│ Low       $980                                    Volume           ~2/mo │
├──────────────────────────────────────────────────────────────────────────┤
│ $2,000 ┤                                                                 │
│        │                                                                 │
│        │                                                                 │
│ $1,529 ┤                                                                 │
│        │                                                                 │
│        │                                                                 │
│        │.      .                                                         │
│   $900 ┤                                         .                      .│
│        ├─────────────────────────────────────────────────────────────────│
│    vol │█      █                                 █                      █│
│        └─────────────────────────────────────────────────────────────────│
│         2026-05                      2026-05                      2026-06│
└──────────────────────────────────────────────────────────────────────────┘

eBay completed sales. Excludes accessories, parts, and non-working units. Hover points for details.
