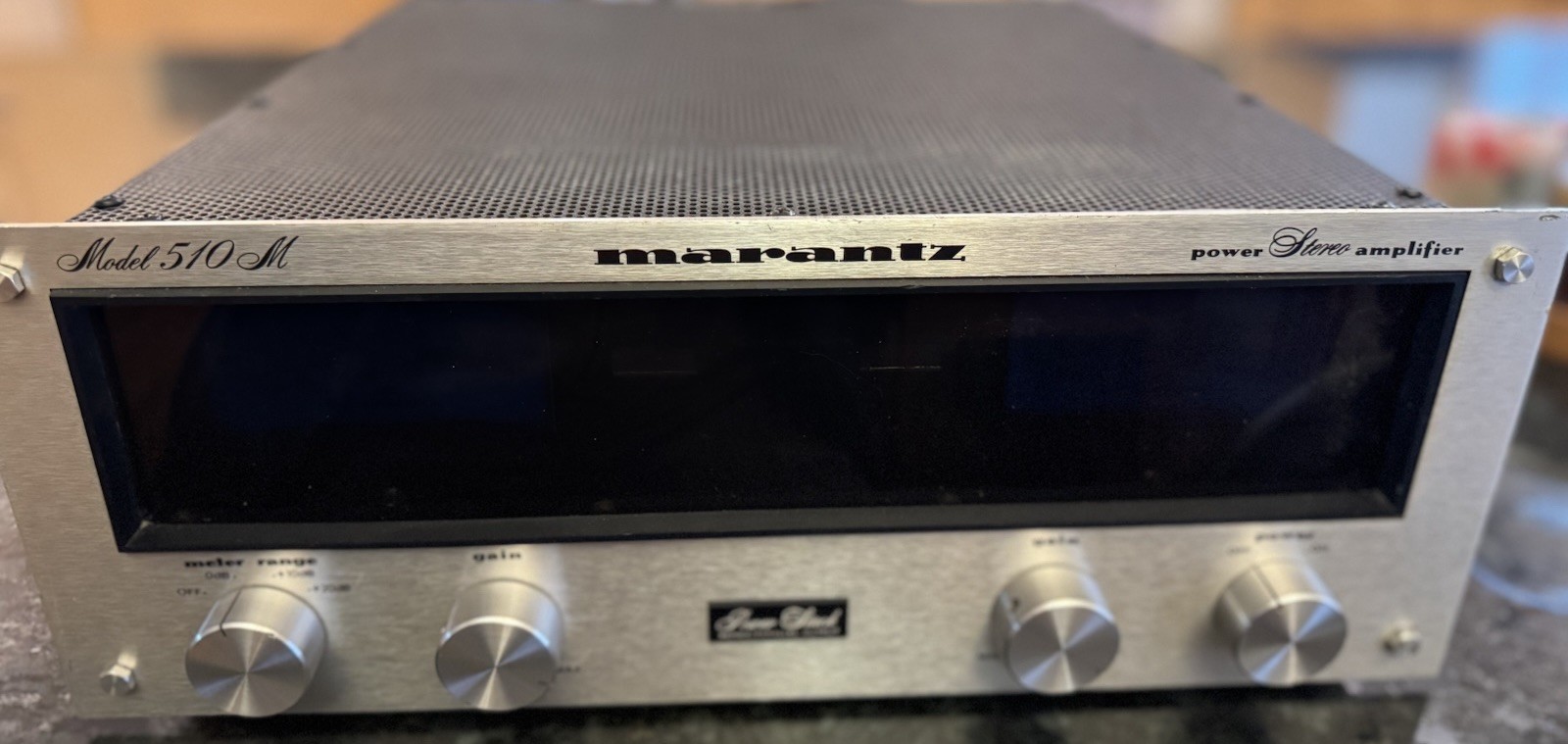

Marantz MODEL 510M (1979-1981)
Specifications
| Feature | Specification |
| Year of Production | 1979-1981 |
| Power Specifications | 250W per channel (8Ω), 350W per channel (4Ω), stereo |
| Impedance | 4-8Ω |
| Sensitivity | 1.5V for full output |
| Key Features | Dual-mono design, massive toroidal transformer, separate power supplies per channel, DC-coupled circuitry, direct-coupled output, thermal protection, soft-start circuit, VU meters |
Historical Significance
The Marantz Model 510M came out in 1979 as the top of Marantz's 'Monster' series. Most high-end amps of the time sat around 100 watts. The 510M puts out 250 watts per channel into 8 ohms. It is built like a tank, and it sits at the peak of late-'70s amplifier design.
Sound Signature
The 510M sounds neat, powerful and transparent. Bass is tight and authoritative, and it digs deep without bloat. Mids are clear and neutral, with good texture and space in vocals and instruments. Highs extend smoothly and never get harsh or fatiguing. The overall balance leans toward clinical accuracy, with a subtle warmth that keeps it from sounding sterile. It drives demanding speakers well and works in vintage setups.
Maintenance and Restoration Tips
These amplifiers were built to last, but four decades take their toll. Start with the electrolytic capacitors, which are likely dried out by now. Replacing them restores stability and prevents long-term damage. The output transistors rely on thermal paste that degrades over time. Reapplying it carefully ensures proper heat transfer and prevents thermal shutdowns. The relays can stick or fail, which cuts off sound unexpectedly. Clean the input jacks and volume pot with contact cleaner to get rid of crackles. The tiny bulbs in the VU meters often burn out, but LED replacements are now readily available and preserve the glow.
Collectibility and Market Value
- Market Value: $1,500-$3,000 depending on condition and cosmetic appearance
- Collectibility Rating: 9/10
