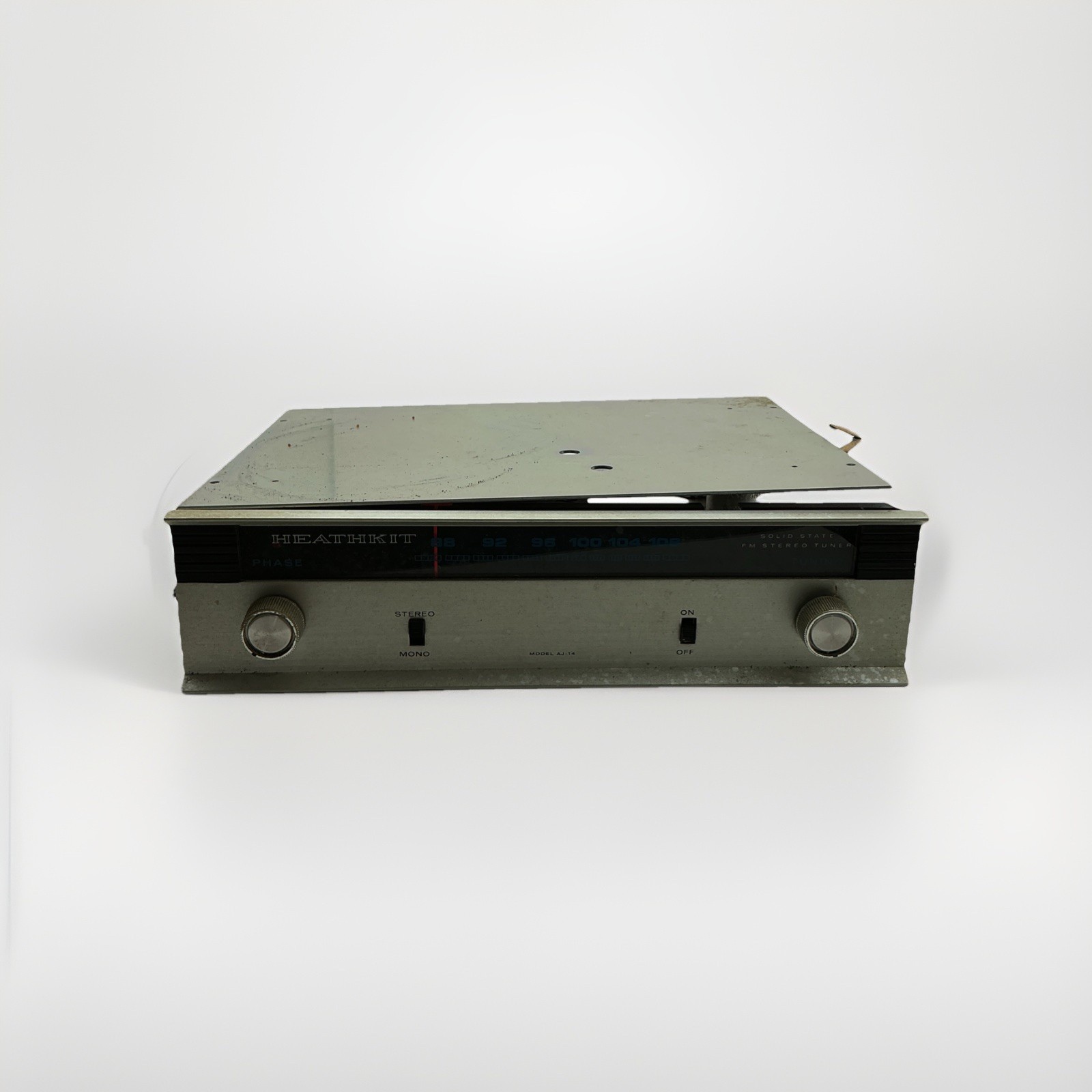

Heathkit AR-1501: The Modular Marvel of DIY Hi-Fi

Name: Heathkit AR-1501
Brand: Heathkit

In the golden era of high-fidelity audio, when tube warmth met transistor precision and the do-it-yourself (DIY) spirit thrived, Heathkit stood as a beacon for electronics enthusiasts. Among its most ambitious and innovative offerings was the AR-1501, a modular audio system introduced in 1975 that redefined what a home-built stereo could be. Unlike conventional receivers or standalone components, the AR-1501 was not a single unit—it was a complete, expandable ecosystem of audio modules housed in a unified chassis, designed and assembled by the user.

The AR-1501 emerged during a time when audiophiles were increasingly demanding better sound quality, flexibility, and customization. Heathkit, already renowned for its affordable, well-documented kits, took a bold step with the AR-1501 by offering a modular integrated system that combined the convenience of a receiver with the upgradeability of separates. It was aimed at the serious hobbyist—someone who wanted both the satisfaction of building their own gear and the performance of a high-end setup.

Technical Specifications

The AR-1501 was not a one-size-fits-all component. Instead, it was a five-slot modular chassis that allowed users to populate it with various functional modules. Below are the key specifications and available modules:

Module Type	Model Number	Key Features
Power Amplifier	A-1520	35W RMS per channel into 8Ω, discrete transistor design, low THD
Preamp/Control	A-1510	Bass, treble, balance controls, dual inputs, phono and line stages
FM Tuner	A-1530	Stereo multiplex, tuned RF front-end, 50 dB quieting sensitivity
AM Tuner	A-1531	High-selectivity design, ferrite loopstick antenna
Power Supply	A-1500	Regulated dual-voltage supply, low ripple, high current capacity

The system was built around a heavy-duty extruded aluminum chassis with a brushed faceplate, giving it a professional, rack-mountable appearance. Each module slid into place and connected via a gold-plated edge connector, ensuring reliable signal and power transfer. The entire system operated on ±36V rails, providing ample headroom for dynamic audio reproduction.

Users could start with a basic configuration—say, the A-1510 preamp and A-1520 amplifier—and later add the FM or AM tuner as desired. This modular approach was revolutionary for its time, offering a level of customization rarely seen outside of professional audio gear.

Sound Characteristics and Performance

The Heathkit AR-1501 system delivered a sound signature that was clean, detailed, and dynamically capable, typical of well-designed transistor gear from the mid-1970s. The A-1520 power amplifier, in particular, was praised for its low distortion (under 0.1% THD) and excellent channel separation, making it suitable for both music and broadcast monitoring applications.

The A-1510 preamplifier offered a neutral tonal balance, with smooth RIAA equalization for the MM phono input and ample gain for line-level sources. While not as warm or lush as some tube-based competitors, the AR-1501 system was admired for its transparency and accuracy, appealing to listeners who valued fidelity over coloration.

The A-1530 FM tuner was a standout, featuring quasi-peak detection and a well-tuned IF strip that delivered strong stereo separation and low noise. For its era, it could hold its own against commercial tuners costing significantly more. The AM section (A-1531) was more modest but still offered good reception for local stations, especially when paired with an external antenna.

Overall, the AR-1501 system was engineered for measurable performance, with careful attention to power supply regulation, grounding, and shielding—critical factors in achieving low noise and high signal integrity.

Notable Features and Innovations

What set the AR-1501 apart was its modular philosophy. At a time when most audio gear was sold as fixed-function units, Heathkit offered a system that could grow with the user’s needs and budget. This was particularly appealing during the 1970s, when high-quality audio equipment was expensive and often out of reach for average consumers.

Key innovations included:

Gold-plated edge connectors for reliable module interconnection
Regulated dual power supply (A-1500) to minimize crosstalk and noise
Tool-less module installation for easy upgrades and servicing
Comprehensive assembly manuals with theory of operation, schematics, and alignment procedures

The AR-1501 also reflected Heathkit’s educational mission. Each kit came with detailed instructions that not only guided assembly but also taught fundamental audio electronics principles. For many, building the AR-1501 was as much a learning experience as it was an audio project.

Common Issues and Maintenance

Like any vintage electronics, the AR-1501 requires attention to age-related wear. The most common issues include:

Electrolytic capacitor degradation: The power supply and amplifier modules use electrolytic capacitors that can dry out over time. Replacing these (a process known as "recapping") is often necessary for reliable operation.
Oxidized edge connectors: The gold-plated connectors can develop oxidation or corrosion, leading to intermittent signals. Cleaning with contact cleaner and a soft brush is recommended.
Tuner alignment drift: The FM and AM tuners may require realignment using a signal generator and alignment tools, especially if reception is weak or stereo decoding is unstable.
Potentiometer noise: The preamp’s volume and tone controls can become scratchy with age. Deoxit or replacement is advised.

Fortunately, Heathkit’s excellent documentation and the widespread availability of service manuals make troubleshooting and repair accessible—even for less experienced technicians.

Current Market Value and Collectibility

Today, the Heathkit AR-1501 is a cult favorite among vintage audio and DIY enthusiasts. Complete, working systems in good condition can fetch $400 to $700, depending on configuration and cosmetics. Rare or fully loaded units (with both FM and AM tuners) command higher prices, especially if they include original manuals and packaging.

Its collectibility stems not just from its sound quality, but from its historical significance as a modular DIY platform. In an age of sealed, non-upgradable electronics, the AR-1501 represents a lost philosophy of ownership, repairability, and user empowerment.

Parts and modules are still available through online forums, eBay, and specialty vintage audio dealers. The Heathkit community remains active, with user groups and restoration projects documented on sites like HeathkitInfo.com and Antique Radio Forums.

Conclusion and Legacy

The Heathkit AR-1501 was more than just a stereo system—it was a statement. It embodied the belief that high-fidelity audio should be accessible, understandable, and customizable. At a time when consumer electronics were becoming increasingly opaque, Heathkit opened the hood and invited the user in.

While it may not have the name recognition of a Marantz receiver or a McIntosh amplifier, the AR-1501 holds a special place in the hearts of those who built it, tweaked it, and listened to it. It stands as a testament to the ingenuity of 1970s engineering and the enduring appeal of hands-on audio.

For the vintage audio enthusiast, the AR-1501 offers a rare opportunity: to own, restore, and experience a modular hi-fi system that was truly ahead of its time. Whether you're a builder, a tinkerer, or simply a lover of great sound, the Heathkit AR-1501 remains a rewarding and nostalgic journey into the soul of analog audio.
