Bose 802 Series II Loudspeaker

At 2.5 kg, it defies expectations—lightweight, yet built around eight 4½" drivers and a demand for external EQ that defined its cult status.

Overview

The Bose 802 Series II Loudspeaker isn’t a standalone speaker in the conventional sense—it’s a component in a system, one that demands respect for its quirks as much as its capabilities. Marketed as a professional loudspeaker system, and designed for sound reinforcement applications where controlled dispersion and integration with Bose’s proprietary processing were priorities. Owners report a modular, building-block approach to system design, allowing multiple units to be combined for larger installations. Unlike typical passive speakers of the era, the 802 Series II was never intended to be used without active equalization—specifically the Bose 802-E EQ unit—which shaped its frequency response and ensured driver protection. Without it, sources suggest the speaker delivers a poor frequency response and fails to integrate cleanly with other systems. This dependency isn’t a flaw per se, but a design philosophy: Bose engineered the 802 Series II as part of a closed ecosystem, where performance hinges on correct signal chain integration.

Despite its modest size and featherweight 2.5 kg construction, the cabinet houses eight 4½" full-range drivers arranged in a vertical array. This configuration contributes to a 100° vertical beamwidth, a feature aimed at even sound coverage in live settings. The use of multiple small drivers instead of a single large woofer or dedicated tweeter was Bose’s attempt to achieve smoother off-axis response and reduce distortion through distributed load. Inputs and outputs include both 6.25mm (¼") jack and XLR connectors, allowing daisy-chaining of multiple units—a practical feature for touring or installed systems. Collectors note that these early units predate the foam surround degradation issues common in later Bose models, making surviving examples with original components particularly sought after.

Specifications

Manufacturer	BOSE Corporation
Product Type	PROFESSIONAL LOUDSPEAKER
Power Handling Capacity	240W continuous pink noise, 55Hz – 16kHz
Recommended Amplifier Power	240W minimum, 480W maximum
Sensitivity	Full-range, 91dB-SPL
Frequency Range	55Hz – 16kHz
Driver Configuration	eight 4½" full-range drivers
Vertical Beamwidth	100°
Weight	5.5 lb (2.5 kg)
Inputs	6.25mm Jack, XLR
Outputs	6.25mm Jack, XLR

Key Features

Eight 4½" Full-Range Drivers in Vertical Array

The core of the 802 Series II’s design is its use of eight 4½" full-range drivers, arranged vertically within the enclosure. This configuration spreads acoustic energy across a wide vertical dispersion pattern—100°—which was advantageous in venues where even coverage from floor to balcony was critical. By avoiding a single large driver, Bose aimed to minimize cone breakup and distortion at higher volumes. However, this approach also limits deep bass output, making the 802 reliant on companion subwoofers (such as the Bose 102, according to system documentation) for low-frequency reinforcement.

Active Equalization Requirement

The 802 Series II does not operate optimally without the Bose 802-E Active EQ unit. This external processor applies corrective filtering to flatten the speaker’s inherently uneven response and includes sharp subsonic and ultrasonic band-limiting filters. These filters reduce power waste by eliminating inaudible frequencies, lower stage noise, and protect the drivers from high-frequency damage. Users attempting to run the 802 Series II without the EQ report a thin, unbalanced sound with poor integration into mixed systems. The necessity of the EQ unit makes the 802 Series II a system purchase, not just a speaker buy—a fact that impacts both usability and collectibility today.

Sharp Subsonic and Ultrasonic Band-Limiting Filters

Built into the required 802-E EQ, these filters are a defining technical feature. The subsonic filter helps prevent amplifier strain and mechanical over-excursion in the small drivers. The ultrasonic filter helps reduce hiss and potential high-frequency driver fatigue. Together, they ensure that amplifier power is focused within the speaker’s effective operating range. This design reflects Bose’s engineering focus on efficiency and reliability in professional environments, where equipment runs for extended periods under demanding conditions.

Collectibility & Value

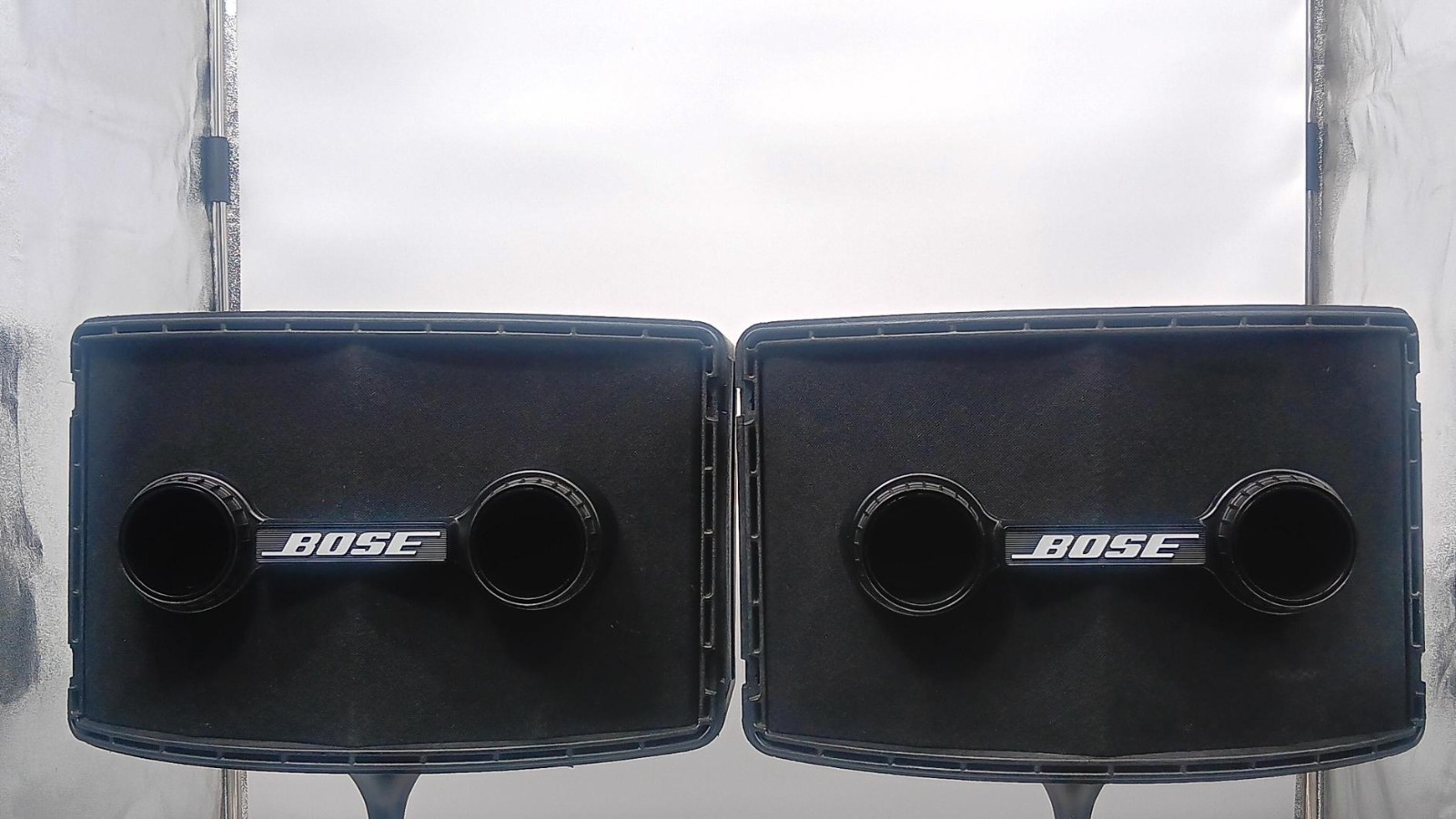

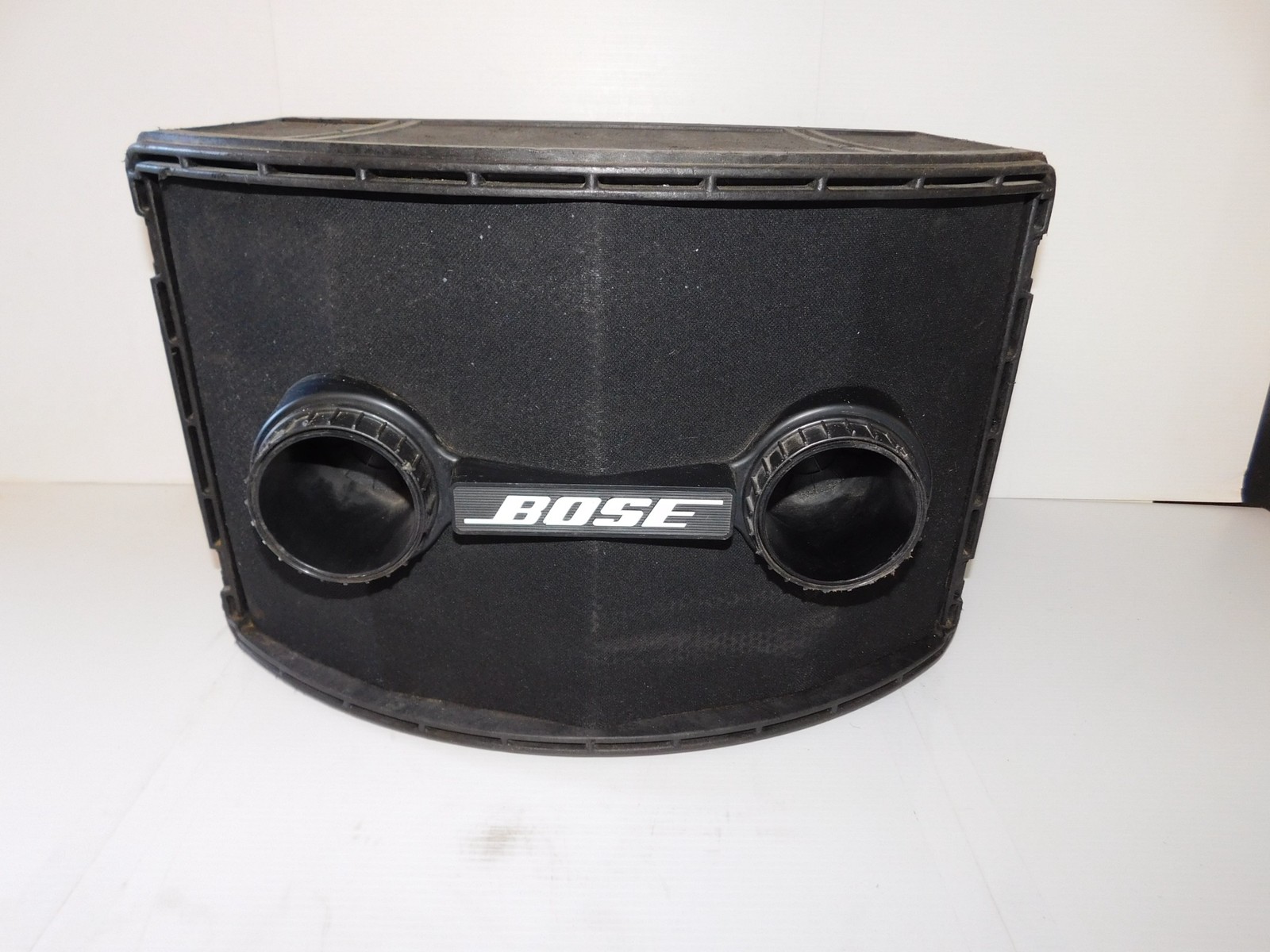

The Bose 802 Series II has developed a niche following among vintage PA collectors and analog audio enthusiasts. combined with the rarity of surviving 802-E EQ units, contributes to its collectible status. One eBay listing offered a single unit for $350 ("Not A Pair"), while a set of four speakers with the 802-E EQ sold for $1,399.00—highlighting the premium placed on complete systems. Owners note that these early units avoid the foam surround degradation common in later Bose speakers, as they were produced before the widespread use of the deteriorating foam materials. However, and dependence on obsolete electronics means that functional units are increasingly rare. No original MSRP has been documented, and
