ADDAC 216 Sum & Difference

Not your granddad’s mixer — this little brain-teaser turns signal math into sonic alchemy, one polarity flip at a time.

Overview

The ADDAC 216 Sum & Difference Eurorack Logic Module (ADDAC216) isn’t here to blend sounds politely. It’s here to do arithmetic with voltage — adding, subtracting, flipping, and rectifying with surgical precision. Built as a Eurorack logic module, it’s equal parts utility and creative playground, letting you warp both audio and CV signals in ways most mixers wouldn’t dare. At first glance, it looks like a modest dual-channel processor, but dig in and you’ll find it’s more like a pocket-sized lab for signal manipulation. This isn’t just summing — it’s signal surgery, with switches and knobs that let you invert polarities, rectify waveforms, and offset voltages on the fly.

It’s designed around two identical, independent sections labeled A and B, each capable of handling two input signals (X and Y). But instead of just summing them like a standard mixer, the 216 lets you subtract one from the other — opening up phase-cancellation tricks, differential modulation, and clean CV math. Whether you're folding audio-rate waveforms or generating complex control voltages from the difference between two LFOs, the module thrives on contrast. And because it handles both audio and CV, it blurs the line between utility and sound generator — a hallmark of clever Eurorack design.

What makes it peculiar — in the best way — is how it processes the result. After summing or differencing the inputs, the signal hits a switchable full-wave rectification stage labeled “Absolute,” which flips the negative halves of the waveform to positive, creating new harmonic content. Then it runs through an Amplitude attenuverter (a bipolar gain control), followed by an AC/DC coupling switch and a bipolar Offset knob, giving you fine control over both the signal’s baseline and its excursion above or below zero. It’s a signal chain with attitude — not just routing voltage, but transforming it.

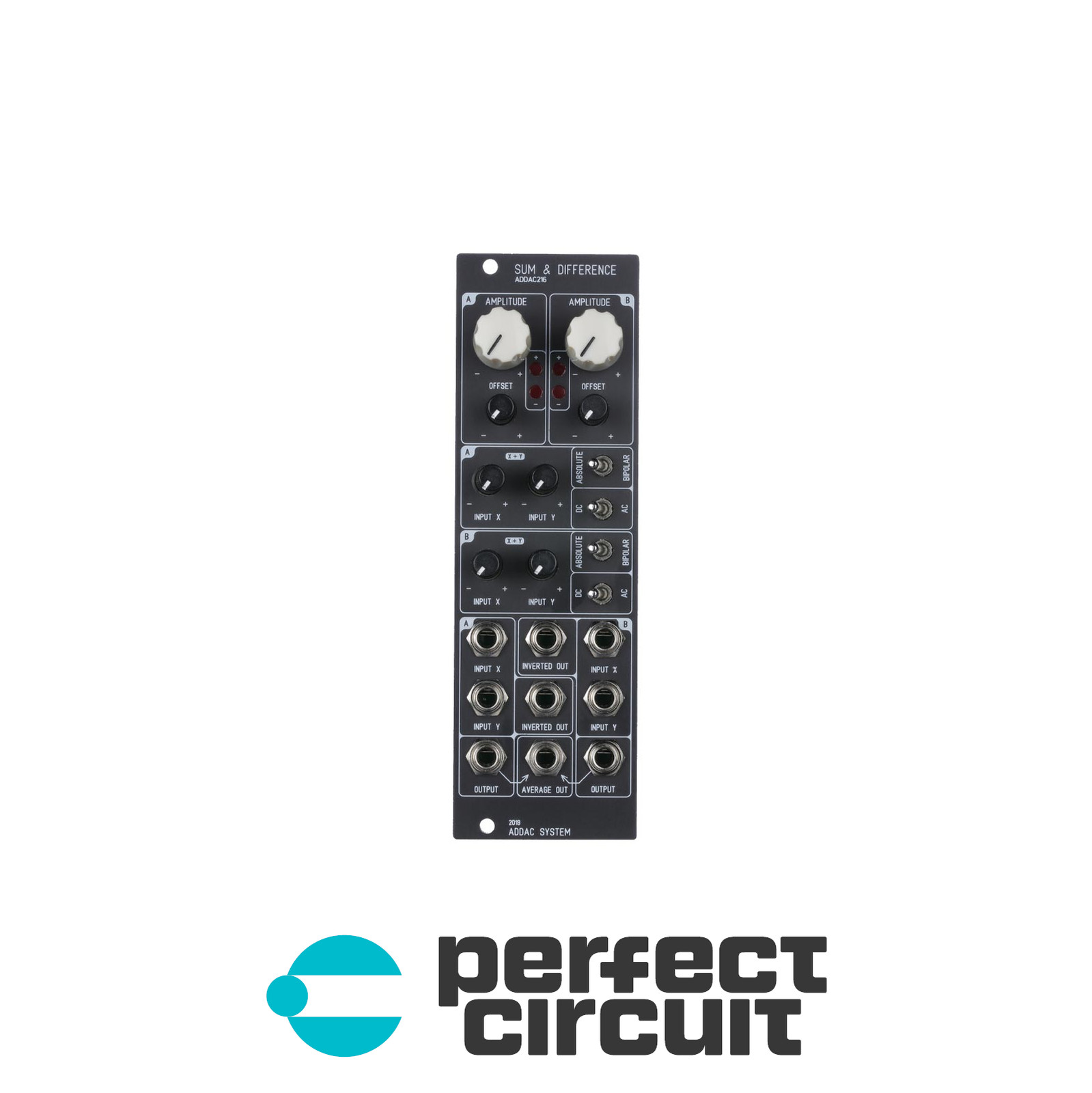

Even with just one input per section — say, just X or Y — the module becomes a dual attenuverter and CV processor, complete with rectification and AC coupling options. That kind of flexibility means it earns its keep even in minimalist systems. The front panel includes LEDs for each section that monitor output polarity and gain, offering visual feedback that’s surprisingly useful when patching in the dark or debugging a wonky modulation chain.

Specifications

Manufacturer	ADDAC
Model	216 Sum & Difference Eurorack Logic Module (ADDAC216)
Format	Eurorack module
Width	8HP
Depth	36mm
Power consumption	80 mA +12V / 80 mA -12V / 0 mA 5V
Sections	Two independent sections (A & B)
Function	Mixer for audio and CV signals

Key Features

Two Independent Signal Math Engines

Each section — A and B — is a self-contained processing block with two inputs (X and Y), each equipped with a bipolar level control (an attenuverter). This means you can scale each input positively or negatively before mixing, which is key to enabling subtraction. If you feed a signal into X and another into Y, and turn Y’s level down into the negative range, you’re effectively subtracting Y from X. That’s not just useful for phase tricks — it’s essential for generating control voltages that respond to the difference between two sources, like envelope followers or sequencer offsets.

Rectify, Then Shape

After the sum/difference stage, the signal hits the “Absolute” switch — a full-wave rectifier that converts any negative portions of the waveform into positive ones. Flip it on, and you’re doubling the frequency content of periodic signals; flip it off, and you preserve the original polarity. This is where the 216 stops being just a utility and starts becoming a sound design tool. Rectifying a slowly modulating CV? You get a bouncy, always-positive wave. Rectifying an audio signal? You create new harmonics, sometimes metallic, sometimes gritty, depending on the source.

Post-Processing with Amplitude and Offset

After rectification, the signal moves through the Amplitude attenuverter — another bipolar control that lets you scale the output up or down, including into negative territory. Then comes the AC/DC coupling switch, which determines whether the output includes a DC offset (useful for CV) or blocks it (better for audio). After that, the bipolar Offset knob lets you shift the entire signal up or down in voltage, which is invaluable when you need to re-bias a waveform to fit within 0–10V for a VCO or sequencer step.

Dual Outputs and a Global Average

Each section has both a normal output and an inverted output, giving you immediate access to the flipped version of your processed signal — no need for an extra inverter module. That’s handy for creating push-pull modulation or driving opposite parameters (like one filter opening while another closes). And if you want to blend both sections together, the module provides an Average output that sums the outputs of A and B and divides by two — a true average, not just a sum. It’s a subtle but important distinction for clean voltage mixing.

Compact and Efficient

At just 8HP wide and drawing a modest 80mA on both +12V and -12V rails (with zero draw on 5V), the 216 is a space- and power-sipper. That makes it easy to justify in even the most crowded systems. The 36mm depth is reasonable for most cases, though deep builds should still check clearance. It doesn’t do anything flashy on the power side — no digital processors, no microcontrollers — which likely contributes to its stability and low noise floor.

Collectibility & Value

The ADDAC 216 Sum & Difference is available new at a current market price of $152.03, with retailers offering a 2-year warranty and a 30-day money-back guarantee. While original MSRP was listed at $181.59, the module appears to have seen some price adjustment over time. There is no data on used pricing, common failures, or long-term maintenance issues — likely because it’s a modern, solid-state design with no moving parts or known failure points. As of now, and accessible, making it more of a functional purchase than a collectible. That said, its unique approach to signal manipulation ensures it’s not easily replaced, and owners tend to keep it patched in permanently.
