ADDAC 816 (2025–)
At just 5HP, it packs a punch—this is a VCA that doesn’t just shape volume, it gives life to dead signals with a snappy, saturating bite and a built-in envelope that cuts out the patch cable clutter.
Overview
The ADDAC816 Percussion VCA is a Eurorack module built for immediacy. Introduced on August 19, 2025, by ADDAC System, it’s designed to turn any incoming audio signal into a percussive event without needing an external envelope generator. That’s the core idea: simplicity with character. It combines a standard exponential-response VCA with an internal AD envelope, so a single trigger input is all it takes to produce a shaped, transient-rich output. The attack is fixed and fast—just enough to eliminate the harsh click that often plagues gate-controlled VCAs—while the decay is fully adjustable via a front-panel knob. A second knob controls the envelope’s gain, letting users dial in how hard the VCA is driven. According to available documentation, the module’s internal VCA can be overdriven into saturation, adding grit and presence when pushed, making it more than just a utility—it becomes a tone shaper.
This isn’t a module for subtle dynamics or long, evolving swells. It’s for kicks, snares, claps, and stabs—anything that needs a quick hit and immediate release. The design philosophy leans toward utility with personality: it’s not trying to replace a full envelope generator or a clean linear VCA, but to sit in that sweet spot where rhythm and timbre intersect. It’s reportedly useful for processing external sounds, drum samples, or even modulating noise into tight percussive bursts. The fact that it will also be available as a full DIY kit suggests ADDAC is targeting both ready-to-use buyers and builders who want to engage with the circuit directly.
Specifications
| Manufacturer | ADDAC System |
| Product type | Eurorack module |
| Width | 5hp |
| Depth | 40mm |
| Current draw | 80mA @ +12V, 80mA @ -12V, 0mA @ +5V |
| VCA type | Standard VCA with exponential response, saturating |
| Envelope type | Integrated AD envelope with fast attack and adjustable decay |
| DIY Availability | Available as full DIY kit |
Key Features
Integrated AD Envelope with Fixed Fast Attack
The ADDAC816’s envelope is not a full ADSR, nor is it meant to be. The attack is fixed at a short duration—deliberately set just long enough to avoid the audible click that occurs when a gate signal directly opens a VCA. This design choice eliminates a common annoyance in percussive patches without requiring additional slew circuits or complex routing. The decay, however, is fully variable via a front-panel knob, allowing users to shape how quickly the sound fades after triggering. This streamlined approach makes the module ideal for rhythmic applications where speed and reliability matter more than flexibility.
Saturating Exponential VCA
At its core, the module uses a standard exponential-response VCA, which naturally emphasizes the perception of loudness and punch—ideal for percussive material. But what sets it apart is its ability to be overdriven into saturation. When the envelope gain is turned up, the VCA begins to distort, adding harmonic content and a sense of weight. This isn’t clean amplification; it’s character-driven. The saturation behaves differently depending on the input signal level, meaning the interaction between source and module becomes part of the sound design process.

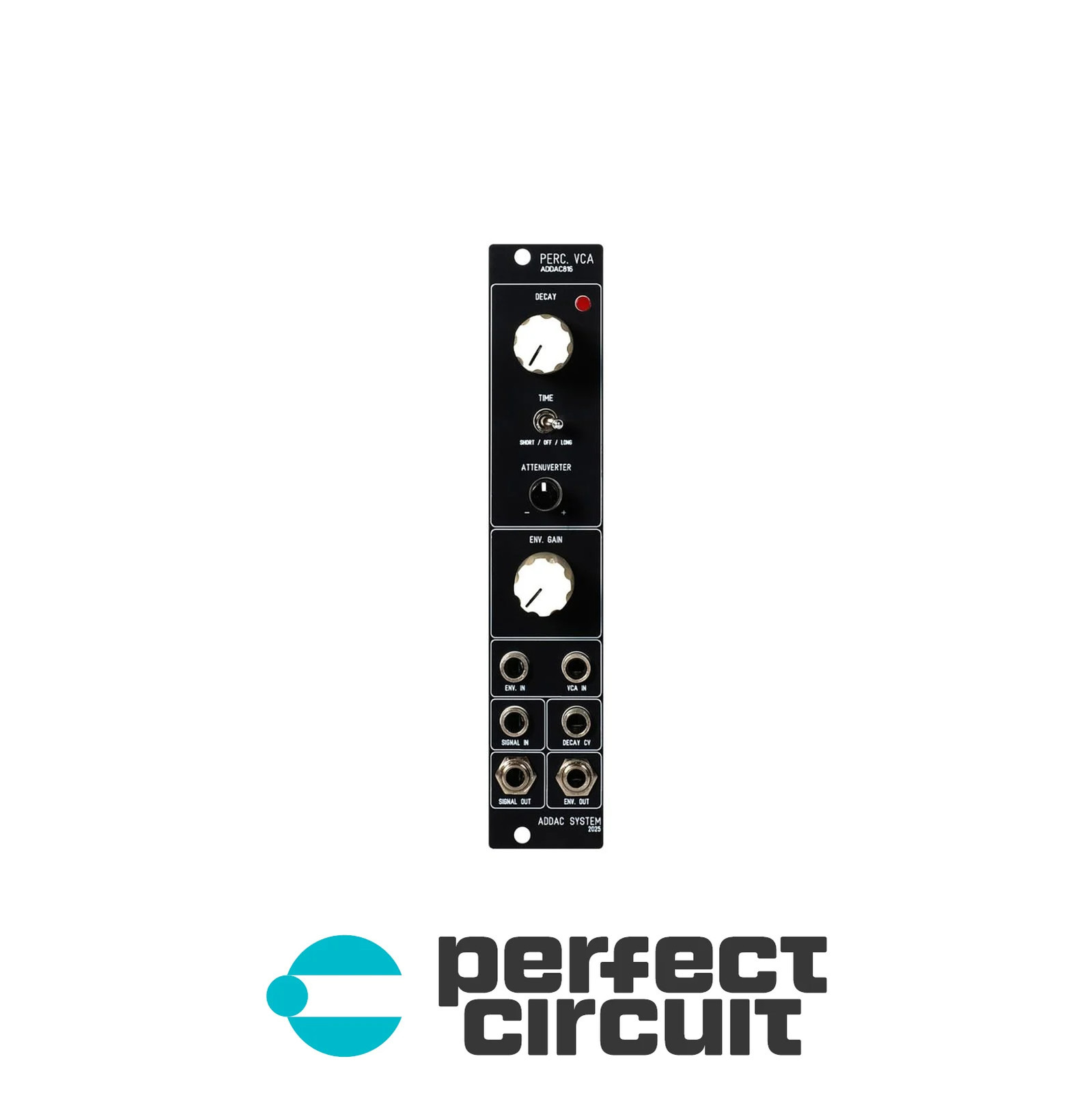

Compact 5HP Design with Full Front-Panel Control
In a format where space is currency, the ADDAC816 occupies only 5HP, making it one of the more space-efficient solutions for a VCA-with-envelope setup. Despite the narrow width, it retains full front-panel access to all essential parameters: decay time and envelope gain. It features inputs for both the audio signal and the trigger that initiates the envelope, plus outputs for the processed audio. The module draws 80mA from both the +12V and -12V rails, with no +5V requirement, which is standard for analog VCAs but worth noting for power supply planning. Its 40mm depth ensures compatibility with most cases, even shallower ones.
Collectibility & Value
The ADDAC816 launched with a manufacturer-stated price of 205 USD plus shipping, though retail pricing varies. It is available new from multiple dealers, with prices ranging from $149.00 to $209.00. At Reverb Finland, it lists for €165.60, while Perfect Circuit notes it as in stock and immediately available. The module is sold in brand-new condition and is also offered as a full DIY kit, which may appeal to builders and affect secondary market availability. No data exists yet on long-term reliability, common failures, or maintenance needs, given its 2025 introduction. As a new release, it has not yet entered the vintage market, and collectibility remains speculative.
