2hp VCA (2010–Present)

Name: 2hp VCA
Brand: 2hp

Two HP of pure, uncolored voltage control—so small it disappears, so clean it stays out of the way.

Overview

It’s easy to overlook a module that does one thing quietly and well. The 2hp VCA doesn’t announce itself with flashing lights, exotic waveforms, or gritty character. Instead, it slips into your rack like a utility knife—unassuming, essential, always ready. This is a dual linear VCA built for precision, not personality, and that’s exactly why it’s found its way into thousands of Eurorack systems since its release. When you need to duck a signal, gate a noise burst, or modulate amplitude without adding color, the 2hp VCA gets out of the way and lets your other modules shine.

Don’t mistake its minimalism for limitation. Under that brushed aluminum faceplate lies the SSM2164 VCA chip—a workhorse from the golden age of analog ICs, known for its ultra-low distortion and wide dynamic range. That heritage shows in the audio path: clean, transparent, and remarkably stable across voltage swings. Whether you’re shaping a delicate pad or slamming a percussive hit, the signal passes through with surgical fidelity. There’s no softening of transients, no low-end sag, no high-frequency roll-off—just amplitude control, pure and direct.

At just 2HP wide, it’s one of the most space-efficient dual VCAs ever made. That’s its entire reason for existing: to fill those awkward gaps between larger modules without sacrificing functionality. But that size comes with trade-offs. The knobs are tiny, the jacks are close together, and if you’re using thick cables or stacking modules densely, reaching the attenuators can feel like threading a needle. Some builders avoid it for exactly that reason—especially in skiff builds where every millimeter counts. Yet for many, that compactness is the whole point. It’s not meant to be the star of the patch; it’s the stagehand working in the shadows.

Specifications

Manufacturer	2hp
Production Years	2010–Present
Type	Synth Module
Format	Eurorack
HP Size	2HP
Depth	42mm
Power Supply	Requires Eurorack case and power supply
Power Consumption	21 mA +12V, 26 mA -12V, 0 mA 5V
VCA Architecture	SSM2164 (dual)
Topology	Dual linear VCA
CV Input Attenuator	Yes, per channel
Coupling	DC-coupled inputs and outputs
Inputs	2x audio/CV inputs (per VCA)
Outputs	2x audio/CV outputs (per VCA)
CV Inputs	2x CV inputs with attenuators (per channel)

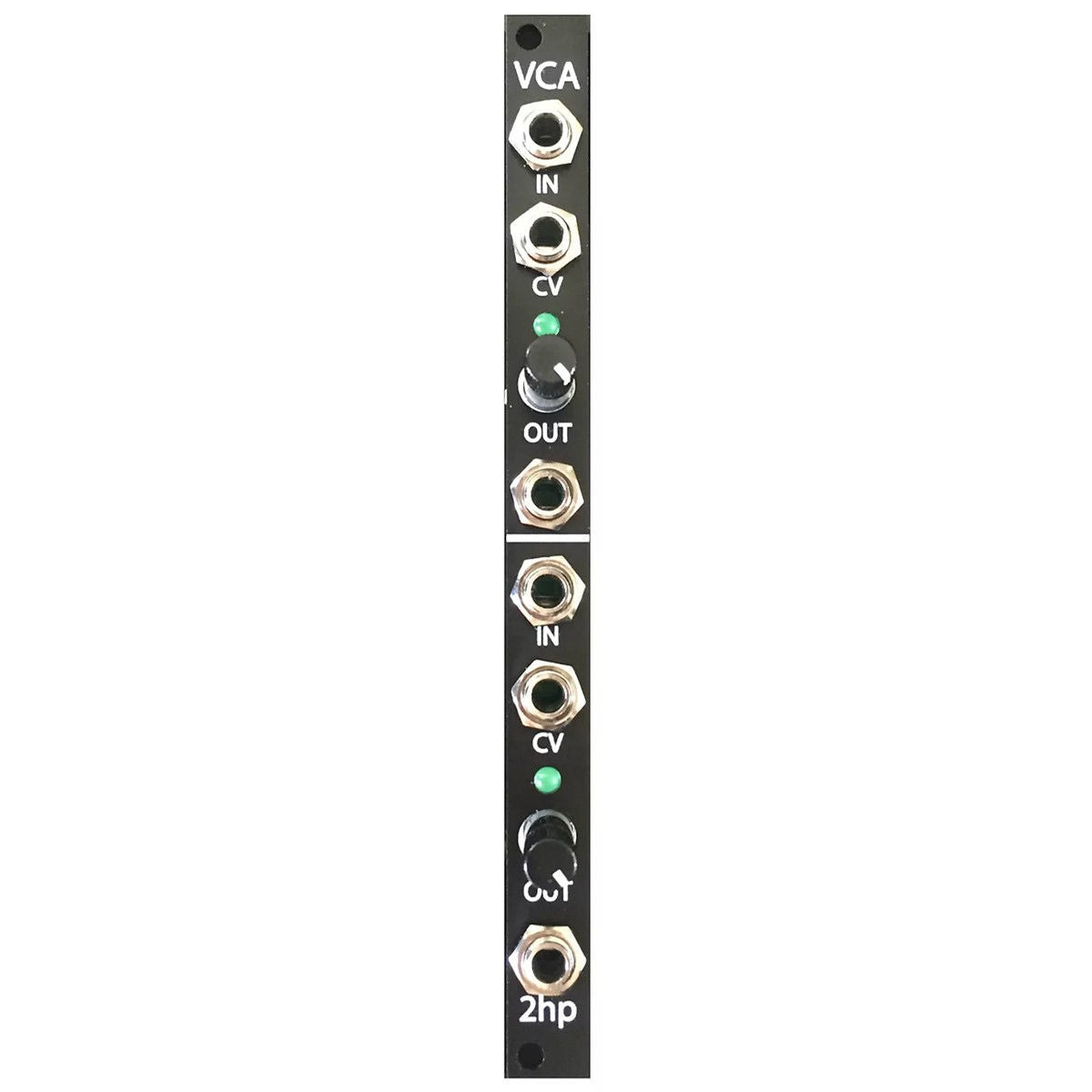

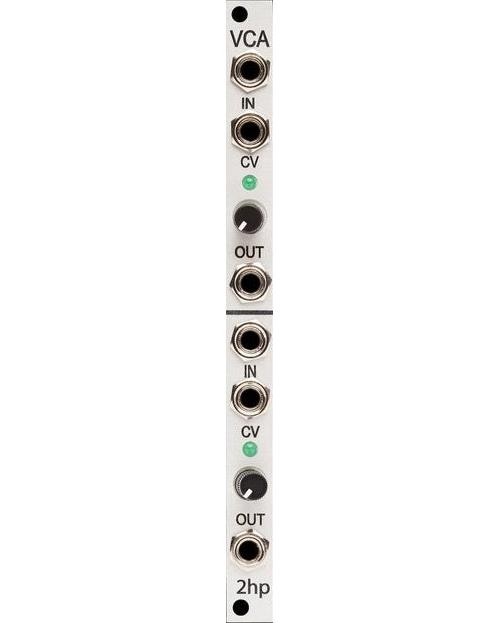

Color	Silver (standard), Black (variant)
Mounting	Skiff-friendly
Weight	Approx. 40g

Key Features

SSM2164 Fidelity in Miniature

The choice of the SSM2164 chip isn’t nostalgic—it’s strategic. This IC, originally developed by Solid State Music and later used in high-end consoles and VCAs, offers a dynamic range and linearity that few modern alternatives match. In the 2hp VCA, it delivers less than 0.01% THD under typical operating conditions, making it one of the cleanest analog VCAs available in Eurorack. That transparency is critical in mixing, sidechaining, or any application where signal integrity matters. Unlike VCAs with logarithmic response or inherent saturation, this one doesn’t sweeten the sound—it preserves it. Some users find that clinical neutrality a drawback when seeking warmth or vintage character, but for surgical amplitude control, it’s ideal.

DC-Coupled Flexibility

Both audio and CV signals pass through the 2hp VCA without issue, thanks to full DC coupling. This opens up creative routing options beyond simple volume control—think modulating LFO depth, scaling random voltages, or even using it as a bipolar attenuator in utility patches. The CV input attenuators allow fine-tuning of modulation depth, so you’re not stuck with full-scale swings when subtle nudges are needed. While it lacks offset or polarizer controls found on more complex VCAs, its simplicity keeps the design lean and the signal path short.

Space-Saving Design Philosophy

The 2hp VCA embodies the brand’s core ethos: maximize utility, minimize footprint. In a format where 4HP is considered compact, 2HP feels like cheating. It enables builds that would otherwise waste space or require awkward spacing. Skiff users, in particular, praise its ability to squeeze into corners and gaps, turning dead zones into functional real estate. However, that density has limits. Patching and adjusting become fiddly when flanked by other narrow modules, and some users report accidentally unplugging adjacent cables when reaching for the knobs. It’s a module that rewards thoughtful rack planning—ideal for static patches or systems where re-patching is infrequent.

Historical Context

When 2hp launched the VCA around 2010, Eurorack was still a niche within a niche. Most manufacturers focused on oscillators, filters, and sequencers—the flashy components that sell systems. Utility modules were afterthoughts, often bulky and feature-light. 2hp changed that calculus by treating utility as a design challenge: how small can a functional dual VCA be? The answer, it turned out, was 2HP. At a time when even basic mixers consumed 6HP or more, this module felt like a revelation. It arrived alongside a wave of minimalist builders—Doepfer’s A-100 utilities, Ladik’s compact designs, and later Intellijel’s µ-series—proving that small modules could be both practical and desirable.

The SSM2164 chip, though decades old, remained a gold standard for clean gain control. By leveraging its performance in a modern, compact form factor, 2hp bridged vintage engineering with contemporary modularity. Competitors like Mutable Instruments’ Veils offered more features—mixing, coloration, envelope generation—but at 8HP and higher cost. The 2hp VCA didn’t compete on features; it competed on density and fidelity. It wasn’t for everyone, but for those building tight, efficient systems, it became a quiet staple.

Collectibility & Value

The 2hp VCA has never been rare—production has remained steady since its debut—but it’s also never been cheap for its size. New units typically sell for $120–$140, which some consider steep for two VCAs in a sliver of metal. Yet the resale market tells a different story: used modules hold value well, often trading for $80–$100 in good condition. That staying power reflects real-world utility. Unlike novelty modules that fade from patches, the VCA remains in demand because it solves a persistent problem: space efficiency without compromise.

Failures are uncommon but not unheard of. The most frequent issue reported is power rail damage from reversed cabling or case faults—unsurprising given the tight PCB layout. The SSM2164 chips themselves are robust, but replacing them requires surface-mount skill. More common are cosmetic wear issues: scratched faceplates from patching, loose knobs from frequent adjustment, or bent jacks in densely packed racks. When buying used, check for consistent response across both channels and ensure the attenuators sweep smoothly without crackling. Units with silent channels or erratic CV response likely have damaged ICs or cold solder joints.

There’s no “vintage premium” here—no sought-after revisions or color variants that command double the price. The silver and black versions perform identically. What you’re paying for is consistency and build quality, not collectible scarcity. For restorers, the module is straightforward to service: no complex firmware, no delicate trim pots, just a clean analog path. If you’re assembling a minimalist rack or filling gaps in an existing system, the 2hp VCA remains one of the most reliable ways to add dual linear control without bloating your footprint.
