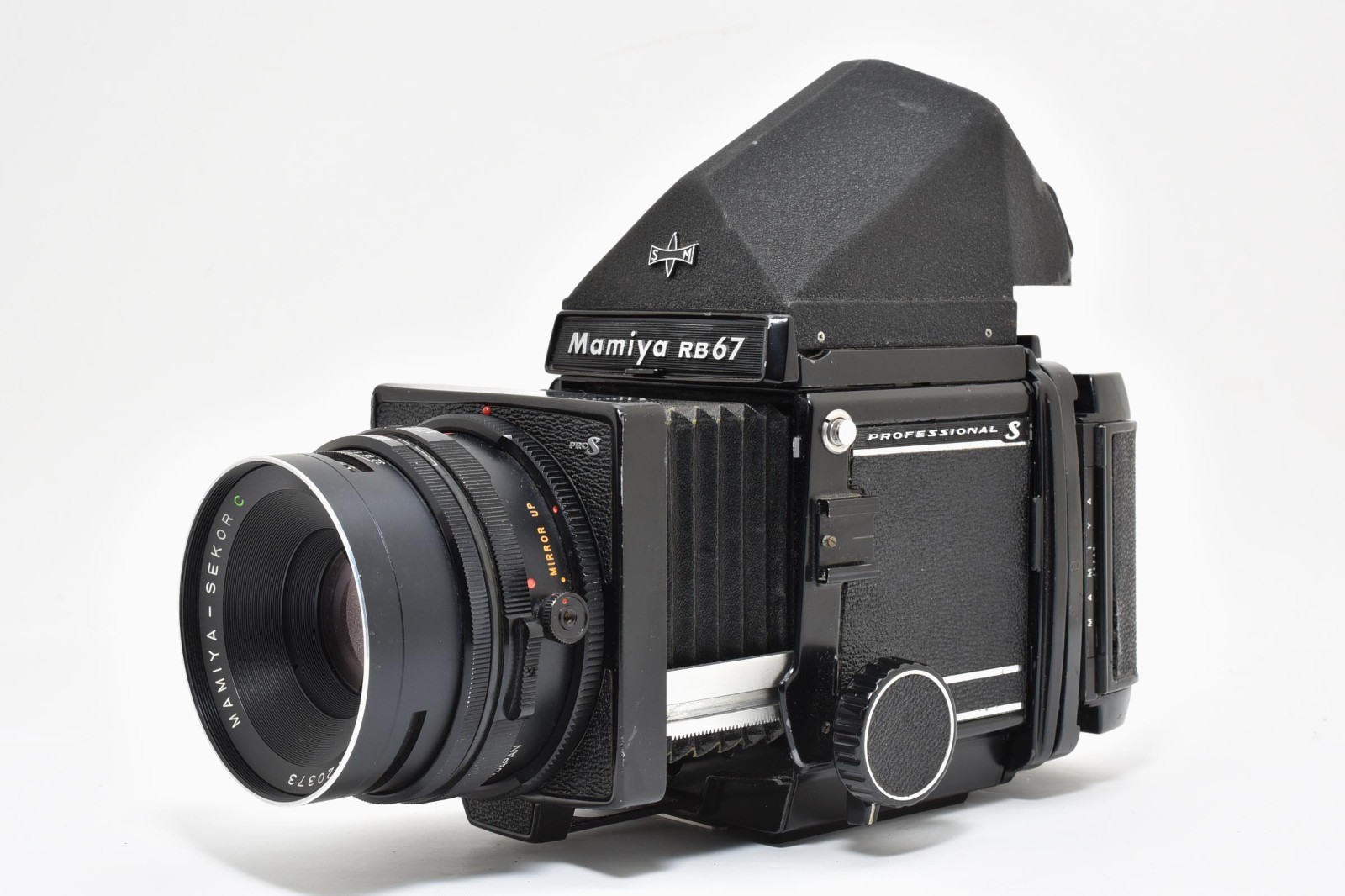

Mamiya RB67 (1970–1990): The Tank of the Studio Floor

Name: Mamiya RB67
Brand: Mamiya

A modular, rotating-back medium format SLR so overbuilt it could survive a fall from a tripod - and often did.

Overview

The Mamiya RB67 came out in 1970 for studio pros shooting fashion, portraiture, and commercial work, where every millimeter of negative counted. Medium format was then dominated by the elegant but fragile Hasselblad 500C/M, and Mamiya answered with a tank. That's not a figure of speech. The body weighs 1.35 kg bare, and with a 6x7 back and 90mm lens it's pushing two. The heft is honest. It comes from over-engineering, brass gears, and a rack-and-pinion focusing system so smooth it feels like a drafting instrument.

The big idea was the rotating film back. Other cameras made you turn the whole body (or your wrists) to go from horizontal to vertical. On the RB67 you twist the back 90° in seconds and the camera stays perfectly still on the tripod. Product photographers aligning reflections liked that, and so did portraitists locking in a precise lighting ratio. Lenses, viewfinders, and film backs are all interchangeable, and each one locks in with a tank-turret clunk. It wasn't fast. It wasn't quiet. In a studio, where control is what counts, that didn't matter.

Specifications

Film Format	6x7 cm (also supports 6x6, 6x8 with different backs)
Lens Mount	Mamiya RB bayonet mount
Shutter Speeds	1 - 1/400 second, Bulb
Sync Speed	1/60 second
Shutter Type	Leaf shutter in lenses
Viewfinder	Interchangeable focusing screens, eye-level pentaprism or waist-level finder
Focusing Mechanism	Bellows focusing with rack-and-pinion drive
Back Type	Interchangeable, rotating film backs (90° rotation)
Lens Compatibility	Mamiya RB lenses (C, S, and L series)
Metering	None (requires external meter or TTL metering prism)
Dimensions	148 x 125 x 158 mm (body only)
Weight	1.35 kg (body only)
Power Source	Two AA batteries (for metering prisms and shutter release control)
Country of Manufacture	Japan
Original MSRP	$850 (1980)

Key Features

Rotating Film Back: The RB67’s signature feature. Unlike Hasselblads or Bronicas, you didn’t rotate the whole camera—just the film back. This preserved your composition and tripod alignment. Switching from landscape to portrait took three seconds and didn’t disturb your lighting setup. For studio shooters, this wasn’t just convenient—it was essential.
Modular System Design: Every component—lens, viewfinder, back, screen—was interchangeable and locked down with industrial-grade precision. Want to swap from a waist-level finder to a pentaprism? Done. Need to load 120 and 220 backs simultaneously? The RB67 didn’t care. This wasn’t a camera; it was a photography ecosystem.
Bellows Focusing with Rack-and-Pinion Drive: Most medium format SLRs used helicoid focusing. The RB67 used a geared rack system, allowing for micro-precise focusing—critical for macro and product work. The knob had zero play, and the movement was buttery smooth. If you’ve ever focused one, you’ll remember the tactile satisfaction. It felt like adjusting a fine microscope.
Leaf Shutters in Lenses: Each RB lens had its own leaf shutter, enabling flash sync at all speeds up to 1/400 sec. This was a massive advantage over focal-plane shutter systems, which typically sync at 1/30 or 1/60. For strobe-heavy studio work, this meant you could stop down for depth of field without fear of overexposure.
No Built-In Metering (But TTL Prisms Available): The base body had no meter—just a mechanical shutter release. But Mamiya offered TTL metering prisms that used the AA batteries to power a CdS cell. These were clunky by modern standards, but for their time, they brought professional metering into the system without compromising the core mechanical reliability.

Historical Context

In the late 1960s, medium format was ruled by the Hasselblad 500C/M, a beautifully balanced square-format system used by photojournalists and portraitists alike. Square was limiting, especially for commercial work that needed rectangular compositions. Mamiya had already shown its engineering chops with the twin-lens reflex Mamiya C330. The RB67 was its answer: a studio workhorse built for the 6x7 format, which offered 56mm more vertical negative area than 6x6. That extra area meant higher resolution, more cropping flexibility, and a more natural aspect ratio for portraits and advertising.

The RB67 also went against the trend toward miniaturization. While 35mm was getting smaller and faster, Mamiya went big and deliberate. The RB67 was slow to set up, loud to operate, and needed a tripod for serious work. It found its niche with photographers who valued control over speed. The Mamiya RZ67 followed in 1982, a more electronic, shutter-automated evolution. Many purists still prefer the RB's all-mechanical reliability. If the batteries die, the RB67 still fires. The RZ67 does not.

Collectibility & Value

Today the RB67 is a sought-after collectible, especially the later RB67 Pro-S (1982) and RB67 Pro-SD (1990), which have reinforced bodies and improved film back latches. The original 1970 model is rarer and often shows wear. As of 2025, a fully functional RB67 Pro-S with a standard 90mm lens and back typically sells for $800 - $1,400, while complete Pro-SD kits can reach $1,800. Many working photographers still use RB67s for film shoots, drawn by the 6x7 negative and the feel of operating it.

Buyer beware: aging film backs are notorious for light leaks, especially along the pressure plate seams. Test with film or inspect the dark slide seals. Older RB lenses, particularly the C-series, can suffer from shutter timing drift due to dried lubricants. A CLA (clean, lubricate, adjust) from a specialist like Midwest Photo or KEH can restore accuracy, but it adds to the cost. When buying, look for bodies with crisp shutter actuation, tight back locks, and clean viewfinders. A TTL metering prism that actually works is getting hard to find.
