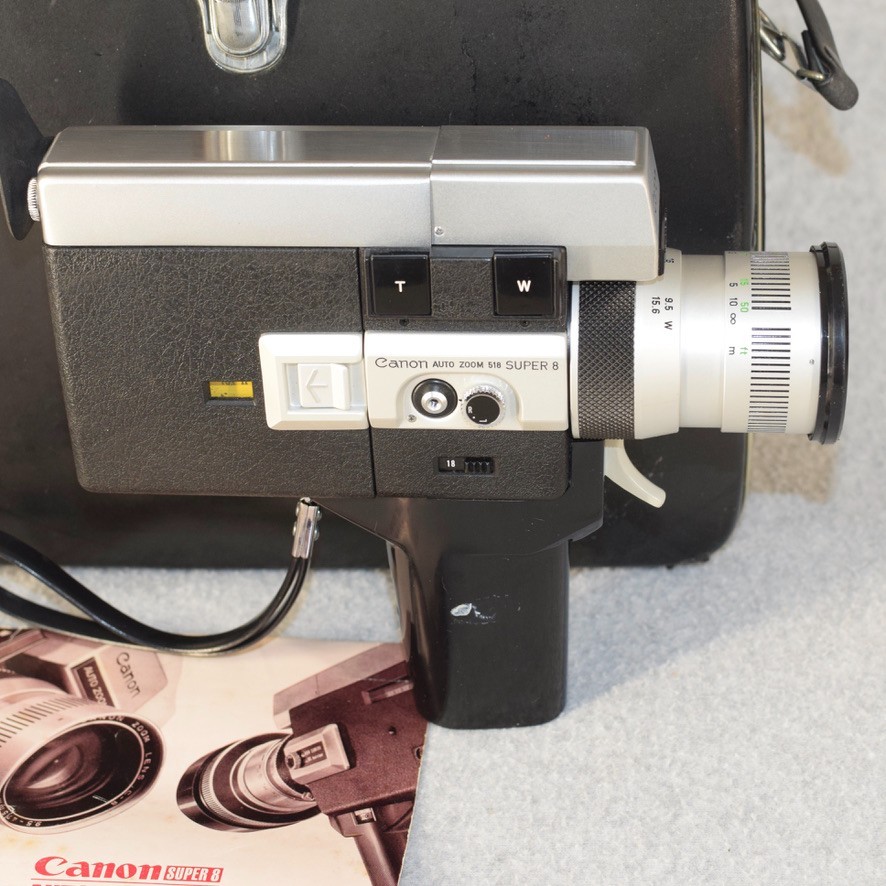

Canon Auto Zoom 518 Super 8 (1969–1970)

A 15.6–78mm zoom lens on a Super 8 body was unheard of in 1969—this was the first movie camera to make it real.

Overview

The Canon Auto Zoom 518 Super 8 wasn’t playing by the usual rules when it hit the market in 1969. While most Super 8 cameras were still wrestling with fixed focal lengths or clumsy add-on optics, Canon dropped a true 5x zoom directly into the body—a 15.6–78mm f/1.8 lens that didn’t just stretch reach but maintained a wide-open aperture throughout. That kind of flexibility in a cartridge-loaded silent 8mm system was borderline revolutionary. Owners report it handled like a serious step up from consumer-grade shooters, with a manual zoom knob positioned for smooth fingertip control and a viewfinder that rotated through 100 degrees—just enough to reframe without twisting the entire camera. The image area, at 4.2 x 5.7 mm, was standard for the format, but the lens’s speed and clarity gave it an edge in low light. It shot silently on standard Super 8 cartridges, and while it lacked built-in sound recording, the “Filmosound” variant name appears in some listings, suggesting later adaptations or regional models. Still, this was fundamentally a visual tool—engineered for people who wanted cinematic control without the bulk of 16mm gear.

Specifications

Manufacturer	Canon
Product Type	Super 8 movie camera
Film Format	silent super 8 cartridge
Image Size	4.2 x 5.7 mm
Lens	Canon Zoom Lens C8 f/1.8
Focal Length	15.6–78 mm f/1.8
Frame Rates	18, 24, 36 FPS
Aperture Control	Manual, selectable via aperture operation
Manual Zooming	Performed by manual zoom knob.
Revolving angle of viewfinder	Revolving angle of 100 ...

Key Features

15.6–78mm f/1.8 Zoom Lens with Constant Aperture

This was the headline act. A 5x zoom range with a fixed f/1.8 aperture across the entire span was nearly unheard of in consumer cine cameras at the time. Most competitors either had slower zooms or required stopping down significantly at full telephoto. The Canon C8 lens delivered consistent exposure and low-light performance whether shooting wide or tight—making it a favorite among users who valued flexibility. Collectors note it produces sharp, contrast-rich images, especially when stopped down slightly, and the lens’s reputation for optical quality has held up over decades.

Manual Aperture Selection via Direct Control

Exposure wasn’t left to guesswork. The camera allowed manual aperture selection through a dedicated control—owners could set the desired f-stop with a single operation, bypassing automatic exposure limitations. This gave filmmakers full creative control over depth of field and motion blur, a feature more common in higher-end gear. Combined with multiple frame rate options, it turned the 518 into a surprisingly expressive tool for its class.

Revolving Viewfinder with 100° Adjustment

The viewfinder rotated approximately 100 degrees, allowing for limited repositioning to accommodate different shooting angles without moving the camera body. While not a full 180-degree swivel, it provided practical flexibility for waist-level or odd-angle shots. The mechanism was mechanical and robust, though the spec sheet cuts off before confirming magnification, diopter adjustment, or whether it included frame lines for zoom positions.

Historical Context

Marketed in 1969–1970, the Canon Auto Zoom 518 Super 8 arrived at a turning point in amateur filmmaking. Super 8 was rapidly replacing older 8mm systems, offering easier loading and better image stability. This camera was the first movie camera to use a built-in zoom lens with such an extensive range and fast aperture, setting a new benchmark for what a consumer-grade cine camera could do. It signaled Canon’s intent to push optical innovation beyond still photography and into motion—laying groundwork for their later dominance in camcorder optics.

Collectibility & Value

The Canon Auto Zoom 518 trades in a wide price band depending on condition and service history. Units listed as “Tested Fully Working!!!!” have sold for $169.96 to $399.98, while Etsy listings for professionally serviced models have reached $421.92 and even $617.89. Rental outfits like ShareGrid list it at $75 per day or weekend, with weekly rates at $300—indicating ongoing demand for use in period shoots or creative projects. However, not all units are functional; some appear on the market “for parts or repair only,” and filter replacement is noted as a recurring service need. Fully operational, cleaned, and calibrated examples command the highest premiums, especially those with the original lens in good condition.
