Technics SU-7300

Overview

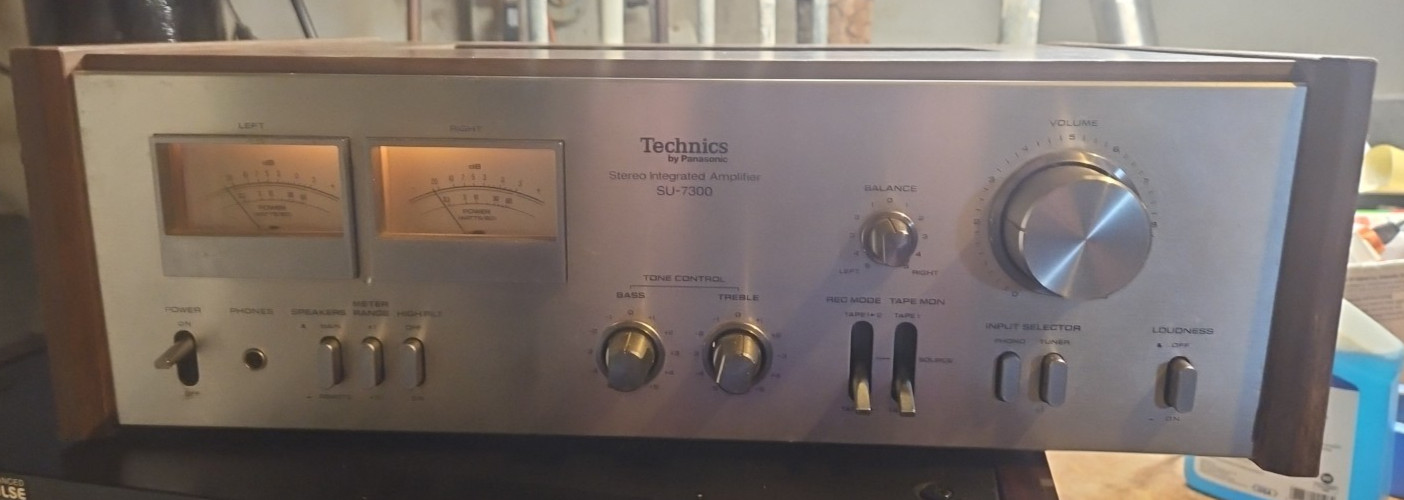

The Technics SU-7300 is a transistorized stereo integrated amplifier built from 1976 to 1979. It was aimed at buyers who cared about reliability and repairability as much as performance. It cost ¥35,800 at launch, which put it in the upper tier of midrange integrated amplifiers of its day. It is a pre-main design with side terminals: inputs on the right, speaker outputs on the left. That keeps the signal path direct and the cabling simple, and it cuts down on interference. There is a built-in phono stage with RIAA equalization for MM cartridges, two tape loops with independent monitor and dubbing switches, and dual speaker outputs selected with front-panel pushbuttons. The service-friendly construction is the standout. Remove two side panels and four screws, and the entire front panel and main PCB lift out, giving full access to the internal components. That was rare among mass-market receivers of the era.

Inside, the SU-7300 uses matched transistor pairs housed in single packages, with current-mirror loading in the differential stages. The aim was to minimize distortion across the audio band. The power supply has a high-density transformer and an 8,200μF filter capacitor, which keeps the voltage stable under dynamic loads. A 6-7 second turn-on delay circuit prevents speaker-damaging thumps, which matters on a unit expected to drive valuable speakers. The heat sink is a single extruded piece of aluminum, so heat spreads evenly across the output devices. High-Fidelity (January 1978, p.59) highlighted Technics' focus on waveform fidelity and careful engineering in its integrated amplifiers. It noted features like delay circuits as signs of quality construction, traits reflected in the SU-7300.

Key Features

36W + 36W Output into 8 Ohms

The SU-7300 is rated at 36 watts per channel into 8 ohms from 20 Hz to 20 kHz. That is enough to drive most bookshelf and medium-sized floorstanding speakers of the 1970s without strain. It is not as muscular as high-powered separates, but the output was competitive among integrated amplifiers of its class. The rating is conservative and measured across the full audio bandwidth, so there should be usable headroom, without the inflated peak power claims common in marketing materials of the time.

0.08% Total Harmonic Distortion

THD is 0.08% at rated output. The sound is clean and neutral, typical of Technics' engineering in this period. That figure indicates tight control over harmonic artifacts, which counts when amplifying complex musical passages. The differential amplifiers with current-mirror loads contribute directly to the low distortion, stabilizing gain and reducing even-order harmonics that can color the sound.

20 Hz – 20 kHz Frequency Response (±0.5 dB, Tuner Input)

Frequency response is flat from 20 Hz to 20 kHz within ±0.5 dB, measured at the tuner input. That suggests accurate tonal balance across the audible spectrum. The spec reflects the line-level stages, and it indicates the SU-7300 won't impose its own tonal character on well-recorded sources. The phono stage is not specified in the available documentation, but it adheres to RIAA equalization standards, which is a prerequisite for accurate vinyl playback.

78dB Signal-to-Noise Ratio (IHF-A, Phono Input)

Signal-to-noise ratio on the phono input is 78dB (IHF-A weighted). That is respectable for a mid-tier integrated amplifier of the 1970s. Backgrounds are quiet, though not silent. Some low-level hiss may be audible on sensitive speakers at high gain settings. Separate grounding strategies and shielded internal routing help maintain this performance, which is especially important in a chassis housing both sensitive phono stages and high-current output sections.

Dual VU Meters with Germanium Diodes

The SU-7300 has two direct-reading analog VU meters with a two-range selection (0 dB and -10 dB), so users can monitor output levels accurately. Germanium diodes are used in the meter circuitry to improve linearity at low signal levels, where silicon diodes often exhibit non-linear behavior. This sharpens the precision of level indication, which is useful during tape dubbing or when balancing system components.

Service-Oriented Internal Layout

Restorers appreciate the SU-7300 most for its serviceability. Many receivers are sealed like tombs. This one allows full access to the circuit board and front panel with minimal disassembly. That reduces repair time and encourages proper maintenance, in line with Technics' reputation for durable, long-lived equipment. A service manual is available, which helps technicians and DIY enthusiasts.

Collectibility & Value

A restored Technics SU-7300 recently sold for €650.00 on hifivintage.eu, reflecting strong demand among vintage audio enthusiasts. Current eBay listings show working units priced between $319 and $360, with mint-condition examples commanding premiums. A market for restoration parts exists, including LED replacement kits for the meters priced at $19.50, which indicates owners keep investing in these amplifiers. Common failure points are aging electrolytic capacitors, which are prone to leakage and performance degradation over time, and worn contacts in the tape and record selector switches, which can cause crackling during source changes. Restoration typically means replacing all electrolytics and cleaning potentiometers and switches with a contact treatment like DeoxIT. With service documentation available and a modular design, the SU-7300 is considered a practical candidate for refurbishment rather than a fragile museum piece.
