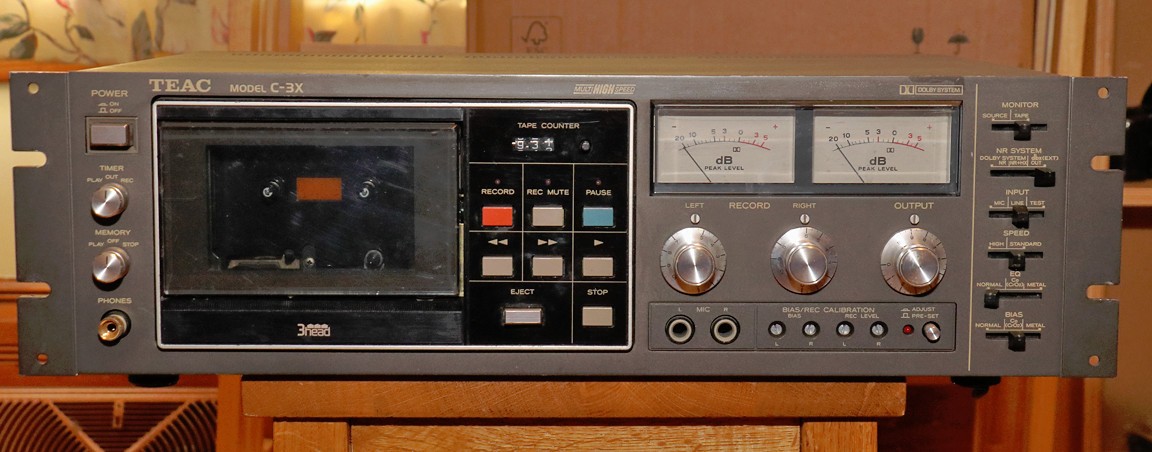

Teac C-3-X: The Precision Audiophile Cassette Deck

Name: Teac C-3-X
Brand: Teac

In the late 1970s, as high-fidelity audio reached new heights of sophistication, cassette decks evolved from portable convenience machines into serious components for the discerning audiophile. Among the most respected names in this golden era of analog tape was Teac, a Japanese manufacturer renowned for its meticulous engineering and commitment to sonic excellence. The Teac C-3-X, introduced around 1978, stands as a flagship representative of Teac’s ambitious X-series—a line designed to rival the best from Nakamichi, Denon, and Sony. Though not as widely discussed today as some of its peers, the C-3-X remains a hidden gem among vintage tape enthusiasts and a testament to the pinnacle of cassette deck craftsmanship.

Historical Context: The Rise of the High-End Cassette

The late 1970s saw a dramatic shift in how audiophiles viewed cassette technology. Once dismissed as a medium for dictation and car stereos, cassette decks began incorporating advanced features like three-head configurations, automatic azimuth correction, and precision transport mechanisms. Teac, already respected for its reel-to-reel recorders and integrated amplifiers, entered this arena with the X-series—comprising models like the C-20, C-30, and the top-tier C-3-X. Positioned as a no-compromise machine, the C-3-X was engineered for critical listening, studio monitoring, and high-speed duplication, appealing to both professionals and serious home users.

Technical Specifications

Feature	Specification
Year Introduced	1978
Type	3-Head Stereo Cassette Deck
Tape Speed	1⅞ ips (4.76 cm/s)
Heads	Separate Record, Playback, and Erase Heads (Ferrite)
Motor System	Dual Direct-Drive Capstan Motors
Wow & Flutter	< 0.055% (WRMS)
Frequency Response	30Hz – 18kHz (IEC I), 30Hz – 19kHz (IEC II/IV)
Signal-to-Noise Ratio	> 66dB (Dolby B), > 70dB (Dolby C)
Total Harmonic Distortion	< 1.5%
Input/Output	Line In/Out (RCA), Mic In (¼"), Headphone Out
Recording Modes	IEC I (Normal), IEC II (Chrome), IEC IV (Metal)
Noise Reduction	Dolby B and C
Display	VU Meters (twin analog)
Dimensions	440 mm (W) × 140 mm (H) × 330 mm (D)
Weight	12.5 kg (27.5 lbs)
Power Requirement	120V AC, 60 Hz (North American version)

Sound Characteristics and Performance

The Teac C-3-X was engineered for accuracy, transparency, and dynamic range—qualities that set it apart from mass-market cassette decks. Its three-head configuration allowed independent optimization of record and playback functions, eliminating the compromise of combined record/playback heads. This design, paired with a precision capstan and pinch roller system, ensured exceptional tape stability and speed accuracy.

Listeners often describe the C-3-X’s sound as detailed and neutral, with a slightly warm tonal balance that avoids the harshness sometimes associated with early high-bias tapes. The deck excels in midrange clarity, making it ideal for vocal recordings and acoustic instruments. Bass response is tight and well-controlled, while treble extension remains smooth and natural, especially when using Dolby C noise reduction.

One of the C-3-X’s standout qualities is its low wow and flutter, measuring under 0.055%—a figure comparable to professional reel-to-reel machines of the era. This stability contributes to a convincing soundstage and precise imaging, allowing listeners to appreciate the spatial cues in well-recorded tapes.

Notable Features and Innovations

The C-3-X was packed with features that reflected Teac’s engineering philosophy:

Dual Direct-Drive Motors: Unlike belt-driven transports, the C-3-X used direct-drive motors for both capstans, minimizing speed variation and mechanical wear.
Manual Tape Selector: A front-panel switch allowed precise selection of tape type (Normal, Chrome, Metal), ensuring optimal bias and equalization settings.
Dolby B and C Compatibility: At a time when Dolby C was still relatively new, the inclusion of both systems gave users flexibility in noise reduction and tape compatibility.
Twin Analog VU Meters: These large, centrally mounted meters provided real-time feedback on recording levels, essential for avoiding distortion and maximizing dynamic range.
Solid Chassis Construction: The heavy steel frame and rubber-damped feet minimized vibration and external resonance, contributing to signal purity.
Front-Panel Headphone Jack with Level Control: A rare luxury in cassette decks, this allowed private monitoring without needing external amplification.

Common Issues and Maintenance

As with any vintage electronic device, the Teac C-3-X requires careful attention to remain in optimal condition. Common issues include:

Deteriorated Rubber Components: Pinch rollers, idler tires (if present in transport variants), and damping pads can harden or crumble over time. Replacement with modern equivalents is essential.
Head Alignment and Wear: Misaligned or worn heads can degrade frequency response and stereo imaging. A professional demagnetization and alignment service is recommended every few hundred hours of use.
Capacitor Aging: Electrolytic capacitors in the power supply and audio circuits may dry out, leading to hum, reduced performance, or failure. A full recapping by a qualified technician can restore reliability.
Mechanical Stiffness: After decades of dormancy, the transport mechanism may bind or operate sluggishly. Cleaning and lubrication of critical points (following Teac’s service manual) are necessary.

Despite these age-related concerns, the C-3-X is generally considered robust and serviceable, with many units still functioning well today thanks to their high build quality.

Current Market Value and Collectibility

The Teac C-3-X remains a niche but respected piece in the vintage audio market. While not as widely collected as the Nakamichi Dragon or even the TEAC A-3340S reel-to-reel, it has a loyal following among cassette purists and analog tape archivists.

In recent years, working units in good cosmetic condition typically sell for $300–$600, depending on provenance, included accessories, and performance. Fully serviced models with documented maintenance can command higher prices, especially when paired with rare Teac-branded cassettes or calibration tapes.

Its collectibility is bolstered by its relative rarity—Teac produced fewer C-3-X units compared to its mid-tier models—and its reputation for studio-grade performance. For those building a vintage high-fidelity system centered around analog tape, the C-3-X offers a compelling blend of precision, usability, and sonic integrity.

Conclusion: A Hidden Masterpiece of the Cassette Era

The Teac C-3-X may not have achieved the legendary status of some of its contemporaries, but it deserves recognition as one of the finest cassette decks ever made. It embodies the ambition of an era when engineers pushed the limits of magnetic tape, transforming the humble cassette into a medium capable of audiophile-grade reproduction.

For collectors, restorers, and analog enthusiasts, the C-3-X offers more than nostalgia—it delivers a tangible connection to a time when every component was built to last, and every note was captured with care. Whether used for digitizing rare tapes, creating high-quality analog copies, or simply enjoying music the way it was meant to be heard, the Teac C-3-X remains a quiet masterpiece of vintage audio engineering.

If you're lucky enough to find one in good condition, treat it with respect, service it properly, and you’ll have a window into the golden age of high-fidelity cassette—courtesy of Teac’s unsung champion.
