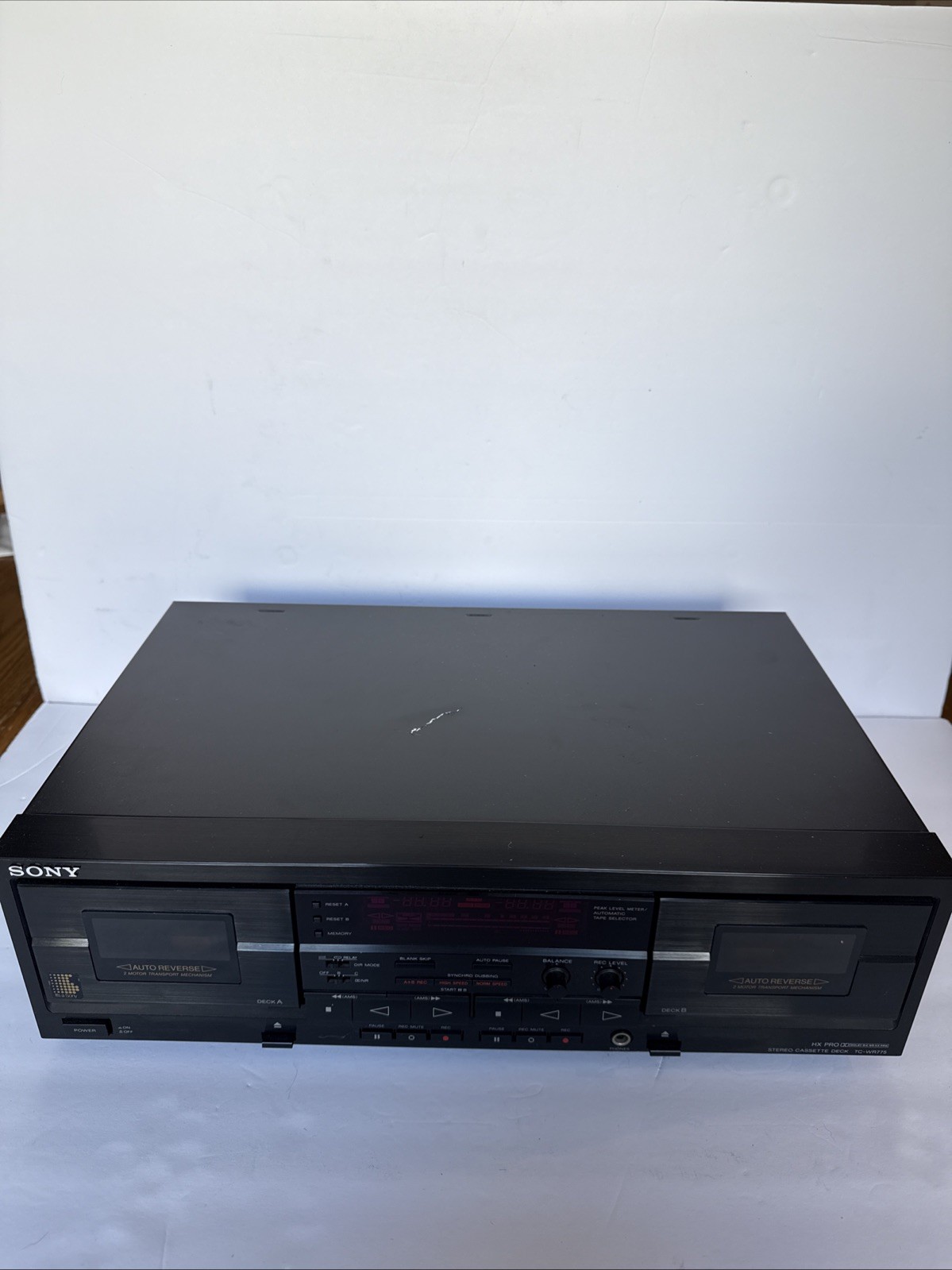

Sony TC-WR775 Dual Cassette Deck (1998)

Name: Sony TC-WR775
Brand: Sony

The Sony TC-WR775 is a mid-range dual cassette deck produced from 1998 to 2002, representing one of the final generations of consumer-grade cassette recorders before the format's decline in the early 2000s. Designed for home audio use, the TC-WR775 combines practical recording features with reliable playback performance, making it a functional choice for tape duplication, time-shift recording, and music archiving during its era.

Despite the growing popularity of CDs and early digital audio, the TC-WR775 offered a feature-rich analog experience with automation and noise reduction technologies that reflected Sony's engineering expertise in magnetic tape systems.

Key Features

Dual Cassette Operation: Enables direct high-speed tape copying between cassettes without external sources.
Auto Reverse Playback/Recording: Allows continuous playback or recording on both sides of a cassette.
Dolby Noise Reduction: Equipped with Dolby B and C for improved signal-to-noise ratio during playback.
Tape Type Selector: Supports Type I (Normal), Type II (Chrome), and Type IV (Metal) tapes with auto calibration.
Auto Tape Calibration: Automatically adjusts bias and level settings based on tape type for optimal recording quality.
Music Search: Fast-forward and rewind scanning with audible playback to locate tracks quickly.
Timer Recording & Playback: Programmable timer functions for unattended recording or playback.
Headphone Output: 3.5mm jack with dedicated volume control for private listening.

Specifications

Parameter	Specification
Year of Production	1998–2002
Cassette Compatibility	Type I (Normal), Type II (Chrome), Type IV (Metal)
Recording/Playback Modes	Auto Reverse (A/B), Duplication, Timer Record
Noise Reduction	Dolby B, Dolby C
Frequency Response	30Hz – 17kHz (±3dB, Type IV, 120μs)
Wow and Flutter	0.1% (Dolby off, WRMS)
Input Impedance	50k ohms (line)
Output Impedance	2.2k ohms (line)
Input Sensitivity	250mV (line, 0dB)
Output Level	0.5V (line, 0dB)
Headphone Output	3.5mm stereo jack, variable level
Power Consumption	25W
Dimensions (W×H×D)	430 × 145 × 325 mm
Weight	7.5 kg

Historical Context

The TC-WR775 was released during a transitional period for audio technology. By 1998, the compact disc had become the dominant music format, and MP3 players were beginning to emerge. However, cassettes remained popular for their portability, recordability, and affordability—especially in car audio and home duplication.

Sony positioned the TC-WR775 as a reliable, feature-packed option in its consumer cassette deck lineup, bridging the gap between basic models and high-end decks. Its inclusion of auto calibration, timer functions, and support for metal tapes reflects the maturation of cassette technology, where convenience and automation were prioritized over audiophile-grade performance.

As one of Sony’s later dual cassette models, the TC-WR775 symbolizes the end of an era—offering refined usability just before cassette production waned in the mid-2000s.

Sound Signature

The TC-WR775 delivers a clean, neutral sound profile typical of late-generation consumer cassette decks. With a wide frequency response and low wow/flutter, it provides accurate playback across all tape types. Dolby B and C decoding is effective, reducing high-frequency hiss without introducing noticeable artifacts.

While not designed for critical listening, the deck performs well for casual use, tape archiving, and duplication. Its auto calibration system ensures consistent recording levels across different tape formulations, enhancing usability for non-technical users.

Maintenance and Common Issues

Like many cassette decks of its age, the TC-WR775 is susceptible to wear-related issues after decades of dormancy or use. Regular maintenance can restore optimal performance:

Common Problems:

Belt Degradation: Rubber belts may crack or lose elasticity, affecting transport operation.
Idler Tire Wear: The idler wheel can harden or glaze, leading to sluggish tape movement or failure to engage.
Mode Switch Oxidation: The auto-reverse and tape type switches may develop oxidation, causing intermittent operation.
Capacitor Aging: Electrolytic capacitors in the power supply can dry out, risking voltage instability.
Mechanical Jamming: Debris or dried lubricant may cause the mechanism to stick or misalign.

Maintenance Tips:

1. Clean the Tape Path: Use a cotton swab and isopropyl alcohol to clean heads, capstan, and pinch roller.

2. Replace Worn Belts: Source OEM or compatible replacement belts for reliable operation.

3. Service the Idler Tire: Clean with alcohol or replace if hardened; avoid silicone-based lubricants.

4. Exercise Switches: Cycle all switches and knobs repeatedly to clear oxidation.

5. Recap the Power Supply: Replace aging capacitors to prevent future failures.

6. Align Heads (Optional): For critical use, professional head alignment ensures optimal azimuth and tracking.

Collectibility and Market Value

The Sony TC-WR775 is not considered a high-collectibility item, scoring around 3/10 due to its mass-market positioning and lack of audiophile features. However, it remains sought after by users needing reliable cassette duplication or those preserving analog media.

As of 2024, working units typically sell for $30–$80 USD, depending on condition, completeness, and functionality. Units with original packaging, manuals, or rare finishes may command slightly higher prices among niche collectors.

Conclusion

The Sony TC-WR775 stands as a competent, user-friendly dual cassette deck from the twilight of the cassette era. While overshadowed by digital formats, it remains a practical tool for tape enthusiasts, archivists, and retro audio fans. With proper care, the TC-WR775 continues to offer reliable performance and a tangible connection to late-20th-century home audio culture.
