Sony TC-RX55 Cassette Deck

The Sony TC-RX55 is a mid-tier cassette deck released in 1990 as part of Sony's ES (Elevated Standard) series. Designed during the twilight years of the cassette tape era, the TC-RX55 combines advanced tape transport technology with user-friendly features, making it a solid choice for audiophiles and casual listeners alike. With its auto-reverse functionality, Dolby noise reduction, and HX Pro headroom extension, the TC-RX55 exemplifies the engineering refinement that defined high-quality cassette decks in the early 1990s.

Specifications

Feature	Specification
Model	TC-RX55
Brand	Sony
Category	Cassette Deck
Series	ES (Elevated Standard)
Year of Production	1990–1993
Power Consumption	~18W
Line Input Impedance	50k ohms
Line Output Impedance	2.2k ohms
Noise Reduction	Dolby B, Dolby C
Headroom Extension	HX Pro
Tape Types Supported	Normal (Fe), CrO2, Metal
Playback Direction	Auto-reverse (both sides)
Display	Fluorescent VU meters, function indicators
Controls	Soft-touch mechanical buttons
Recording Functions	Timer recording, timer playback
Dimensions (W×H×D)	430 × 138.5 × 323 mm
Weight	7.5 kg

Key Features

Auto-Reverse Playback and Recording: Seamlessly plays and records on both sides of the tape without manual flipping.
Dolby B and C Noise Reduction: Reduces tape hiss during playback for cleaner audio reproduction.
HX Pro (Headroom Extension): Dynamically adjusts the bias signal during recording to improve high-frequency response and prevent distortion, especially on metal and high-energy tapes.
Tape Selector Switch: Allows optimal bias and equalization settings for Normal, CrO2, and Metal tapes.
Fluorescent Level Meters: Bright, responsive VU meters provide accurate visual feedback of recording levels.
Soft-Touch Controls: Tactile yet gentle button operation for transport functions and settings.
Timer Recording/Playback: Enables scheduled recording from external sources or playback at preset times.

Historical Context

The TC-RX55 was introduced at a time when cassette technology had reached its peak in terms of fidelity and convenience. As part of Sony’s ES line, it offered many of the advanced features found in higher-end models but at a more accessible price point. While not positioned as a flagship deck, the TC-RX55 brought professional-grade technologies like HX Pro and auto-reverse reliability to the mainstream market.

Sony's ES series was designed to bridge the gap between consumer and high-fidelity audio equipment, and the TC-RX55 reflects that philosophy with its robust build quality, precise tape transport, and clean sound reproduction. It represents the culmination of decades of cassette engineering, just before digital formats like the CD began to dominate the audio landscape.

Sound Signature

The TC-RX55 delivers a clean, neutral, and accurate sound profile typical of Sony’s engineering ethos during this period. With low wow and flutter (measured at 0.06% WRMS) and a frequency response of up to 20kHz (depending on tape type), it provides excellent clarity and detail. The combination of Dolby C and HX Pro ensures low noise and extended high-frequency response, particularly with metal tapes. Bass is tight and well-controlled, making it suitable for a wide range of music genres.

Common Issues and Maintenance Tips

Like all vintage cassette decks, the TC-RX55 is susceptible to age-related wear. Regular maintenance is essential for optimal performance:

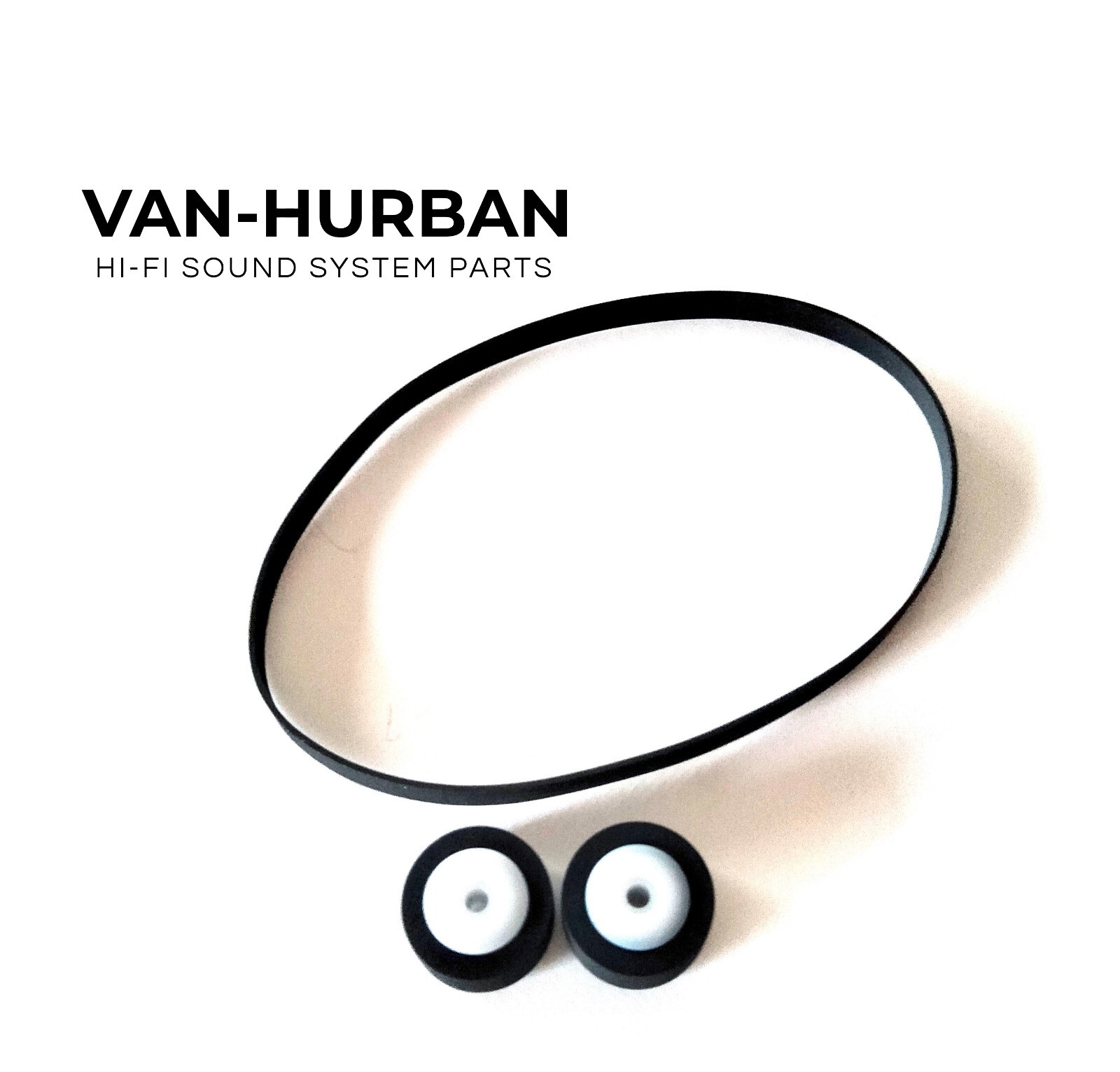

Belt Degradation: Rubber belts can dry out and crack over time. Replace with high-quality silicone or urethane equivalents every 10–15 years.
Idler Tire Wear: The idler wheel can harden and lose grip, causing slow or uneven tape speed. Clean with isopropyl alcohol or replace if glazed.
Potentiometer Oxidation: Soft-touch controls and internal pots may develop crackling sounds. Use contact cleaner (non-residue type) to restore smooth operation.
Display Backlight Failure: The fluorescent display may dim or fail. Check power supply voltages and consider replacing the display tube if necessary.
Auto-Reverse Mechanism: Ensure the tape path switches smoothly. Lubricate guide rails sparingly with synthetic grease if sticking occurs.
Head Alignment and Cleaning: Clean tape heads, capstan, and pinch roller regularly with isopropyl alcohol and a lint-free swab. Demagnetize the heads every few months using a cassette demagnetizer.

Collectibility and Market Value

The TC-RX55 holds moderate collectible appeal with a rating of 5/10. While not as sought-after as flagship models like the TC-K755ES or TC-WE685, it remains a respected representative of Sony’s late-era cassette technology. Its combination of features, build quality, and ES-series pedigree ensures steady demand among cassette enthusiasts.

In the current market (2024), working units in good cosmetic condition typically sell for $50–$150, depending on functionality, completeness, and regional demand. Fully serviced units with replaced belts and aligned heads command higher prices.

Conclusion

The Sony TC-RX55 is a well-rounded cassette deck that captures the essence of early 1990s audio engineering. With its blend of advanced features, reliable performance, and clean sonic character, it remains a practical and enjoyable addition to any vintage audio setup. Whether used for digitizing tapes or enjoying classic albums on original media, the TC-RX55 continues to deliver a satisfying analog experience.
