Sony TC-KA5ES Cassette Deck

The Sony TC-KA5ES is a high-performance cassette deck released in 1993 as the flagship model in Sony's ES (Elevated Standard) series. Representing the pinnacle of analog cassette technology, the TC-KA5ES combines precision engineering, advanced automation, and premium components to deliver exceptional sound quality and reliable operation. With its dual-capstan transport, amorphous sendust head, and comprehensive calibration system, this deck was designed for audiophiles seeking the highest fidelity in cassette playback and recording.

Specifications

Feature	Specification
Model	TC-KA5ES
Brand	Sony
Category	Cassette Deck
Production Years	1993–1997
Series	ES (Elevated Standard)
Power Consumption	25W
Input Impedance	50k ohms (line)
Output Impedance	2.2k ohms (line)
Input Sensitivity	200mV (line)
Output Level	0.5V (line)
Noise Reduction	Dolby B, Dolby C
Headroom Extension	HX Pro
Tape Transport	Dual-capstan, closed-loop
Drive System	Quartz-locked direct-drive motor
Heads	Amorphous sendust record/playback head
Calibration Features	Built-in tone generator, auto tape bias/level/sensitivity adjustment
Tape Compatibility	Type I, II, IV (Chrome, Metal)

Historical Context

The Sony TC-KA5ES was introduced during the twilight years of the analog cassette era, just as digital formats like DAT and CD were gaining dominance. Despite this shift, Sony invested heavily in refining cassette technology, and the TC-KA5ES stands as one of the most advanced analog cassette decks ever produced. As the top-tier model in the ES series, it showcased Sony’s commitment to high-fidelity audio and precision manufacturing.

Its dual-capstan closed-loop transport system eliminated tape flutter and ensured consistent tape speed, while the quartz-locked direct-drive motor provided exceptional speed stability. The inclusion of HX Pro headroom extension allowed for higher-level recording on metal and chrome tapes without distortion. Combined with the amorphous sendust head—known for its wide frequency response and low saturation—the TC-KA5ES achieved a neutral, transparent sound signature with remarkable detail and low distortion.

The automatic calibration system was another groundbreaking feature, enabling the deck to optimize bias, level, and sensitivity for each tape, reducing user error and maximizing recording quality. This level of automation was rare even among high-end decks and positioned the TC-KA5ES as a benchmark for performance and convenience.

Sound Signature

The TC-KA5ES is renowned for its accurate and transparent sound reproduction. It delivers a neutral tonal balance with extended frequency response, tight bass, clear mids, and crisp highs. Its low wow and flutter (≤0.025%) and high signal-to-noise ratio (thanks to Dolby C and HX Pro) make it ideal for critical listening and archival-quality recordings. Audiophiles often praise its ability to extract fine detail from tapes while maintaining a natural, analog warmth.

Maintenance and Tips

Due to its age, the TC-KA5ES requires careful maintenance to perform at its best:

Belt and Idler Tire Replacement: Over time, rubber belts and idler tires degrade, leading to speed instability or transport failure. Replacing these with high-quality modern equivalents is often necessary.
Capacitor Inspection: Electrolytic capacitors in the power supply and audio circuits may dry out or leak. A full recapping by a qualified technician is recommended for long-term reliability.
Head Cleaning and Demagnetizing: Regular cleaning of the amorphous sendust head with isopropyl alcohol and periodic demagnetization (using a non-contact demagnetizer) help preserve sound quality and head life.
Mechanical Lubrication: The complex tape loading mechanism benefits from professional servicing to ensure smooth operation and prevent jams.
Tape Compatibility: Use high-quality Type II (Chrome) and Type IV (Metal) tapes to fully exploit the deck’s capabilities. Avoid low-grade tapes that can cause head clogging or uneven wear.

Collectibility and Market Value

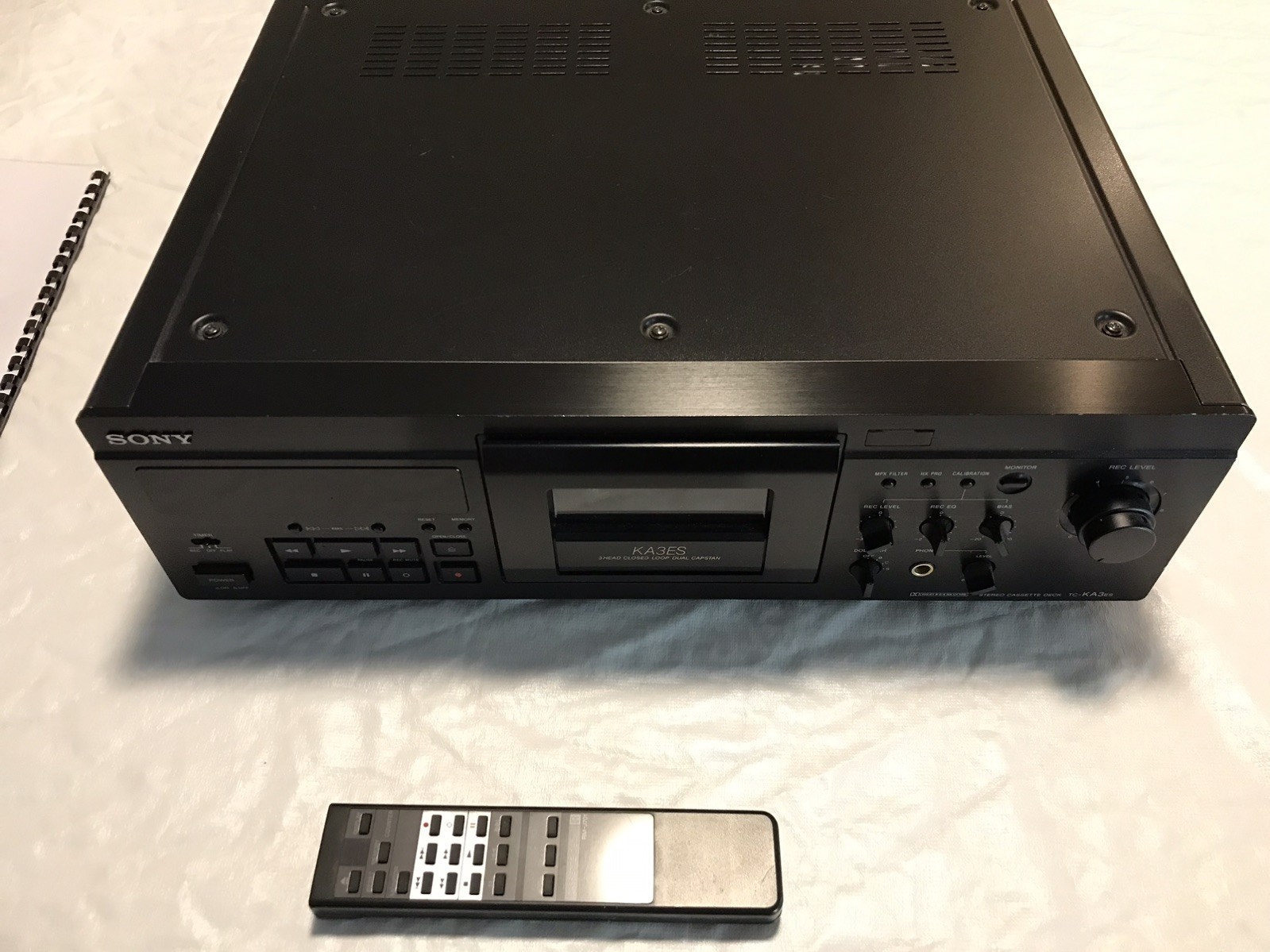

The TC-KA5ES is highly collectible, earning an 8/10 on the collectibility scale due to its advanced features, limited production run, and status as Sony’s final flagship cassette deck. Well-maintained units with original accessories—such as the calibration tape, remote control, and dust cover—command premium prices.

As of recent market trends, the TC-KA5ES typically sells for $300 to $600, depending on condition, service history, and included accessories. Fully restored units with documented servicing may exceed this range among serious analog enthusiasts.

Conclusion

The Sony TC-KA5ES is more than just a cassette deck—it’s a testament to the heights analog audio technology achieved before the digital revolution. With its blend of automation, precision engineering, and audiophile-grade sound, it remains a sought-after component for collectors and vintage audio lovers. For those willing to invest in proper maintenance, the TC-KA5ES continues to deliver a listening experience that few cassette decks can match.
