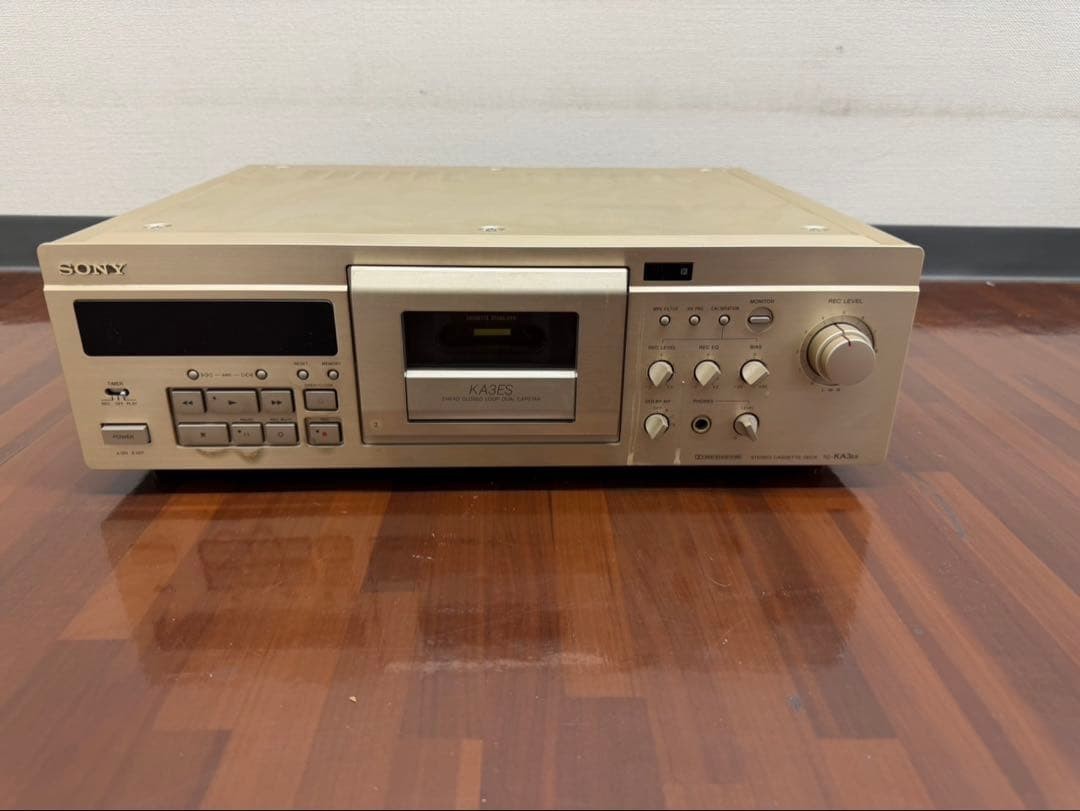

Sony TC-KA3ES

The Sony TC-KA3ES is a high-fidelity cassette deck released in 1993 as part of Sony's prestigious ES (Elevated Standard) series. Designed for audiophiles and professional enthusiasts, this deck represents the pinnacle of consumer analog tape technology before the digital shift of the late 1990s. With its precision engineering, advanced noise reduction, and metal tape compatibility, the TC-KA3ES delivers exceptional sound quality and transport stability.

Specifications

Feature	Specification
Year of Production	1993–1996
Power Consumption	25W
Line Input Impedance	50k ohms
Line Output Impedance	2.2k ohms
Line Input Sensitivity	200mV (for 0dB recording level)
Noise Reduction	Dolby B, C
Headroom Extension	HX Pro
Record/Playback Head	Sendust & Ferrite composite
Capstan Motor	Quartz-locked direct-drive
Tape Transport System	Dual-capstan closed-loop
Tape Calibration	Auto calibration (BIAS, EQ, level)
Tape Compatibility	Metal, CrO₂, Normal
Amplifier Type	Discrete record/playback amplifiers

Key Features

Dolby B/C Noise Reduction: Reduces tape hiss during playback for cleaner audio reproduction.
HX Pro (Headroom Extension): Dynamically adjusts the recording signal to maximize headroom and reduce distortion, especially beneficial with metal tapes.
Sendust & Ferrite Composite Head: Combines durability and high-frequency response for accurate playback and recording.
Quartz-Locked Direct-Drive Capstan: Ensures precise tape speed control (±0.04% wow and flutter) for stable pitch and timing.
Dual-Capstan Closed-Loop Transport: Minimizes tape flutter and ensures consistent tape-to-head contact.
Auto Tape Calibration: Automatically adjusts bias, equalization, and recording level based on tape type for optimal performance.
Discrete Amplifiers: High-quality analog circuitry for both recording and playback, contributing to low noise and high fidelity.

Historical Significance

The TC-KA3ES was part of Sony’s ES (Elevated Standard) line, which represented the company’s commitment to high-end audio engineering during the final era of analog cassette dominance. Released at a time when CDs were gaining popularity, the TC-KA3ES stood as a testament to the potential of magnetic tape when paired with advanced electronics and mechanical design. It was one of the last high-performance cassette decks Sony produced for the consumer market, making it a sought-after model among analog enthusiasts.

Its dual-capstan system and quartz-locked motor were rare in consumer decks, typically found in professional studio equipment. This level of engineering ensured minimal speed variation and excellent long-term reliability when maintained properly.

Sound Signature

The TC-KA3ES is known for its neutral, detailed, and accurate sound reproduction. It exhibits low distortion and noise, especially when using metal tapes with Dolby C and HX Pro enabled. The deck faithfully preserves the dynamics and tonal balance of the source material, making it ideal for critical listening and high-quality tape duplication. Its transparency and clarity are often praised in vintage audio communities.

Maintenance and Tips

While the TC-KA3ES is robustly built, age-related wear can affect performance. Regular maintenance is recommended to preserve its high-fidelity capabilities:

Belt Replacement: The internal rubber belts may degrade over time. Replace them with high-quality equivalents every 10–15 years.
Idler Tire Inspection: Check the idler tire for hardening or cracking, as this can affect tape loading and transport stability.
Head Cleaning and Alignment: Clean the heads, capstans, and pinch rollers regularly with isopropyl alcohol. Consider professional head alignment if playback becomes distorted or unbalanced.
Calibration Check: If auto-calibration seems inaccurate, the internal sensors or tape detection circuitry may need servicing.
Storage: Store in a dry, dust-free environment to prevent oxidation and mechanical binding.

Using high-quality metal tapes and cleaning the transport after extended use will help maintain optimal performance.

Collectibility and Market Value

The Sony TC-KA3ES scores an 8/10 on the collectibility scale due to its advanced engineering, ES-series pedigree, and status as one of the last high-end cassette decks from Sony. Units in excellent working condition typically sell for $300–$600, with prices varying by region and included accessories. Fully serviced decks with verified calibration command premium prices among analog audio collectors.

For those seeking the ultimate analog cassette experience, the TC-KA3ES remains a top-tier choice and a worthy centerpiece in any vintage audio setup.
