Sony TC-K77R (1981–1983)

The deck weighs 8.3kg. It is dense and deliberate, and it is built for metal tape and precision.

Overview

The Sony TC-K77R is a metal-tape-capable cassette deck, not a stripped-down auto-reverse curiosity from the early '80s. It has the overbuilt logic that defined Sony's ES (Elevated Standard) line. Released between 1981 and 1983, it targets users who wanted fidelity, automation, and the ability to push metal-formulation tapes to their limit. It uses Dolby, but it's designed to deliver clean, high-speed performance with minimal noise and distortion, even with metal tape at peak levels. Owners report a machine that feels solid under the hand, with a heft (8.3kg) that comes from its internal bracing and dual motor setup. It was built for people who didn't want to flip tapes and refused to compromise on sound.

Specifications

Key Features

Rotobilateral Head System with 1-Second Reverse

The TC-K77R uses a “rotobilateral” mechanism - Sony's term for a single head block that rotates 180 degrees to play both sides of the tape. It is not a dual-capstan setup with two fixed heads. Logic-controlled electronics drive the rotation. According to available documentation, the system achieves a reverse time of about one second, which was very fast for 1981. The erase and record/play heads are combined into one block, which minimizes alignment drift and reduces mechanical complexity in the long run. When it fails, though, repair isn't trivial.

S&F Head for Metal Tape Compatibility

An “s & F” head - Sendust and Ferrite - is used for recording and playback. The material mix is optimized for the higher coercivity of metal tapes. Metal tapes required different bias and head gap characteristics, and Sony engineered the TC-K77R specifically for them. The frequency response of 20 Hz to 19 kHz is specified for metal tape, which suggests the head and electronics were tuned for that medium. Chrome or standard tapes will work, but the deck does its best work with metal.

Dolby NR Complete IC

Rather than discrete components or a switchable analog circuit, the TC-K77R puts its Dolby noise reduction into a single IC (integrated circuit). This “Dolby NR Complete IC” reduces part count and, according to Sony, minimizes variation in performance between units. The fact sheet does not specify whether this supports Dolby B, C, or both. It says only that the circuit is condensed and stabilized. Owners note there is no manual switch between record and playback NR modes, which suggests full automation.

Multi-Functional Peak Program Meter

The peak program meter sits beside the transport controls, and it's a working tool for setting recording levels accurately. Metal tape can take high output, so overmodulation was a real risk. The meter lets users monitor peaks in real time, which helps avoid distortion while keeping signal-to-noise ratio high. At 59 dB (Dolby off, metal tape), the deck already has strong baseline performance, but proper level setting keeps it clean.

4-Stage Switching Tape Selector

A front-panel selector lets users choose between tape types - likely normal, chrome, metal, and perhaps a “universal” or off position. It adjusts bias and equalization settings automatically, though the fact sheet does not detail the exact calibration points. Logical control applies the settings consistently, which reduces user error.

Memory Play and 4-Pattern Autoplay

Beyond basic auto-reverse, the TC-K77R supports memory stop and four autoplay patterns. These likely include functions like play until end of recorded material, timed stop, or track skipping. Memory play suggests the deck can remember a position or cue point, useful for repeated listening or editing.

Rec Mute with Auto Space

The Rec Mute function includes auto space, meaning the deck can automatically insert a silence gap before or after a recording segment. This was useful for cleanly separating tracks or avoiding overlap when recording from radio or other continuous sources.

Timer Standby Switch

A built-in timer lets the deck power down automatically after a set period. It's a small power-saving and safety feature, handy for anyone who might leave the deck running overnight.

Optional Remote Control Compatibility

The TC-K77R supports three optional controllers: the wireless RM-80 (¥18,000), the wired RM-50 (¥6,000), and the basic RM-65 Synchro Remote (¥3,000). These allowed for remote start, stop, and possibly level monitoring, enabling synchronized multi-deck operation or hands-free control from a listening position.

Collectibility & Value

Listings on Reverb and Facebook Marketplace suggest a current market value ranging from $227 to CA$200 for units in good working condition, though availability is sporadic. Replacement belts and original service manuals are available from third-party sellers, which indicates a modest but active repair ecosystem. Collectors do note potential reliability issues. Forum users have reported failures on the servo board, including cases where components were “burned out” during use or repair. These suggest the BSL Green Motors and servo circuitry, while advanced, may be sensitive to aging capacitors or incorrect servicing. Belt degradation and dried lubrication are expected with age, and because the rotating head mechanism is complex, alignment after service is critical.

eBay Listings

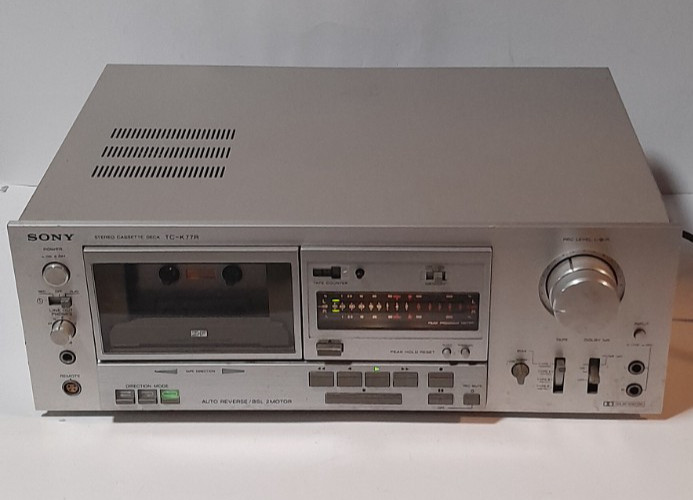

Sony TC-K77R Stereo Cassette Deck – Vintage
