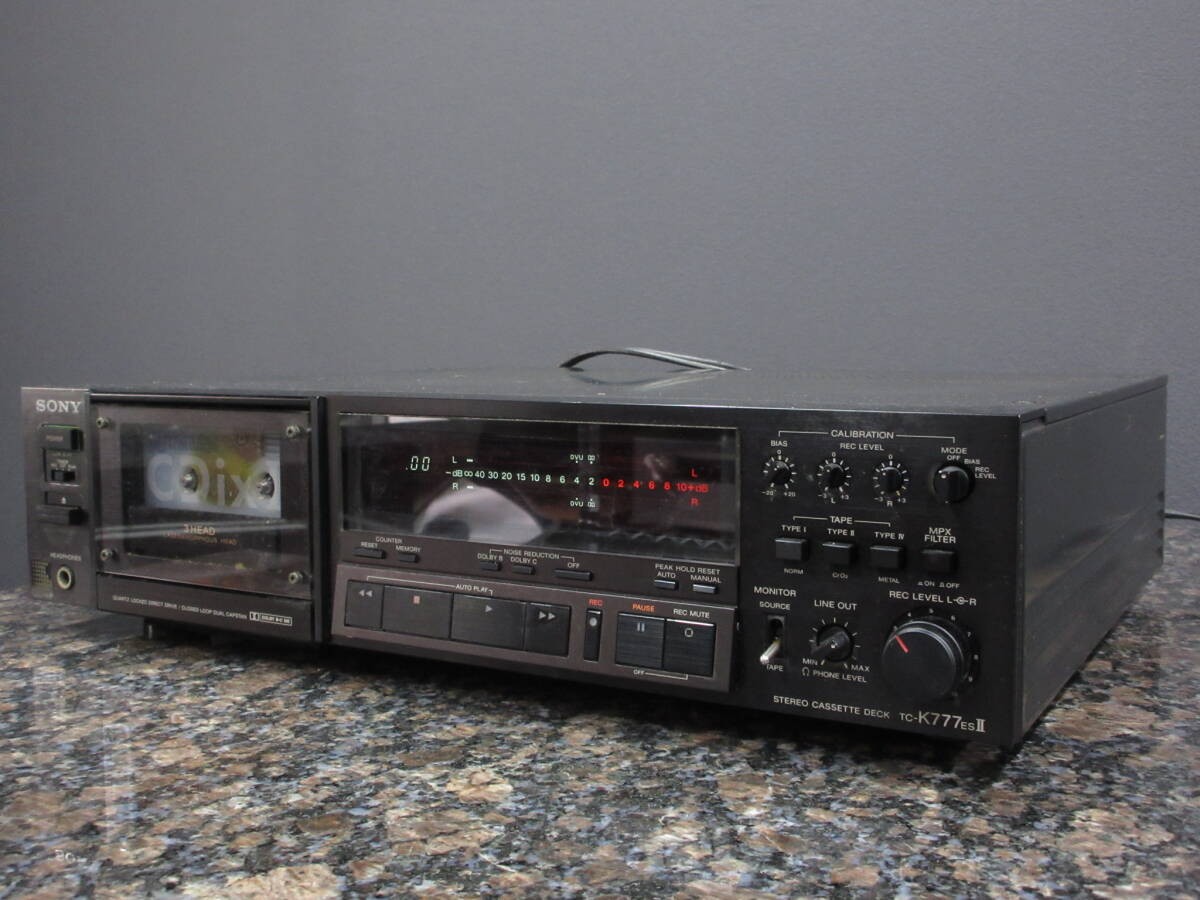

Sony TC-K777ES: The Pinnacle of ES Series Cassette Engineering

Name: Sony TC-K777ES
Brand: Sony

The Sony TC-K777ES, introduced in 1987, stands as one of the most advanced cassette decks ever produced by Sony. As the flagship model in the esteemed ES (Elevated Standard) series, it represents the culmination of analog tape technology during the late 1980s. Designed for discerning audiophiles, the TC-K777ES combines cutting-edge engineering, premium materials, and meticulous build quality to deliver reference-level cassette performance.

With its dual-motor, dual-capstan transport system, quartz-locked direct drive, and amorphous sendust head, this deck was engineered for exceptional speed stability, low wow and flutter, and precise tape-to-head contact. Paired with Dolby B and C noise reduction and auto tape calibration, the TC-K777ES offers a listening experience that rivals many modern digital formats in terms of warmth, detail, and dynamic range.

Key Specifications

Parameter	Specification
Year of Production	1987–1990
Category	3-Head, Full-Track Stereo Cassette Deck
Transport System	Dual Capstan, Dual-Motor
Drive Mechanism	Quartz-Locked Direct Drive
Heads	Amorphous Sendust (Record/Playback), Separate Erase Head
Tape Speed	4.76 cm/s (1⅞ ips)
Wow and Flutter	Below measurable threshold (quartz-stabilized)
Frequency Response	20Hz – 20kHz (with metal tape, Dolby C)
Signal-to-Noise Ratio	>70dB (Dolby C), >56dB (Dolby B)
Total Harmonic Distortion	<0.05% (1kHz, JIS)
Input Impedance	50k ohms (line)
Output Impedance	2.2k ohms (line)
Input Sensitivity	150mV (line, for 0dB output)
Output Level	0.44V (line, at 0dB)
Noise Reduction	Dolby B, Dolby C
Recording Circuitry	Discrete Analog Design
Calibration	Auto Tape Calibration (ATC), Bias Fine Adjustment
Power Consumption	~35W
Dimensions (W×H×D)	430 × 142 × 335 mm
Weight	12.5 kg

Historical Context

The TC-K777ES was released at the height of analog cassette fidelity, during a period when high-end manufacturers were pushing the limits of tape-based audio reproduction. As part of Sony’s ES (Elevated Standard) line—known for its superior components and precision engineering—the TC-K777ES was positioned as a no-compromise deck for critical listeners.

It followed earlier ES flagships like the TC-K815ES and TC-K797ES, but introduced significant upgrades, including the amorphous sendust head, which offered improved high-frequency response and reduced core saturation, and the quartz-locked direct drive system that eliminated speed variations common in belt-driven capstans.

Sony’s use of dual capstans ensured constant tape tension and minimized skew, while the discrete analog recording circuitry preserved signal purity. The inclusion of auto tape calibration and bias fine adjustment allowed users to optimize performance for Type I, II, and IV tapes with precision.

Despite the emergence of the CD format in the mid-1980s, the TC-K777ES demonstrated that analog cassette technology could still achieve extraordinary fidelity. It remains a symbol of Sony’s commitment to analog excellence during the transition to digital.

Sound Signature

The TC-K777ES delivers a neutral, transparent, and highly accurate sound profile. Its amorphous head and precision transport yield:

Exceptionally low noise floor (especially with Dolby C)
Extended and smooth high-frequency response
Tight, controlled bass with minimal distortion
Precise stereo imaging and soundstage depth
Natural tonal balance across all tape types

Whether playing pre-recorded tapes or high-bias metal recordings, the TC-K777ES reproduces audio with remarkable clarity and fidelity, making it a favorite among analog enthusiasts and tape archivists.

Maintenance and Common Issues

While the TC-K777ES is a robustly built machine, age-related wear is inevitable. Proper maintenance is essential to preserve its performance.

Common Issues:

Belt Deterioration: Rubber belts and idler tires can harden or crack over time, affecting tape loading and capstan drive. Replacement with high-quality silicone or urethane belts is recommended.
Capacitor Aging: Electrolytic capacitors in the power supply and analog circuits may dry out, leading to noise, instability, or failure. A full recapping by a qualified technician is advised for un-serviced units.
Mechanical Lubrication: The complex tape transport requires periodic lubrication of gears and rails. Over-lubrication or dried grease can cause sluggish operation or misalignment.
Solenoid Issues: The auto-stop and tape sensing solenoids may become sluggish or fail after decades of use.
Head Alignment: While factory-aligned, the heads may require realignment if the deck has been mishandled or subjected to physical shock.

Maintenance Tips:

Clean the Heads and Capstans: Use 99% isopropyl alcohol and lint-free swabs after every few uses.
Demagnetize Regularly: Use a quality tape demagnetizer (with a plastic-coated tip) every 10–20 hours of use to prevent high-frequency loss.
Use Fresh Tapes: Avoid old or damaged cassettes that may shed oxide or cause jamming.
Store Properly: Keep in a dry, dust-free environment with stable temperature.
Professional Servicing: For full restoration, seek technicians experienced with high-end cassette decks.

Collectibility and Market Value

The TC-K777ES is highly sought after by analog audio collectors and remains one of the most respected cassette decks ever made.

Collectibility: 8/10 — Its status as a flagship ES model, advanced engineering, and limited production numbers contribute to its desirability.
Market Value: $400–$800 USD, depending on condition, service history, and completeness (original packaging, manuals).
Restoration Potential: Fully serviced units with replaced belts, recapped power supplies, and aligned heads command premium prices.

Enthusiasts often pair the TC-K777ES with other ES-series components (like the STR-K855ES receiver) to create a complete high-fidelity analog system.

Conclusion

The Sony TC-K777ES is more than just a cassette deck—it’s a masterpiece of analog engineering. With its dual capstan transport, quartz-locked drive, and amorphous head, it delivers tape playback and recording performance that remains impressive even by today’s standards. For audiophiles and collectors, the TC-K777ES is not only a nostalgic relic but a serious high-fidelity component that continues to honor the art of analog sound.
