Sony TC-K555ES (1982)

It weighs 6.1 kg, and it sits on the shelf like it means to stay.

Overview

The Sony TC-K555ES is a high-end cassette deck from 1982. Sony was still pushing analog tape fidelity hard at the time. It belongs to the K series, a line developed to consolidate over three decades of Sony's tape deck engineering, and the K555ES was positioned as a reference-grade machine for the serious listener. The 6.1 kg weight says a lot: no consumer-grade plastics, no flimsy mechanisms. The chassis is functional and plain, and it puts acoustic integrity ahead of looks.

Cassette decks of this period were expected to rival reel-to-reel in performance. The TC-K555ES went after that with advanced materials, a closed-loop transport and a carefully designed signal path. The original price was ¥108,000 in 1981, a significant sum at the time, and it targeted audiophiles who wanted more than convenience from cassette playback.

What sets the K555ES apart from other high-end decks of its era is how much attention went to mechanical and electrical isolation. The S&F heads are independently suspended. The capstans run on dual sapphire bearings, and the motor is a linear BSL. Each part was picked to cut vibration, distortion and signal loss. It's still practical to use: logic control simplifies operation, the tape selector automates bias and EQ switching, and the peak program meter gives real-time feedback for setting levels.

Specifications

Key Features

Sony’s Sendust-and-Ferrite (S&F) / Laser Amorphous Heads

The head assembly is a 3-head system using Sony's proprietary Sendust-and-Ferrite (S&F) / Laser Amorphous construction. The heads are independently suspended, which drastically reduces mechanical resonance and magnetic leakage. The core material blends Sendust alloy's high saturation magnetic flux density with ferrite's superior high-frequency response. That gives a playback head with clean, extended highs without distortion. Azimuth is adjustable for fine-tuning to match tape alignment, and the uniform contact pressure keeps head-to-tape contact consistent across the entire width. It's built for long-term stability and minimal wear.

Closed-Loop Dual Capstan System with Sapphire Bearings

Speed stability is where the K555ES pulls away from mid-tier decks. It uses a closed-loop dual capstan system driven by a linear BSL (Green) motor, a rare and expensive part that delivers near-constant speed with minimal servo-induced noise. Two sapphire capstan bearings resist wear and keep rotation smooth. Wow and flutter is rated at just 0.04% WRMS (NAB), a figure that rivals or exceeds many reel-to-reel machines. Collectors and restorers should watch the sapphire bearings. They're durable, but contamination or improper cleaning can degrade performance, and replacement is not trivial.

L/R Twin Mono Amplifier Architecture

The L/R twin mono design runs from the playback head all the way to the output stage. The left and right channels are completely isolated, with no shared components and no crosstalk-inducing coupling. The playback amplifier couples the head directly to the preamp, so there are no capacitors in the signal path to color or attenuate the audio. Add a ±2 power supply system and FET buffer circuits, and the design gives low noise, wide dynamic range and fast transient response. The amplifier section also uses a DC amplifier configuration, which avoids the phase shifts and bandwidth limits of AC-coupled stages.

Dedicated Dolby B and C Noise Reduction with Tracking Accuracy

The TC-K555ES supports both Dolby B and Dolby C noise reduction, with dedicated circuits for recording and playback, so no components are shared to degrade performance. Dolby tracking error is held to within ±1 dB at both - 20 dB and - 30 dB levels, which keeps encoding and decoding accurate across the dynamic range. Poor tracking leads to high-frequency pumping or dullness, especially with Type IV (metal) tapes. Owners report that the deck's Dolby implementation is among the most transparent of its era, particularly with Sony's own METALLIC tapes, where the 73 dB signal-to-noise ratio (with Dolby C) approaches the theoretical limit of the format.

4-Stage Tape Selector with Variable Bias Control

A 4-stage selector automatically configures bias and equalization for Type I (BHF), Type II (UCX), Type III (FeCr), and Type IV (METALLIC) cassettes. Sony also added a bias adjustment volume with ±20% manual control relative to the normal Type I setting. That helps tinkerers and archivists working with off-brand or aged tapes that may not conform to IEC standards. Fine-tuning bias gives optimal modulation and minimal distortion, especially when pushing levels on high-output tapes.

Simultaneous Playback Monitor and Peak Program Meter

A simultaneous playback monitor function lets you check the recorded signal in real time without stopping the tape. The 16-segment peak program meter covers - 40 dB to +8 dB, and its peak hold lingers for approximately four seconds. The range and resolution make it easy to catch transient overloads that might not be audible in the moment. The deck also has a REC MUTE function and an auto-space feature, which is a rarity in consumer cassette decks.

Logic-Controlled Transport with Magnet Clutch

Mechanically, the K555ES replaces traditional gear trains with logic control, which gets rid of the complex transmission mechanisms prone to wear and backlash. The take-up reel uses a magnet clutch to keep tension consistent regardless of tape pack size. The transport mechanism, designated TCM-110C3, is designed for durability and smooth operation, with fast-forward and rewind times of approximately 90 seconds for a C-60 cassette. The logic system reduces mechanical complexity, but it also depends on aging ICs and control boards. Degraded capacitors are a known failure point after long storage.

Electronic Linear Counter with Subtraction Function

The linear electronic counter displays tape position in minutes and seconds, a significant upgrade over mechanical counters that lose accuracy over time. It also has a subtraction function, aimed at users who need to locate specific passages or edit tapes manually. It's not as precise as timecode. The counter resets via a dedicated button and keeps its accuracy across multiple play sessions, assuming the transport remains in calibration.

Optional Wireless Remote Control (RM-J701)

Sony offered the wireless remote control RM-J701 as an optional accessory. It operates basic transport functions from a distance: play, stop, record, rewind and fast-forward. That was a luxury in high-end audio at the time. The remote connects via an infrared receiver on the front panel. It doesn't control advanced functions like bias adjustment or Dolby settings. The remote is now sought after, and it's often missing from surviving units.

Market Value

┌──────────────────────────────────────────────────────────────────────────┐
│ SONY TC-K555                                                    Aug 2026 │
├──────────────────────────────────────────────────────────────────────────┤
│ High      $4,634                                  Latest          $2,860 │
│ Median    $422                                    Trend             ▲ Up │
│ Low       $22                                     Volume           ~4/mo │
├──────────────────────────────────────────────────────────────────────────┤
│ $5,000 ┤                                                                 │
│        │                                                .                │
│        │                                                     .           │
│ $2,857 ┤                                                                .│
│        │                                                                 │
│        │                                                                 │
│        │.                                                              . │
│     $0 ┤. .   .  ...    .  .   ..  .    .      .    .          .         │
│        ├─────────────────────────────────────────────────────────────────│
│    vol │█ ▂   ▅  ▂▅▂    ▂  ▂   ▂▂  ▂    ▂      ▅    ▂   ▂    ▂ ▂       ▂▂│
│        └─────────────────────────────────────────────────────────────────│
│         2026-01                      2026-05                      2026-08│
└──────────────────────────────────────────────────────────────────────────┘

eBay Listings

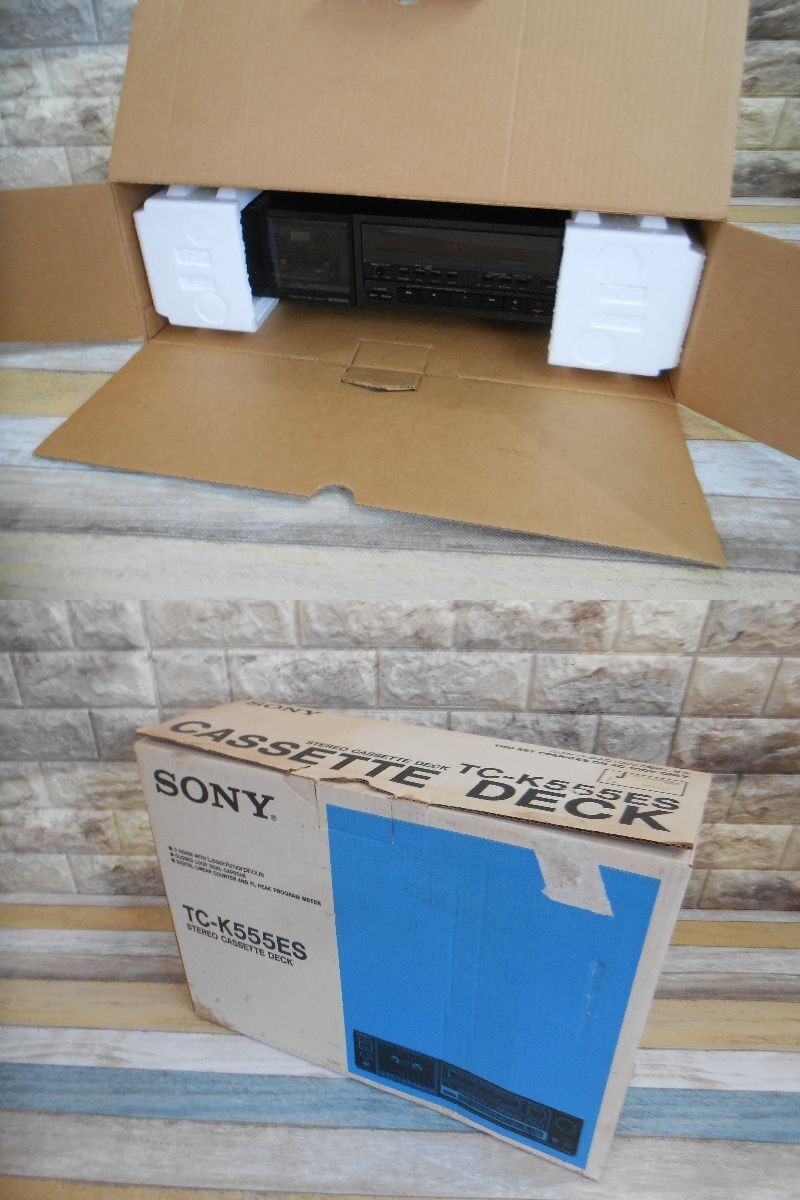

SONY TC-K555ES, fully functional, excellent condition
