Sony TC-K5 (1977)

At 6kg, it sits on the rack solid and serious, ready for a high-fidelity stack.

Overview

The Sony TC-K5 stereo cassette deck came out in 1977. It wasn't the flagship. One enthusiast called it the "middleweight champion," and that fits: good performance, good features and build quality, without the price of the top-tier models. It wasn't Sony's first cassette deck, but it arrived when the format was losing its reputation for portability and starting to be taken seriously for home audio. The TC-K5 put precision ahead of flash. The transport is a two-head, single-capstan design. That's not as complex as a three-head design, but it delivered consistent results for its time.

Owners report a machine that feels substantial without being showy. The 6kg mass helps dampen vibration, and the layout is functional, with no wasted space and no gimmicks. It was designed for integration, with rack-mount capability when paired with the optional audio handle AH-4A, sold separately for ¥2,500. This was gear for listeners who wanted reliability and fidelity. It didn't rewrite the rules like a Nakamichi, but it held its ground with durable construction and thoughtful features that still appeal to cassette purists.

Specifications

Manufacturer	Sony
Model	TC-K5
Type	Stereo cassette deck
Year of Release	1977
Heads	Erase: 1, Recording: 1
Motor	Frequency Servo Motor with FG (Green Motor)
Signal-to-noise ratio	59 dB (Dolby off, Peak Level, Duadcassette)
Frequency characteristic	20 Hz ~ 18 kHz (Duadcassette)
Wow and flutter	0.05% wrms
Distortion factor	1.3% (Du Ad Cassette)
Power consumption	9W
Power requirements	120V ac, 60Hz (US, Canadian model)
Input	77.5mV (line), 0.25mV (mic)
Output	0.775V (line)
External dimensions	Width 410 x Height 145 x Depth 290 mm
Weight	6kg

Key Features

All-Ferrite F&F Head Assembly

The TC-K5 uses an all-ferrite F&F (ferrite & ferrite) head configuration, meaning both the core and guard components are made of ferrite. That wasn't only about cost. Ferrite offers excellent wear resistance and strong high-frequency response, which helps the deck keep its playback quality over time. Owners note that these heads tend to last, though like all analog components they need periodic cleaning and demagnetization. The two-head layout has a separate erase head and a record/play head. That means record monitoring isn't possible without bouncing, but it simplifies the mechanics and keeps alignment stable.

Frequency Servo Motor with FG (Green Motor)

The transport runs on Sony's Frequency Servo Motor with FG, commonly called the "Green Motor" because of its distinctive housing. It uses feedback control (via a frequency generator) to hold tape speed precisely, which directly affects wow and flutter. The TC-K5's measured 0.05% wrms is impressive for a 1977 deck. The green motor was also marketed for improved reliability and durability, and long-term owners report fewer motor-related failures than with decks using rubber-driven idler systems. It's a key reason many TC-K5 units still operate today with only routine maintenance.

3-Stage Switching Tape Selector with Independent Bias and Equalizer

One of the TC-K5's more advanced features is its three-stage tape selector - Type I (ferric), Type II (chrome), and Type IV (metal) - with independent bias and equalization controls. This lets users fine-tune recording settings for different tape formulations, maximizing fidelity and minimizing distortion. It isn't fully manual like some higher-end decks, but the switching system gives enough flexibility to get the best out of each tape type. According to available documentation, the independent adjustment helps optimize high-frequency response and saturation characteristics, especially when pushing the 20 Hz - 18 kHz frequency range the deck is capable of.

Rec Mute and 3-Stage Peak Level Indicator

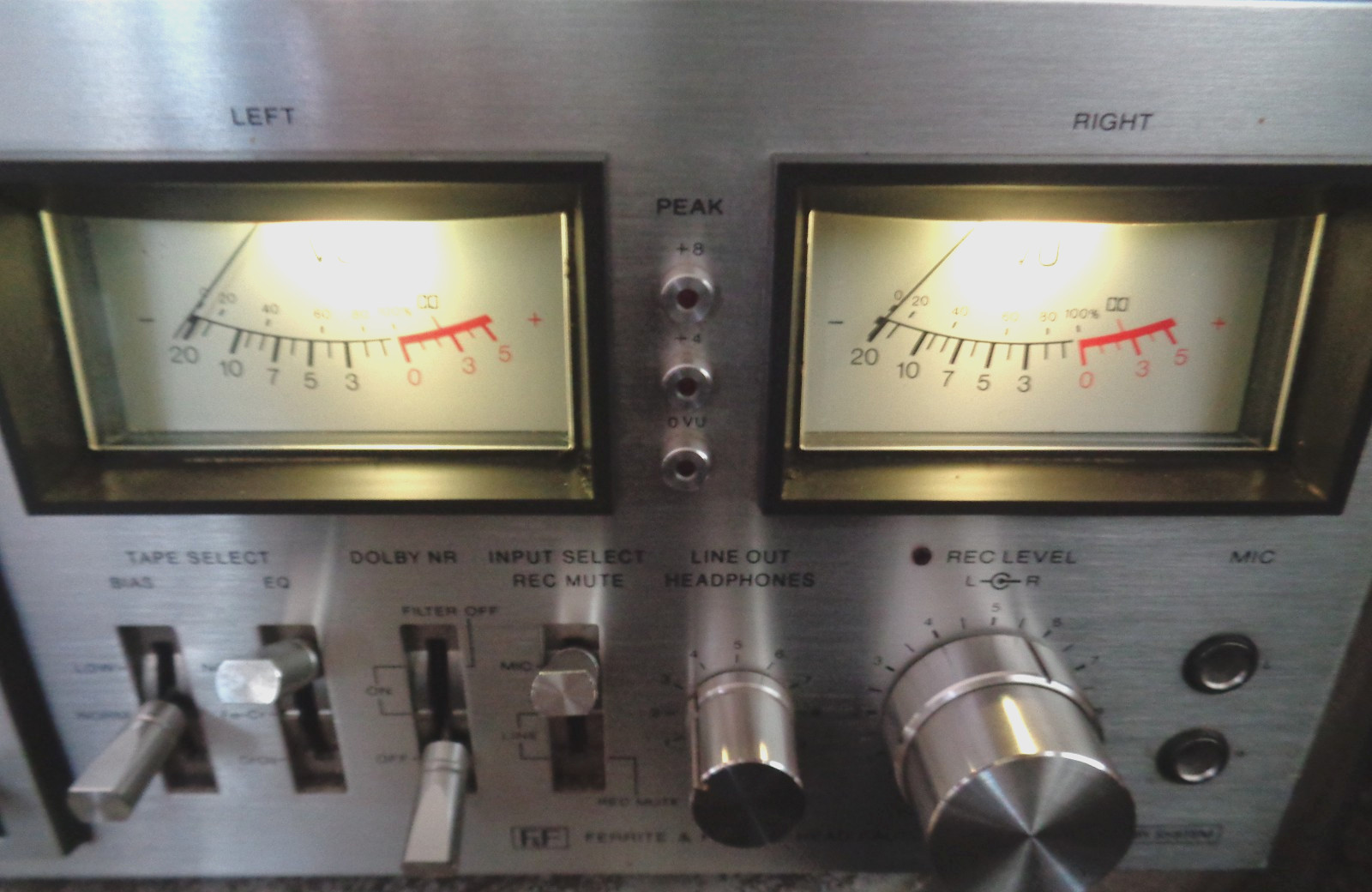

The Rec Mute mechanism lets users pause recording without stopping the tape, useful for skipping unwanted segments during live capture. The 3-stage peak level indicator gives real-time feedback on input levels: green for safe, yellow for caution, red for clipping. One owner noted that the left-level meter can occasionally become erratic. That's a known quirk, but the circuitry is straightforward enough that repairs are feasible. The input sensitivity is set so that a 1.2V signal triggers the 0 VU LED, which gives a clear calibration point.

Memory Stop / Autoplay Mechanism

The memory stop feature automatically pauses the deck when it detects a silent gap on the tape, useful for halting playback at the end of a side or between tracks. Autoplay kicks in after a stop, continuing playback once the tape resumes moving. None of this is revolutionary, but it reflects Sony's focus on usability. The auto shut-off mechanism powers down the deck after tape ejection, and together these features reduce wear and prevent accidental operation.

Dolby NR / MPX Filter Switch

The Dolby NR switch engages noise reduction during playback and recording. The specific type (B or C) isn't documented in the available specs. Given the era and Sony's typical implementation, Dolby B is likely. The MPX filter helps reduce interference from FM stereo broadcasts when recording from radio sources, cleaning up the high-frequency hash that can accompany such signals. Both are simple toggles, and both are useful for tapers and broadcast recorders.

Lineout and Headphone Volume Control

Uncommon on many cassette decks of the period, the TC-K5 has independent volume control for both line output and headphone output. Users can drive external recorders at optimal levels, or adjust headphone listening without affecting the main system volume. The line output is rated at 0.775V, a standard professional-level signal, so it works with a wide range of preamps and recorders.

Optional Audio Handle and Rack Mounting

The TC-K5 was designed for professional or semi-pro use with the availability of the optional AH-4A audio handle. When attached, it provides carrying convenience and also enables secure rack mounting, which suits studio and broadcast applications. This modularity suggests Sony envisioned the TC-K5 in fixed installations, not only home stereo cabinets.

Collectibility & Value

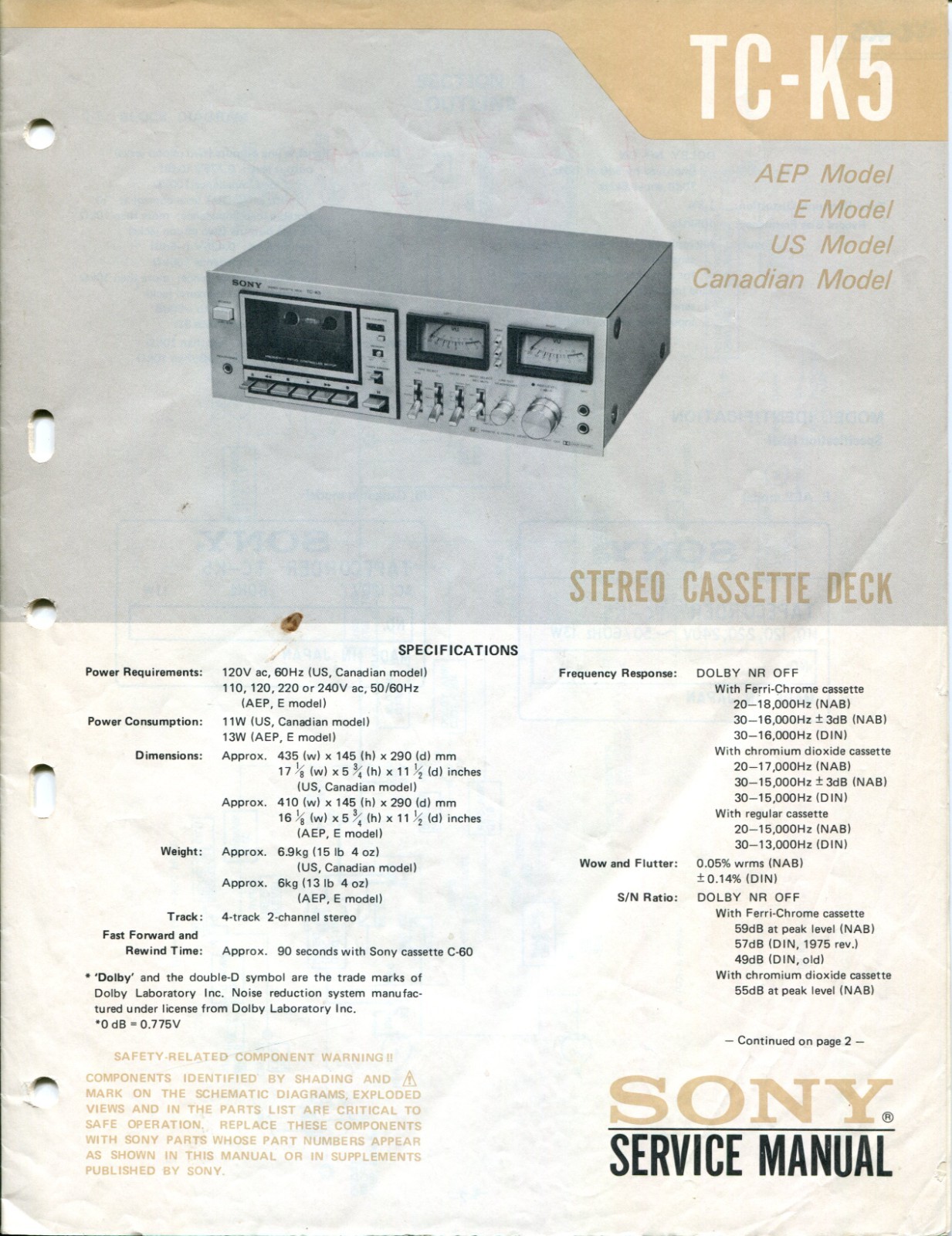

No current market prices are officially documented, but anecdotal evidence from user communities suggests the TC-K5 has a loyal following. One owner described it as "a saint - never a problem," and praised its looks and reliability. Common issues include a cassette door mechanism that can become slow or noisy over time, and occasional problems with the left-level meter. Service manuals are available from third-party archives. No capacitor failure trends or widespread electronic issues are documented, which implies that, when properly maintained, the TC-K5 remains dependable. As a "middleweight champion" it doesn't command the prices of elite decks.

Market Value

┌──────────────────────────────────────────────────────────────────────────┐
│ SONY TC-K5                                                      Nov 2026 │
├──────────────────────────────────────────────────────────────────────────┤
│ High      $376                                    Latest            $116 │
│ Median    $245                                    Trend                — │
│ Low       $116                                    Volume           ~2/mo │
├──────────────────────────────────────────────────────────────────────────┤
│   $400 ┤                                                                 │
│        │                                                      .          │
│        │                                                          .      │
│   $271 ┤                                                                 │
│        │.                                                                │
│        │                                                         .       │
│        │                                                                 │
│   $100 ┤                                                                .│
│        ├─────────────────────────────────────────────────────────────────│
│    vol │█                                                     █  ██     █│
│        └─────────────────────────────────────────────────────────────────│
│         2026-05                      2026-06                      2026-07│
└──────────────────────────────────────────────────────────────────────────┘

eBay completed sales. Excludes accessories, parts, and non-working units. Hover points for details.
