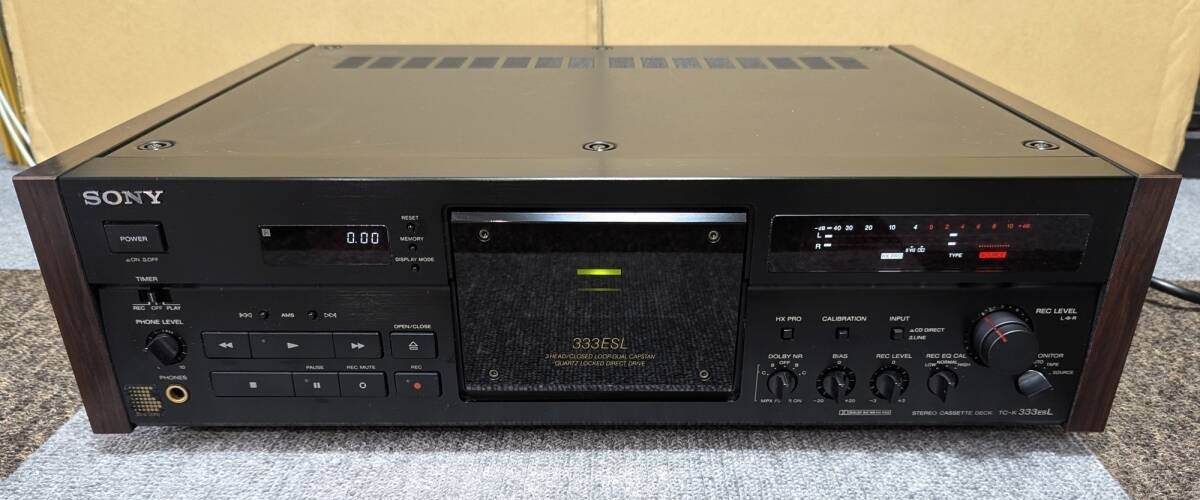

Sony TC-K333ESL Cassette Deck

The Sony TC-K333ESL is a high-fidelity cassette deck released in 1988 as part of Sony's prestigious ES (Elevated Standard) series. Designed for audiophiles and serious tape enthusiasts, this deck combines precision engineering with advanced tape technology to deliver exceptional sound quality, rivaling more expensive reel-to-reel systems of the era. With its dual capstan transport, amorphous sendust head, and automatic calibration system, the TC-K333ESL stands as one of the most technically refined cassette decks of the late 1980s.

Specifications

Feature	Specification
Model	TC-K333ESL
Brand	Sony
Category	Cassette Deck
Series	ES (Elevated Standard)
Year of Production	1988–1990
Transport Type	Dual Capstan, Quartz-Locked Direct Drive
Heads	Amorphous Sendust Record/Playback Head
Noise Reduction	Dolby B, Dolby C
Headroom Extension	HX Pro
Tape Calibration	Auto Bias, Level, and EQ Calibration
Input Impedance	50k ohms (line)
Output Impedance	2.2k ohms (line)
Input Sensitivity	77.5mV (line)
Output Level	0.44V (line)
Wow and Flutter	≤0.045% (weighted, RMS)
Frequency Response	20Hz – 20kHz (with CrO₂ tape, Dolby C)
Signal-to-Noise Ratio	>70dB (Dolby C)
Total Harmonic Distortion	<0.7% (1kHz, 0dB)
Controls	Soft-Touch Mechanical Buttons
Display	Fluorescent VFD (Vacuum Fluorescent Display)
Dimensions	430 × 140 × 330 mm (W×H×D)
Weight	9.8 kg

Historical Context

The TC-K333ESL was introduced during the twilight of the cassette era, a time when digital formats like the CD were gaining dominance. However, Sony continued to innovate in analog tape technology, particularly within its ES line, which represented the pinnacle of consumer-grade audio equipment. The TC-K333ESL was engineered to extract the maximum possible fidelity from the compact cassette format.

Its auto-calibration system was a standout feature, automatically adjusting bias, record level, and equalization based on test recordings, ensuring optimal performance across different tape types (Normal, CrO₂, Metal). This level of automation was rare and demonstrated Sony’s commitment to precision and ease of use.

The use of an amorphous sendust head provided excellent high-frequency response and durability, while the dual capstan, quartz-locked direct drive system minimized speed fluctuations, resulting in exceptionally low wow and flutter. Combined with HX Pro headroom extension and Dolby C noise reduction, the TC-K333ESL delivered a listening experience that was remarkably clean, detailed, and neutral.

Sound Signature

The TC-K333ESL is renowned for its accurate and transparent sound reproduction. It avoids the coloration common in many cassette decks, offering a balanced frequency response with tight bass, clear mids, and extended highs. The low noise floor—especially when using Dolby C—and minimal speed instability make it ideal for archiving vinyl or creating high-quality mix tapes. Its performance with metal tapes is particularly impressive, approaching the fidelity of early digital recordings.

Maintenance and Common Issues

While the TC-K333ESL is a robust machine, age-related issues are common in units that have not been regularly maintained:

Belt Degradation: The rubber belts in the tape loading mechanism can dry out and crack over time. Replacement with high-quality silicone belts is recommended.
Idler Tire Wear: The idler wheel may harden or lose grip, affecting tape loading and tension. Re-gripping or replacement is often necessary.
Capacitor Aging: Electrolytic capacitors in the power supply and control circuits may leak or fail. A full recapping is advisable for long-term reliability.
Solenoid and Mechanism Lubrication: Sticky mechanisms or slow tape loading can result from dried lubricants. Professional cleaning and relubrication with appropriate grease are essential.
Head Alignment and Cleaning: The amorphous head is durable but should be cleaned regularly with isopropyl alcohol and demagnetized periodically to maintain optimal performance.

It is recommended to have the deck serviced by a technician experienced with high-end cassette mechanisms before regular use, especially if the unit has been in storage for years.

Collectibility and Market Value

The TC-K333ESL holds a collectibility rating of 7/10. As a flagship ES model with advanced features and solid build quality, it is sought after by analog enthusiasts and Sony collectors. Its combination of auto-calibration, HX Pro, and dual capstan drive makes it a standout in the cassette deck landscape.

In the current market (2024), a fully functional and well-maintained TC-K333ESL typically sells for $200 to $400, depending on condition, service history, and included accessories. Units with original packaging and documentation may command higher prices.

Conclusion

The Sony TC-K333ESL is a testament to the heights analog cassette technology achieved before the digital takeover. With its precision engineering, automated calibration, and exceptional sound quality, it remains a favorite among audiophiles who appreciate the warmth and tactility of tape. For those seeking the best of Sony’s cassette legacy, the TC-K333ESL is a worthy centerpiece of any vintage audio setup.
