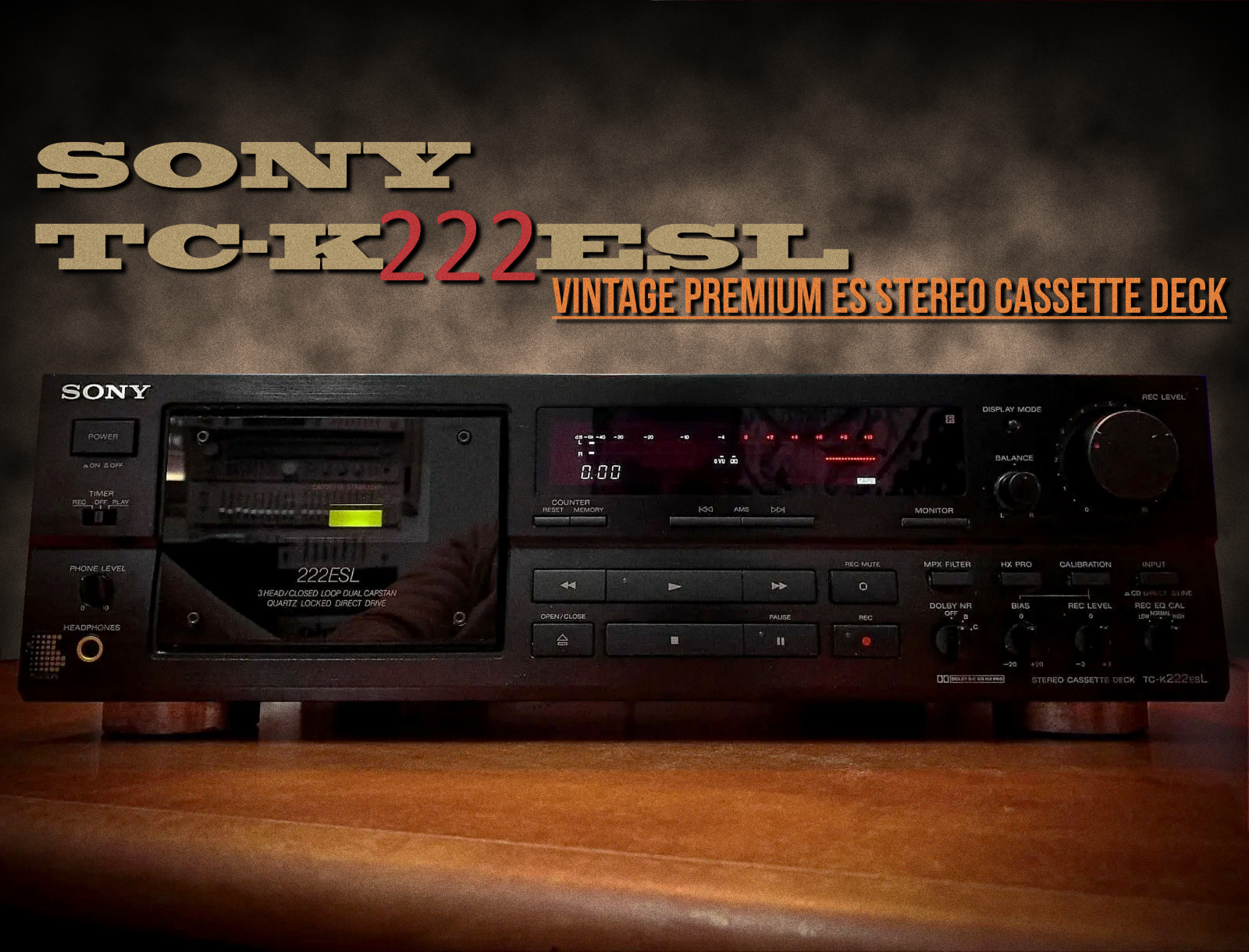

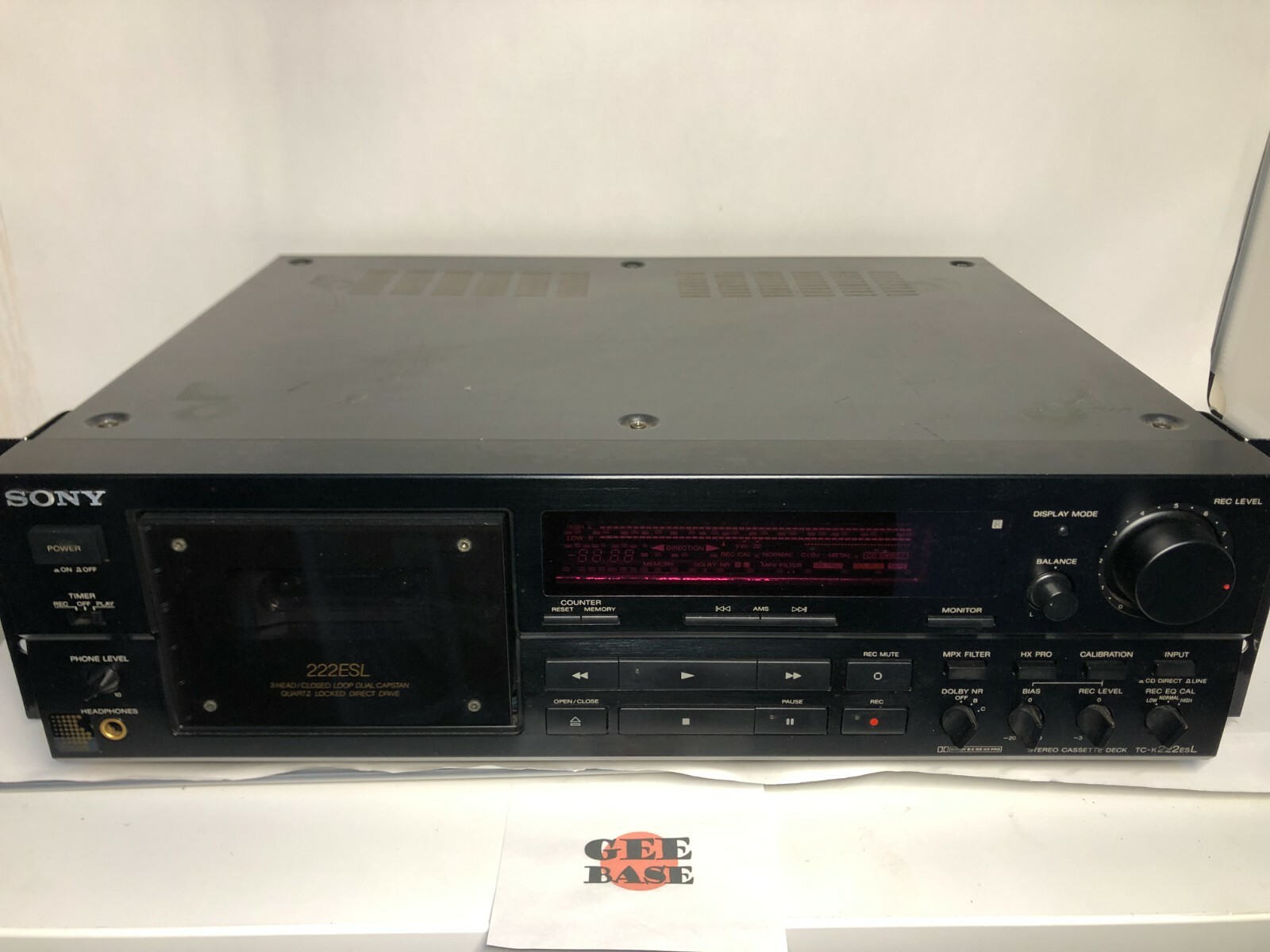

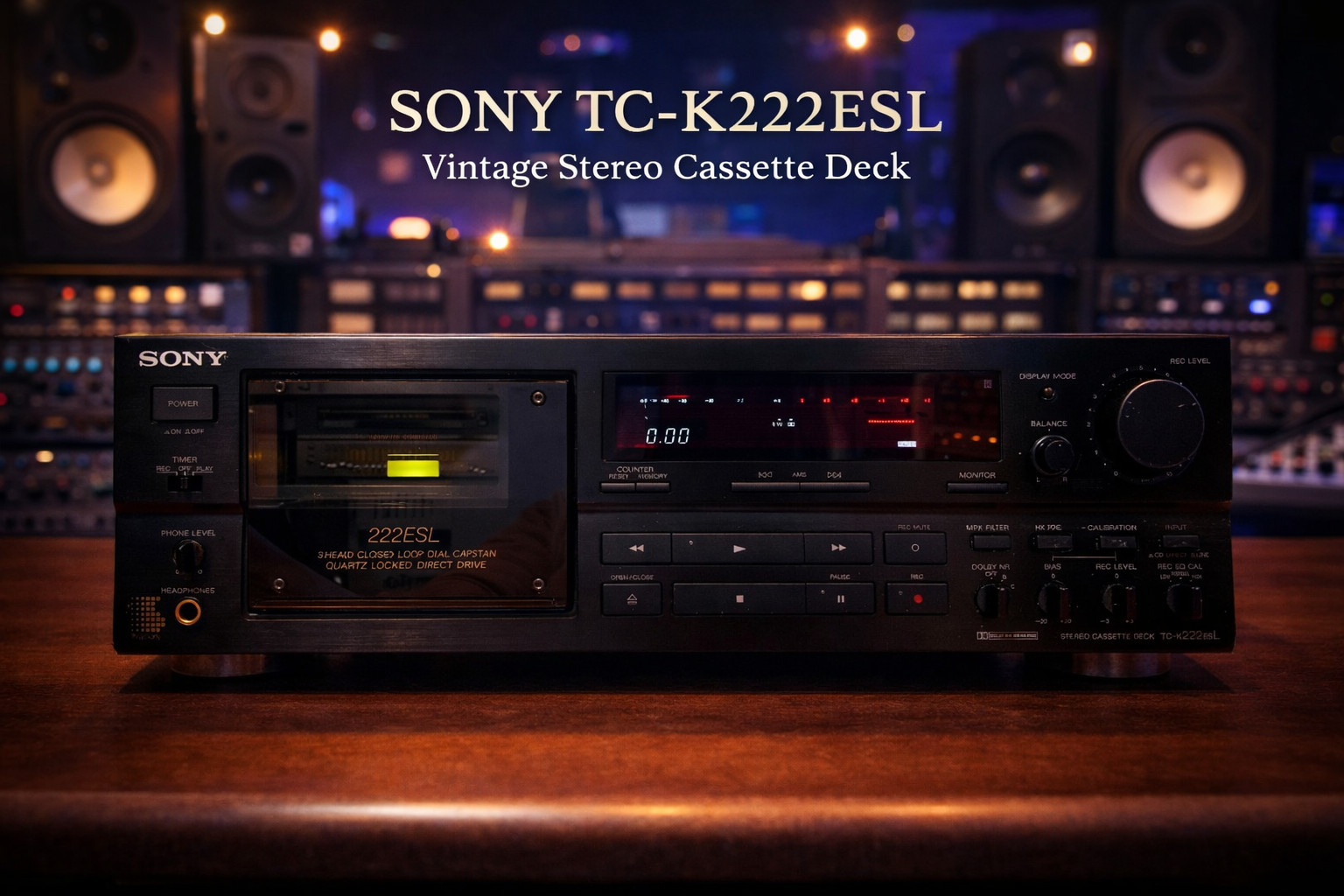

Sony TC-K222ESL (1984)

The Sony TC-K222ESL is a high-fidelity cassette deck introduced in 1984 as part of Sony's prestigious ES (Elevated Standard) series. Designed during the golden era of analog audio, this deck exemplifies the engineering excellence and meticulous build quality that defined top-tier cassette technology in the mid-1980s. With its advanced transport system, precision tape handling, and audiophile-grade features, the TC-K222ESL remains a sought-after unit among analog enthusiasts and vintage audio collectors.

Key Features

Dolby B & C Noise Reduction – Delivers cleaner, quieter playback with reduced tape hiss across a wide dynamic range.
SAF (Sendust & Ferrite) Record/Playback Head – Combines the durability of Sendust with the high-frequency clarity of Ferrite for balanced, detailed sound reproduction.
Quartz-Locked Direct Drive Transport – Ensures exceptional speed stability and minimal wow/flutter for accurate pitch and timing.
Dual Capstan Drive System – Enhances tape-to-head contact and reduces slippage, improving tracking and consistency.
Auto Tape Selector – Automatically detects tape type (I, II, IV) for optimal bias and equalization settings.
Bias Fine Adjustment – Allows manual calibration for peak recording performance with different tape formulations.
Soft-Touch Mechanical Controls – Premium tactile interface with smooth, responsive operation.
Line Input/Output with High-Impedance Buffering – Minimizes signal loss when connected to preamps or recorders.

Specifications

Parameter	Specification
Year of Production	1984–1986
Category	3-Head, Full-Track Stereo Cassette Deck
Tape Speed	4.76 cm/s (1⅞ ips)
Wow & Flutter	< 0.065% (weighted, RMS)
Frequency Response	20 Hz – 20 kHz (with CrO₂ tape, Dolby C)
Signal-to-Noise Ratio	> 70 dB (Dolby C)
Total Harmonic Distortion	< 1.5%
Input Impedance	50 kΩ (Line)
Output Impedance	2.2 kΩ (Line)
Input Sensitivity	150 mV (for 0 dB output)
Output Level	0.5 V (nominal line output)
Noise Reduction	Dolby B, C
Head Type	SAF (Sendust Playback / Ferrite Record)
Motor System	Quartz-locked direct drive (dual capstan)
Power Consumption	~25W
Dimensions (W×H×D)	430 × 142 × 335 mm
Weight	9.8 kg

Historical Context

The TC-K222ESL was released at the height of the analog cassette era, when manufacturers like Sony, Nakamichi, and TEAC were pushing the boundaries of magnetic tape fidelity. As part of Sony’s ES (Elevated Standard) line, the TC-K222ESL was engineered to deliver near-reference sound quality in a consumer format. It competed with high-end models from other brands by emphasizing precision mechanics, low-speed variation, and transparent audio reproduction.

Its quartz-locked direct drive system was a hallmark of Sony’s engineering prowess, eliminating the speed inconsistencies common in belt-driven capstan systems. Combined with the dual capstan transport, this design ensured exceptional tape control—critical for maintaining high-frequency response and stereo imaging.

The SAF head technology offered a balanced compromise between the longevity of Sendust and the clarity of ferrite, making it ideal for both everyday use and critical listening. With Dolby C support—then the latest in consumer noise reduction—the TC-K222ESL could extract maximum performance from high-bias tapes like CrO₂ and metal formulations.

Sound Signature

The TC-K222ESL is renowned for its neutral, detailed, and transparent sound. It avoids the warm coloration of some vintage decks, instead prioritizing accuracy and low distortion. Its low wow/flutter and wide frequency response make it ideal for archival playback and high-fidelity recording. Users often praise its tight bass, clear mids, and extended highs—especially when paired with quality source tapes and a well-maintained signal chain.

Maintenance and Common Issues

Despite its robust build, the TC-K222ESL requires periodic maintenance to perform at its best:

Belt Degradation: The rubber belts in the tape loading mechanism may dry out or crack after decades. Replacement with OEM or high-quality equivalents is recommended.
Idler Tire Wear: The idler wheel can harden or lose grip, affecting tape loading and tension. Reconditioning or replacement restores proper function.
Capacitor Aging: Electrolytic capacitors in the power supply may leak or lose capacitance. A recapping service improves reliability and prevents damage.
Head Alignment & Cleaning: Over time, the tape head may drift out of alignment or accumulate oxide residue. Professional demagnetization and alignment ensure optimal playback.
Lubrication: The transport mechanism benefits from a full lubrication service using synthetic grease suitable for precision audio equipment.

Tips for Owners:

Use the deck regularly to prevent mechanical stiction.
Clean the heads and capstans with isopropyl alcohol after every 10–15 hours of use.
Store in a dry, dust-free environment.
Avoid playing damaged or warped tapes to prevent head wear.

Collectibility and Market Value

The TC-K222ESL holds a collectibility rating of 7/10, appealing to both Sony ES collectors and analog audio purists. Its combination of advanced features, solid build, and excellent sound ensures steady demand in the vintage market.

As of 2024, a fully functional and well-maintained unit typically sells for $150–$300, with prices rising for decks that have been professionally serviced or come with original packaging and documentation.

Conclusion

The Sony TC-K222ESL stands as a testament to the innovation and craftsmanship of 1980s high-end audio engineering. More than just a cassette deck, it represents a pivotal moment when analog tape reached its technical peak. For audiophiles, collectors, and retro-tech enthusiasts, the TC-K222ESL offers a reliable and sonically rewarding gateway into the world of vintage cassette fidelity. With proper care, it remains a fully viable component in any analog setup.
