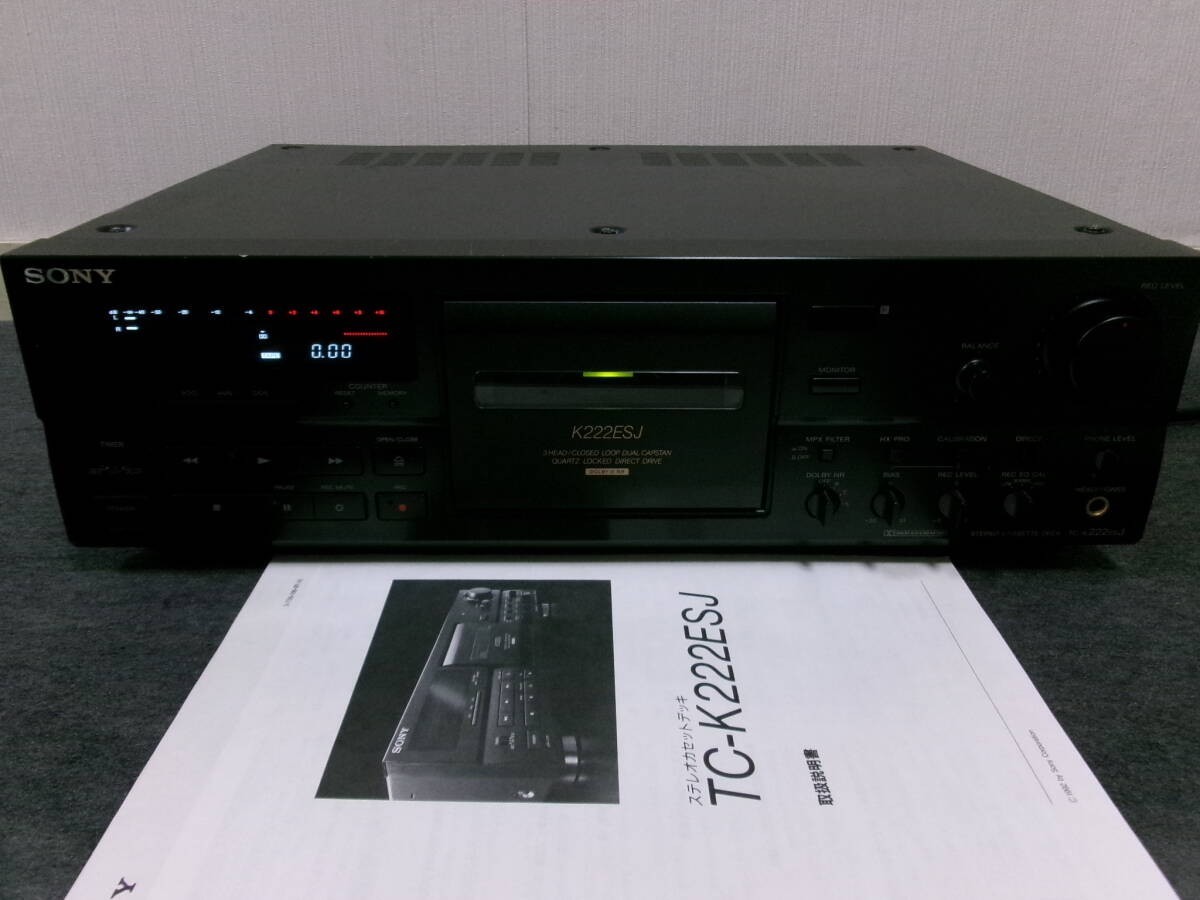

Sony TC-K222ESJ (1985)

The Sony TC-K222ESJ is a high-fidelity cassette deck introduced in 1985 as part of Sony's prestigious ES (Elevated Standard) series. Designed for audiophiles and discerning listeners, this deck combines advanced engineering with premium materials to deliver exceptional tape performance. With its Sendust & Ferrite (SAF) head, direct-drive capstan, and comprehensive feature set, the TC-K222ESJ stands as a testament to Sony’s commitment to quality during the golden era of analog audio.

Key Features

Dolby B/C Noise Reduction: Reduces tape hiss and improves dynamic range.
SAF (Sendust & Ferrite) Record/Playback Head: Offers excellent durability and high-frequency response.
DC Servo Motor with Direct-Drive Capstan: Ensures precise tape speed control and low wow & flutter.
Auto Tape Selector: Automatically detects tape type (I, II, IV) for optimal bias and equalization.
Bias Fine Adjustment: Allows manual calibration for maximum fidelity.
Music Search Function: Fast forward/rewind with audible preview for quick navigation.
Peak Level Meters: Dual VU meters for accurate recording level monitoring.
Line Input/Output: High-quality analog connections for system integration.

Specifications

Specification	Detail
Year of Production	1985–1986
Category	Stereo Cassette Deck
Series	ES (Elevated Standard)
Head Type	SAF (Sendust & Ferrite)
Motor System	DC servo motor, direct-drive capstan
Wow and Flutter	≤ 0.08% (weighted, RMS)
Frequency Response	20Hz–20kHz (Type I), 20Hz–22kHz (Type II/IV)
Signal-to-Noise Ratio	≥ 68dB (Dolby C), ≥ 56dB (Dolby B)
Total Harmonic Distortion	≤ 1.5%
Input Impedance	50k ohms (line)
Output Impedance	2.2k ohms (line)
Input Sensitivity	200mV (for 0dB recording level)
Power Consumption	25W
Dimensions (W×H×D)	430 × 140 × 330 mm
Weight	9.8 kg
Accessories	Owner's manual, cassette holder

Historical Context

The TC-K222ESJ was released at the height of the cassette deck’s evolution, when manufacturers were pushing the limits of analog tape fidelity. As part of Sony’s ES line—positioned between consumer and professional gear—it offered many features found in higher-end models at a more accessible price point. The use of SAF heads was a hallmark of Sony’s innovation, combining the wear resistance of sendust with the magnetic efficiency of ferrite for long-lasting, high-resolution playback.

This model exemplifies Sony’s engineering philosophy in the mid-1980s: precision mechanics, advanced materials, and user-centric design. The TC-K222ESJ competed with high-end offerings from brands like Technics, Pioneer, and TEAC, earning respect for its neutral sound signature and build quality.

Sound Signature

The TC-K222ESJ delivers a clean, detailed, and accurate sound with minimal coloration. Its neutral and transparent reproduction makes it ideal for critical listening and archival use. The SAF head contributes to extended high-frequency response, while the Dolby C system effectively suppresses noise without artifacts. Bass is tight and well-controlled, and stereo imaging is precise, reflecting the deck’s high mechanical stability.

Maintenance and Tips

Like all vintage cassette decks, the TC-K222ESJ requires periodic maintenance to perform optimally:

Belt Replacement: Although it uses direct-drive for the capstan, rubber belts for loading and other mechanisms may degrade. Replace if stiff or cracked.
Head Cleaning: Clean the tape path and heads regularly with isopropyl alcohol and a lint-free swab.
Head Alignment: Misalignment can cause high-frequency loss. Use alignment tapes or professional service if issues arise.
Capacitor Replacement: Aging electrolytic capacitors may leak or fail. Consider recapping the power supply and signal path if the unit has been unused for years.
Mechanical Lubrication: Dry gears or idler tires can affect operation. Use synthetic grease suitable for audio equipment.
Demagnetization: Use a tape head demagnetizer every few months to maintain clarity and frequency response.

Collectibility and Market Value

The TC-K222ESJ holds a collectibility rating of 7/10, appealing to ES series enthusiasts and analog purists. Its combination of advanced features, solid build, and reputable sound ensures steady demand.

Market Value: $150–$300 USD

(Fully functional units in good cosmetic condition; higher prices for mint, boxed examples)

While not as rare as some flagship models, the TC-K222ESJ remains a respected representative of Sony’s analog heritage and a capable performer in modern setups when properly maintained.
