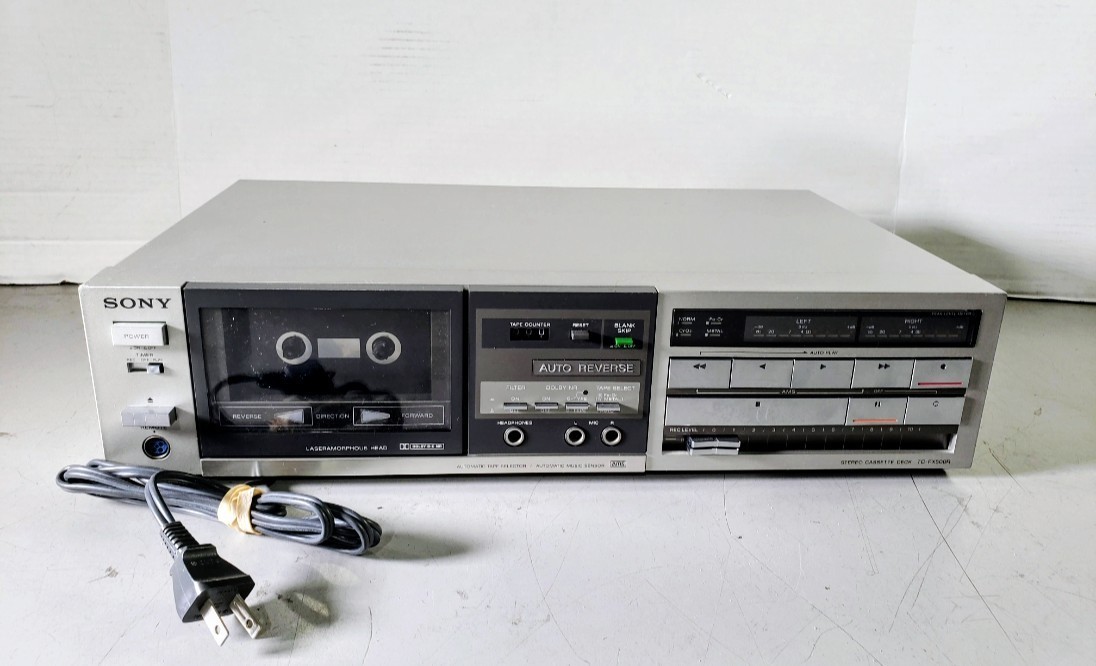

Sony TC-FX500R (1982–1983)

At 4.7kg, it sits on the shelf like something engineered, not assembled.

Overview

The Sony TC-FX500R wasn't chasing the budget market, and it had no chrome trim to dazzle anyone. Released in 1982 at ¥54,800, it was a serious auto-reverse cassette deck for enthusiasts who wanted tape automation without giving up fidelity. It wasn't Sony's absolute top-tier deck, but it packed high-end features into a streamlined design that put function first. It has a rotary head system for consistent playback in both directions, and laser-amorphous recording heads, a technology Sony heavily promoted for its superior magnetic linearity.

Many auto-reverse decks compromised on head configuration. The TC-FX500R uses a 2-head system with a rotating mechanism - it physically flips the head 180 degrees when reversing direction - so the tape-to-gap alignment stays identical in forward and reverse play. Cheaper dual-capstan, single-position head decks often suffer from channel imbalance when flipping sides. This one doesn't. An auto tape selector detects Type-I, Type-II, and Type-IV tapes, which made it a near "set and forget" machine. It has Dolby B and C noise reduction, and a claimed 71dB signal-to-noise ratio with Dolby C. That meant clean, quiet playback even from metal tapes, which were still a premium format at the time.

The 11W power draw and 100VAC requirement show it was built for the Japanese domestic market. Its 430mm width fit standard 19-inch rack shelves with adapters. The front panel is no-nonsense: large transport controls, a prominent LED peak level meter, and a long-stroke sliding record level attenuator for precise control over input gain. There is a microphone input (3.5mm) and a headphone jack (6.3mm), and the headphone jack is noted for high output, which is useful for monitoring recordings without external amplification. Remote control was supported through optional units like the RM-65 and RM-70, sold separately.

Specifications

Manufacturer	Sony
Model	TC-FX500R
Type	auto reverse, 2-head, single compact cassette deck
Track format	4-track 2-channel
Heads	Recording : laser amorphous; Erasing : Sendust
Motor	For Capstan / Reel : DC Servo Motor
Signal-to-noise ratio	55dB(EIAJ); 58 dB (Dolby off, Peak Level, Metal Tape); 71dB(Dolby NR C type)
Frequency Response (EIAJ)	30 Hz ~ 17 kHz ± 3 dB (Metal Tape)
Frequency Range (EIAJ)	20 Hz ~ 18 kHz (Metal Tape)
Wow & flutter (EIAJ)	± 0.07% Wpeak; 0.05%WRMS
Distortion Factor (EIAJ)	0.5% (DUAD Cassette)
Input terminals	Mike; Line in; Remote control
Inputs	2 x line (RCA), 1 x mic (3.5mm)
Output terminals	Line out; Headphone
Outputs	2 x line (RCA), headphone (6.3mm)
Power	100 VAC, 50Hz/60Hz
Power consumption	11W
External dimensions	Width 430x Height 105x Depth 275 mm
Weight	4.7kg
Tape Speed	4.8

Key Features

Rotary Head System for Uniform Bidirectional Playback

The TC-FX500R rotates its single head assembly 180 degrees when switching directions, instead of using two fixed heads or a dual-capstan system. The head gap lines up identically with the tape's recorded tracks in both forward and reverse modes. That removes the phase and level inconsistencies common in cheaper auto-reverse decks.

Laser-Amorphous Recording Head

Sony made a significant technical claim for the amorphous metal alloy - lacking a crystalline structure - used for the recording head core. Its high magnetic flux density and linearity were said to improve high-frequency response and reduce distortion. The "laser" designation refers to the precision cutting method used to shape the head gap, allowing tighter tolerances than traditional machining.

Auto Tape Selector for Type-I, Type-II, and Type-IV Tapes

The deck automatically detects the tape type - normal (Type-I), chrome (Type-II), or metal (Type-IV) - and adjusts bias and equalization to match. That removed the manual tape selection switches and reduced user error.

AMS (Automatic Music Sensor) and Auto-Blank Skip

The AMS function detects silent gaps between tracks and automatically fast-forwards to the next active passage, then resumes playback. When enabled, it can also locate the beginning of the previous or next song during rewind or fast-forward. The auto-blank skip works similarly, skipping over long silent sections during playback. It isn't perfect, especially on tapes with ambient noise or fade-outs, but it was useful for mix tapes or radio recordings.

Dolby B and C Noise Reduction

With both Dolby B and C, the TC-FX500R could significantly reduce tape hiss, especially on chrome and metal tapes. Dolby C offered better high-frequency noise reduction than Dolby B, which contributes to the claimed 71dB signal-to-noise ratio.

Rec Mute with Auto-Space Function

During recording, if no input signal is detected for four seconds, the deck automatically mutes the record circuit and enters standby. This prevents recording silence and helps preserve tape life.

LED Peak Level Meter and Long-Stroke Record Level Control

The bright LED peak hold meters give a clear visual indication of recording levels, which helps avoid distortion. Paired with the long-stroke slide potentiometer for record level adjustment, they let users fine-tune input gain with precision.

Collectibility & Value

The TC-FX500R is frequently found in non-working condition, often described in repair forums as "dirty" or "stuck," and needs full servicing. The most common issues are hardened drive belts and idler tires, which must be replaced for reliable operation. Aging capacitors in the power supply and audio path can lead to hum, channel imbalance, or complete failure. A specific flat drive belt (e.g., stock number FBS8.6) is known to fit the model, so spare parts are available. No current market value data is available.
