Sony TC PB5 (1981)

A compact cassette deck built for precision playback, not recording—this 1981 Sony machine was engineered to extract every nuance from metal tapes with a dual-motor drive and direct-coupled amplification.

Overview

The Sony TC-PB5 isn't a general-purpose cassette deck. From the start, it was designed with a singular focus: high-fidelity playback. Marketed as a "half-size cassette deck specialized for playing back tape music," the 1981 release skips record capability entirely, allowing Sony to refine the transport and signal path for optimal sound retrieval.

Released during the peak of cassette refinement, the TC-PB5 arrived when metal tapes and noise reduction were pushing analog portability to its limits. While many decks of the era tried to do everything, Sony carved out a niche with this playback-only approach. It’s not a tinkerer’s deck—no record head, —but a purist’s tool. The inclusion of features like RMS (Random Memory Music Sensor), which allows programming up to 15 tracks in custom order, hints at a machine built for curated listening, perhaps in a retail or professional environment where repeat playback of select cuts mattered.

Specifications

Key Features

Playback-Only Design with S & F Head

The TC-PB5 uses a read-only S & F head, combining Sendust alloy for high magnetic flux density and ferrite for strong high-frequency response. This hybrid construction targets the full frequency range of metal cassettes without the compromises of a combined record/play head. The result is a cleaner signal path focused solely on retrieval, not creation.

Direct Coupling Between Playhead and Amplifier

One of the more notable engineering choices is the direct coupling between the playhead and amplifier. By eliminating the coupling capacitor—a common point of signal degradation in analog circuits—Sony aimed to preserve transient detail and low-end clarity. According to available documentation, this design prevents capacitor-induced phase shifts and roll-off, contributing to the deck’s tight, immediate sound. It’s a feature typically seen in higher-end gear, and its inclusion here underscores the TC-PB5’s niche as a serious playback machine.

Two-Motor Transport with DC Servo Capstan

The transport uses a 2-motor system: a DC servo motor for the capstan and a separate DC motor for reel drive. This specialization allows precise tape speed control while offloading mechanical duties to the second motor. The servo-controlled capstan, paired with a die-cast flywheel that uses metal lamination to reduce resonance sharpness, delivers a wow and flutter rating of just 0.05%wrms—exceptional for a compact deck. This level of stability ensures pitch accuracy and smooth playback, particularly important when listening to acoustic or classical recordings where timing is critical.

Auto Tape Selector and Dolby NRB

The auto tape selector detects the extra hole in cassette shells to automatically set the correct EQ for Type I, II, or IV tapes. This feature, common on higher-end Sony decks of the era, removes user error and ensures optimal frequency response regardless of tape type. Paired with Dolby NRB , the TC-PB5 maintains a quiet background even at higher listening levels. The 60 dB signal-to-noise ratio, measured with metal tape and Dolby off, confirms a fundamentally clean tape path.

Random Memory Music Sensor (RMS)

The RMS function allows users to program up to 15 tracks in a custom sequence, effectively creating a personalized playlist on tape. Given the linear nature of cassette media, this was a forward-thinking feature—essentially a primitive form of digital programming. It suggests the TC-PB5 was intended for environments where repeat, curated playback mattered: retail spaces, studios, or even high-end home installations where convenience and precision were valued.

Microphone Mixing and Autoplay

Despite being playback-focused, the deck includes a microphone mixing mechanism with dedicated volume control, suggesting some flexibility for live announcements or voice-over applications. The autoplay function—activated by pressing play and rewind simultaneously—starts playback immediately after rewinding, a small but thoughtful touch for users who frequently returned to the beginning of a tape. Operation is logic-controlled, providing “fine feather touch” button response, a hallmark of Sony’s late-70s and early-80s industrial design.

Synchronized Remote Control Terminal

The TC-PB5 includes a terminal for the optional Synchro Remote Control Unit RM-65 (sold separately for ¥3,000), enabling synchronized play with other compatible decks using RM-50/RM-70/RM-80 type remotes. This feature points to professional or multi-deck use cases, such as in broadcast or installation environments where timing across multiple units was essential. The ability to daisy-chain control makes the TC-PB5 more than just a solitary player—it’s part of a larger ecosystem.

Collectibility & Value

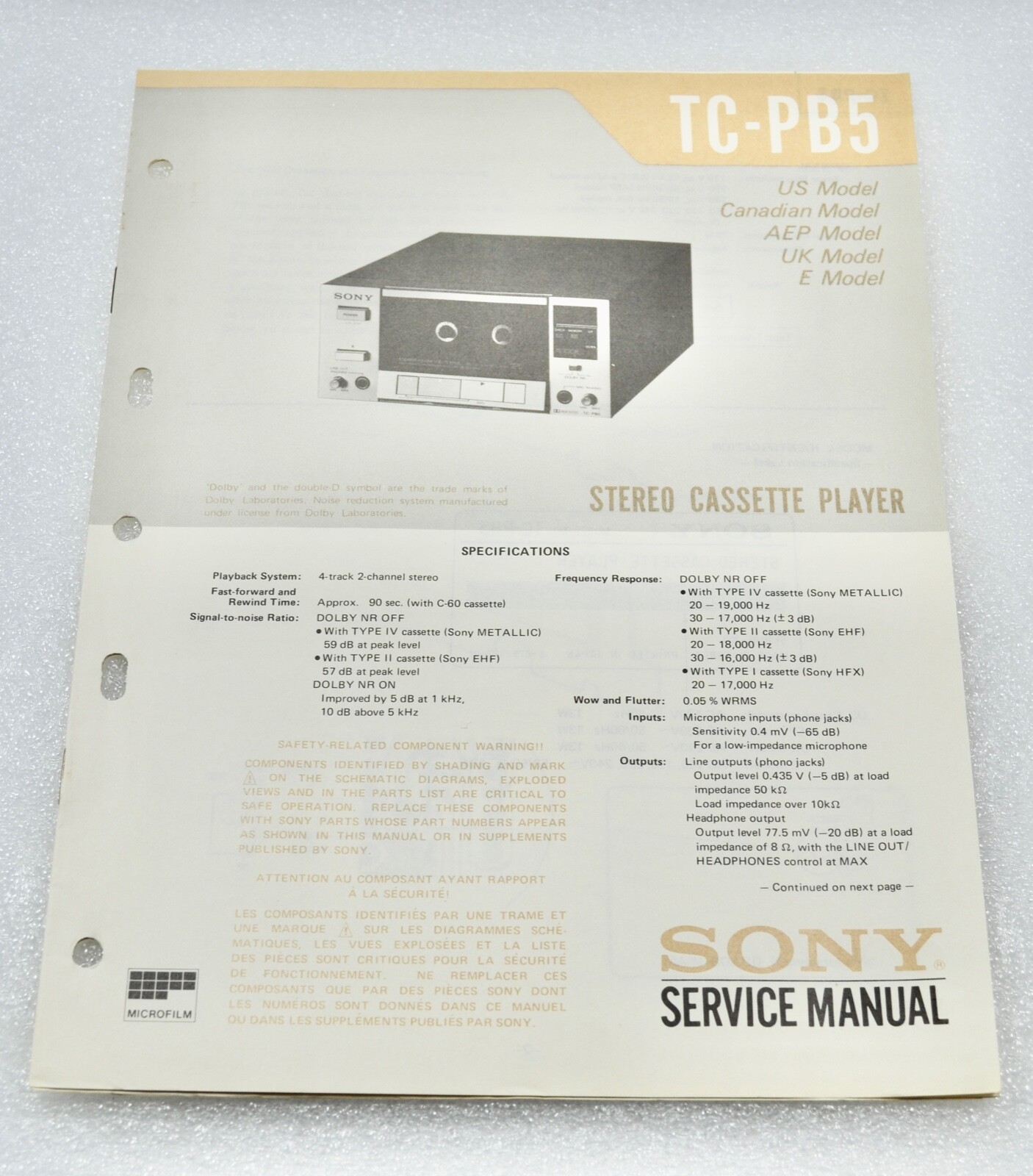

While no official collectibility data exists, the TC-PB5 is consistently described as “rare” in marketplace listings and enthusiast circles. Its specialized function and contribute to its obscurity outside niche communities. Service manuals and belt replacement kits remain available, indicating a small but active restoration base. No original market pricing in USD is documented, but the ¥37,800 launch price in Japan suggests it was positioned as a premium product. Current value is unverified, though complete units in working condition command attention from cassette purists.
