Sony TC-KA7ES (1995)

Name: Sony TC-KA7ES
Brand: Sony

A three-head cassette deck with full-logic transport and Dolby S, built as Sony's final high-end analog statement.

Overview

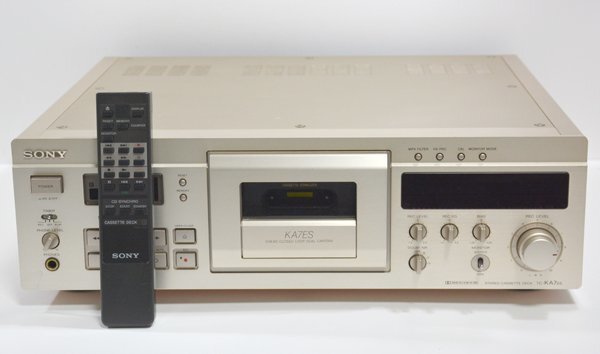

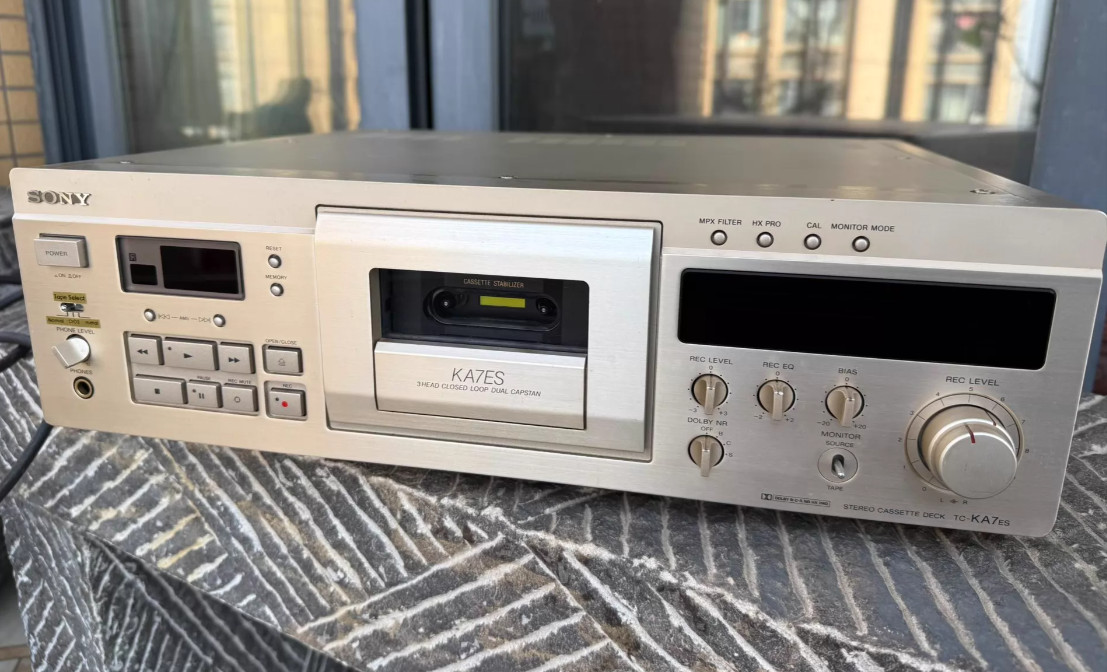

The Sony TC-KA7ES is a three-head cassette deck produced in 1995, positioned as the flagship of the ES series and regarded by many as the last and best cassette deck Sony ever made. It was distributed primarily in Japan, with an export counterpart in the slightly less-featured TC-KA6ES. The deck embodies the culmination of Sony’s analog cassette technology, featuring advanced tape transport, discrete circuitry, and extensive calibration options. It includes a wireless remote control (RM-J701) and was available in black or champagne, with the latter commanding higher prices today.

Specifications

Type	Three head deck
Heads	Erase: Sendust & Ferrite ×1; Record: Laser Amorphous ×1; Playback: Laser Amorphous ×1
Format	4-track 2-channel
Motor	Linear Torque BSL D.D. Motor ×1, DC Motor ×2
Signal-to-noise ratio	57 dB (EIAJ, Dolby NR off, Metal Tape); 80 dB (Dolby NRS, Peak Level, Metal Tape, Acoustic Compensation)
Frequency characteristic	15 Hz ~ 22 kHz ±3 dB (EIAJ, -20dB recording, metal tape); 15 Hz ~ 16 kHz ±3 dB (-4dB recording, metal tape)
Wow and flutter (EIAJ)	±0.04% Wpeak, 0.022% WRMS
Distortion Factor (EIAJ)	1.3% (3rd harmonic, 315 Hz, 250nWb/m, metal tape)
Bias	210 kHz
Noise reduction	HX-Pro, Dolby B, Dolby C, Dolby S, MPX filter
Program Meters	-40 to +10 dB, 24 segments per channel
Inputs	1 line input
Outputs	1 line output
Power supply voltage	100 VAC, 50Hz/60Hz
Power consumption	27W
External dimensions	Width 430 × Height 135 × Depth 380 mm
Weight	Approx. 12 kg
Attachment	Wireless Remote Control RM-J701

Design

The TC-KA7ES uses a closed-loop dual capstan system with a quartz-locked direct-drive motor and Lapis-Lazuli bearings on both capstans, reducing vibration and wow. It features a copper-plated FB chassis, single-crystal oxygen-free copper (ESC-OCC) wiring with 99.997% purity, and an R-core transformer isolated for audio and control circuits. The laser amorphous heads are gold-plated, wound with 6N-purity material, and housed in resin-filled shield cases. A pad pressure reduction mechanism, delayed-action stabilizer, and ceramic composite cassette holder enhance tape contact. The deck includes a 3-point REC calibration function with a built-in oscillator (400Hz/3kHz/15kHz), manual bias, level, and EQ calibration, and a non-switching discrete amplifier with fully dual-mono audio boards.

Context

The TC-KA7ES was developed as the reference model of the New ES series, representing the final effort by Sony’s ES engineering team, which was last formally assembled in 1986. Released in 1995, it arrived as tape formats were declining, yet it consolidated decades of Sony’s analog expertise from models like the TC-K555ESJ and TC-K990ES. It was marketed as the pinnacle of cassette deck engineering, with no expense spared in materials or design.

Market

The TC-KA7ES typically sells for $1,500 to $2,000 in the current market, with champagne/gold finishes commanding higher prices than black. Common issues include worn belts and idler tires, which require replacement. The service manual is available online and is detailed, aiding repair and maintenance.
