Sony TC-K555ES (1982)

Name: Sony TC-K555ES
Brand: Sony

The deck weighs 6.1kg. It is not a machine for casual listeners. It is for people who took cassette tape seriously.

Overview

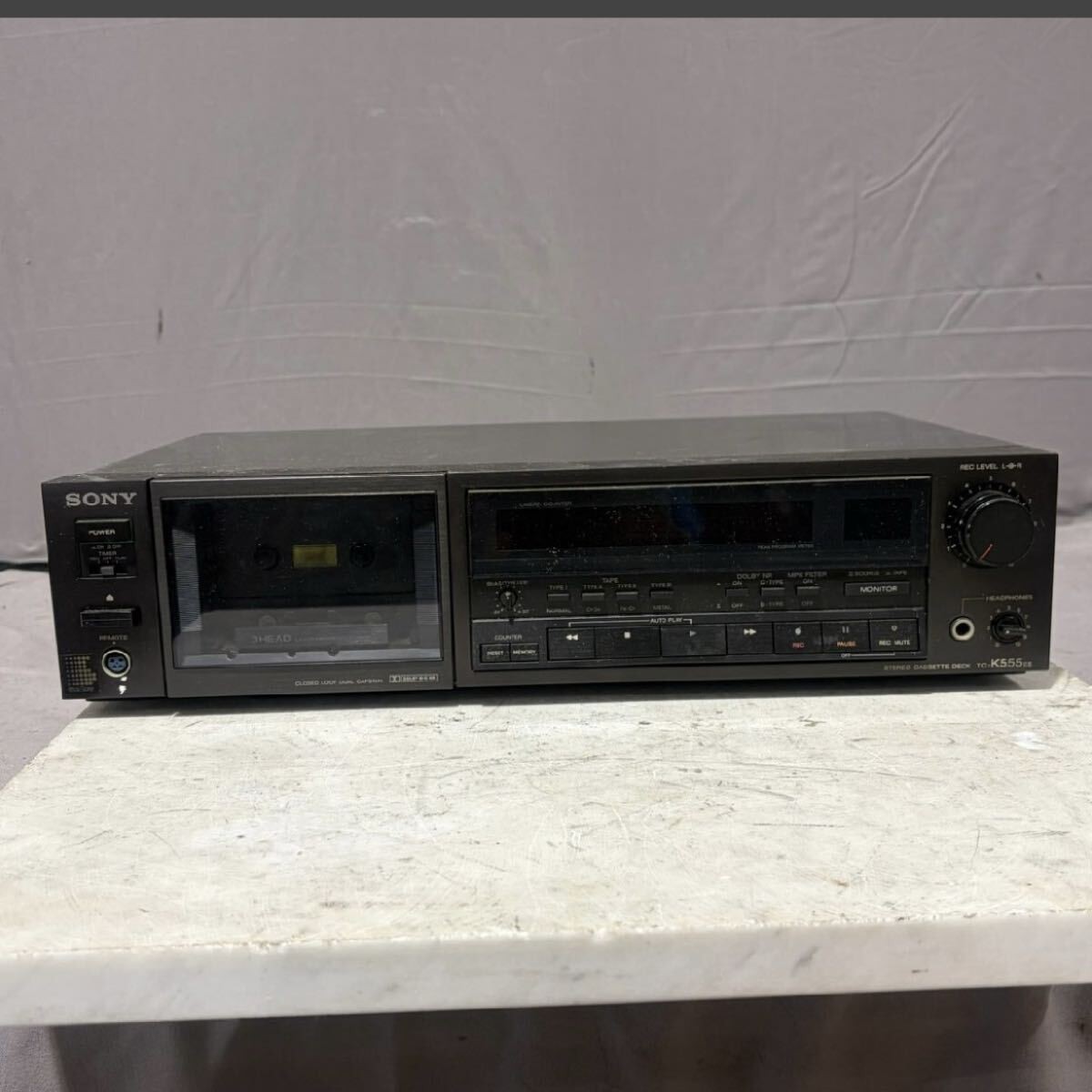

The Sony TC-K555ES is a high-fidelity cassette deck released in 1982 as part of Sony's ES (Elevated Standard) series. It was built for audiophiles and serious tape users who wanted the most out of the compact cassette. It was marketed at ¥89,800 and positioned as the flagship of the ES line, designed to get maximum performance from Type I (Ferric), Type II (Chrome), and Type IV (Metal) tapes. It has 3 heads: separate laser amorphous recording and playback heads, plus an F&F erase head. That allows real-time monitoring during recording, a feature typically reserved for professional studio decks. It has a closed-loop dual capstan transport and a twin-mono DC amplifier section, reflecting Sony's intent to compete directly with the high-end Nakamichi market. Frequency response extends to 20 Hz - 20 kHz on metal tape, and wow and flutter is held to just 0.04% WRMS (EIAJ). It was not widely reviewed in period publications, but collectors note its engineering rigor and its status as the core of the ES series, built to meet the challenges of the emerging digital audio age without compromise.

Key Features

Independent 3-Head System with Laser Amorphous Heads

The TC-K555ES uses a full 3-head layout: discrete laser amorphous heads for recording and playback, plus a dedicated F&F erase head. This allows true monitoring of the recorded signal during taping, so there is no guesswork in setting levels. The laser amorphous heads are uniquely suspended to minimize vibration. They deliver exceptional high-frequency response and low distortion, which matters for metal tapes. The setup also allows source/tape switching, so users can instantly compare input and recorded signals, a boon for critical recording work.

Closed-Loop Dual Capstan Transport with Linear BSL Motor

The transport is a closed-loop dual capstan design that continuously monitors and corrects tape speed. The capstan is driven by a linear BSL motor, which eliminates the slot and brush found in conventional motors and reduces the torque irregularities that contribute to wow and flutter. A high-torque DC motor drives the reels independently, keeping tape control tight during winding and playback. Combined with the closed-loop feedback, this dual-motor system delivers near-reel-to-reel consistency in a compact cassette form factor.

Twin-Mono DC Amplifier with Direct Coupling

The amplifier section is twin-mono, with a separate configuration for each channel, and uses a DC amplifier design with no coupling capacitors between stages. The playback head and playback amplifier are directly coupled, which avoids the high-frequency roll-off and phase shifts that capacitors can introduce. The result is a cleaner, more transparent signal path that preserves transient detail and spatial accuracy. According to available documentation, the design was part of Sony's effort to achieve "completeness of recording and playback" in anticipation of digital audio standards.

4-Stage Tape Selector with Variable Bias Control

A dedicated 4-stage tape selector matches bias and equalization to the tape type: Type I (Normal), Type II (CrO₂), Type III (Fe-Cr), and Type IV (Metal). It switches bias and EQ together, and includes a ±20% variable bias control for fine-tuning on the three ferric-based tape types. This level of manual control was uncommon even among high-end decks. It lets users optimize recording levels for different tape formulations and get the lowest possible distortion.

High Bias Frequency of 210 kHz

To improve linearity and reduce distortion during recording, the TC-K555ES uses a high bias frequency of 210 kHz, significantly above the norm for consumer decks of the era. The higher frequency helps suppress intermodulation distortion, particularly on high-output tapes like metal and CrO₂, giving cleaner highs and tighter bass. Sony shared this design choice with the Yamaha KX-1200U, another high-performance deck released concurrently, suggesting a shift toward studio-grade engineering in the consumer market.

Multi-Function Peak Program Meter and Electronic Counter

The front panel has a multi-function peak program meter with a double indication system. One needle shows the instantaneous peak level, while a second holds the peak for approximately four seconds, which makes transient overloads easier to catch. A linear electronic counter displays tape position in minutes and seconds for precise cueing and editing. Together with autoplay and memory play functions, these features made the TC-K555ES a serious tool for both recording and archival work.

Dolby B and C Noise Reduction

The deck includes both Dolby B and C noise reduction, with Dolby C providing effective noise reduction in the mid and high frequencies. According to available documentation, Dolby C (marketed as Dolby NF C type) effectively reduces the "hissing" common on tape, particularly with metal formulations. With Dolby C engaged and Type IV tape, the signal-to-noise ratio reaches 73 dB (EIAJ), approaching the performance of early digital formats.

Remote Control and Synchronization Capabilities

The TC-K555ES supports several optional remote controls: the wireless RM-80 (¥18,000), the wired RM-50 (¥6,000), the foot-operated RM-51 (¥8,800), and the synchro control unit RM-65 (¥3,000). With the RM-65, users could do synchronized recording with other Sony components that had remote terminals, such as the PB5 playback deck. This level of integration was rare in consumer gear and reflected Sony's ambition to build a fully coordinated high-end system.

Historical Context

The TC-K555ES was released in 1982 at the height of the cassette era, when manufacturers were pushing analog tape to its technical limits in response to the rise of digital audio formats like CD and DAT. Sony positioned the deck as the centerpiece of its ES (Elevated Standard) series, a line reserved for components that met higher performance and build quality standards than typical consumer gear. It was engineered for the "completeness of recording and playback of music," suggesting a focus on mastering and archival. It has an advanced transport, precision calibration tools, and support for metal tape. Collectors note it was designed to compete with high-end Nakamichi models, offering comparable performance with a more refined industrial design and tighter integration with Sony's ecosystem.

Collectibility & Value

The TC-K555ES is highly collectible, rated 8 out of 10 for its build quality, performance, and status within the ES series. Fully functional units in good cosmetic condition typically sell for $200 - $500, with mint, boxed examples commanding higher prices. eBay listings show tested units selling for $557 - $560, while a refurbished example recently listed for $1,559, reflecting strong demand among analog enthusiasts. Owners emphasize maintenance. Belts and idler tires should be inspected for stiffness or cracking, gears require synthetic lubrication, and the heads, capstan, and pinch roller should be cleaned regularly with 90%+ isopropyl alcohol. Demagnetization every 50-100 hours of use is recommended to prevent high-frequency loss. Electrolytic capacitors in the power supply may dry out over time, so a recap is advisable if the unit shows power issues or channel imbalance.
