Sansui G 9700 (1980-1982)

Sixty-five pounds of direct-coupled Japanese iron, rated at 200 watts per channel, with distortion so low the spec sheet almost reads like a typo.

Overview

The first thing you notice is the mass. Sixty-five pounds of receiver, most of it transformer and heatsink, built in Japan between 1980 and 1982 as Sansui's top-of-the-line all-in-one. This was the company's Pure Power DC Stereo Receiver. The "DC" is a direct-coupled amplifier stage that strips coupling capacitors out of the signal path. Fewer components between the input and the speakers, at least in theory, means tighter bass control and faster transient response.

The power rating is the headline. Contemporary coverage of the G-9700 in the audio press noted its DC power amplifier and dual LED peak-power level meters with range and mode switching, and placed it among the flagship receivers of its day (HiFi-Stereo 1981, p.43). Sansui's own service documentation for the G-9700/971 rates it at 200 watts per channel into 8 ohms, both channels driven, from 20 to 20,000 Hz, with total harmonic distortion no more than 0.02 percent. That distortion figure is the big one. 0.02% THD at full rated output was not a casual claim in 1980, and it puts the G 9700 in rare company among monster receivers. A separate source lists 180 watts per channel into 8 ohms, so the exact figure depends on whose bench you trust. The manual's 200-watt number is the one to quote. Intermodulation distortion is likewise specified under 0.02% at rated power using the SMPTE method. The damping factor is rated at 60 into 8 ohms across the full 20 Hz to 20 kHz band, which is enough grip to keep a big woofer from running away from the amplifier.

Around that power stage sits a full FM/MW tuner, two phono inputs, and two tape loops, all in one chassis. Frequency response is quoted at 20 Hz to 20 kHz within a tight ±0.5 dB, and the signal-to-noise ratio reaches 90 dB. Owners describe it in the terms you'd expect: a beast, a monster. It was marketed as the top of the line and priced to match, at $2,999, which at the time bought a used car.

Key Features

Pure Power DC Direct-Coupled Output Stage

Direct coupling is the G 9700's defining technical claim. By eliminating coupling capacitors from the signal path between stages, Sansui aimed at low-frequency control and phase behavior that capacitor-coupled designs struggle to match. The service manual backs this with numbers: a rise time of 1.4 microseconds and a slew rate of 80 V/µsec. Those are the figures of an amplifier that can react to a transient without smearing it. The power amplifier section is specified from DC to 200 kHz, so Sansui was building headroom into the design and not just chasing audio-band specs.

200 Watts Per Channel with 0.02% THD

Two hundred watts into 8 ohms, both channels driven, across the full 20 Hz to 20 kHz band, with distortion capped at 0.02%. The service manual specifies a minimum load impedance of 3 ohms, so the G 9700 will drive speakers that would send lesser receivers into protection. That includes inefficient acoustic-suspension speakers. The RIAA curve deviation for the phono stage is held to ±0.2 dB from 20 Hz to 20 kHz. That is a tight tolerance, and it suggests the phono section wasn't bolted on just to satisfy a spec sheet.

Dual Phono Inputs and Two Tape Loops

Two phono inputs and two tape loops fit how people used gear in 1980: a turntable, a second turntable or a tape deck, and enough routing to dub between them. The input sensitivity for PHONO-1 and PHONO-2 is 2.5 mV into 47 kilohms, with a maximum input capability of 280 mV at 1 kHz before distortion climbs past 0.1%. Tape and auxiliary inputs sit at 150 mV into 87 kilohms. The service manual's parts list also confirms a microphone mixing input with its own level control. That feature turns up on a surprising number of Sansui receivers, and it makes the G 9700 usable as a modest PA in a pinch.

Full FM/MW Tuner with Quartz-Lock Tuning

The tuner section is a full FM/MW design, and it's not a stripped-down afterthought. The parts list documents a quartz-locked indicator lamp on the front panel alongside the FM stereo and selector indicators, and the front-panel switch array includes FM auto noise filter, IF band selection, Dolby FM mode, FM muting, and audio muting. The tuning range runs 88 to 108 MHz. Sansui built tuners that people actually used, and the G 9700's front end reflects that — the switching alone tells you this was meant to pull in distant stations cleanly, not just satisfy a checklist.

Dual LED Peak Power Meters

The front panel carries a dual LED peak-power display. The service manual documents a power indicator level adjustment on the F-3082 board along with a meter range switch. By 1980, LED bar graphs had largely replaced analog meters on flagship receivers, and the G 9700's version is one of the more elaborate, with a range selector for low-level listening.

Wood Bonnet and Smoked Front Plate

The service manual's parts list names the cabinet a "Wood Bonnet" and the front fascia a "Smoked Plate" over a "Front Glass" panel, with a separate "Masking Plate" behind it. Owner accounts describe the wood case as sturdy and durable. The G 9700 was built to sit in a living room and look like furniture, not lab equipment. The knob set is comprehensive: bass, midrange, and treble at 100kΩ (B) x 2, balance at 250kΩ (MN) x 2, plus selector, tuning, mic mixing, and tape monitor knobs. Push switches cover tone defeat, speaker A/B, power meter, meter range, loudness, high filter, and subsonic filter.

Voltage Selector and Protection Circuitry

The rear panel includes a voltage selector with plug and socket, a ground terminal, and a switched AC outlet. The main filter capacitors in the power supply are documented as 12,000 µF at 100 volts each. That is substantial reservoir capacitance for the era, and a common upgrade target for restorers. The power supply also carries a 6A and a 12A fuse in the primary circuit, and the schematic section gives the supply design its own page.

Historical Context

The G 9700 arrived at the tail end of the integrated amplifier's golden age, just as high-end audio was beginning to fragment into separates. It competed directly in the "monster receiver" category alongside Pioneer, Kenwood, and Yamaha, and it represented the culmination of Sansui's all-in-one philosophy, the idea that one chassis could do everything a serious listener needed. It was not among the rarest of the analog/digital hybrid receivers of its time, which is good news for anyone who wants one.

Collectors have long debated the G 9700 against the earlier G-9000. The consensus, according to collector discussions, is that the G 9700 is not as subjectively pretty as the G-9000, but it has better specs. The G-9000 has the cleaner, more classic face. The G 9700 has the direct-coupled output stage, the lower distortion figure, and the higher power rating. Sansui's own service documentation groups the G-9700 with the G-971, G-8700DB, and G-871DB in a shared manual, so the platform was part of a broader family and not a one-off.

The original price of $2,999 put it firmly in flagship territory. That was a lot of money in early-1980s dollars, and it likely explains why so many of these receivers stayed with their original owners for decades. It also helps explain why the survival rate is decent relative to the production numbers: people took care of them.

Collectibility & Value

The market for the G 9700 is wide and a little unpredictable. A fully serviced unit with an LED upgrade has been listed on Reverb at $685.83, while one collector reported picking up a working example for just $100. A $100 G 9700 is a project. A $685 G 9700 is a receiver someone else already did the work on.

Aging capacitors and worn controls are the prevalent issues owners report. That is true of virtually every receiver of this vintage and not a mark against the G 9700 specifically. The main filter capacitors are a known restoration target. One documented restoration replaced all electrolytic capacitors with Nichicon, Kemet, and CDM-USA parts, used Wima film capacitors on the tuner, display, tone, and phono boards, and upgraded the main filters from 12,000 µF to 15,000 µF at 100 volts.

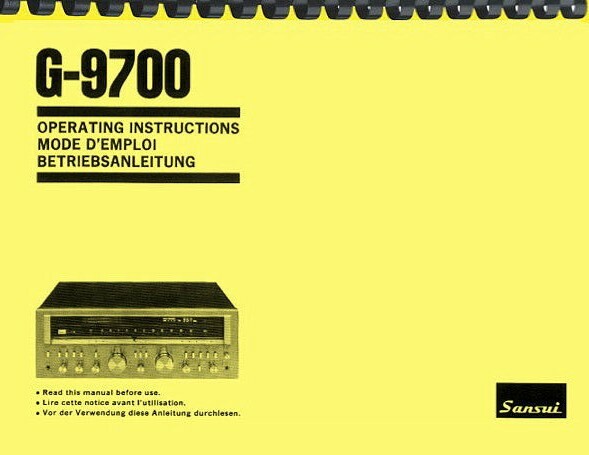

Modifications like adding pre-out/main-in jacks come up regularly in enthusiast circles. Owners want to use the power stage with modern preamps or feed the tuner section into a separate system. Manuals and service documentation remain available, with a combined owner's and service manual listing for $19.95.

The most common question prospective owners ask is blunt: "Any known issues? Goods and Bads?" The honest answer is that the goods — 200 watts, 0.02% THD, a genuinely good tuner, and a direct-coupled output stage — are substantial, and the bads are the ordinary ravages of forty-plus years. Nothing on this receiver is unfixable, and the documentation exists to fix it. That combination is why the G 9700 has held its following while plenty of its contemporaries have faded into parts units.
