Sansui G 4500 (1978–1980)

Forty watts, a silver face and a wood case - the receiver Sansui built for people who wanted the music to work.

Overview

The Sansui G 4500 is an AM/FM stereo receiver from the late 1970s, made in Japan. It was a budget-class unit, the kind of component that carried the Sansui badge without the flagship price. It was sold alongside the G-3500, and contemporary literature mentions the two together as part of a broader G-series lineup, though the G 4500's exact place in the hierarchy remains undefined. The design shows what Sansui was after: analog tuning, mechanical controls, and build quality over digital convenience. No digital displays, no synthesized tuning. Just dials, switches, and direct control.

Power output is rated at 40 watts per channel into 8 ohms, a figure corroborated across multiple sources. That won't impress anyone chasing headroom for inefficient speakers, but it's delivered into a stable load, and it's plenty for the modest rooms and efficient speakers this receiver was built to drive. Frequency response is quoted at 10Hz to 50kHz, which is wider than the audible band by a comfortable margin. The tuning section covers FM and MW, and owners consistently single out the radio performance. One describes it as "fantastic," which is high praise for a budget receiver.

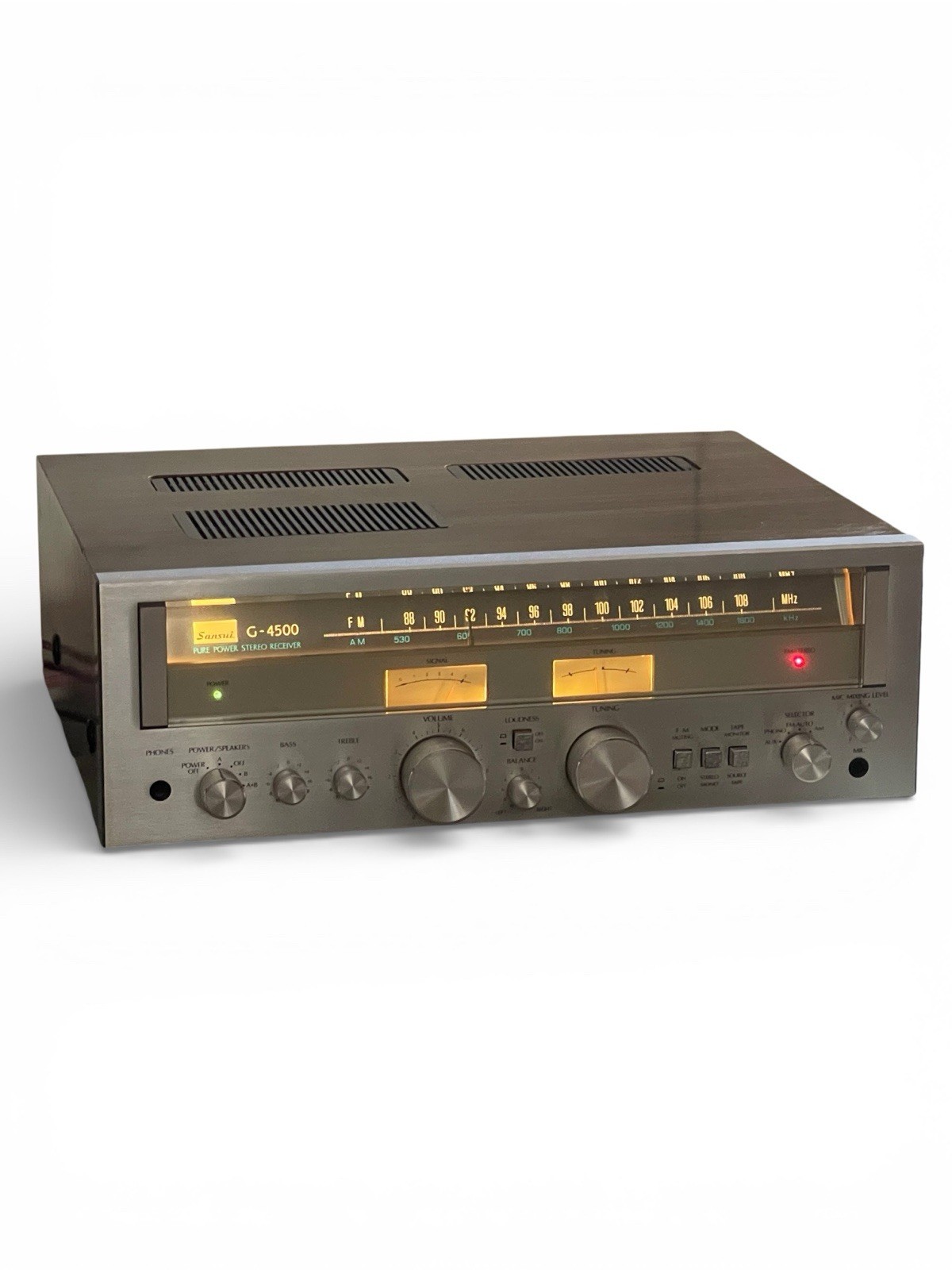

It's a substantial piece. It measures approximately 18 inches wide, 6 inches tall, and 14 inches deep, so it fills a full-width shelf without dominating it. The weight comes from the transformer and chassis rather than empty space. The finish is described as silver and wood: a brushed metal faceplate with a wood-grain case that looks at home in a living room rather than a rack. Owners report it delivers warm analog power with a clean, understated design. One user keeps theirs in the garage for extended work sessions.

This is not a receiver for someone chasing the last word in resolution. It has Phono, Aux, and Tape inputs and a capable tuner section, and it handles them without fuss. The G 4500 has developed a following among collectors who appreciate its straightforward operation, solid build, and warm analog character.

Key Features

40 Watts Per Channel into 8 Ohms

The G 4500's power section is rated at 40 watts per channel into 8 ohms, a figure that appears across multiple independent sources and is realistic for a budget-class receiver of this era. It's enough for bookshelf speakers and efficient floorstanders. The 30-pound chassis weight hints at a transformer with real iron in it. Input sensitivity is quoted at 8mV for microphone, 2.5mV for moving-magnet phono, and 150mV for line-level sources, so the phono stage suits typical cartridges of the period. Damping factor is listed at approximately 30, adequate for controlling the woofers in most speakers this receiver would be paired with.

Analog Tuning with FM and MW Bands

The tuning section covers FM and MW, and it's entirely analog. No presets, no digital readout, no synthesized scanning. You turn the knob, the needle moves, and the station comes in. Owners single out the tuner performance for particular praise, and one describes it as "fantastic." The design reflects late-1970s engineering priorities, where a good tuner section was expected even at the entry level, and the G 4500 appears to deliver on that.

Phono, Aux, and Tape Inputs

The inputs are Phono, Aux, and Tape. For a system built around a turntable, a cassette deck, and perhaps a CD player or outboard source, that's everything needed and nothing more. The phono stage accepts moving-magnet cartridges at 2.5mV sensitivity, which covers the vast majority of cartridges a buyer would have paired with this receiver in 1978. There's also a microphone input at 8mV sensitivity. That was more common on receivers of this era than it is today, and it lets you run a mic through the system.

Silver Faceplate and Wood Case

The finish is described as silver and wood: a brushed metal front panel with a wood-grain cabinet. It has aged well, and it's the main reason these receivers still look good on a shelf decades later. The design is clean and understated, with mechanical controls that give positive feedback when you turn a knob or flip a switch. There's no plastic feel here, and the controls can be operated by feel in a dim room.

Pop-Noise Preventive Circuit

The G 4500 has a pop-noise preventive circuit that combines driver-voltage delay with NF delay to suppress the transient thump that can occur when an amplifier powers on. According to the service documentation, the circuit uses a time constant built around capacitor C40 and resistor R88 to control transistor TR05, which in turn controls the NF resistor R51. When the power is turned on, the gain of the main amplifier stage is lowered for approximately two seconds, preventing the voltage drift from reaching the speaker terminals. That's a nice detail for a budget receiver.

Historical Context

The Sansui G 4500 arrived when integrated receivers were the centerpiece of home audio systems, combining amplifier, tuner, and switching in one chassis. It was positioned as a budget-class receiver, offering core functionality without the advanced features or higher power ratings of Sansui's flagship models, and aimed at value-conscious buyers who still wanted the reliability and sound quality associated with the Sansui name. High-Fidelity (March 1979, p.13) described the G-4500 and G-3500 as delivering levels of performance never before available in budget-class receivers. Production ran from 1978 to 1980 according to the main source, though at least two other sources give 1978 alone as the year. The narrower date is consistent with the broader range, but the exact end of production isn't firmly documented.

The G 4500 was sold alongside the G-3500, and contemporary literature mentions the two together, suggesting they were part of a broader G-series lineup. Its exact placement in the hierarchy remains undefined, but the pairing with the G-3500 indicates Sansui was addressing the entry-level market with more than one option. The design reflects late-1970s engineering priorities: analog tuning, mechanical controls, and build quality over digital convenience.

Collectibility & Value

The Sansui G 4500 trades in the secondary market between $150 and $750, depending heavily on condition and service history. A unit sold for $150 in November 2022, while fully serviced and recapped models list for as much as $749. A clean, working example is worth several times a unit described as "partially tested" or with known issues. The lower end of the market is populated by receivers with left channel failure or an inability to power up with speakers connected. Both are common problems with this model.

Restoration work typically involves recapping, cleaning of controls, and output transistor replacement. Technicians note that short circuits in the driver stage can persist even after initial repairs, so anyone buying a non-working unit should budget for more than a simple fix. Filter capacitors are available from parts sellers in the $70 to $165 range. That's useful to know if a unit hums or has weak bass, since those are often signs of tired power supply caps. One seller noted minor scuffing on the metal side plate and a missing speaker terminal cap on channel B, and said the missing cap doesn't affect performance.

The G 4500 has developed a following among collectors who appreciate its straightforward operation, solid build, and warm analog character. It's not a flagship. For someone who wants a reliable, good-sounding receiver with the Sansui name on the front, the market reflects that.
