Sansui BA-F1 (1979-1980)

At 20 kilograms and with a 250W power draw, this amplifier takes up a lot of rack.

Overview

The Sansui BA-F1 was a stereo DC power amplifier from Sansui Electric Co., Ltd., introduced around 1979 and produced through approximately 1980. It cost ¥120,000 at launch, which was steep for its time. It was built without compromise for audiophiles and professionals who wanted both big power and low distortion. Owners report it as one of the most technically ambitious amplifiers Sansui ever released. Its diamond differential circuitry and massive power supply define it. It didn't get much attention in mainstream reviews of the era, but restoration communities talk about it today, and people are rediscovering it, provided they're willing to wrestle with its complexity.

The BA-F1's design rejected shared components and signal crosstalk at every level. Symmetric monophonic construction meant each channel was effectively a standalone amplifier. That was backed up by independent power supplies, separate output switches, and a layout that followed the signal path. The amp delivers 110W + 110W into 8Ω) with a total harmonic distortion of 0.008% or less across the audible spectrum). Intermodulation distortion, a tougher measure under complex loads, stayed below 0.008%). Those numbers came from a cascade of custom engineering choices, from dual FET input stages to Sansui's proprietary NM transistors in the output stage.

Specifications

Manufacturer	Sansui Electric Co., Ltd.
Product Type	Stereo DC power amplifier
Year of Production	1979-1980
Original Price	¥ 120,000 (around 1979)
Effective Output (both channel operation)	110W + 110W (8 ohm, 1 khz, 0.003% THD)
Total Harmonic Distortion Rate (10 Hz to 20 kHz)	0.008% or Less (8 Ω)
Intermodulation Distortion Factor (70 hz : 7 khz = 4 : 1)	0.008% or Less (8 Ω)
Output Bandwidth (IHF, THD 0.02%, both channel operation)	3 Hz ~ 70 kHz (8 Ω)
Damping Factor (IHF, 1 kHz, both channel operation)	100 (8 Ω)
Frequency Response (1W)	DC ~ 600 khz + 0 -3dB
Input Sensitivity / Input Impedance (1 kHz)	1V/25k Ω
Signal-to-Noise Ratio (IHF, A-network, short circuit)	125 dB or more
Channel Separation (IHF)	105 dB or More (1 kHz)
Channel Separation (IHF)	98 dB or More (10 kHz)
Rise Time	0.5 μ sec
Slew Rate	± 200 V / μ sec
Load Impedance	4 ~ 16 Ω
Speaker Used	A, B : 4 ~ 16 Ω
Speaker Used	A + B : 8 Ω or more
Rated Power Consumption (Electrical Appliance and Material Control Law)	250W
External Dimensions	Width 430x Height 187x Depth 430 mm
External Dimensions with Rack-Mount Adapter	Width 482x Depth 450 mm
Weight	20kg
Weight with Rack-Mount Adapter	20.3 kg

Key Features

Diamond Differential Circuit Architecture

The core of the BA-F1 is a diamond differential circuit used throughout the signal path. The first stage is a direct-coupled voltage-differential amplifier with dual low-noise FETs and a current source. The pre-drive stage uses a dual complimentary service diamond differential circuit with cascode and bootstrap configurations, which improves stability and bandwidth. The final power stage is a current-differential push-pull circuit built around Sansui Custom NM transistors, made specifically for this amplifier. A 2-pole phase correction circuit rounds it out, and the whole arrangement gives very low distortion well into the high frequencies.

Independent Dual-Mono Power Supply

Power delivery was taken to an extreme. A large EI transformer sits centrally in the chassis, with two independent windings and separate rectifier circuits for each channel. That keeps operation stable under full load and stops channel crosstalk through shared power rails. The amp uses four newly developed custom 15,000 μF electrolytic capacitors. They account for a good part of the 250W power draw and the 20kg weight.

Chimney-Type Heat Sink and Thermal Management

Heat from the high-power transistors is handled by a large chimney-type heat sink, designed to promote natural convection airflow. The bonnet design integrates the heat sink into the chassis structure, which adds surface area and thermal mass. This passive cooling matters for extended use, especially given the amplifier's ±200 V/μsec slew rate and high damping factor. It works, but the heat sink's size adds to the amplifier's depth and makes ventilation clearance essential in rack installations.

Integrated Peak Power Meter with PAT. PEND Indicator

The front panel has a large power meter with a peak indicator system). A secondary meter sits between the 0 dB and +5 dB marks and lights up instantly when a peak signal is detected, giving real-time feedback on transients. It lets users watch for clipping or excessive drive levels, which is handy with high-efficiency speakers. The meter carries a "PAT. PEND" marking, which suggests Sansui considered the design novel enough to pursue a patent.

Symmetric Monophonic Construction and Signal Path Optimization

Symmetric monophonic construction set the layout. Each channel's circuitry is mirrored and isolated, with blocks arranged strictly according to signal flow. Output wiring is shortened by left and right independent output changeover switches, which cuts transmission loss between the output transistors and speaker terminals. This layout reduced parasitic capacitance and inductance, contributing to the amplifier's 0.5 μsec rise time and 3 Hz - 70 kHz output bandwidth (IHF, THD 0.02%).

Left and Right Independent Input Volume Control

Rare for a power amplifier, the BA-F1 has independent input volume controls for the left and right channels. They allow fine-tuning of channel balance without a preamp, which is useful where minor speaker or room asymmetries need correction. It also suggests the BA-F1 was designed to work with or without a preamp.

EIA Standard Rack-Mount Adapter Included

For professional or high-end home installations, the BA-F1 came with an EIA standard rack-mount adapter. Fitted, the unit expands to 482mm in width and 450mm in depth, meeting standard 19-inch rack specifications. Sansui clearly meant it to go into structured systems, not just sit on a shelf. With the adapter it weighs 20.3 kg, so sturdy shelving or rack rails are mandatory.

Collectibility & Value

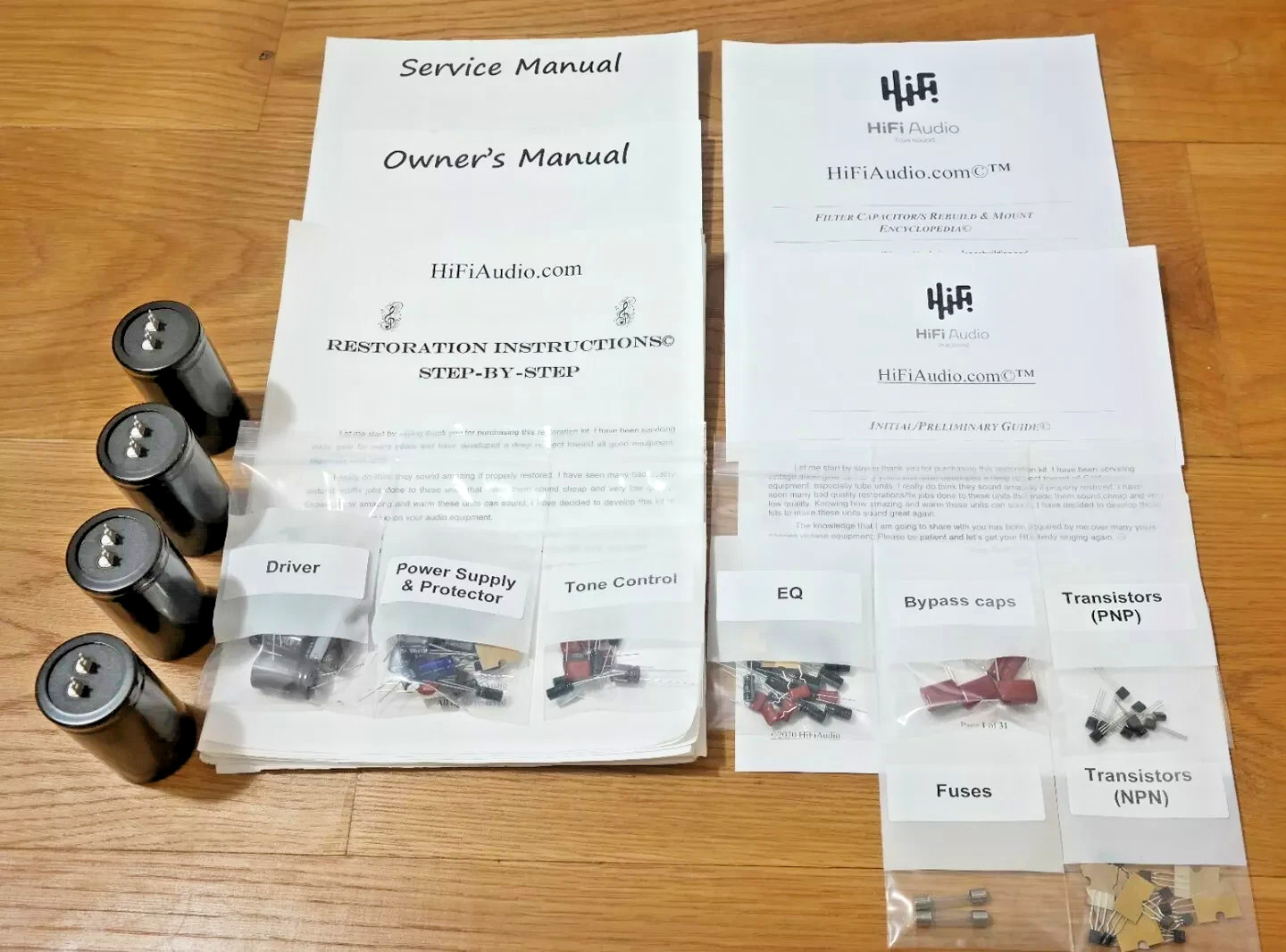

Current asking prices for the Sansui BA-F1 vary significantly with condition and restoration status. Listings report figures such as €2,199.99 (Audiovintageshop) and $1,300 - $1,400 AUD (StereoNET), indicating strong demand among collectors. Restoration comes up often: multiple sources reference completed or ongoing BA-F1 restorations, and one user notes complications from previous repair attempts, including shorted output module wiring (Facebook group post). The custom transistors and dense circuitry mean full restoration is not for beginners. Spare parts availability is undocumented, but the recurring discussion of recapping and output stage repairs suggests a niche but active support community. Given its weight, power demands, and technical depth, the BA-F1 remains a project amplifier.
