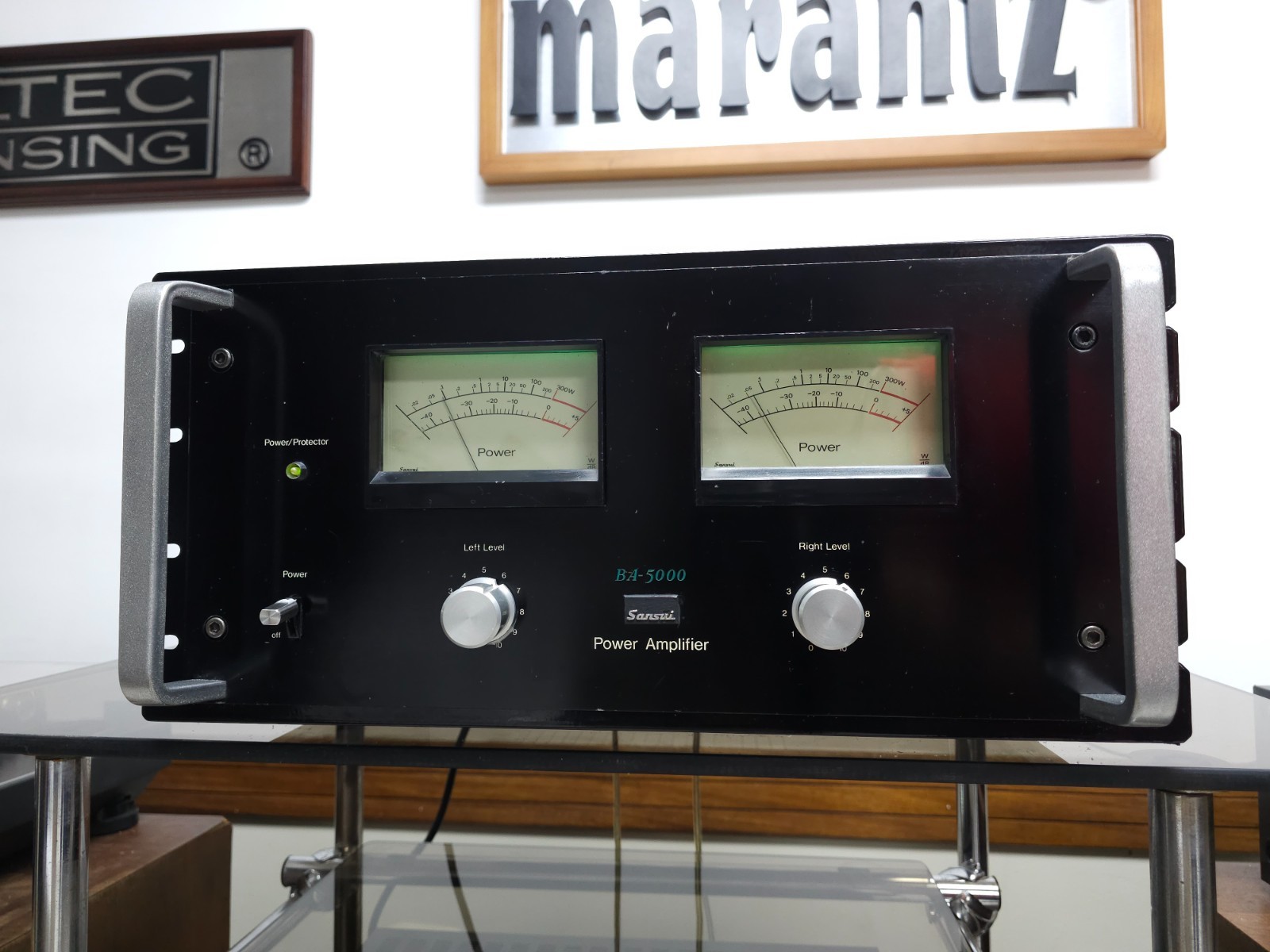

Sansui BA 5000 (1975-1977)

At 49kg, it is built for the floor, not the shelf.

Overview

The Sansui BA-5000 isn’t just another power amp from the 1970s—it’s a statement piece of Japanese engineering ambition, built during the peak of the high-power wars. Released in 1975 as part of Sansui’s so-called “definition series,” the BA-5000 was engineered to deliver extreme power with high reliability, using what was then cutting-edge circuit design and materials. It was never intended to be subtle. With a rated output of 300 watts per channel into 8 ohms across the full audioband (20Hz–20kHz), it stood among the most powerful consumer amplifiers of its day.

The BA-5000 was also designed with stability and speaker protection in mind. It has an output transformer, which is a rare feature in solid-state amps of this class. This "auto trans-type" transformer is said to isolate the amplifier's feedback loop from speaker back-EMF. That improves stability and allows consistent power delivery regardless of speaker impedance. Many transformerless designs from the era struggle to match that.

Specifications

Manufacturer	Sansui
Model	BA-5000
Year of Production	1975-1977
Product Type	Stereo/Mono Power Amplifier
Power Output (Stereo)	300W + 300W (8 Ω, 20 Hz – 20 kHz)
Power Output (Stereo, 1 kHz)	300W + 300W (2 Ω, 4 Ω, 8 Ω, THD ≤ 0.05%)
Power Output (Mono Bridged)	600W (4 Ω, 8 Ω, 16 Ω, THD ≤ 0.05%)
Power Output (Mono Bridged, 20 Hz – 20 kHz)	600W (16 Ω)
Load Impedance (Stereo)	2 Ω, 4 Ω, 8 Ω
Load Impedance (Mono)	4 Ω, 8 Ω, 16 Ω
Frequency Response	15 Hz – 30 kHz (+0, -2dB, at 1W)
Power Bandwidth (IHF)	20 Hz – 30 kHz (8 Ω)
Total Harmonic Distortion	≤ 0.1% (at rated output)
Total Harmonic Distortion	≤ 0.08% (at 1/2 rated output)
Cross Modulation Distortion	≤ 0.1% (70 Hz : 7 kHz = 4 : 1, SMPTE)
Damping Factor	10 (8 Ω)
Channel Separation	≥ 60 dB (1 kHz)
Hum and Noise (IHF)	≥ 100 dB
Input Sensitivity / Impedance	700mV / 50k Ω
Power Consumption	490W (rated), 1350W (maximum)
Dimensions (W×H×D)	482 × 222 × 466 mm
Weight	49kg

Key Features

Output Transformer with Band-Pass Effect

Most high-power solid-state amplifiers of the 1970s have no output transformer. The BA-5000 does, and Sansui marketed it as an "auto trans-type." According to Sansui, the transformer keeps speaker back-EMF out of the amplifier's negative feedback loop, which improves stability and sound quality. It also provides a damping effect that protects speakers and ensures consistent output regardless of load impedance. Transformers can color the sound, but Sansui claimed this one improved stability and sound quality through its band pass effect, while the transformer damping effect protects the speaker and provides maximum output regardless of the impedance of the speaker.

1 kVA Toroidal Power Supply with Independent Windings

The power supply is built around a massive 1 kVA toroidal transformer, chosen for its low leakage flux and excellent voltage regulation. The left and right channel windings are independently wound, which minimizes crosstalk and channel interaction. This dual-mono approach gives each channel its own clean supply, something usually reserved for professional or ultra-high-end gear. The claimed benefits are tighter bass, improved dynamics and better spatial separation.

Quad Parallel Push-Pull Output Stage

Each channel uses eight power transistors in a quad parallel push-pull configuration, with a pure complementary symmetry design. This lets the amp deliver sustained high current into difficult loads without strain. The output stage is preceded by two differential stages with active loads and two drive stages. The input buffer uses a three-element differential amplifier. This layered gain structure aims for precision and linearity, minimizing distortion even at full output.

Forced Air Cooling with Thermal Detection

The BA-5000 draws 1350W at maximum, so it relies on a forced air-cooling system. A fan switches on automatically based on heatsink temperature, which keeps things thermally stable during prolonged high-output operation. Few consumer amps of the era needed active cooling, but few delivered 600W in mono either.

Large RMS Power Meters with Direct Watt Readout

Large peak-indicating power meters with RMS display flank the front panel. The upper scale shows output in watts and the lower in dB, so power output can be read directly. They give real-time feedback on performance. The front panel is dual-layer aluminum, one layer for mounting and one for looks.

Two-Color LED Power Indicator with Error Detection

The power indicator doubles as a diagnostic. A custom two-color LED glows green during normal operation and shifts to red if an error is detected. This ASO (Abnormal Signal Output) detection system alerts users to potential faults before damage occurs. That was a layer of safety uncommon in domestic gear of the time.

Historical Context

The BA-5000 emerged in 1975, at the height of the Japanese high-fidelity boom, when power output was a key marketing battleground. Production ran approximately 1975 to 1977, a brief window, and it sat at the apex of Sansui's analog engineering capabilities.

Collectibility & Value

The BA-5000 is sought after by vintage audio collectors, particularly those focused on high-power Japanese amplifiers. It appears regularly on eBay, Reverb, HiFiShark, and enthusiast forums, often as a matched set with the CA-3000. No official current market valuation exists in the documentation, but one restored set (BA-5000 and CA-3000) was listed for 1500€, suggesting strong demand for fully serviced units. Recapping is a common restoration step, as aging electrolytics can degrade performance. Some users report oscillation issues, likely tied to aging components or improper biasing, though these are generally resolvable with proper servicing. Regular maintenance includes cleaning potentiometers and ensuring ..., is advised for long-term reliability.
