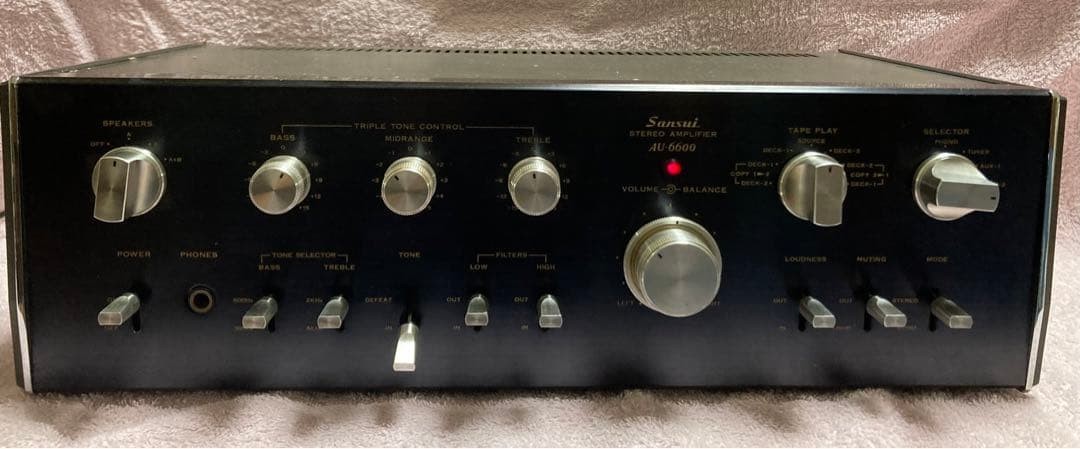

Sansui AU 6600 (1975-1976)

At 11.3kg, it lands in your rack heavy. This is serious engineering, not another box of transistors.

Overview

The Sansui AU 6600 is a solid-state integrated amplifier, marketed at the time as a "pre-main amplifier." It was built from 1975 to 1976, in Japan, during the golden era of Japanese high fidelity. It sits in Sansui's AU series, a lineage known for careful circuit design and musical transparency. It was developed to inherit the core performance characteristics of the more advanced AU 7700, bringing flagship-grade topology down into a slightly more accessible form. It's not a stripped-down version, but a focused one. It keeps the critical design philosophies and delivers a compact, no-nonsense package for discerning listeners. Sansui pursued measured performance and sonic refinement in equal measure here.

The AU 6600 weighs 11.3kg and measures 434mm wide. The design puts signal integrity ahead of looks. The back panel has an upward-facing terminal layout that mounts the input jacks directly to the equalizer board. That shortens the signal path and removes the internal shielding wires that can degrade high-frequency response. This direct coupling improves the signal-to-noise ratio and preserves transient detail. The grounding is the other big change. Conventional designs use the chassis as a common ground. The AU 6600 uses a single-point ground near the equalizer amplifier to prevent current interference between stages, a small upgrade that helps sound quality.

The amplifier section starts with a pure complementary OCL (Output Capacitor-Less) circuit, fully direct-coupled across all stages. That removes the coupling capacitors that can color the sound and gives a flat frequency response down to DC. A highly stable differential amplifier and bias compensation circuit hold the output at 0 VU potential, which limits drift and distortion. The driver stage is a three-stage Darlington configuration with carefully selected transistors, giving strong current delivery to the output stage. A large heatsink sits near the rear panel input terminals. That puts it outside the main amplifier enclosure, so heat dissipates efficiently. This thermal design supports sustained high output without thermal compression or instability.

Power comes from a heavy-duty transformer and silicon diodes in a dedicated power-supply block. The equalizer and tone amplifier stages are fed by a stabilized ± power supply. This dual-regulation approach gives clean, quiet voltage rails for the sensitive preamp circuits. Protection is a hybrid system that combines an electronic circuit and a relay, guarding the speakers against DC offset or overload. The tone control circuit uses NF (negative feedback) topology with Klix/Klukš precision elements. It gives ±13 dB of control at bass and treble frequencies, and ±5 dB at midrange.

Specifications

Manufacturer	Sansui Electric Co., Ltd.
Model	AU 6600
Type	Integrated amplifier
Year of Production	1975-1976
Power Output (both channels, 20 Hz – 20 kHz)	40W + 40W (8 Ω)
Power Output (both channels, 1 kHz)	45W + 45W (8 Ω)
Total Harmonic Distortion (Overall)	0.15% or less
Power Bandwidth (IHF)	5 Hz – 35 kHz
Frequency Response (at 1W)	10 Hz – 40 kHz, +0.5 / -1 dB
Damping Factor	30 (8 Ω)
Input Sensitivity / Impedance (Phono)	2.5 mV / 50 kΩ
Input Sensitivity / Impedance (Tuner, AUX, Tape Monitor)	100 mV / 50 kΩ
Hum and Noise (IHF, Phono)	70 dB or more
Tone Control (Bass)	±13 dB (50 Hz)
Tone Control (Midrange)	±5 dB (1 kHz)
Tone Control (Treble)	±13 dB (15 kHz)
Loudness Compensation	+10 dB at 50 Hz, +8 dB at 10 kHz (at -30 dB volume)
Low Filter	70 Hz = -3 dB (6 dB/oct)
High Filter	7 kHz = -3 dB (6 dB/oct)
Rated Power Consumption	90 W
Dimensions (W × H × D)	434 × 130 × 315 mm
Weight	11.3 kg

Key Features

Upward-Facing Input Terminals with Direct Board Connection

The AU 6600's rear panel has an unusual structure. The input terminals are mounted vertically and connected directly to the equalizer board with minimal trace length. That removes the need for internal shielded wiring, which can act as an antenna for noise or degrade high-frequency performance through capacitance. With a shorter signal path and no interconnects, Sansui improved the signal-to-noise ratio and preserved transient detail. This matters most in the phono stage, where signal levels are extremely low.

Single-Point Grounding Near Equalizer Amplifier

Rather than using the chassis as a common ground for all circuits, a practice that can introduce ground loops and current interference, the AU 6600 uses a single-point grounding scheme near the equalizer amplifier. This isolates the sensitive preamp stages from noise generated by the power supply and output stages, for a cleaner, more transparent sound.

Pure Complementary OCL Circuit with Full Direct Coupling

The power amplifier section starts with a pure complementary OCL (Output Capacitor-Less) design. There are no coupling capacitors between stages or in the signal path to the speakers. This allows true DC coupling from input to output, with a flat frequency response down to 0 Hz and no phase shifts or coloration from capacitors. The design supports bass control and transient accuracy, which suits dynamic, rhythmically complex music.

Stable Differential Amplifier and Bias Compensation Circuit

To keep the output stable, the AU 6600 uses a highly stable differential amplifier and bias compensation circuit. This holds the output point at 0 VU potential and prevents DC offset that could damage speakers or degrade sound quality. The circuit continuously monitors and corrects bias conditions, so performance stays consistent under thermal stress or long listening sessions.

Externally Mounted Large Heatsink for Improved Thermal Management

A large heatsink is installed on the lower part of the rear panel, which puts it outside the main amplifier enclosure. Heat radiates directly into the surrounding air instead of building up inside the chassis. Cooling is more efficient, which supports sustained high-power output and reduces thermal stress on the output transistors.

Heavy-Duty Power Supply with Stabilized ± Rails for Preamp Stages

The power supply uses a heavy-duty transformer and silicon diodes in a block configuration. The equalizer and tone amplifier stages are fed by a stabilized ± power supply, which gives clean, regulated voltage rails. The power delivery is split: raw for the power amp, regulated for the preamp. That minimizes noise and ripple in the sensitive early stages and contributes to the amplifier's low noise floor and high channel separation.

Hybrid Protective Circuit with Electronic Sensing and Relay

The AU 6600 has a protective circuit that combines an electronic sensing system with a relay. It disconnects the speakers in fault conditions such as DC offset, short circuits, or thermal overload. This dual-stage protection helps safeguard both the amplifier and the connected speakers, which is useful given the cost of vintage-compatible drivers and the risk of aging components failing.

Collectibility & Value

The Sansui AU 6600 has a quiet but steady following among vintage audio enthusiasts, particularly those who prefer understated engineering to flashy looks. Units in working condition have sold for as much as $849 (Holt Hill Audio), with others trading privately for $800 shipped within Canada (Facebook post by Speakerguy78). No official collectibility rating or market trend data exists, but its presence on Reverb, HifiShark, and eBay suggests consistent demand. Owners report generally positive experiences, with one noting it "works and sounds great" (Facebook), while others praise its "incredible sound quality and sleek aesthetic" (YouTube). Buyers should be cautious, though. Common issues include input stage failures, particularly affecting the aux, tape, and phono inputs (Facebook), and occasional weak output in one channel (YouTube). Bias adjustment is a known maintenance requirement, and the power cement resistor's tolerance can drift over time, affecting performance (diyAudio, StackExchange). As with many units from this era, a full service, including capacitor replacement and bias calibration, is often necessary for reliable operation.
