Pioneer SX 828 (1973–1975)

and with a silver faceplate flanked by dual power meters, it commands the rack like a console from a mission control built for music.

Overview

The Pioneer SX 828 isn’t just another receiver from the early '70s—it’s a statement piece from the peak of analog integration. Built between 1973 and 1975, this solid-state AM/FM stereo receiver stands as the largest model in Pioneer’s revered 'x2x' series, a lineage known for rugged engineering and near-high-end performance. Owners report it as a no-compromise design, built to last through decades of use, and capable of driving a wide range of speakers with authority. With its walnut veneer cabinet, silver front panel, and dual power meters, the 828 balances industrial precision with warm, furniture-grade aesthetics. It wasn’t marketed as budget gear; rather, it was engineered for listeners who demanded both refinement and muscle, punching well above its class in an era when receivers were the centerpiece of the home audio system.

Key Features

Dual Power Supply with Stable Output Stage

The SX 828 has a dual power supply. That separates it from budget contemporaries and contributes to its stable output stage. The layout helps isolate the sensitive preamp circuits from the high-current demands of the amplifier, which reduces crosstalk and improves dynamic headroom. The receiver keeps its composure with complex musical passages or demanding speaker loads. Collectors note that this design contributes significantly to the unit's reputation for reliability and clean power delivery, especially with inefficient or low-impedance speakers.

FET Front End and 4-Gang Tuning Capacitor

The SX 828 uses a FET (Field-Effect Transistor) front end, a progressive choice for its time that gives high input impedance and low noise. That helps with weak FM signals. Paired with a 4-gang tuning capacitor, the receiver offers precise and smooth station selection and minimizes tracking errors across the FM band. This combination was a hallmark of higher-end tuners in the early '70s. HiFi-Stereo (January 1973, p.47) noted that “Advanced FET/IC circuitry brings in each FM station smoothly and cleanly as though it's the only one on the dial,” attributing this to the unit's 1.7 µV sensitivity and .5dB capture ratio.

Phono Stage with Low-Noise Transistors

For records, the SX 828 has a dedicated phono stage built with low-noise transistors, designed to pull detail from LPs without adding hiss or coloration. Specific RIAA equalization accuracy and input sensitivity aren't documented in available sources. Owners report the stage as quiet and musical, able to handle both MM cartridges and, in rare configurations, MC setups - The front-panel bass and treble controls allow real-time tonal shaping, a convenience not always found on receivers of this caliber.

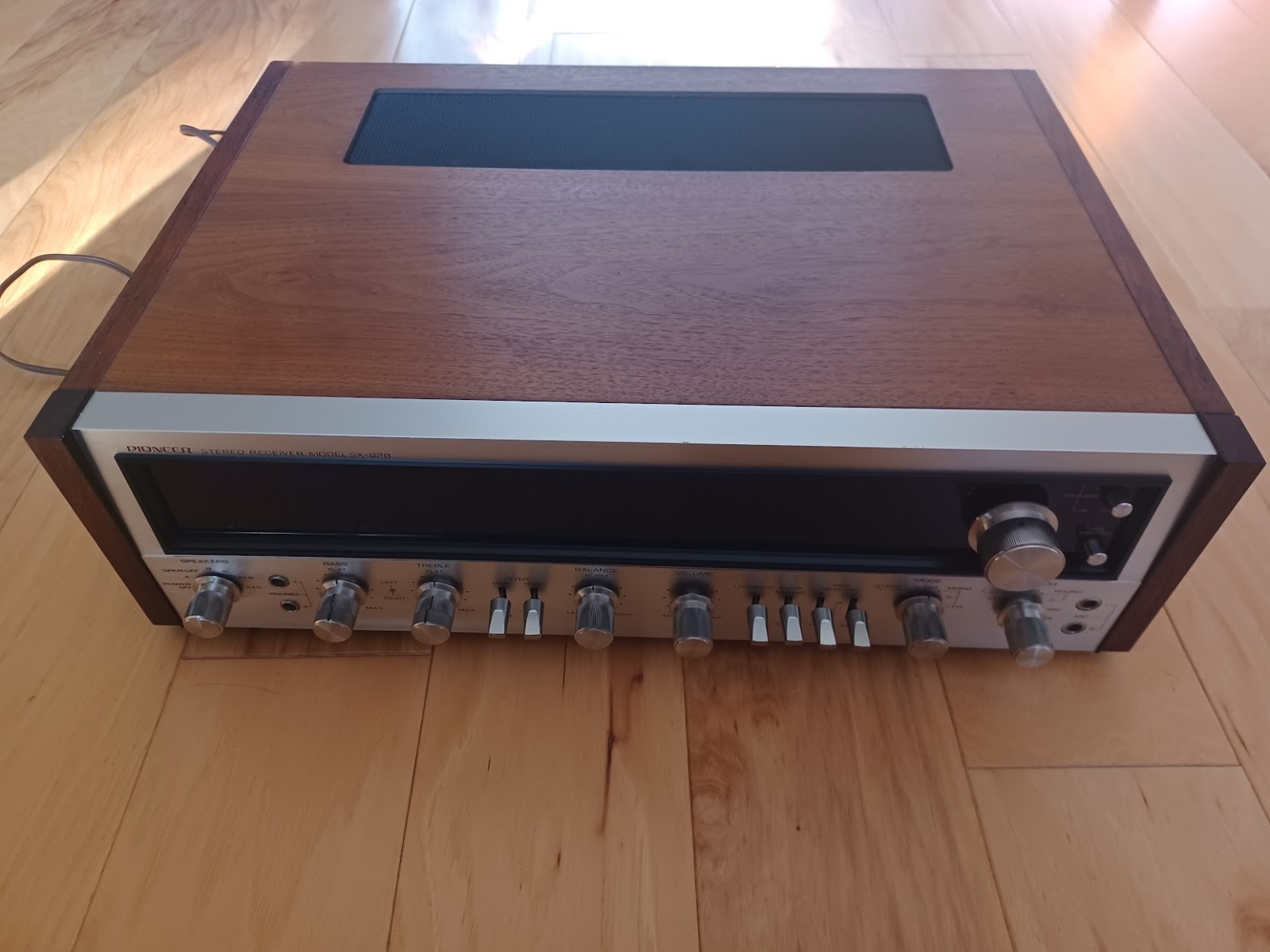

Dual Power Meters and Walnut Veneer Cabinet

Flanking the central display are dual power meters. They give real-time feedback on output levels, which helps users avoid clipping and match source material to speaker capabilities. With the silver faceplate and crisp analog dial, they give the SX 828 a technical, almost laboratory-grade look. The chassis sits in a walnut veneer cabinet, , contributing to both visual warmth and mechanical stability. The cabinet's density helps dampen internal vibrations, while the - offer practical connectivity for period-correct and modern setups alike.

Historical Context

The SX 828 was produced from 1973 to 1975, at the forefront of Pioneer's analog receiver development. Integrated receivers were the dominant hub of the stereo system then, combining tuner, preamp and power amp in one chassis. As the top model in the 'x2x' series, it represented Pioneer's engineering priorities: high sensitivity, low distortion and sturdy build quality. High Fidelity (April 1973, p.13) described the SX 828 as “extravagantly endowed,” and said it “dramatized magnificently” Pioneer's commitment to leadership in audio technology. It retailed for $429.95 with the walnut cabinet - a significant sum at the time, equivalent to over $3,000 today - which positioned it as a premium product for serious listeners.

Collectibility & Value

Today the SX 828 trades between $300 and $600, depending on condition, with fully serviced units at the higher end. A listing on Facebook Marketplace in 2024 asked $550, reflecting strong demand among vintage audio enthusiasts. Its collectibility rating of 7/10 stems from its reputation for durability, musicality and relative scarcity compared to mass-market models. Owners warn that the purchase price is only the beginning. Electrolytic capacitors degrade over time, and replacement is almost mandatory for safe operation. Controls and switches often develop scratchiness, which careful cleaning can remedy. Other potential issues include failing power supply transistors, burnt-out dial lamps and relay hiccups. A full recap and 30-point service can restore a tired unit to showroom condition, and some technicians report output power “still very close to factory specification” afterward. Replacement parts like the AWX-009 filter assembly ($26.79) and multi-voltage power transformers (listed as “RARE!” at $48.79) remain available on eBay, though the MC board, if original, is considered a valuable find.
