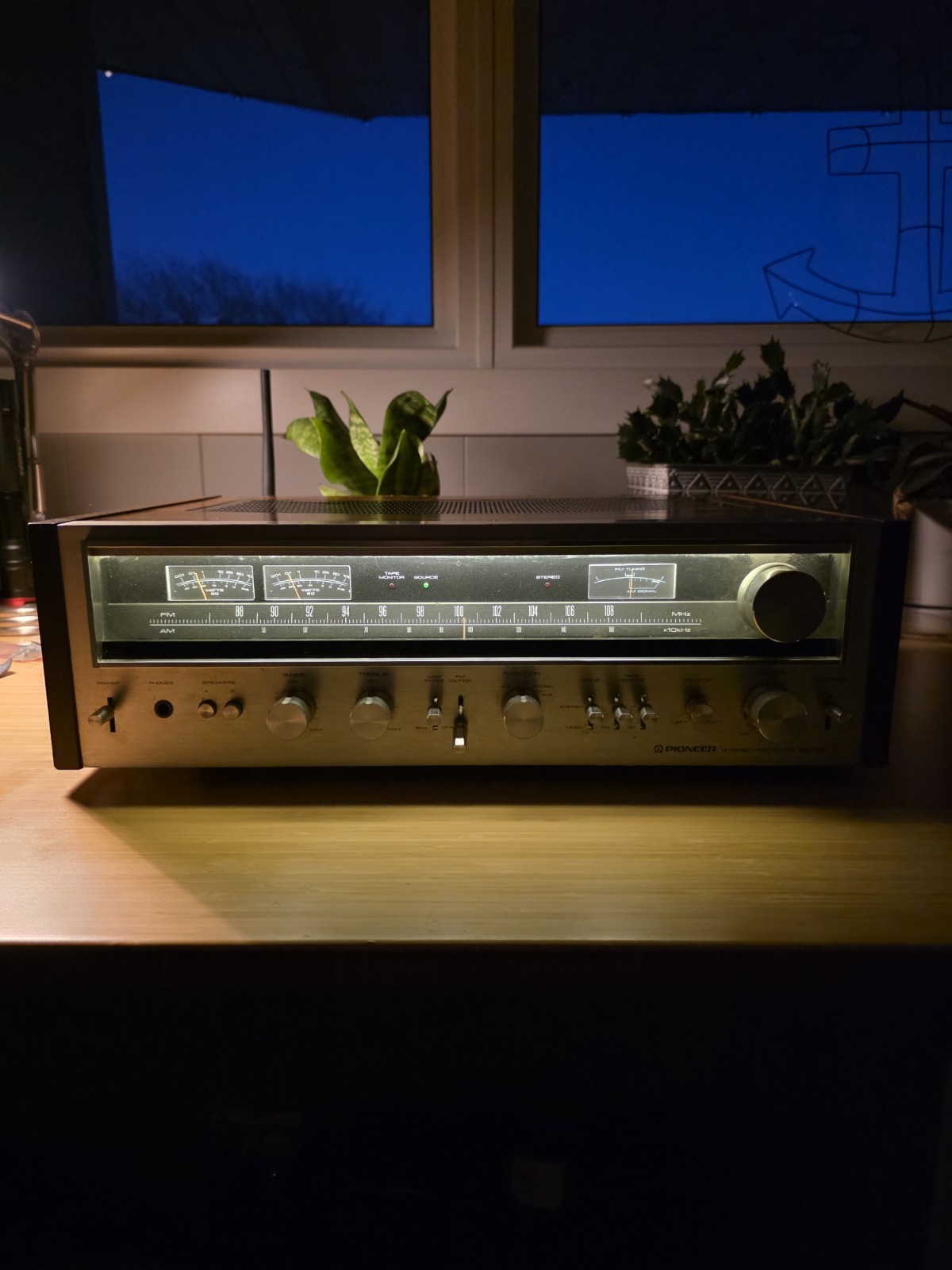

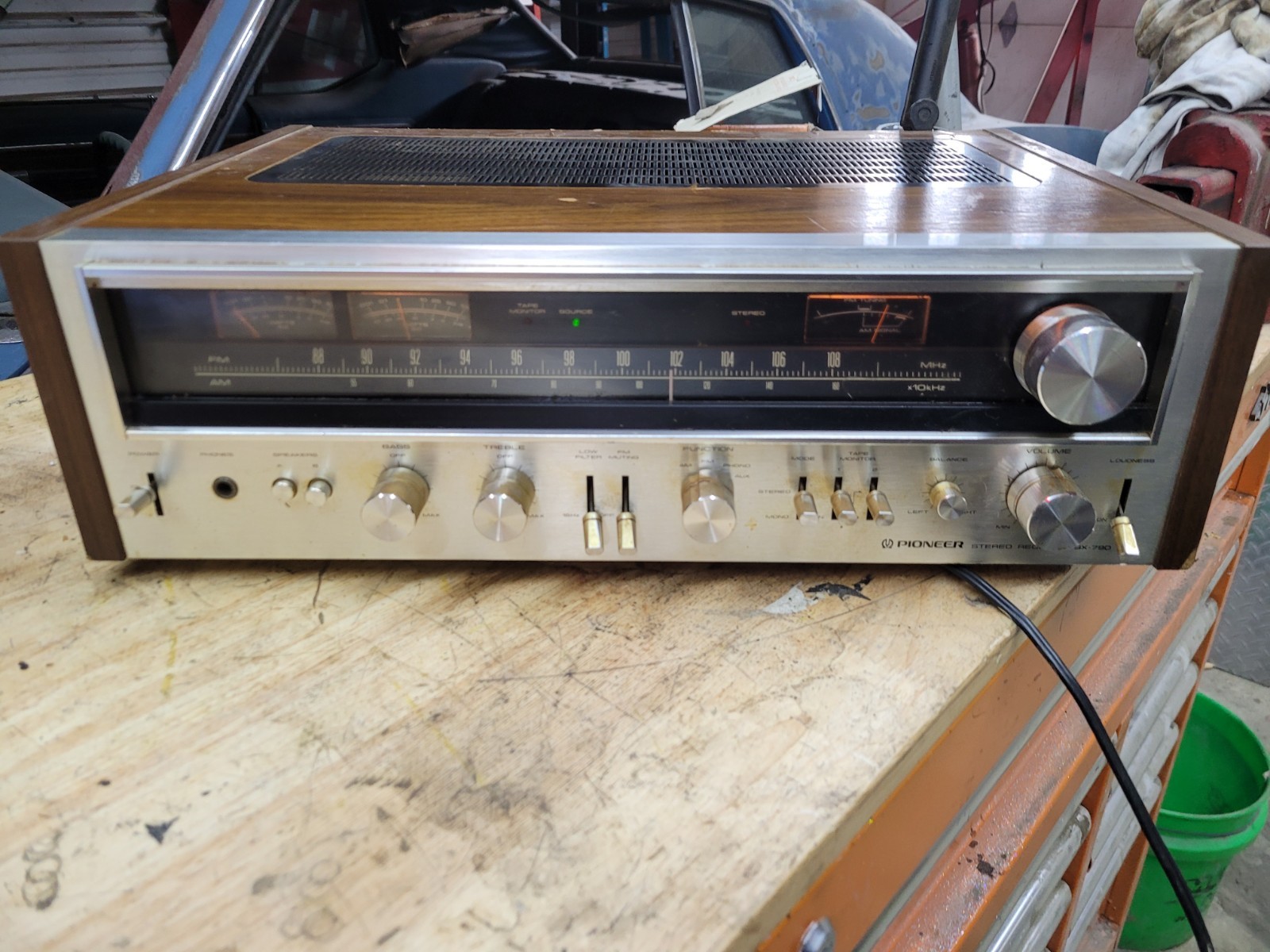

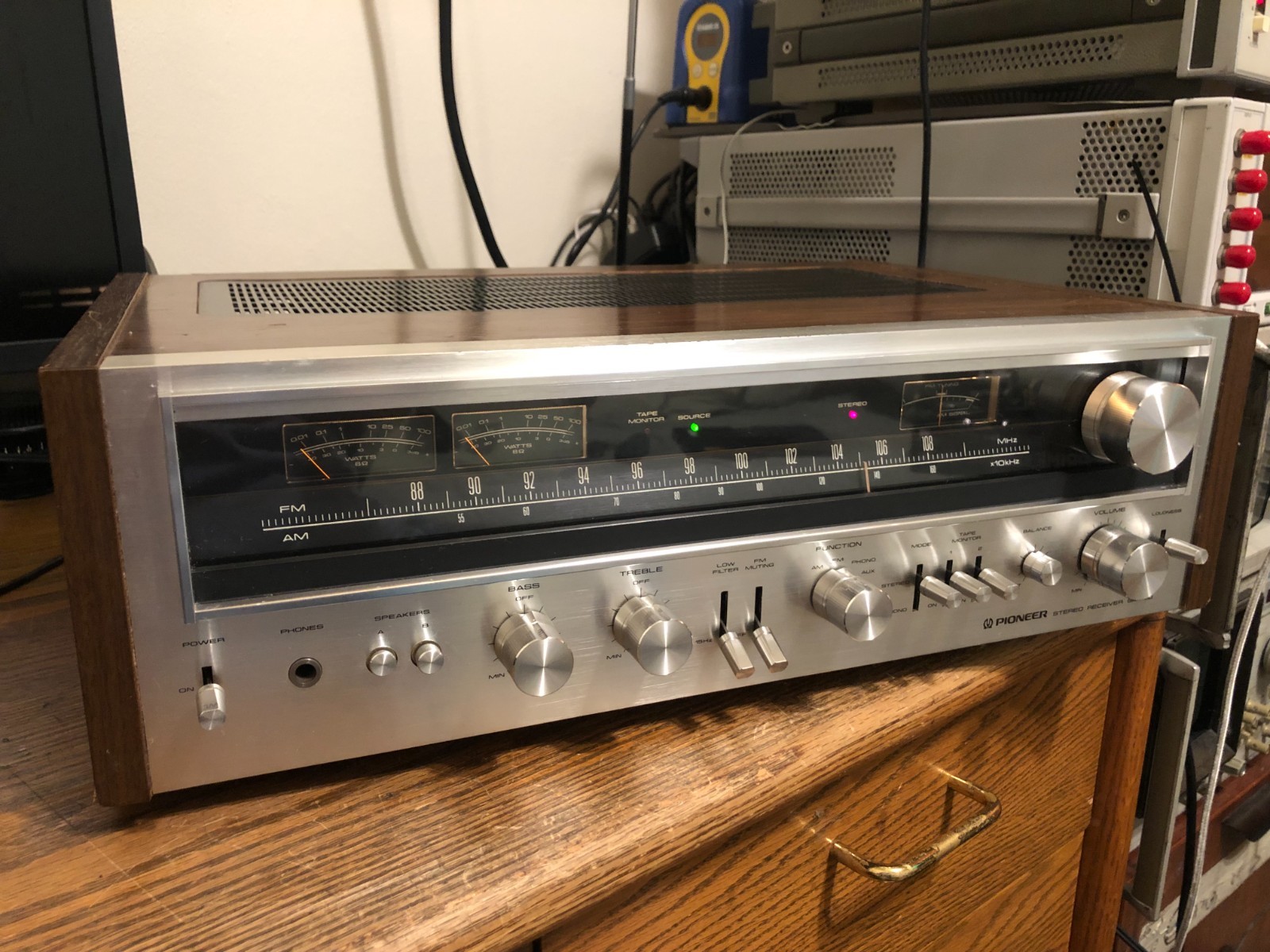

Pioneer SX 790 (1977-1978)

Specifications

Year of Production	1977-1978
Power Output	45 watts per channel (8Ω, 20Hz-20kHz, 0.5% THD)
Impedance	4-16Ω
Tuner Section	AM/FM stereo, FET front end, 5-gang tuning capacitor
Key Features	Black or silver faceplate, DC coupled amplifier, dual power supply, phono input for MM cartridges, loudness contour, tape monitor

Historical Significance

This receiver is the dark horse of the late '70s SX-x90 series. It is the SX-780's slightly more sophisticated sibling, with a black faceplate. It arrived as Pioneer was moving from the discrete builds of the early '70s toward the more efficient, integrated designs of the coming decade. It is still built like a tank where it counts, but it has an eye on the future.

Sound Signature

The size is modest, but 45 watts per channel is honest power. The sound is clean, punchy and authoritative. The bass has a tight grip, the midrange is warm, and the highs are detailed without getting harsh. It is forgiving yet revealing, and almost anything plugged into it sounds good. The phono stage is a particular highlight, quiet and dynamic.

Maintenance and Restoration Tips

First thing to check is the STK power amplifier modules. These hybrid ICs are known to fail after decades of thermal cycling. If one goes, you get distortion or no sound at all. Modern replacements are available. Beyond that, it's the usual suspects for a receiver of this age: every electrolytic capacitor wants replacing, especially in the power supply and tone control boards. The switches and pots will be crackly, and a good cleaning with DeoxIT is mandatory. The dial lamps are almost certainly out. Replacing them with modern LEDs (warm white, to keep the vintage glow) is a rewarding weekend project.

Collectibility and Market Value

For the savvy collector, the SX-790 represents a bit of a value play. Everyone fights over the silver-faced 780, but the 790 offers the same guts in that stunning, less-common black chassis. You can typically find them for between $150 and $300, with the price heavily leaning on cosmetic condition. A clean, fully-working example is an absolute steal and a centerpiece of any 1970s system. Collectibility? Let's call it a solid 7/10—it's a future classic that people are just starting to properly appreciate.
