Pioneer SX-225 (1988–1990)

Name: Pioneer SX-225
Brand: Pioneer

A sleeper hit from the late '80s that punches way above its weight — if you can find one that hasn’t gone thin and trebly on you.

Overview

The Pioneer SX-225 isn’t a name that rolls off the tongue like the SX-1980 or even the SX-250, but don’t let its quiet reputation fool you. This compact stereo receiver, built between 1988 and 1990, was part of Pioneer’s no-nonsense lineup during a time when solid-state reliability and clean power were starting to hit a sweet spot — without the bloated feature sets that would soon dominate the market. It wasn’t flashy, but it was serious about sound.

Marketed at around 500 DM in 1989, the SX-225 sat squarely in the mid-tier bracket: not a budget box, but not a flagship either. It was aimed at listeners who wanted a straightforward, well-built receiver that could handle both FM radio and vinyl with equal composure. And by all accounts from those who’ve kept theirs running, it delivered — sometimes shockingly well. One user on HiFi Engine put it bluntly: “While I tried quite new expensive yamaha receiver, this old Pioneer kicked it's ass. SX225 was the keeper.” That kind of praise doesn’t come easy.

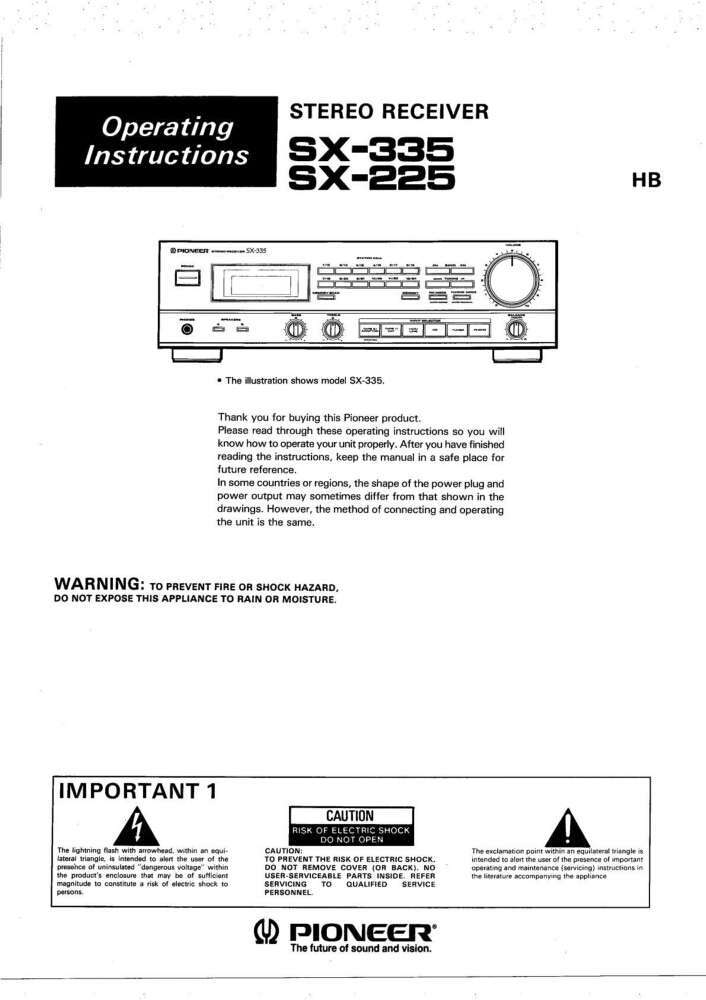

But here’s the catch: like any 35-year-old electronics, it’s a gamble. Units that have been powered on regularly tend to sing, but dormant ones can wake up cranky — one owner reported a “really thin, trebbly sound that is barely audible,” with distortion marring what should be a smooth performance. That kind of failure isn’t uncommon in aging receivers, and while the exact cause isn’t documented, it suggests something in the signal path — maybe output transistors, maybe coupling capacitors — has gone south. The good news? Replacement parts aren’t mythical: a new speaker relay for the SX-225, SX-227, and SX-229 is available for about US $8.18, and a service manual can be had for $10.25 if you’re willing to dig into repairs yourself.

Still, when it works, it works well. And what it offers, on paper and in practice, is more than just nostalgia.

Specifications

Manufacturer	Pioneer
Model	SX-225
Production Years	1988–1990
Type	Stereo Receiver
Power Output	38 watts per channel into 8Ω (stereo)
Frequency Response	10Hz to 70kHz
Total Harmonic Distortion	0.01%
Input Sensitivity	2.5mV (MM), 150mV (line)
Signal to Noise Ratio	68dB (MM), 86dB (line)
Output	150mV (line)
Speaker Load Impedance	4Ω (minimum)
Tuning Range	FM, MW
Dimensions	420 x 120 x 337mm
Weight	6.2kg
Usable Sensitivity	0.95 microvolts at 75 ohms

Collectibility & Value

The Pioneer SX-225 isn’t a trophy piece. You won’t find collectors flipping units for thousands, and it doesn’t dominate forum threads like some of its louder, more legendary siblings. But it has a quiet afterlife in the European secondhand market, where it’s valued for its reliability and sonic performance — when it works.

Recent listings show a consistent price range of €40 to €60 across platforms like Kleinanzeigen and tori.fi, with units typically sold “as seen” and without guarantees. That’s a steal if it’s functional, especially considering one user called it “a perfect choice for the (beginning) vinyl lover” and praised its 38-watt output as “more than sufficient for normal living room use.” Another added, “this receiver has one heck of a tuner” — a nod to its 0.95 microvolts usable sensitivity, which suggests it can pull in weak FM signals with surprising grace.

But buyer beware: there’s no documented history of common failure modes, no widespread reports of capacitor plague or relay corrosion specific to this model. The only red flag comes from a single AVS Forum post describing a high-frequency-heavy, distorted output — possibly a symptom of aging components or a failing power supply. Without more data, it’s hard to say how widespread that issue is. Still, with a service manual available and replacement relays still in production, the SX-225 isn’t a lost cause. For €50 and a few hours of tinkering, it could be the sleeper hit of your vintage setup.
