Onkyo TX-1500MKII (1978–1981)

Name: Onkyo TX-1500MKII
Brand: Onkyo

Not the brute you’d expect—this Onkyo packs a refined punch with a face full of knobs and a servo-locked soul.

Overview

The Onkyo TX-1500MKII isn’t one of those hulking 1970s receivers that promises 200 watts and delivers distortion. Instead, it’s a carefully built stereo receiver from the turn of the 1980s, made during Onkyo’s disciplined engineering phase when they favored precision over raw power. Built between 1978 and 1981, this model arrived when Japanese receivers were getting smarter—more stable tuning, better build, and thoughtful circuit design. It hit the market priced at 650 DM in 1978, placing it as a serious mid-to-upper-tier choice for European buyers who wanted a dependable, well-sorted AM/FM receiver without stepping into separates territory.

Don’t let the “MKII” fool you into thinking it’s a rare flagship—this is a classic Onkyo workhorse with a cult following among those who appreciate clean signal paths and tactile control. It’s the kind of unit that fills your rack with presence: a metal chassis wrapped in a wood-grain finish, fronted by a forest of knobs that make you feel like you’re piloting something important. And while it may not roar like some of its contemporaries, it was designed to deliver a balanced, stable performance with the kind of tuning accuracy that mattered when FM stereo broadcasts were still a novelty.

Specifications

Manufacturer	Onkyo
Model	TX-1500MKII
Years	1978–1981
Power Output	17 watts per channel, min. RMS, at 8 ohms both channels driven, from 20 Hz to 20 kHz, with no more than 0.3% total harmonic distortion
Voltage	110-240V
Power Consumption	150W
FM Mono Sensitivity	18.3 dBf (4.5 µV), 50 dB quieting
FM Stereo Sensitivity	39.2 dBf (50 µV), 50 dB quieting
Intermediate Frequency	10.7 MHz

Key Features

Servo-Locked Tuning: Stability Over Showmanship

The “Servo Locked” badge on the front isn’t just marketing fluff—it’s a real circuit designed to keep the tuner locked onto weak or drifting FM stations. This wasn’t universal in the late ’70s, and Onkyo’s implementation helped reduce the constant need to tweak the dial. Paired with the 10.7 MHz intermediate frequency—a standard for FM receivers of the era—it delivers solid reception with decent immunity to interference. The FM MPX decoder uses the LA3350 IC, a common but reliable chip for stereo demultiplexing, ensuring stable channel separation when the signal allows.

Knob-Filled, Wood-Textured Presence

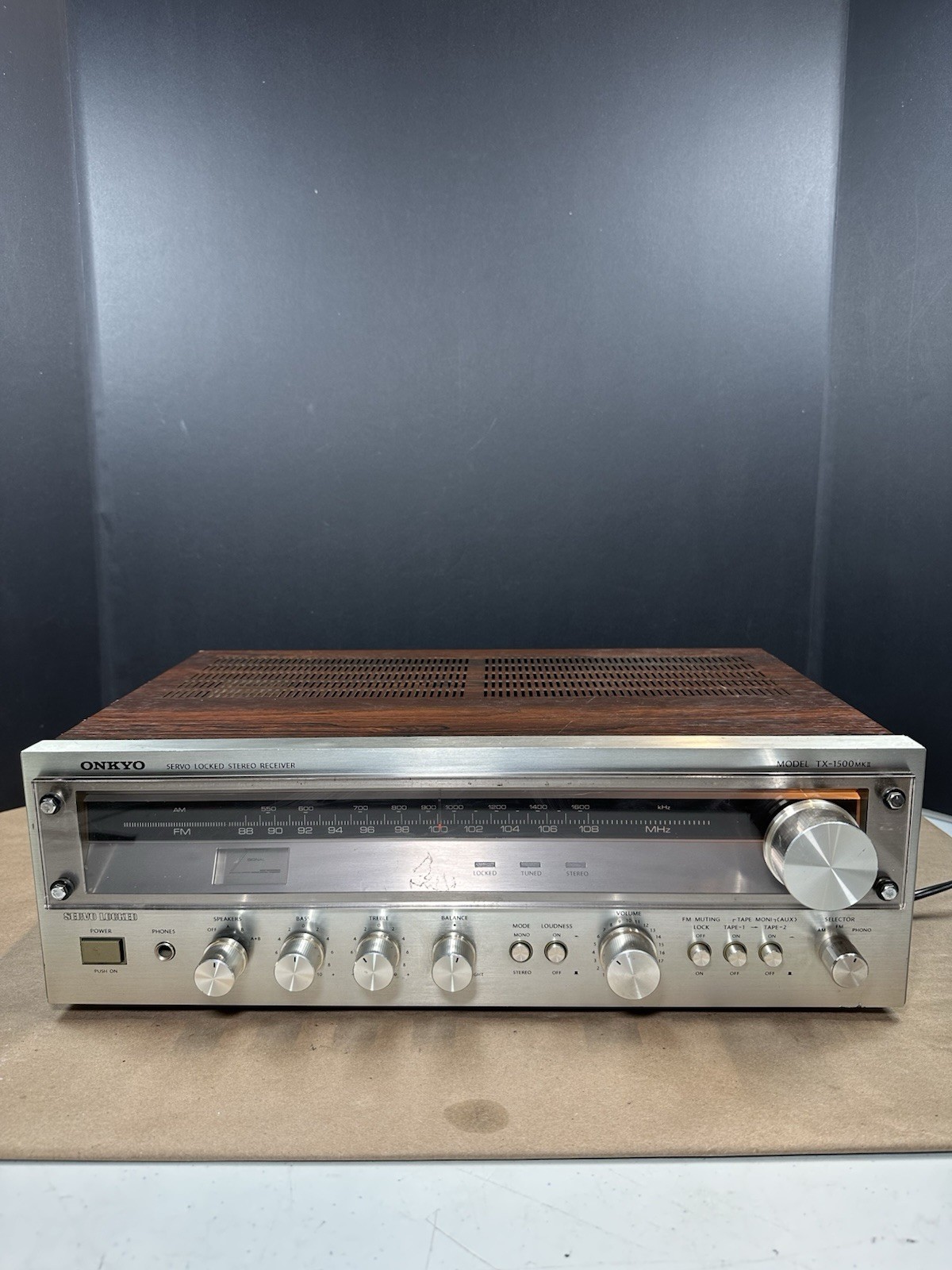

Owners note it has a “very pretty design furnishing many knobs”—a tactile, almost industrial charm that invites interaction. Everything from input selection to tuning is handled with physical controls, and the metal chassis with its wood-grain texture gives it that warm, analog-era aesthetic. It’s not flashy, but it feels substantial and deliberate. The front panel also includes a “Locked lamp” circuit, which likely illuminates when the servo system has successfully acquired and stabilized a station—a small but satisfying feedback cue.

Integrated Circuit Amplifier Design

Unlike the discrete, dual-mono monsters of the time, the TX-1500MKII uses the STK-459 IC for its power amplifier section. This was a cost-effective and compact solution that Onkyo used across several models, offering consistent performance with lower parts count. While some purists dismiss IC-based amps as lacking character, they’re actually quite reliable and sonically clean when properly implemented. The ripple filter transistor, a 2SD234(O) or (Y), helps smooth power delivery, and the dial illumination is handled by a dedicated PC board (NAPL-474), making replacements easier for restorers.

Collectibility & Value

The TX-1500MKII trades in the €40 to €250 range, with recent listings (2025–2026) clustering between €100 and €180 for units in working condition. Prices vary widely based on cosmetic state and functionality—€86 listings are likely untested or cosmetically worn, while €200+ examples are often serviced or freshly cleaned. It’s not a barn-burner in terms of value growth, but it’s far from forgotten. Restoration kits are available, specifically marketed as “Onkyo TX-1500 MKII restoration kit filter capacitor repair rebuild fix,” targeting the inevitable aging of electrolytics in the power supply and signal path.

Service manuals are accessible through outlets like Manualslib, Elektrotanya, and eBay, which makes repairs feasible for DIYers. That availability matters—without documentation, even simple fixes become guesswork. While there’s no widespread data on common failures, the presence of repair resources suggests the model has a small but active support base. It’s not the most powerful or exotic Onkyo receiver, but for those who appreciate the brand’s clean, functional design language, it’s a satisfying piece to own and maintain.
