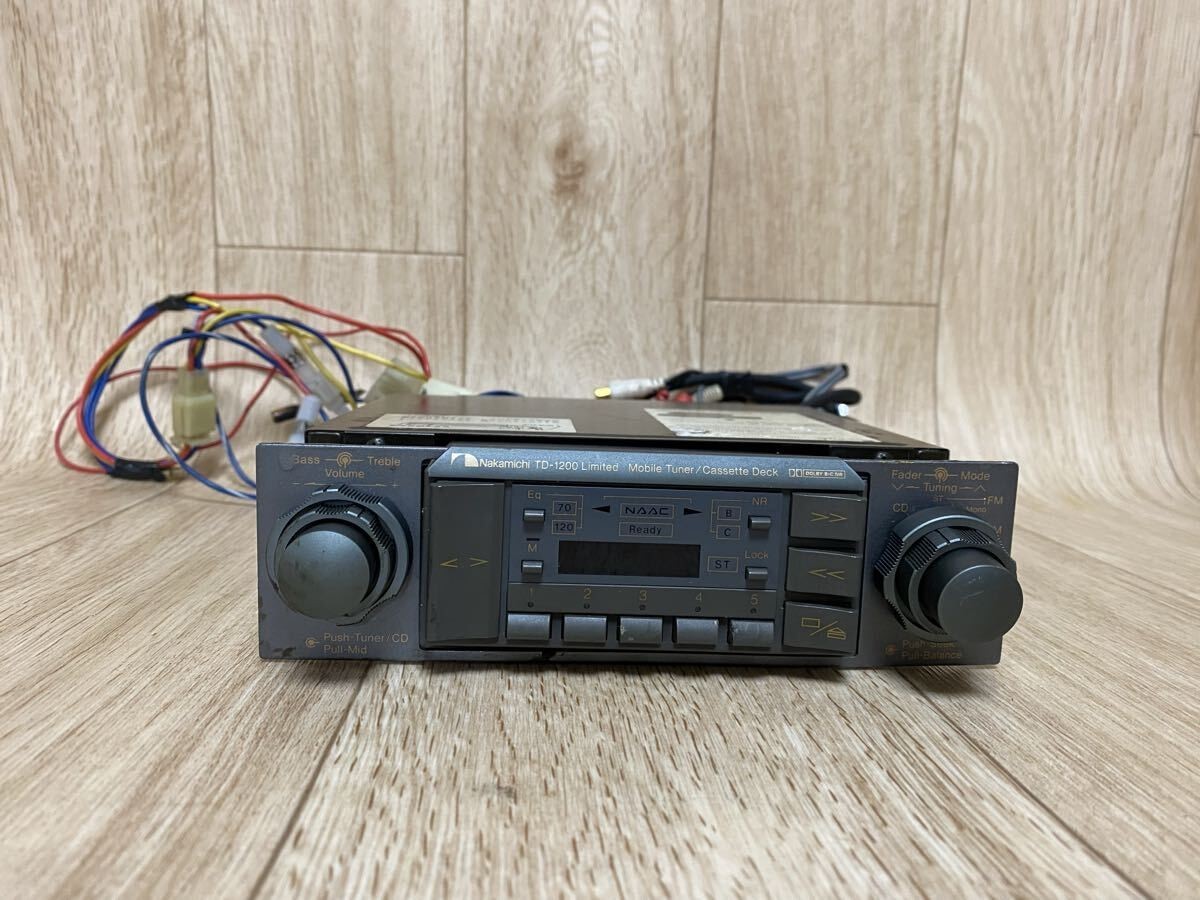

Nakamichi TD-1200II (1985)

Name: Nakamichi TD-1200II
Brand: Nakamichi

One of only three cassette decks ever made with auto azimuth correction—and the only one built for your dashboard.

Overview

If you’ve ever popped a tape into a car deck and thought, “This could sound better,” Nakamichi heard you—back in 1985. The TD-1200II wasn’t just another in-dash cassette player; it was a high-end, precision-engineered mobile audio system that brought flagship home deck technology into the automotive world. At a time when most car tape players were built for convenience, not fidelity, the TD-1200II stood alone: a 1 DIN-sized marvel with the same auto azimuth correction system found in the legendary Nakamichi Dragon.

This thing was serious hardware. The TD-1200II was one of only three cassette players ever built with auto azimuth adjustment, and it remains the only one designed specifically for car use. That alone makes it a unicorn in the vintage audio world. While most mobile decks sacrificed performance for space and durability, Nakamichi doubled down on quality—packing in a discrete 3-head configuration, Sendust and ferrite heads, and a full logic transport, all squeezed into a standard dash slot. It wasn’t just rare. It was radical.

And let’s be clear: this wasn’t a home deck with a power adapter slapped on. It was engineered from the ground up for the vibrations, temperature swings, and electrical noise of automotive environments—without compromising on the details that audiophiles obsess over. The NAAC (Nakamichi Auto Azimuth Correction) mechanism continuously adjusted the playback head’s alignment using only the audio signal, ensuring optimal high-frequency response no matter the tape or wear on the mechanism. That same system powered the Dragon. Here, it was doing duty in a car.

Specifications

Manufacturer	Nakamichi
Type	3-head, single compact cassette deck
Track System	4-track, 2-channel stereo
Tape Speed	4.8 cm/s
Heads	1 x record, 1 x playback, 1 x erase
Motor	1 x brushless DC servo motor, 1 x DC motor
Frequency Response	20Hz to 21kHz (Metal tape)
Signal to Noise Ratio	72dB (Dolby C)
Total Harmonic Distortion	0.8%
Wow and Flutter	less than 0.045%
Input	50mV (line), 0.25mV (mic)
Output	0.5V (line)
Dimensions	430 x 135 x 310mm
Weight	8.5kg
Unit Size	1 DIN

Key Features

The Dragon’s Brains in a Dashboard Body

The heart of the TD-1200II is its NAAC (Nakamichi Auto Azimuth Correction) mechanism—the same system that made the Dragon a benchmark in home audio. This wasn’t just a gimmick; it was a real-time, signal-driven feedback loop that constantly adjusted the playback head’s azimuth to maintain perfect alignment. No user intervention. No manual tweaking. Just optimal high-frequency response, every time. And yes, the playback head itself is the same unit used in the Dragon—though the mounting and body differ—making this one of the few car decks with a direct lineage to a reference-grade home machine.

Discrete 3-Head Configuration & Precision Mechanics

Three separate heads—record, playback, erase—meant no compromise in function. Unlike single-head or switchable designs, the TD-1200II could monitor playback during recording and maintain consistent alignment. Combined with a DC servo capstan motor and brushless transport, it delivered tape speed stability that rivaled high-end home decks. The wow and flutter rating of less than 0.045% is astonishing for any cassette player, let alone one designed to survive potholes.

Full Logic, No Compromises

“Full logic solenoid transport control” sounds like marketing jargon—until you use it. Every operation, from play to eject, was handled by precision solenoids with mechanical feedback, eliminating the mushy feel of cheaper motor-driven transports. The soft-touch controls had a deliberate, almost surgical click. The center-opening, damped door closed with a satisfying thud, protecting the mechanism from dust and debris.

Smart Features for Its Time

The TD-1200II packed in features that were advanced even for home decks: memory play with repeat, music search, blank skip, and a 3-digit mechanical counter with memory stop. Peak reading meters with LED indicators gave real-time level feedback—critical for recording from external sources. And for those who wanted to fine-tune their setup, there were onboard adjustments for bias, sensitivity, and equalization.

Security and Serviceability Quirks

It also had a ROM IC with a copper shield and a ground screw—overkill, maybe, but telling of Nakamichi’s build philosophy. More notably, the unit could be locked with a factory-set security code, written in black ink beside the ROM or painted on top. This wasn’t user-programmable; it was a theft deterrent. If the battery died or the unit was disconnected too long, the code could be lost, rendering the deck unusable. Owners report that the internal backup capacitor or battery might fail over time, leading to power or input faults after long disuse. Some have bypassed the lock by transplanting the ROM and microcontroller from a TD-800, which had no such code.

Historical Context

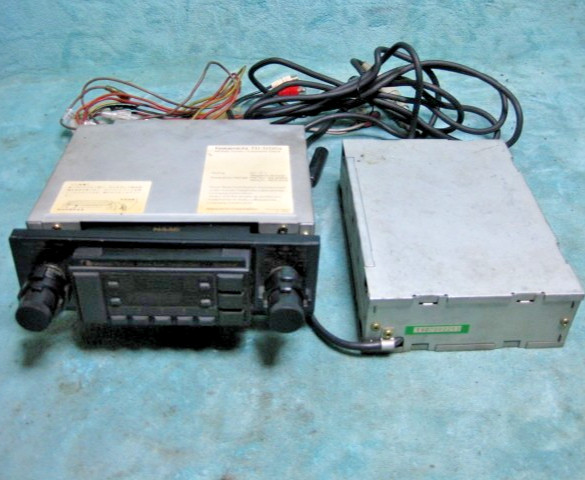

The TD-1200II was a sub-version of the TD-1200, which itself came in at least two forms: an original non-DIN mobile deck and a later, smaller DIN version with reported improvements to the tuner and transport. The II model refined the concept into a standardized 1 DIN form factor, making it easier to install in more vehicles. It was part of a tiny elite—only three cassette decks ever featured auto azimuth correction, and this was the sole example built for automotive use. There was also a TD-1200II Millennium Edition or Limited Edition, which reportedly included RCA inputs on the tuner box, suggesting a focus on integration with external systems.

Collectibility & Value

Finding a working TD-1200II today is rare. These decks were never mass-produced, and their complexity means many have succumbed to age-related failures. The security code lockout is a notorious hurdle—units that have been sitting for years often won’t power on without the correct code, which may be scrawled beside the ROM IC or painted on top. Corrosion is another potential failure point, especially in units exposed to moisture or salt air.

Despite the challenges, demand is real. A TD-1200II SE was listed on eBay for $2,200, and another pre-owned unit appeared at $2,091.45—serious money for a car deck. Collectors are drawn to its pedigree, its connection to the Dragon, and its status as a technological outlier. But ownership isn’t passive: be prepared to dig into the chassis, check the backup capacitor, and possibly hunt for a hidden code. The preset button for number three is also known to develop blemishes, a small but telling sign of wear.

It’s not a plug-and-play relic. It’s a project for someone who respects what Nakamichi was trying to do: bring uncompromised high-fidelity tape performance into the car, no excuses.
